Product Overview

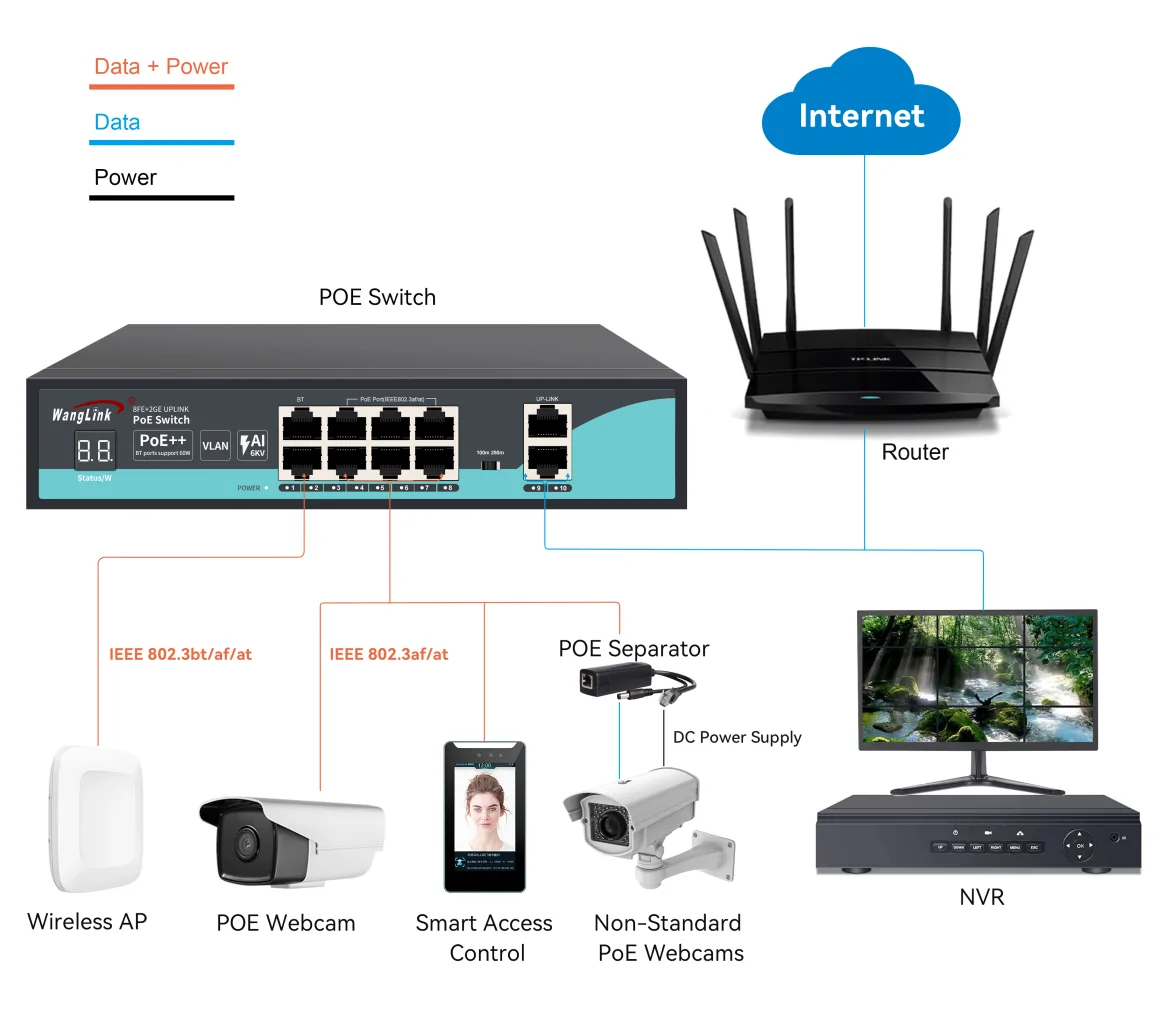

The SL82P-V2 8-Port PoE Switch is a high-performance networking solution that provides both power and data connectivity. This 8-port PoE switch is equipped with 8 10/100Base-TX Ethernet ports and 2 10/100/1000Base-T uplink ports, offering a versatile solution for various network configurations. Port 1 supports the IEEE 802.3BT (PoE++) standard for high-power devices, while ports 2-8 support IEEE 802.3 af/at PoE. With a PoE++ port delivering up to 60W and PoE ports offering 25.4W each, this switch provides a total PoE power budget of 120W. The intelligent PoE detection ensures that only PoE-compatible devices receive power, protecting non-PoE devices from potential damage.
Key Features
- 8 10/100Base-TX PoE ports and 2 10/100/1000Base-T uplink ports for flexible network deployment.
- Supports IEEE802.3 BT/af/at PoE protocol for efficient power delivery.
- One-key switch to VLAN mode and 250m long distance transmission mode for extended range.
- Digital tube display for real-time monitoring of PoE online utilization rate.
- Supports 10/100/1000Mbps auto-negotiation for optimal connection speeds.
- Half/Full duplex adaptive and auto MDI/MDI-X functionality for seamless integration.
- All ports support wire-speed forwarding for maximum performance.
- Supports both desktop and wall-mounted installation options.
- Plug and Play design for easy and quick setup without configuration.
- Durable metal casing and internal power supply for reliable operation.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE802.3ab 1000Base-TIEEE 802.1p tagged framesIEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 1×8 RJ45，1×2 RJ45 |
| Transmission rate | 10/100/1000Mbps auto-negotiate； | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 1Mb | |
| Jumbo frames | 9216b | |
| Packet Forwarding Rate | 4.1664Mpps@64byte | |
| Bandwidth | 5.6G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Ethernet indicator | Green, per ethernet port | |
| DIP switch | 100m | Standard mode – All ports can communicate with each other. |
| 250m | Extend mode, port 1-4 are isolated from each other, transmission distance can up to 250m, and can communicate with port 5-6. | |
| Power parameters | Input voltage | AC100~240V, 50Hz |
| Power consumption | Standby: ≤3W; whole: ≤120W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | Bt port≤60W，af/at port≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

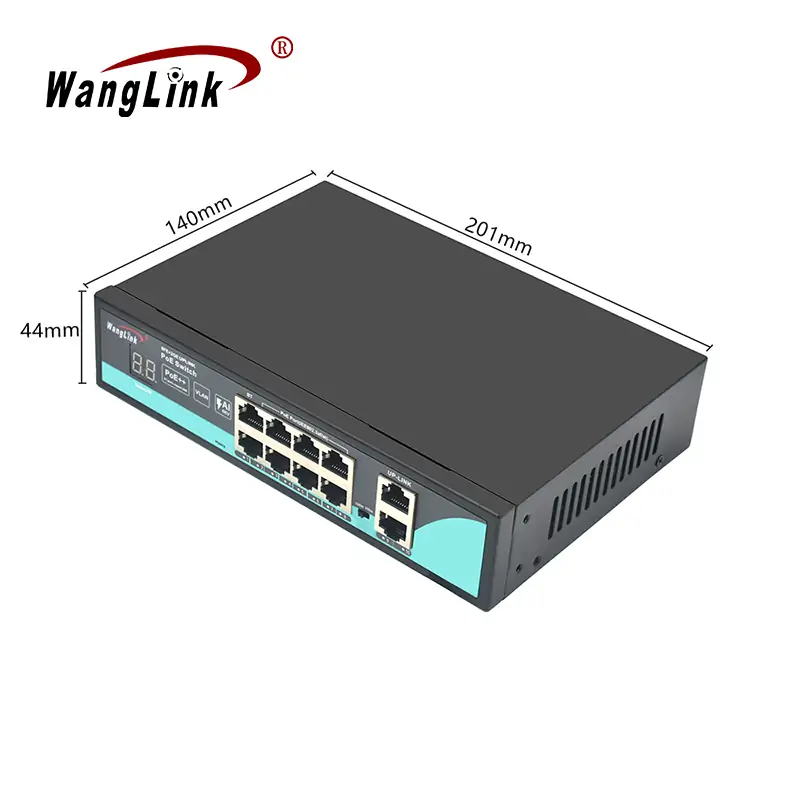

| Physical properties | Size | 201×140×44mm |
| Weight | Net weight:0.7kg,Gross weight: 0.9kg |
