Product Overview

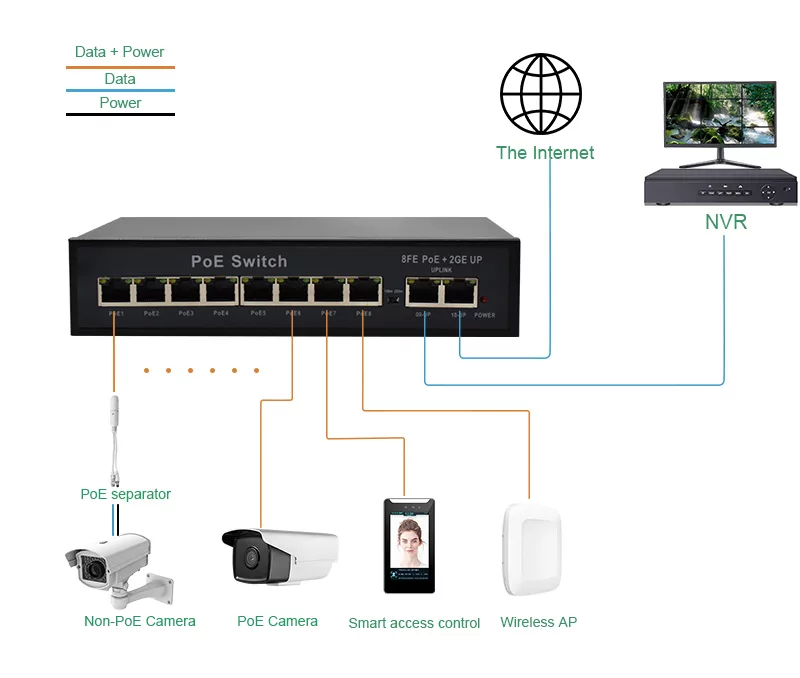

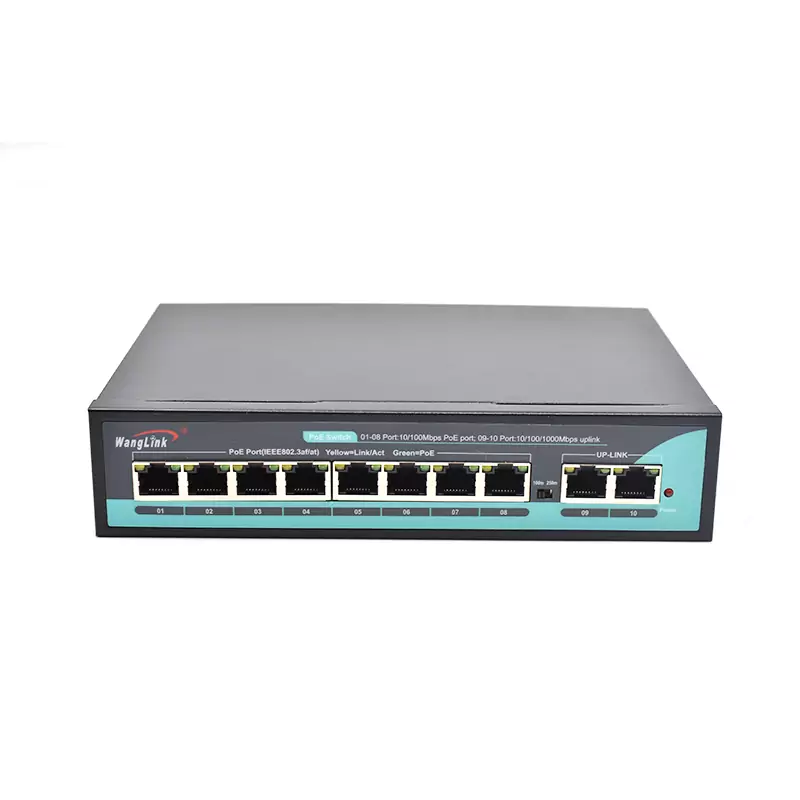

The Switch PoE 8 Port is a powerful networking solution designed to provide both data and power connectivity for various applications, including video surveillance, hotels, shops, supermarkets, and small to medium-sized enterprises. This switch features eight 10/100Base-TX Ethernet ports that support Power over Ethernet (PoE) capabilities, allowing you to power compatible devices directly through the network cable. Additionally, it includes two 10/100/1000Base-T uplink ports for enhanced connectivity options.
Key Features
- 8 PoE Ports: Eight 10/100Base-TX ports that support IEEE 802.3 af/at protocols, delivering a maximum output power of 25.4W per port.
- Total PoE Power Output: The switch provides a total PoE power output of up to 96W, accommodating multiple powered devices simultaneously.
- VLAN and Long-Distance Support: Easily switch to VLAN mode and enable 250m long-distance transmission through the DIP switch, extending network reach without compromising performance.
- Auto-Negotiation: Ports 1-8 support 10/100Mbps auto-negotiation, while ports 9-10 support 10/100/1000Mbps auto-negotiation for optimal data transfer speeds.
- Network Isolation: Ports 1-8 are mutually isolated, effectively reducing broadcast storms and improving network efficiency, while still allowing communication with uplink ports.
- Adaptive Duplex: Supports half/full duplex adaptive and auto MDI/MDI-X functions for seamless integration into existing networks.
- Wire-Speed Forwarding: All ports support wire-speed forwarding, ensuring high-speed data transmission.
- Easy Installation: Designed for desktop or wall-mounted installation, the switch features plug-and-play functionality with no configuration required.

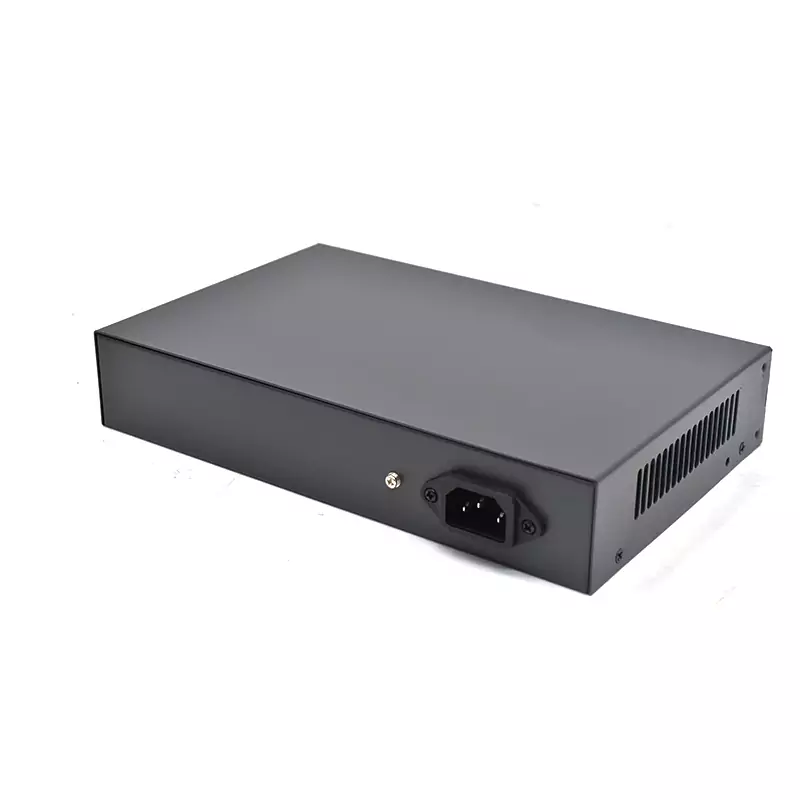

- Durable Design: Constructed with a metal case and an internal power supply, offering excellent heat dissipation for stable long-term operation.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 1×8 RJ45，1×2 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate；10/100/1000Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 1Mb | |
| Jumbo frames | 9216b | |
| Packet Forwarding Rate | 4.1664Mpps@64byte | |
| Bandwidth | 5.6G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Link/act indicator | Yellow, per ethernet port | |
| PoE indicator | Green, per PoE port | |
| 1000M indicator | Green, per uplink port | |
| DIP switch | 100m | Standard mode – All ports can communicate with each other. |
| 250m | Extend mode, port 1-8 are isolated from each other, transmission distance can up to 250m, and can communicate with port 9-10. | |
| Power parameters | Input voltage | AC100~240V, 50Hz |
| Power consumption | Standby: ≤3W; whole: ≤96W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | ≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

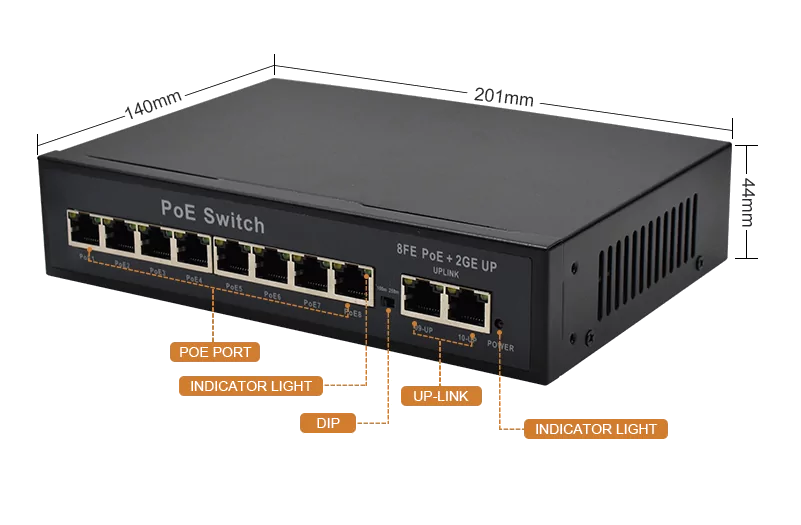

| Physical properties | Size | 201×140×44mm |
| Weight | Net weight:0.7kg,Gross weight: 0.9kg |
