Product Overview

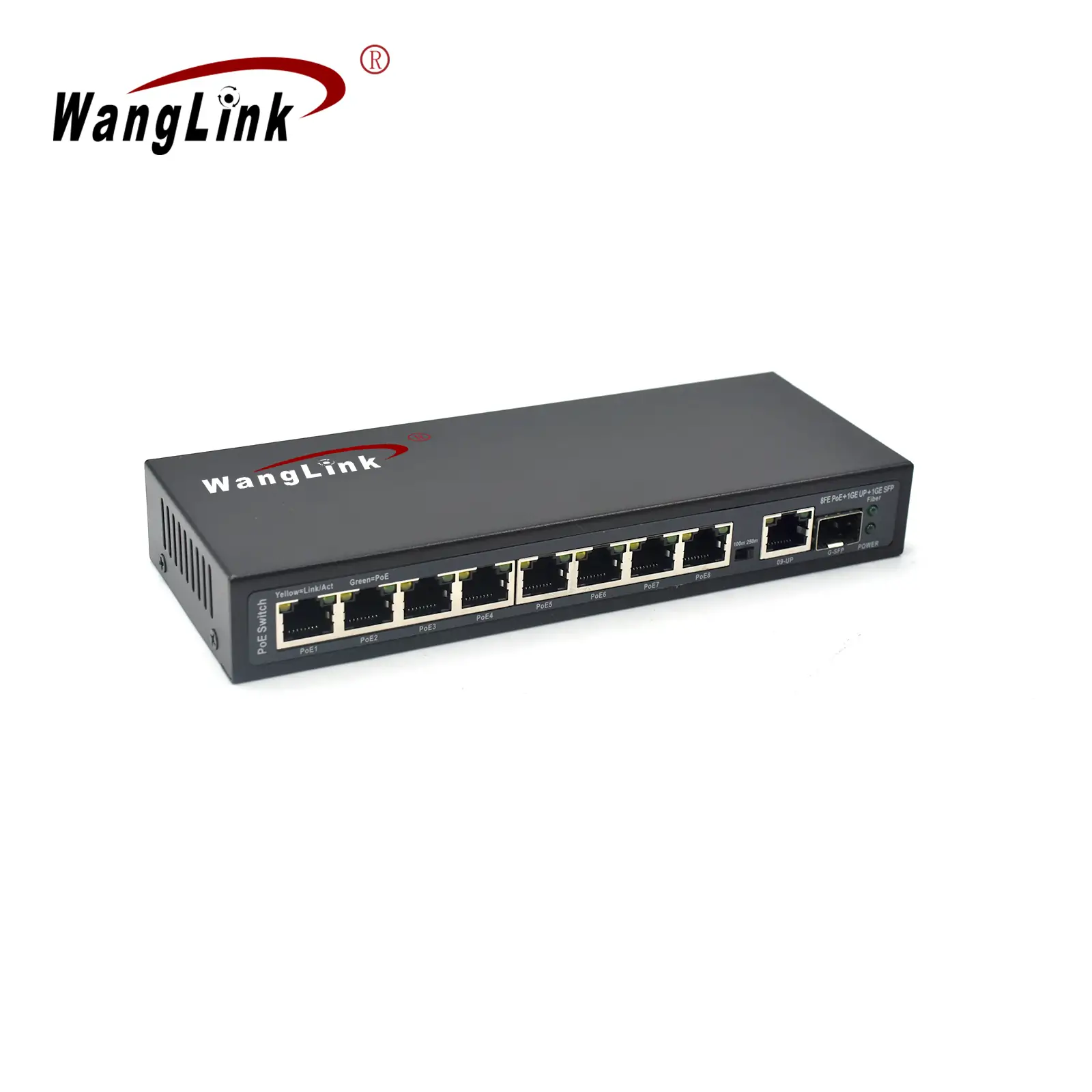

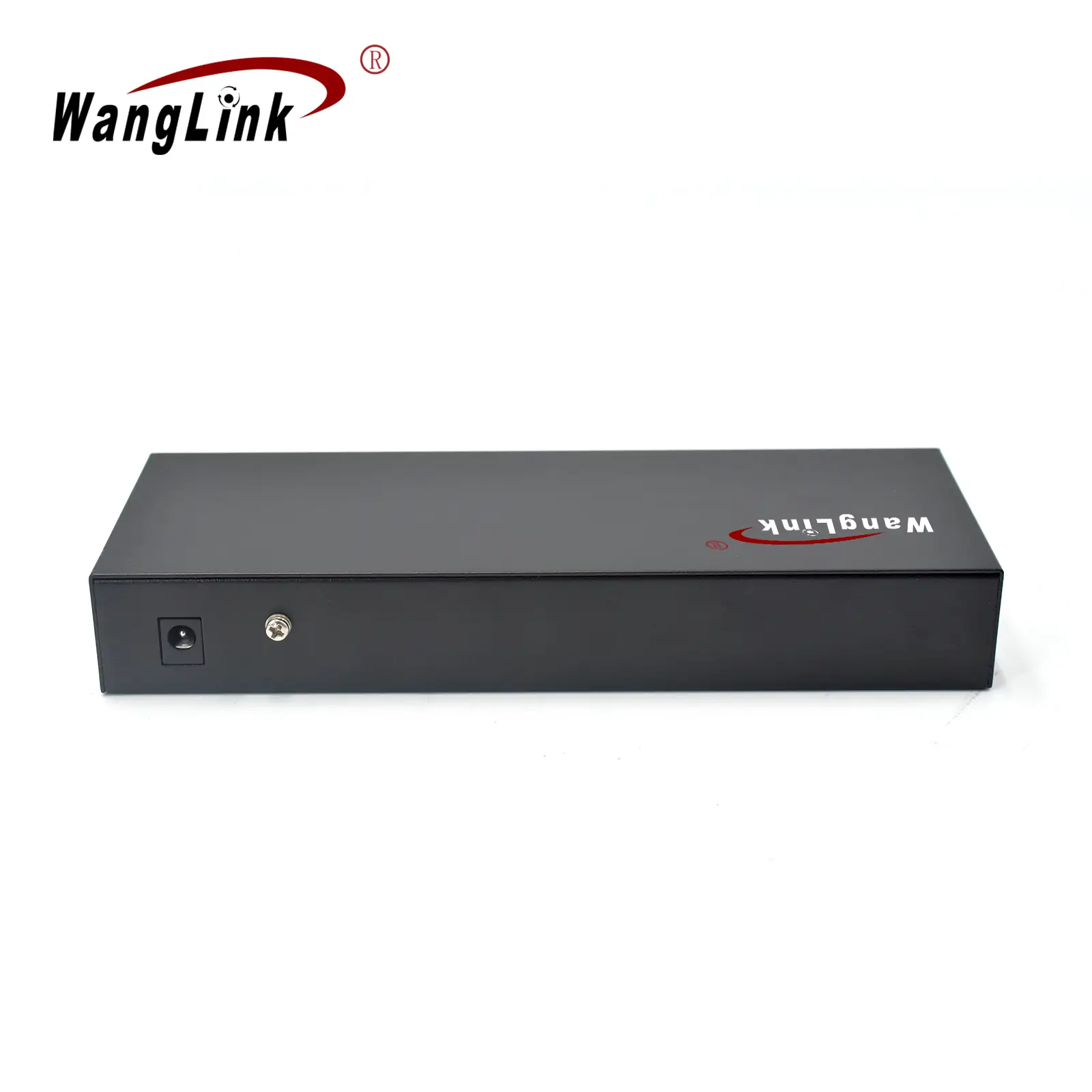

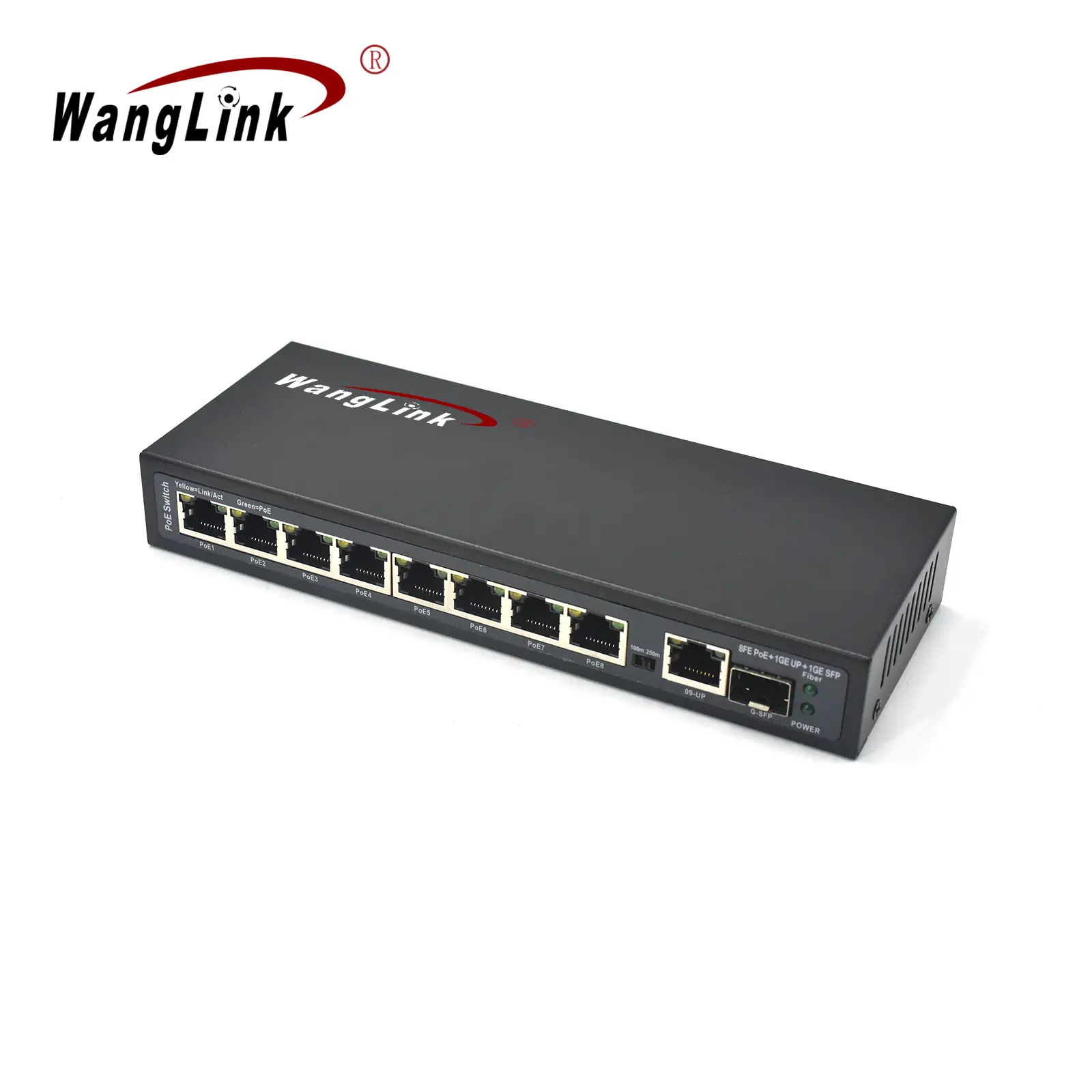

The SL811P-E 8 Port PoE Switch for IP Cameras is a highly efficient networking solution tailored for video surveillance applications. This 8 port PoE switch features 8 10/100Base-TX Ethernet ports, 1 10/100/1000Base-T Ethernet port, and 1 1000Base-X SFP slot. Ports 1-8 support the IEEE802.3 af/at PoE (Power over Ethernet) protocol, delivering up to 25.4W of power per port. Its intelligent PoE detection ensures that only compliant devices receive power, protecting non-PoE devices from potential damage.
Key Features
- 8 10/100Base-TX PoE ports, 1 10/100/1000Base-T uplink port, and 1 1000Base-X SFP uplink slot for versatile connectivity options.
- Fully compliant with IEEE802.3 af/at PoE protocol, providing a maximum output of 25.4W per PoE port.
- Supports one-key switching to VLAN mode and 250m long-distance transmission mode, which can be enabled by reducing the port speed to 10Mbps using a DIP switch.
- Ports 1-8 support 10/100Mbps auto-negotiation, while the uplink port supports 10/100/1000Mbps auto-negotiation for optimal performance.
- Includes support for half/full duplex adaptive mode and automatic MDI/MDI-X functionality for simplified network setup.
- All ports feature wire-speed forwarding for efficient and seamless data transmission.
- Designed for both desktop and wall-mounted installation to fit various deployment needs.
- Plug-and-Play operation allows for easy setup without any configuration required.
- Constructed with a durable metal casing and an internal power supply, providing excellent heat dissipation and ensuring stable long-term operation.
Ideal Applications

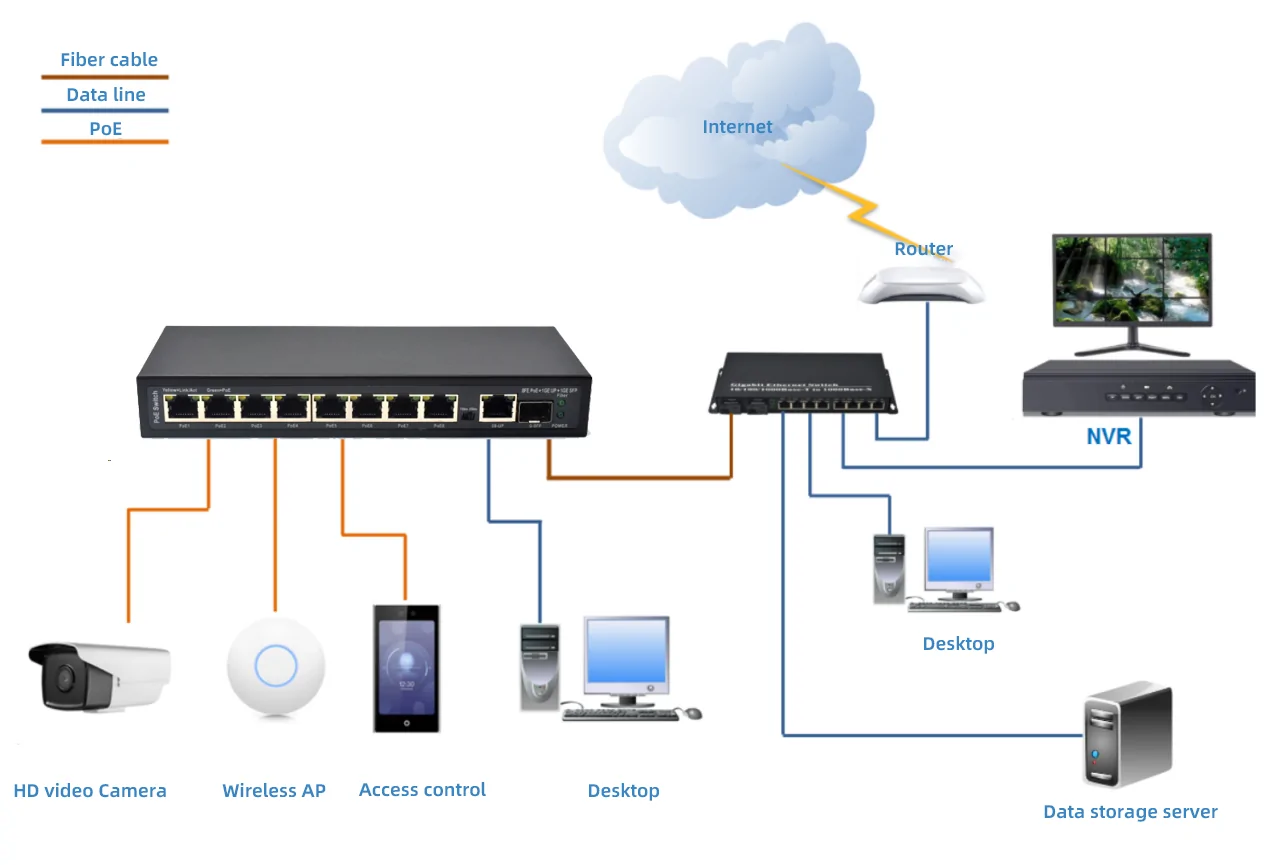

The SL811P-E Switch is specially designed for video surveillance networking, making it an excellent choice for deployment in hotels, shops, supermarkets, residential homes, and small to medium-sized enterprises.
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3af/at Power Over Ethernet IEEE 802.1p tagged frames IEEE 802.3x flow control |
| Interface information | Single-mode SFP: 1 1000Base-X optical port (uplink optical port) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| RJ45 ethernet port: 8 10/100M Base-TX ethernet ports (POE, POE+) | |
| RJ45 ethernet port: 1 10/100/1000M Base-T ethernet ports (Uplink ports) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤250m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal |
| Dimensions:(length*depth*height): ：197x74x28mm | |
| Installation method: Desktop | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <0.7KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 5.6Gbps |
| Packet forwarding rate (whole machine) : 4.1664Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Case space : 1m | |
| Jumbo frame: 9k | |
| Power supply | Input voltage: DC48-57V |
| Power consumption: < 3 W | |
| PoE pin | 802.3AF/AT(1/2+，3/6-) |
| Indicator | Port indicator (control by fluctuation switch):Link/ACT: Yellow (10/100/1000mbps)PoE port: greenVlan OFFVlan ON |
| Fiber port: Green | |
| Power supply: Green |
