Product Overview

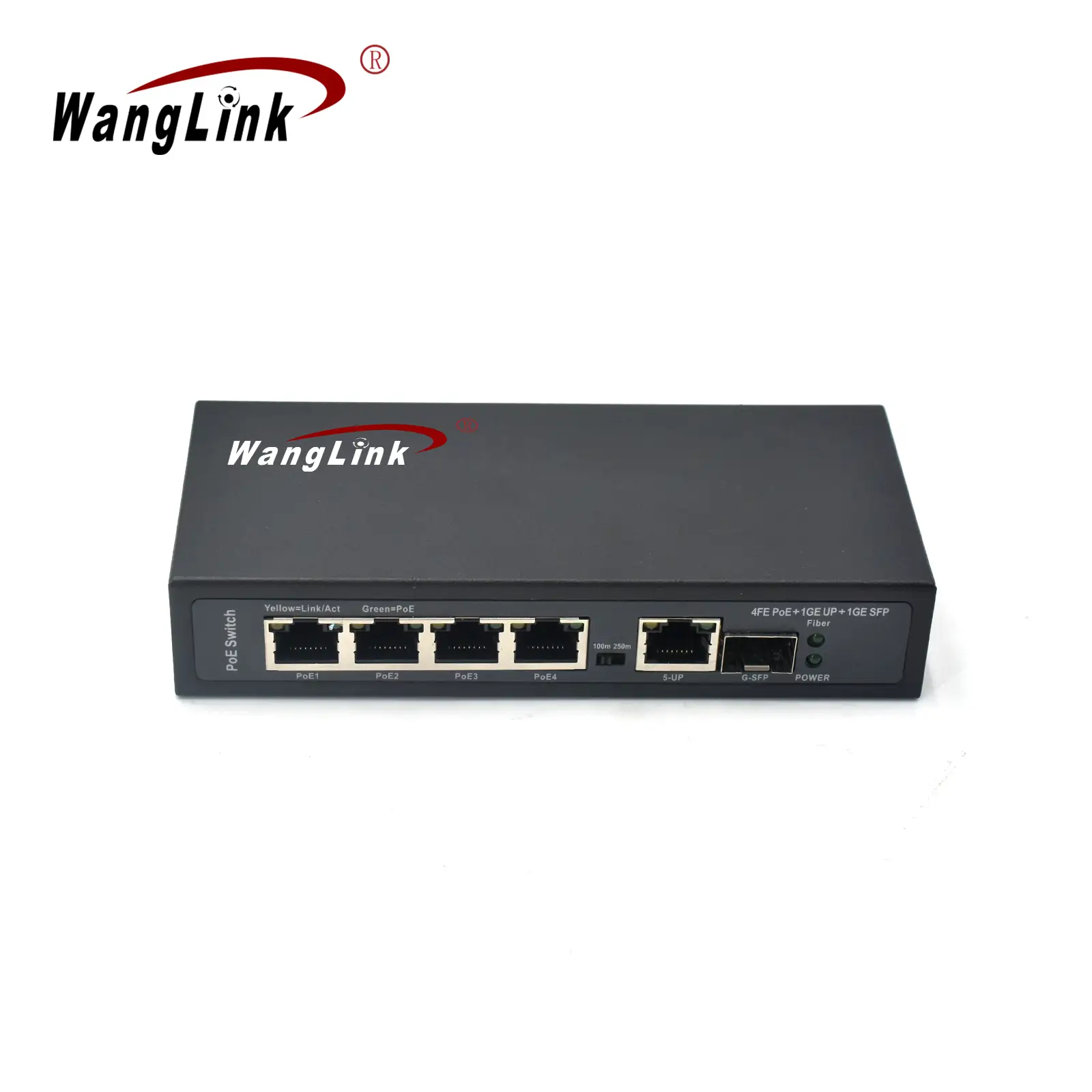

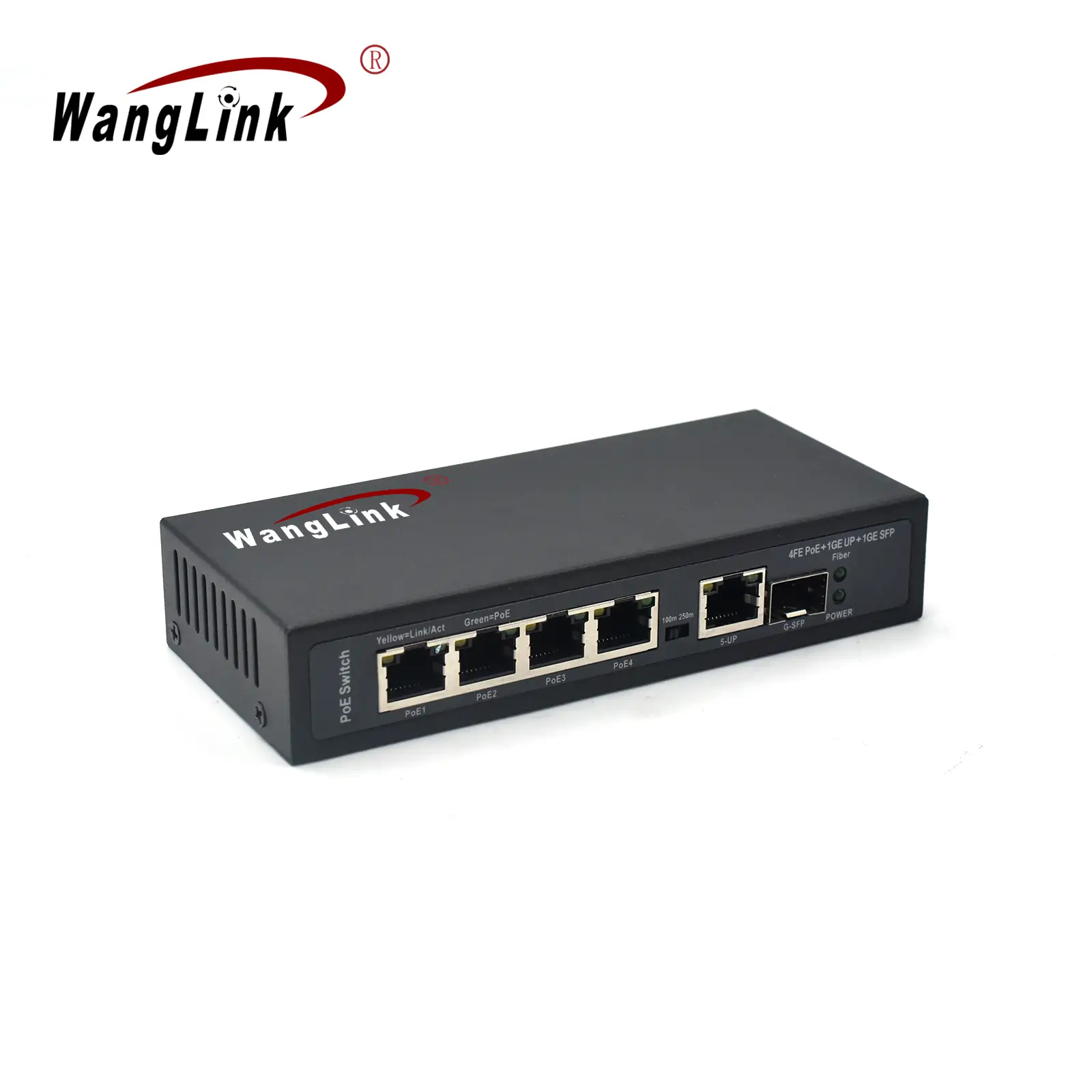

The SL411P-E 4 Port PoE Switch for CCTV is an ideal networking solution designed to provide power and connectivity for security camera systems. Featuring 4 10/100Base-TX PoE ports, 1 10/100/1000Base-T uplink port, and 1 1000Base-X SFP slot, this switch supports the IEEE802.3 af/at Power over Ethernet protocol, allowing for a maximum output of 25.4W per PoE port and a total power output of 65W for the entire device. With intelligent PoE detection, it ensures power is supplied only to compatible devices, preventing damage to non-PoE devices.
Key Features
- 4 10/100Base-TX PoE ports, 1 10/100/1000Base-T uplink port, and 1 1000Base-X SFP uplink slot for versatile network connectivity.
- Supports IEEE802.3 af/at PoE protocol, delivering a maximum power output of 25.4W from each PoE port.
- Enables one-key switching to VLAN mode and 250m long-distance transmission mode. (Ports can be set to transmit at 10Mbps for extended reach.)
- Ports 1-4 support 10/100Mbps auto-negotiation, while ports 5-6 support 10/100/1000Mbps auto-negotiation.
- All ports support half/full duplex adaptive and auto MDI/MDI-X function for flexible connectivity.
- Supports wire-speed forwarding, ensuring efficient data transmission.
- Designed for desktop and wall-mounted installation for flexible deployment options.
- Plug and play functionality for easy setup with no configuration required.
- Constructed with a metal case and featuring an internal power supply for excellent heat dissipation and long-term stability.
Ideal Applications

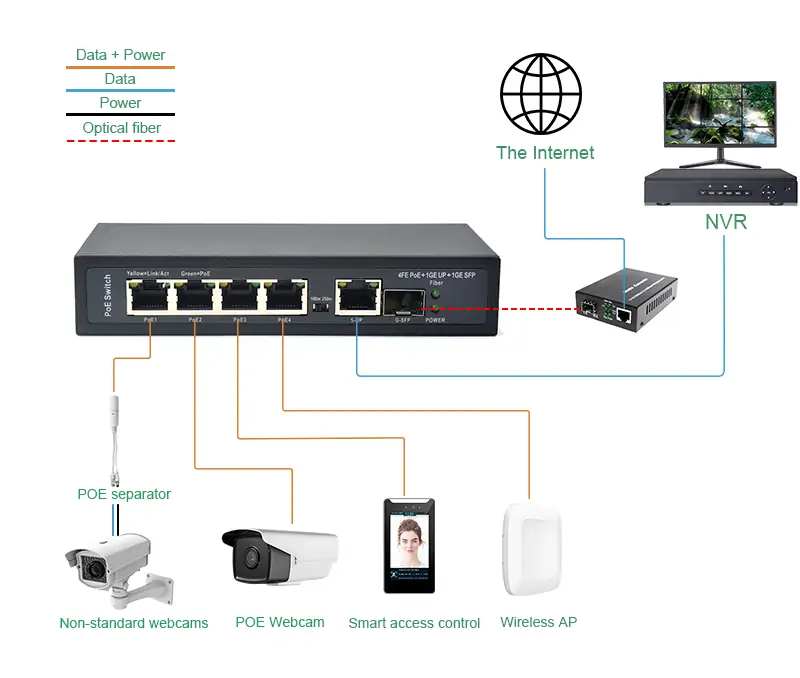

This switch is perfect for setups in video surveillance, making it a reliable choice for hotels, shops, supermarkets, residential homes, and small to medium-sized enterprises.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE802.1W Spanning Tree IEEE 802.3x flow control |
| Fiber Port Characteristic | Connector Type | SFP Slot |
| Transmission rate | 1.25Gbps | |
| Transmission distance | Multi-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km | |
| Wavelength | Multi-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm | |
| Ethernet port Characteristic | Connector Type | 1×4 RJ45，1×1 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate；10/100/1000Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 1Mb | |
| Jumbo frames | 9216b | |
| Packet Forwarding Rate | 3.5712Mpps@64byte | |
| Bandwidth | 4.8G（non-blocking） | |
| LED indicator | Power indicator | Green, Power |
| Fiber indicator | Green, per SFP optical fiber port | |
| Link/Act indicator | Yellow, per ethernet port | |
| PoE indicator | Extend, per PoE port | |
| DIP switch | 100m | Standard mode – All ports can communicate with each other. |
| 250m | Extend mode, port 1-4 is isolated from each other, transmission distance can up to 250m, and can communicate with port 5-6. | |
| Power parameters | Input voltage | AC100~240V, 50Hz |
| Power consumption | Standby: ≤2W; whole: ≤65W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | ≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |
| Physical properties | Size | 201×140×44mm |
| Weight | Net weight:0.7kg,Gross weight: 0.9kg |
