Product Overview

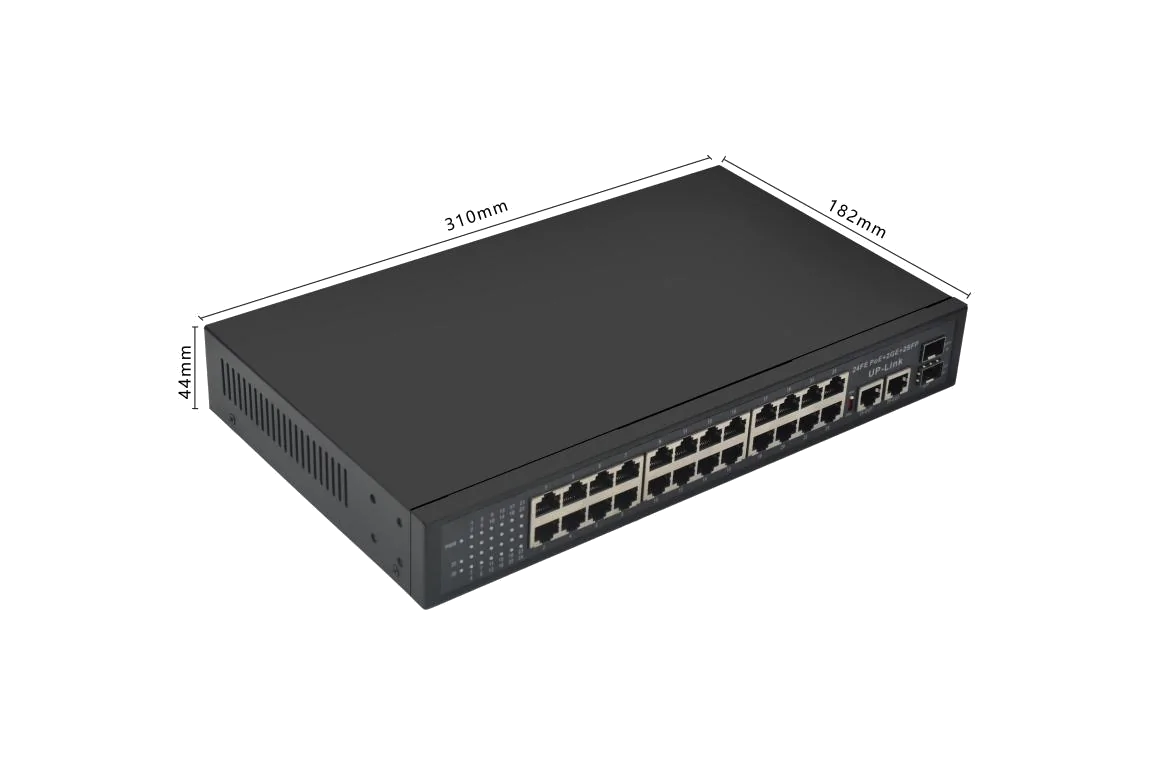

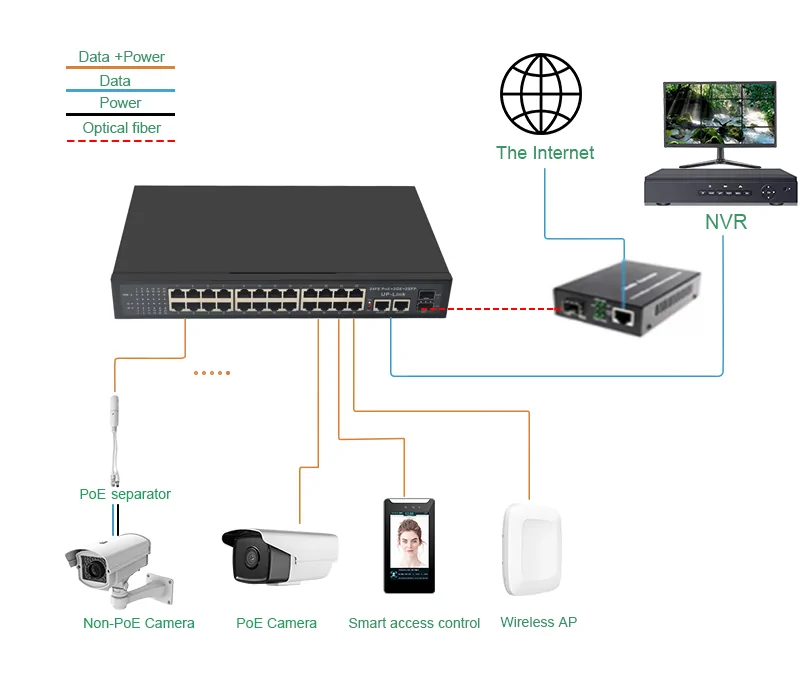

Introducing our PoE Network Switch 24 Port, a highly efficient solution designed to power and connect multiple devices seamlessly. This switch features 24 10/100Base-TX Ethernet ports, 2 10/100/1000Base-T Ethernet ports, and 2 1000Base-X SFP slots. Ports 1-24 support the IEEE 802.3 af/at Power over Ethernet (PoE) standards, providing a maximum output power of 25.4W per port, with a total power budget of up to 320W for the entire switch. This capability allows for reliable power delivery to devices such as IP cameras, wireless access points, and VoIP phones.
The PoE network switch can utilize DIP switches to force ports 1-24 to operate at a speed of 10Mbps, enabling communication distances of up to 250 meters over existing twisted-pair cables. In this mode, ports 1-24 are isolated from each other while still able to communicate with the uplink ports (ports 25-28). This feature effectively isolates collision and broadcast domains, reducing broadcast storms and enhancing network communication efficiency. The PoE Network Switch 24 Port is ideal for video surveillance networks in hotels, shops, supermarkets, residential homes, and small to medium-sized enterprises.
Key Features
- 24 PoE Ports: 24 10/100Base-TX PoE ports, 2 10/100/1000Base-T uplink ports, and 2 1000Base-X SFP slots for versatile connectivity.
- Power over Ethernet: Supports IEEE 802.3 af/at standards, with each RJ45 port delivering a maximum output power of 25.4W.
- VLAN and Long-Distance Mode: One-click switching to VLAN mode and 250m long-distance transmission mode for enhanced performance.
- Adaptive Speed: Ports 1-24 support 10/100Mbps adaptive speed, while ports 25-26 support 10/100/1000Mbps adaptive speed.
- Duplex and MDI/MDI-X Support: All ports support half/full duplex adaptive mode and automatic MDI/MDI-X functionality for seamless integration.
- Line-Speed Forwarding: All ports support line-speed forwarding for smoother data transmission.
- Surge Protection: Optional 6KV common mode and 4KV differential mode surge protection for enhanced reliability.
- AI Network Self-Healing: Optional AI network self-healing (watchdog) function for automatic recovery from network issues.
- Flexible Installation: Supports desktop, wall-mount, and rack-mount installation to fit various environments.
- Plug and Play: Easy setup with no configuration required; simply connect your devices and start using.
- Durable Design: Metal casing with a built-in power supply ensures excellent heat dissipation for stable long-term operation.
