Product Overview

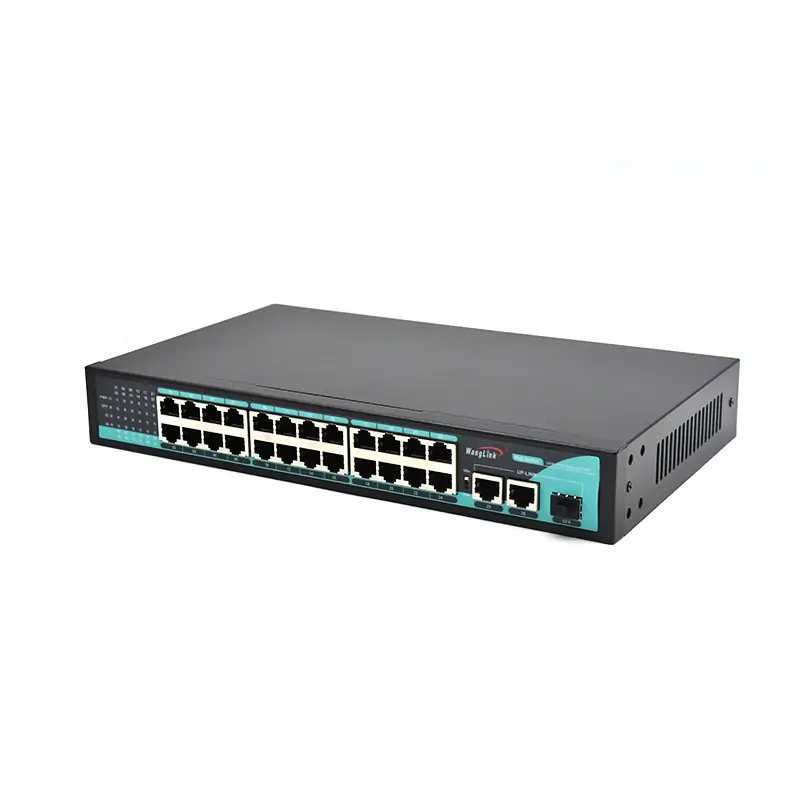

Introducing our PoE Switch 24 Port, a powerful networking solution designed to efficiently power and connect your devices. This switch features 24 10/100Base-TX Ethernet ports, 2 10/100/1000Base-T Ethernet ports, and 1 1000Base-X SFP slot. Ports 1-24 support the IEEE 802.3 af/at Power over Ethernet (PoE) protocol, with each PoE port capable of delivering a maximum output power of 25.4W and a total PoE power budget of 320W. This ensures reliable power supply for devices such as IP cameras, wireless access points, and VoIP phones.

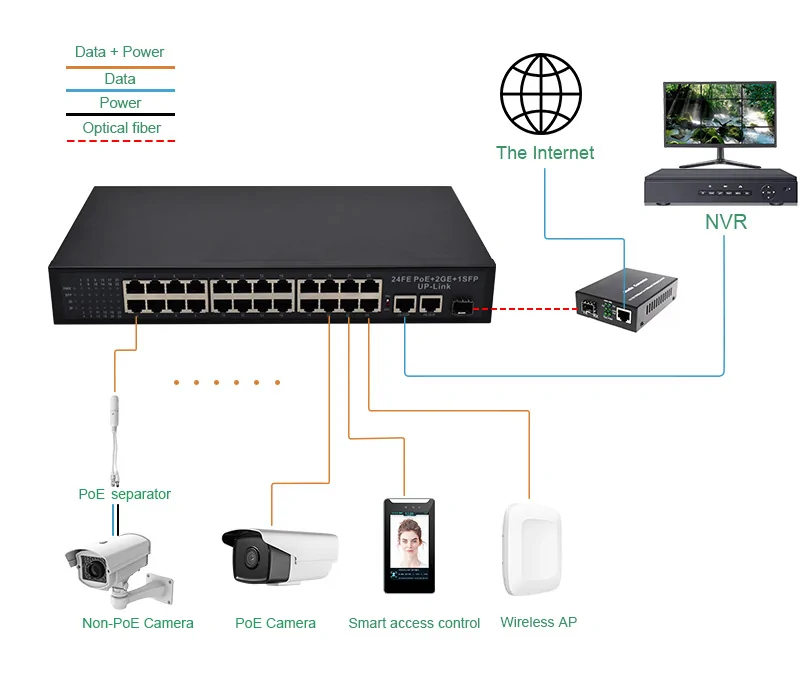

The switch includes a unique DIP switch feature that allows you to reduce the transmission rate of ports 1-24 to 10Mbps, enabling a maximum transmission distance of 250 meters over existing twisted pair cables. Additionally, ports 1-16 are isolated from each other while still communicating with the uplink ports, effectively reducing broadcast storms and improving network efficiency. This makes the PoE Switch 24 Port an ideal choice for video surveillance networking in hotels, shops, supermarkets, homes, and small to medium-sized enterprises.
Key Features

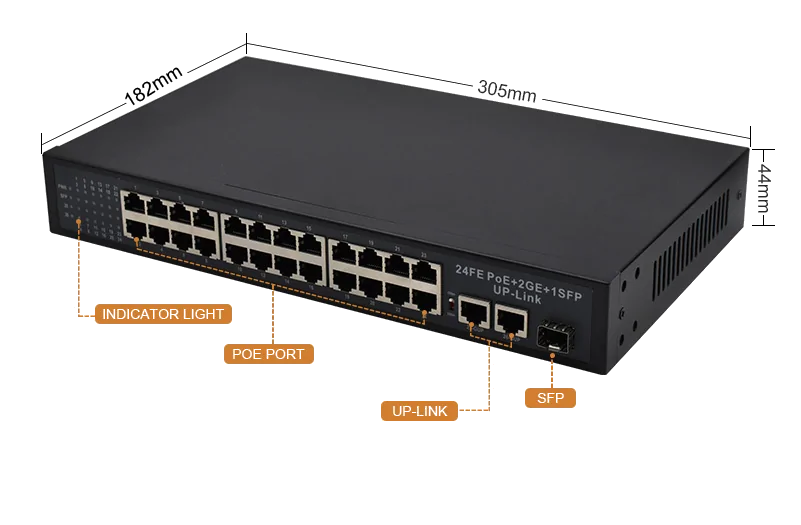

- 24 PoE Ports: 24 10/100Base-TX PoE ports, 2 10/100/1000Base-T uplink ports, and 1 1000Base-X SFP uplink slot for versatile connectivity.
- Power over Ethernet: Supports IEEE 802.3 af/at PoE protocol, with each PoE RJ45 port delivering up to 25.4W.
- VLAN and Long-Distance Mode: One-key switch for VLAN mode and 250m long-distance transmission mode to enhance performance.
- Auto-Negotiation: Ports 1-24 support 10/100Mbps auto-negotiation, while ports 25-26 support 10/100/1000Mbps auto-negotiation.
- Adaptive Duplex: Supports half/full duplex adaptive mode and auto MDI/MDI-X functionality for seamless integration.
- Wire-Speed Forwarding: All ports support wire-speed forwarding for efficient data transfer.
- Flexible Installation: Suitable for desktop, wall-mounted, and rack-mount installation to fit various environments.
- Plug and Play: Easy setup with no configuration required; simply connect your devices and start using.
- Durable Design: Metal casing with an internal power supply ensures excellent heat dissipation for stable long-term operation.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3x flow control |
| Fiber Port Characteristic | Connector Type | SFP Slot |
| Transmission rate | 1.25Gbps | |
| Transmission distance | Multi-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km | |
| Wavelength | Multi-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm | |
| Ethernet port Characteristic | Connector Type | 2×4 RJ45，1×1 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate；10/100/1000Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 1Mb | |
| Jumbo frames | 9216b | |
| Packet Forwarding Rate | 8.0352Mpps@64byte | |
| Bandwidth | 10.8G（non-blocking） | |
| LED indicator | Power indicator | Gree, PWR |
| Link/Act indicator | Green, per ethernet port and fiber port | |
| DIP switch | 100m | Standard mode – All ports can communicate with each other. |
| 250m | Extend mode, port 1-24 are isolated from each other, transmission distance can up to 250m, and can communicate with port 25-27. | |

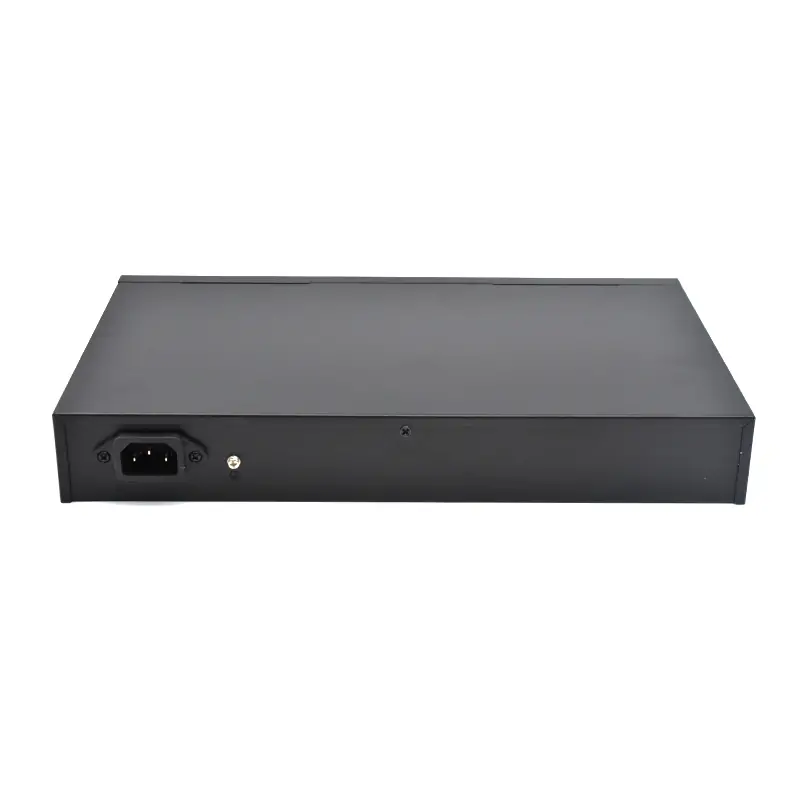

| Power parameters | Input voltage | AC100~240V, 50Hz |
| Power consumption | Standby: ≤3W; whole: ≤320W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | ≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |
| Physical properties | Size | 305×182×44mm |
| Weight | Net weight:2.0kg,Gross weight: 2.2kg |
