Product Overview

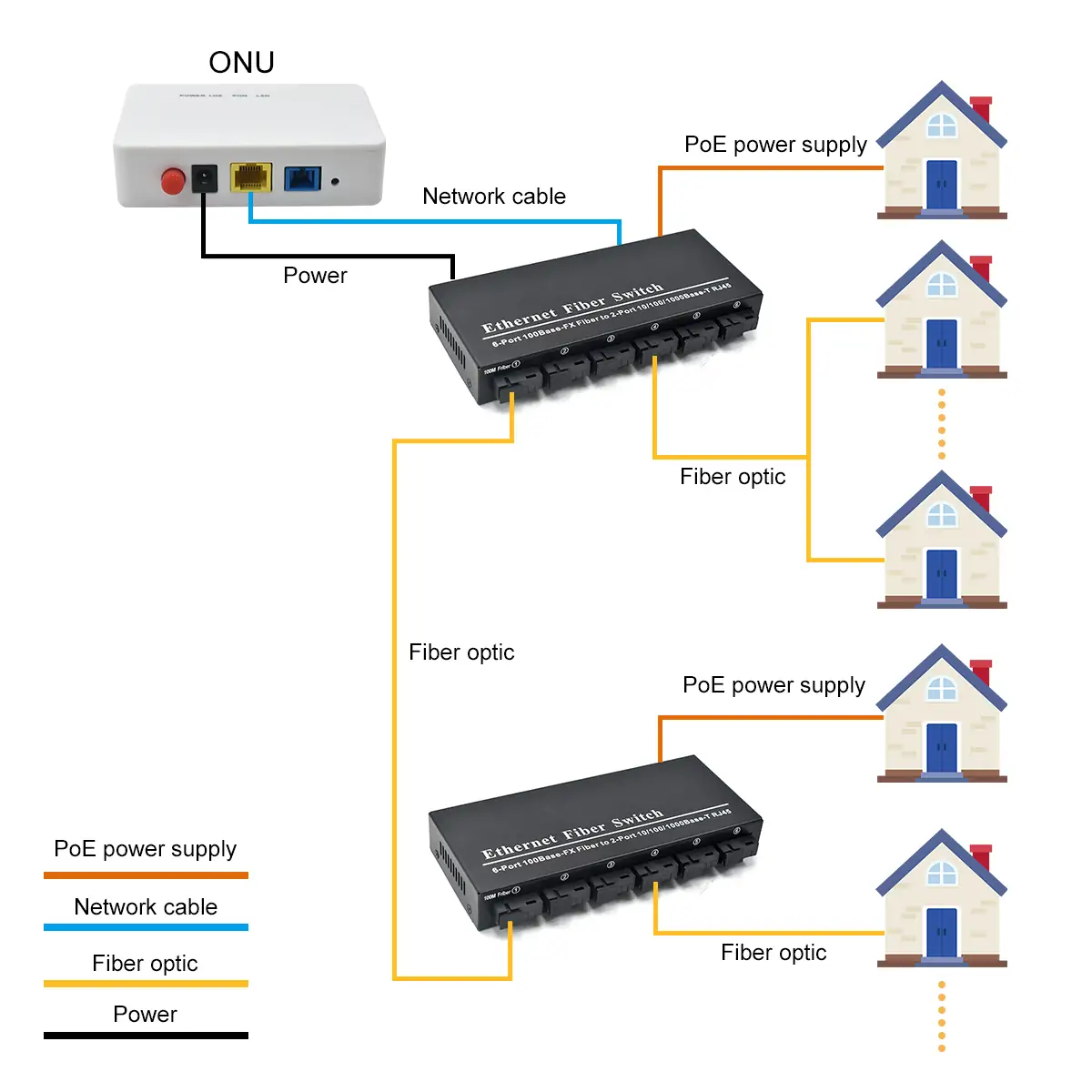

The SL206RP Reverse PoE Switch with Fiber Port is a versatile networking solution designed for environments where power access for customer equipment, such as access switches and ONUs, is challenging. This PoE switch features 6 optical fiber ports operating at 10/100Base-SX/LX and 2 Ethernet ports supporting 10/100/1000 Mbps with PoE input. Its user-friendly design simplifies installation and maintenance while reducing power provisioning costs and operational workload.
Key Features

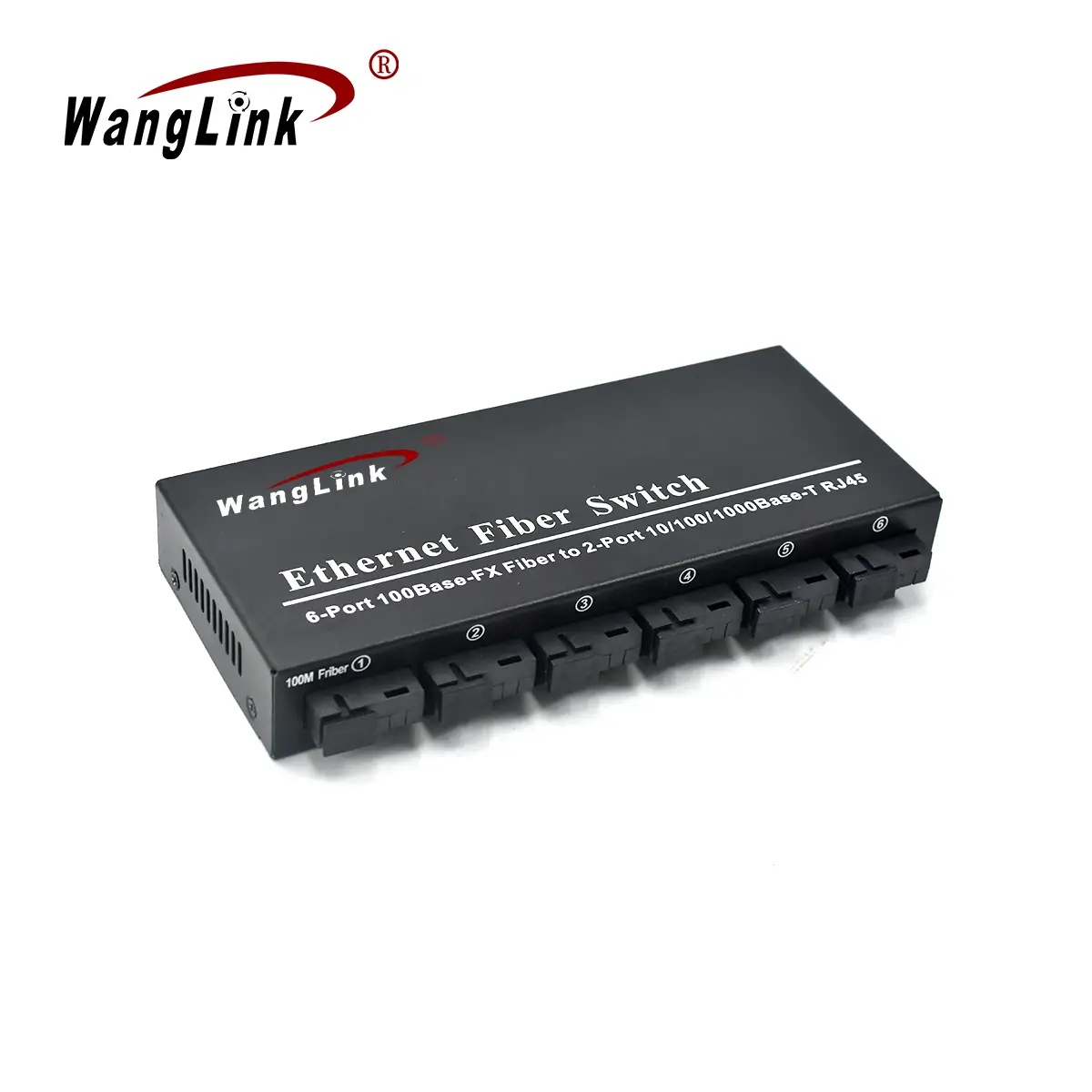

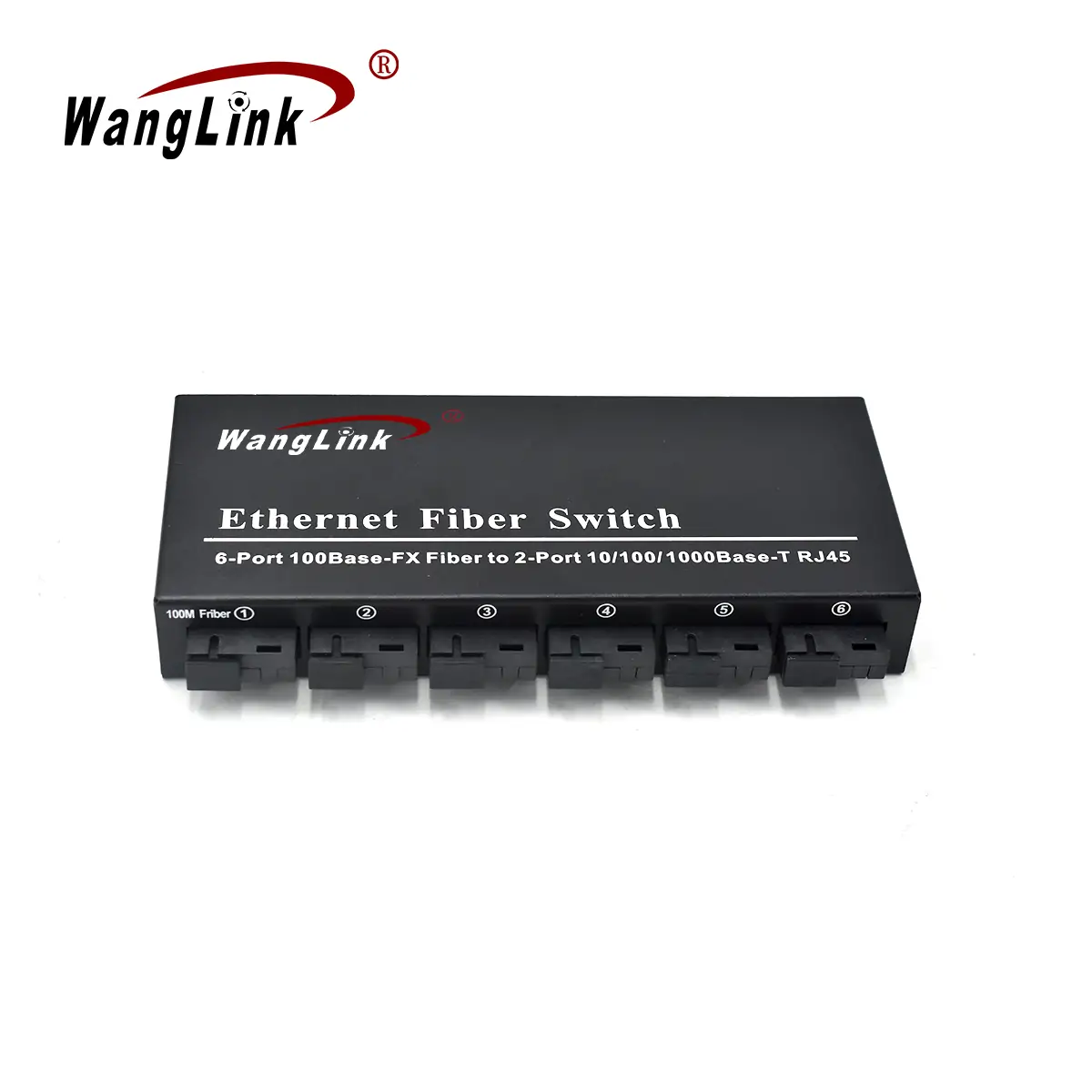

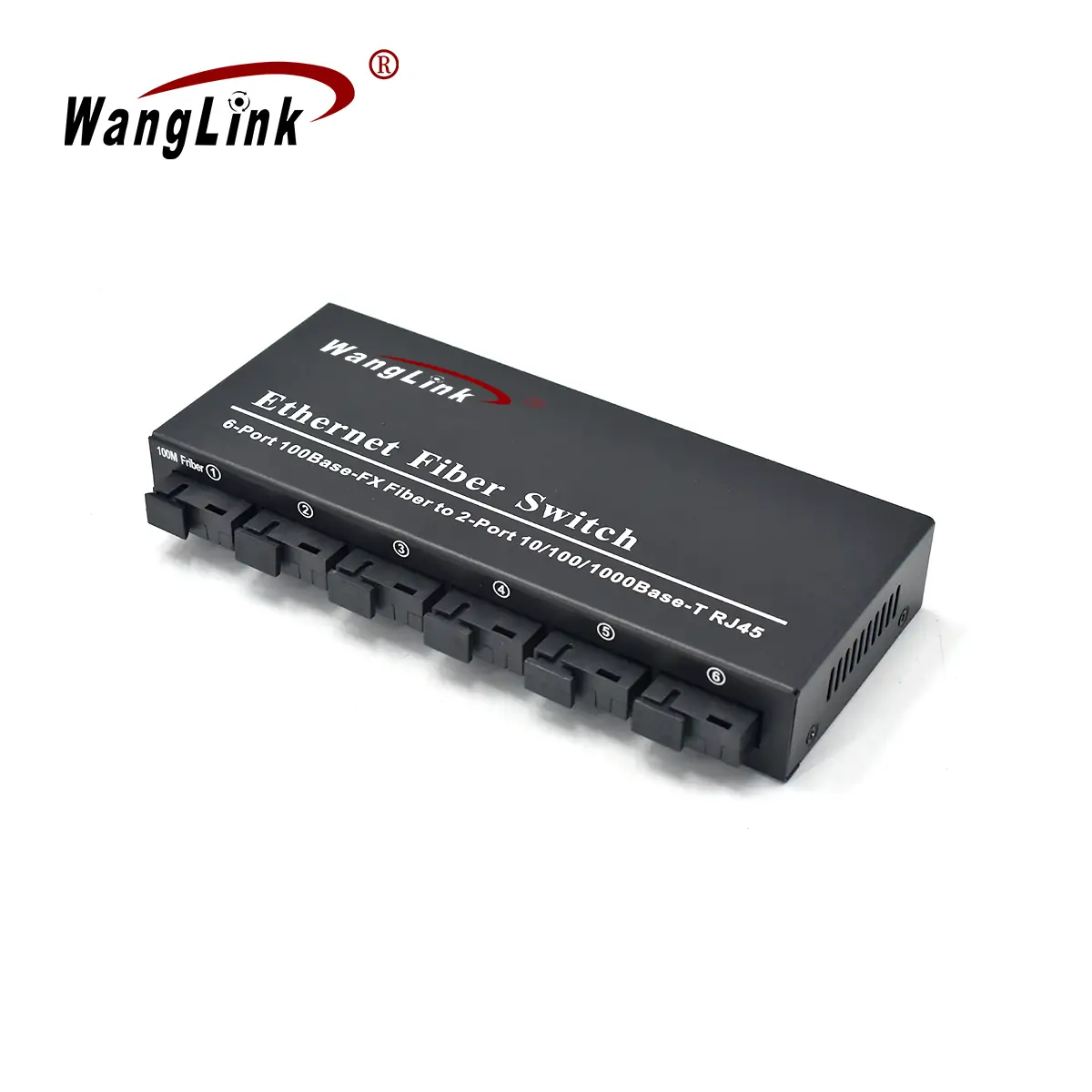

- 6 x 10/100Base-SX/LX optical fiber ports and 2 x 10/100/1000 Mbps Ethernet ports for enhanced connectivity.
- Supports transmission of 9K ultra-large data packets, ensuring efficient data handling.
- Maintains a 2K MAC address table for effective device management.
- Built-in 768Kbit large cache space for improved data processing capabilities.
- Ultra-wide input voltage range of 13~52VDC to accommodate various power needs.
- Can output 12V/1A and 5V/1A through the DC socket, supplying power to other devices.

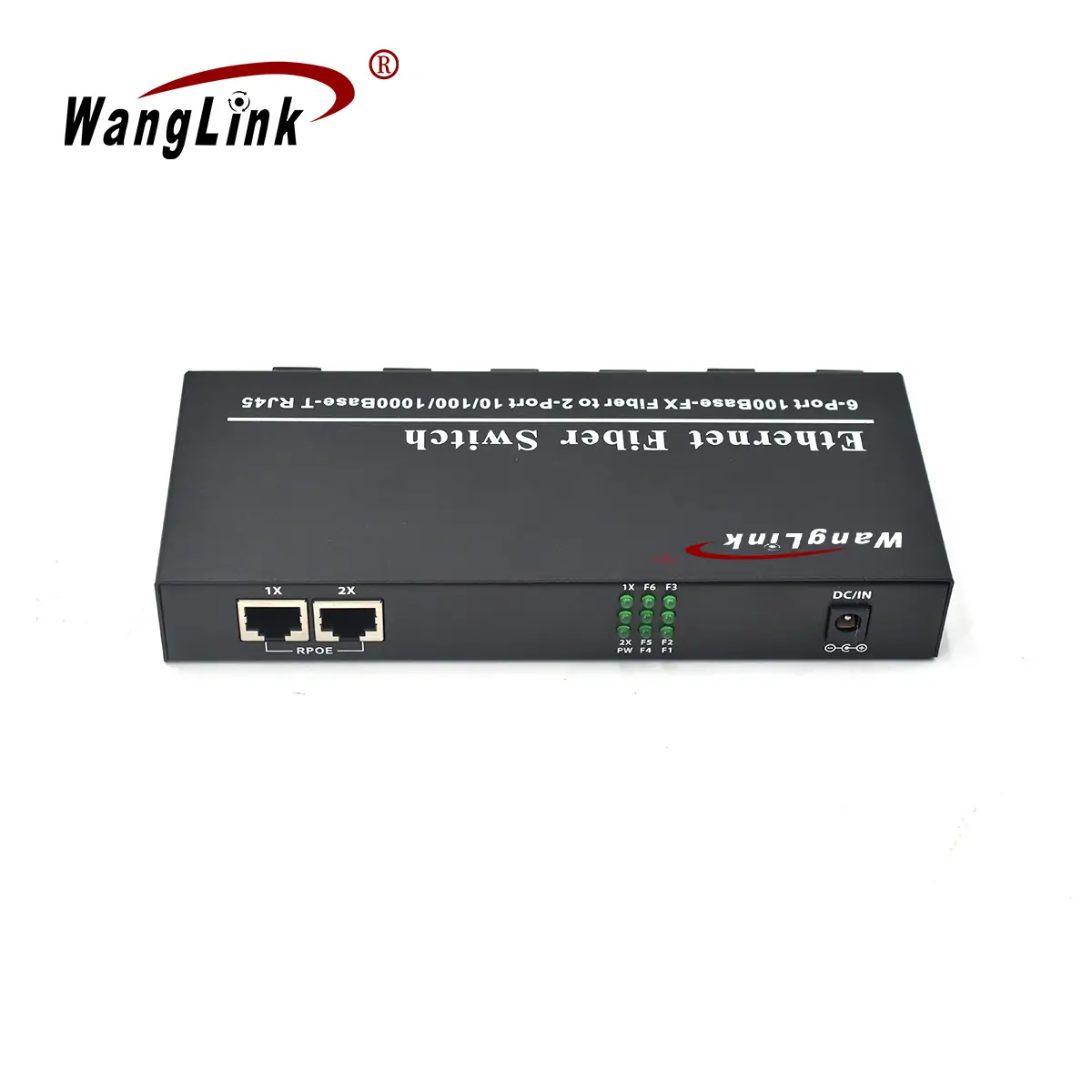

- Ethernet ports can receive power over unused pairs 4/5+ and 7/8- for flexible device integration.
- Supports half/full duplex and 10/100/1000 Mbps adaptive auto-negotiation with automatic MDI/MDI-X functionality.
- All ports feature line-speed forwarding, enabling smoother data transmission.
- Offers both desktop and wall-mounted installation options for versatile deployment.
- Plug-and-play operation allows for simple setup without the need for configuration.
- Constructed with a metal shell that provides excellent heat dissipation, ensuring reliable long-term operation.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3u 100BaseSX/LX IEEE802.3u 1000Base-T IEEE 802.3x flow control |
| Fiber Port Characteristic | Connector Type | SC/FC/ST |
| Transmission rate | 155Mbps | |
| Transmission distance | Multi-mode: 1310nm/2km;Single-mode: 2/20/40/60/80/100km | |
| Wavelength | Multi-mode:1310nm,Single-mode:1310nm/1550nm/1490nm | |
| Ethernet port Characteristic | Connector Type | 1×2 RJ45 |
| Transmission rate | 10/100/1000Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤100m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 1Mb | |
| Jumbo frame | 9K | |
| Packet Forwarding Rate | 1Mpps@64byte | |
| Bandwidth | 5.2G（non-blocking） | |
| LED indicator | Power indicator | PWR: Green (Power Overload Indicator) |
| Fiber indicator | FX1~FX6: Green | |
| Link/Act indicator | 1~2, Orange, Green | |
| Power parameters | Input voltage | 12~52V DC |
| Power consumption | ≤3W | |
| PoE pin | 4/5+,7/8- | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

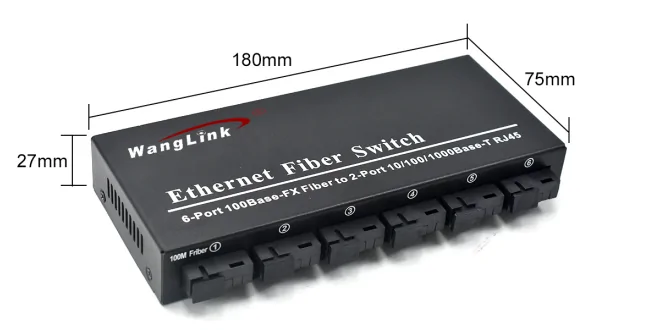

| Physical properties | Size | 180×27×75mm |
| Weight | 370g |
