Product Overview

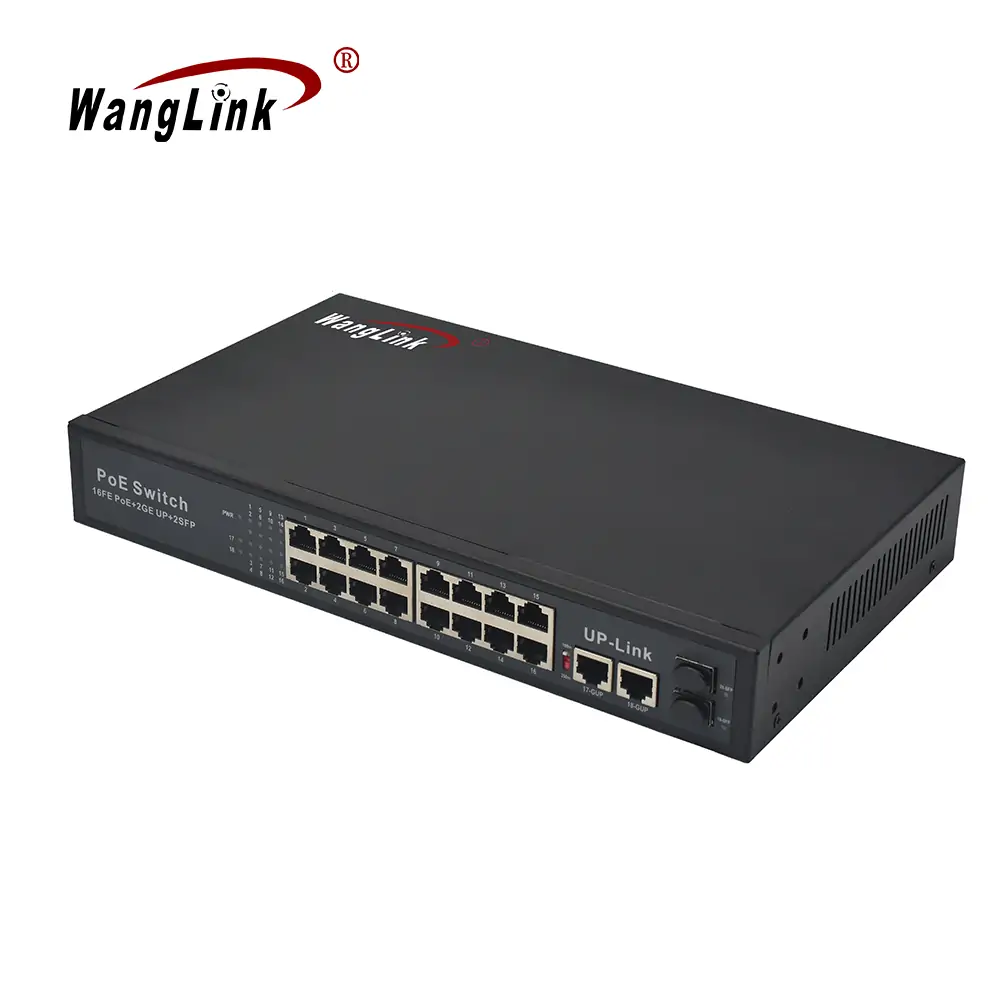

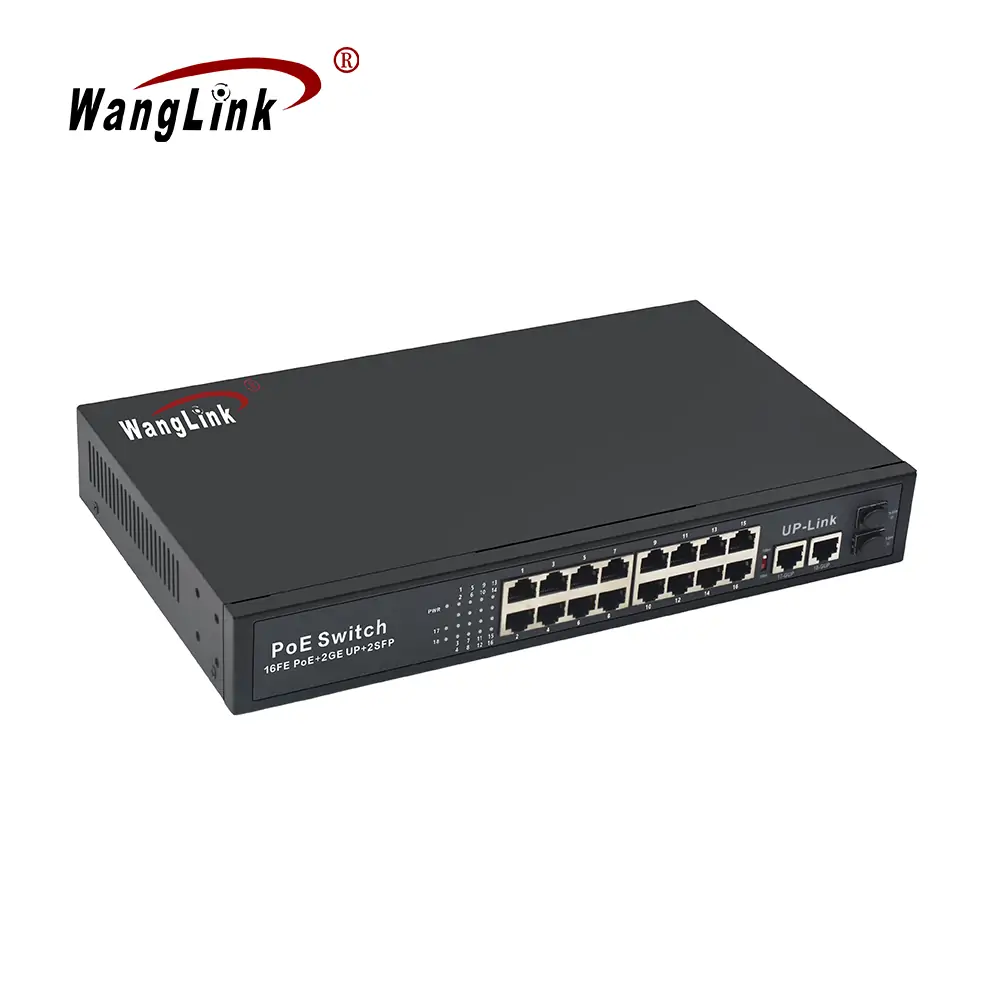

Introducing our PoE Switch 16 Port, a robust networking solution designed to power and connect your devices efficiently. This switch features 16 10/100Base-TX Ethernet ports that support the IEEE 802.3 af/at Power over Ethernet (PoE) protocol, allowing you to easily power devices such as IP cameras and wireless access points. Each PoE port can deliver a maximum output power of 25.4W, with a total PoE power budget of 200W. Additionally, the switch includes 2 10/100/1000Base-T Ethernet ports and 2 1000Base-X SFP slots for flexible uplink options.

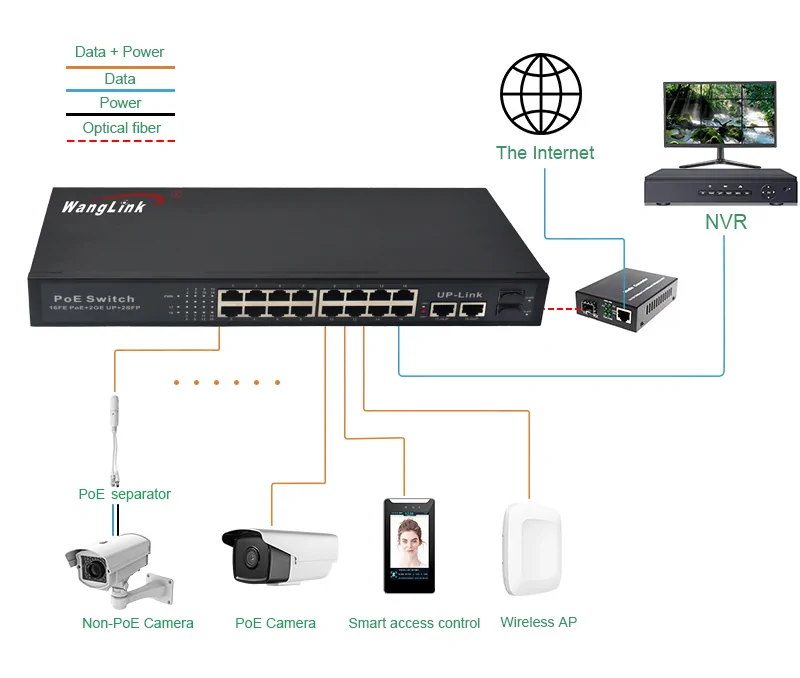

The PoE switch also offers a unique DIP switch feature that allows you to reduce the transmission rate of ports 1-16 to 10Mbps, enabling a maximum transmission distance of 250 meters over existing twisted pair cables. Ports 1-16 are isolated from each other while still allowing communication with the uplink ports, effectively reducing broadcast storms and enhancing network efficiency. This makes it an ideal choice for video surveillance networking in hotels, shops, supermarkets, homes, and small to medium-sized enterprises.
Key Features
- 16 PoE Ethernet Ports: 16 10/100Base-TX ports support IEEE 802.3 af/at PoE, delivering up to 25.4W per port.
- Uplink Options: 2 10/100/1000Base-T uplink ports and 2 1000Base-X SFP slots for versatile connectivity.
- VLAN and Long-Distance Mode: One-key switch for VLAN mode and 250m long-distance transmission mode for enhanced performance.
- Auto-Negotiation: Ports 1-16 support 10/100Mbps auto-negotiation, while ports 17-18 support 10/100/1000Mbps auto-negotiation.
- Adaptive Duplex: Half/Full duplex adaptive mode and auto MDI/MDI-X functionality for seamless integration.
- Wire-Speed Forwarding: All ports support wire-speed forwarding for high data transfer rates.
- Flexible Installation: Supports desktop, wall-mounted, and rack-mount installation for versatile setups.
- Plug and Play: No configuration required; simply connect your devices and start using.
- Durable Design: Metal casing with internal power supply ensures excellent heat dissipation for long-term reliability.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3x flow control |
| Fiber Port Characteristic | Connector Type | SFP Slot |
| Transmission rate | 1.25Gbps | |
| Transmission distance | Multi-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km | |
| Wavelength | Multi-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm | |
| Ethernet port Characteristic | Connector Type | RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate；10/100/1000Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 1Mb | |
| Jumbo frames | 10k | |
| Packet Forwarding Rate | 8.2Mpps@64byte | |
| Bandwidth | 11.2G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Link/Act indicator | Green, per ethernet port and fiber port | |
| DIP switch | 100m | Standard mode – All ports can communicate with each other. |
| 250m | Extend mode, port 1-16 are isolated from each other, transmission distance can up to 250m, and can communicate with port 17-20. | |
| Power parameters | Input voltage | AC100~240V, 50Hz |
| Power consumption | Standby: ≤3W; whole: ≤200W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | ≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

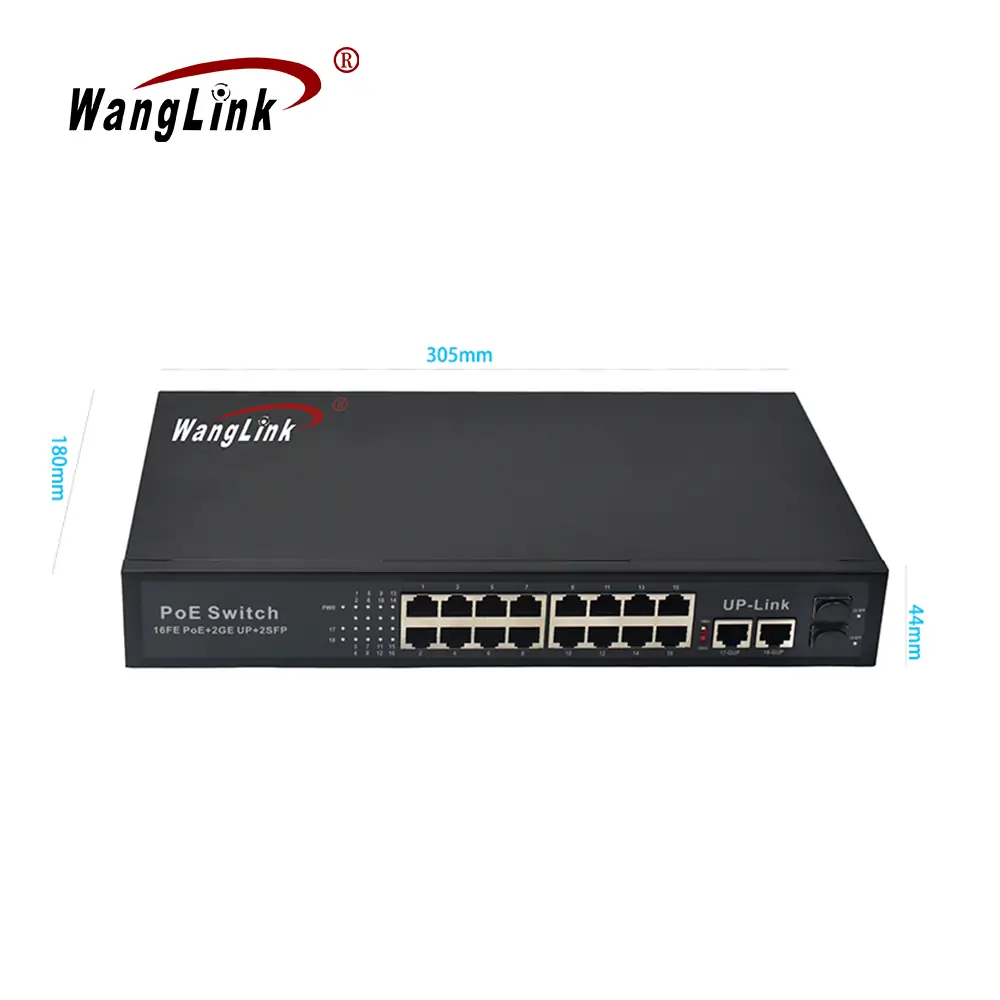

| Physical properties | Size | 305×180×44mm |
| Weight | Net weight:1.8kg,Gross weight: 2kg |
