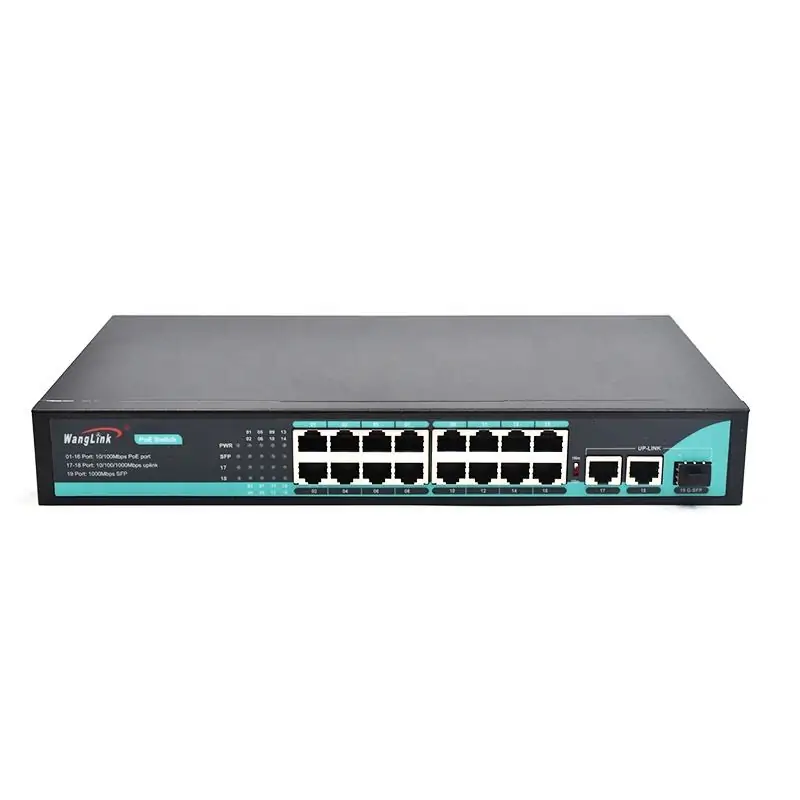

Product Overview

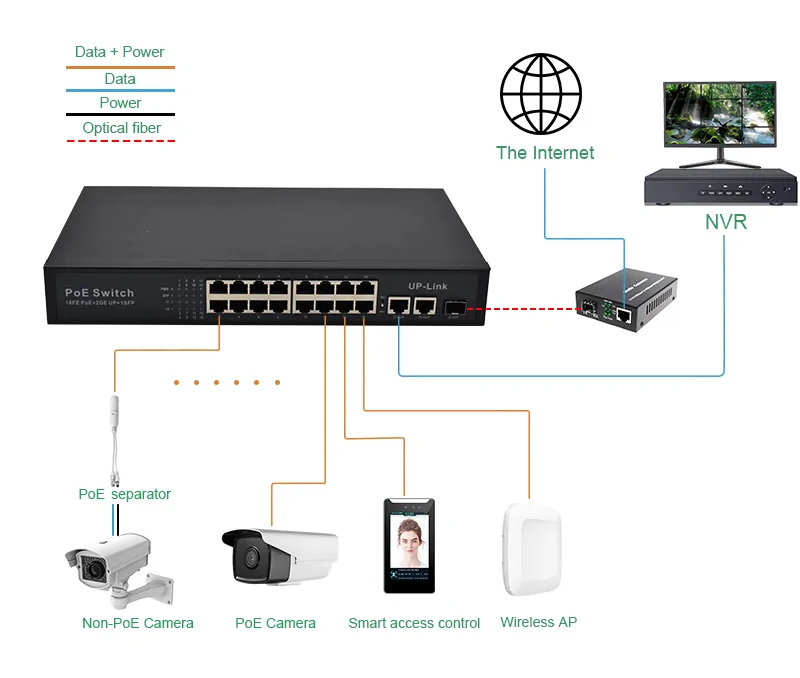

Introducing our 16 Port PoE Network Switch, a powerful and versatile solution designed for efficient network management and power delivery. This switch features 16 10/100Base-TX Ethernet ports that support the IEEE 802.3 af/at Power over Ethernet (PoE) protocol, allowing for seamless power supply to devices such as IP cameras and wireless access points. With a maximum PoE output of 25.4W per port and a total PoE power budget of 200W, this switch is ideal for video surveillance and other networking applications in hotels, shops, supermarkets, homes, and small to medium-sized enterprises.
The switch also offers unique features such as the ability to reduce the transmission rate of ports 1-16 to 10Mbps using a DIP switch, enabling a maximum transmission distance of 250 meters over existing twisted pair cables. Additionally, ports 1-16 are isolated from each other while still allowing communication with the uplink ports, effectively reducing broadcast storms and improving network efficiency.
Key Features
- 16 PoE Ethernet Ports: 16 10/100Base-TX ports support IEEE 802.3 af/at PoE, delivering up to 25.4W per port.
- Uplink Options: 2 10/100/1000Base-T uplink ports and 1 1000Base-X SFP uplink slot for flexible connectivity.
- VLAN and Long-Distance Mode: One-key switch for VLAN mode and 250m long-distance transmission mode for enhanced performance.
- Auto-Negotiation: Ports 1-16 support 10/100Mbps auto-negotiation, while ports 17-18 support 10/100/1000Mbps auto-negotiation.
- Adaptive Duplex: Half/Full duplex adaptive mode and auto MDI/MDI-X functionality for easy integration.
- Wire-Speed Forwarding: All ports support wire-speed forwarding for high data transfer rates.
- Flexible Installation: Supports desktop, wall-mounted, and rack-mount installation for versatile setups.
- Plug and Play: No configuration required; simply connect your devices and start using.
- Durable Design: Metal casing with internal power supply ensures excellent heat dissipation and long-term reliability.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3x flow control |
| Fiber Port Characteristic | Connector Type | SFP Slot |
| Transmission rate | 1.25Gbps | |
| Transmission distance | Multi-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km | |
| Wavelength | Multi-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm | |
| Ethernet port Characteristic | Connector Type | 2×4 RJ45，1×1 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate；10/100/1000Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 1Mb | |
| Jumbo frames | 9216b | |
| Packet Forwarding Rate | 6.8448Mpps@64byte | |
| Bandwidth | 9.2G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Link/Act indicator | Green, per ethernet port and fiber port | |
| DIP switch | 100m | Standard mode – All ports can communicate with each other. |
| 250m | Extend mode, port 1-16 are isolated from each other, transmission distance can up to 250m, and can communicate with port 17-19. | |
| Power parameters | Input voltage | AC100~240V, 50Hz |
| Power consumption | Standby: ≤3W; whole: ≤200W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | ≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

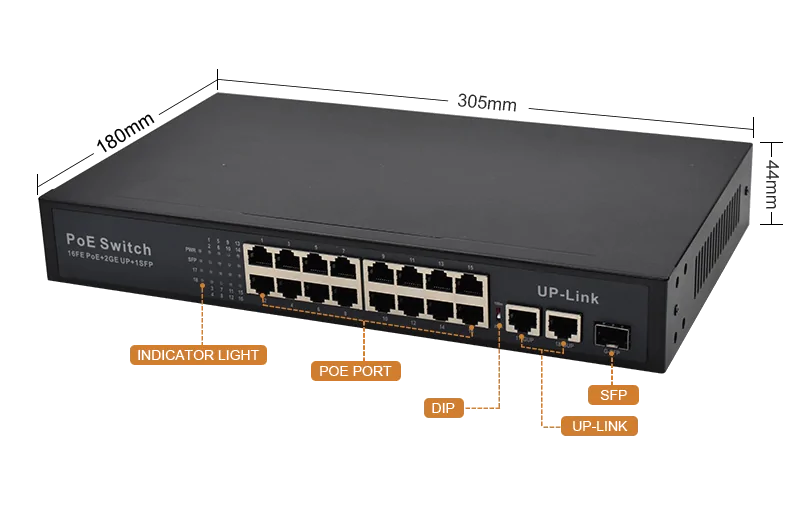

| Physical properties | Size | 305×180×44mm |
| Weight | Net weight:1.8kg,Gross weight: 2kg |
