Product Overview

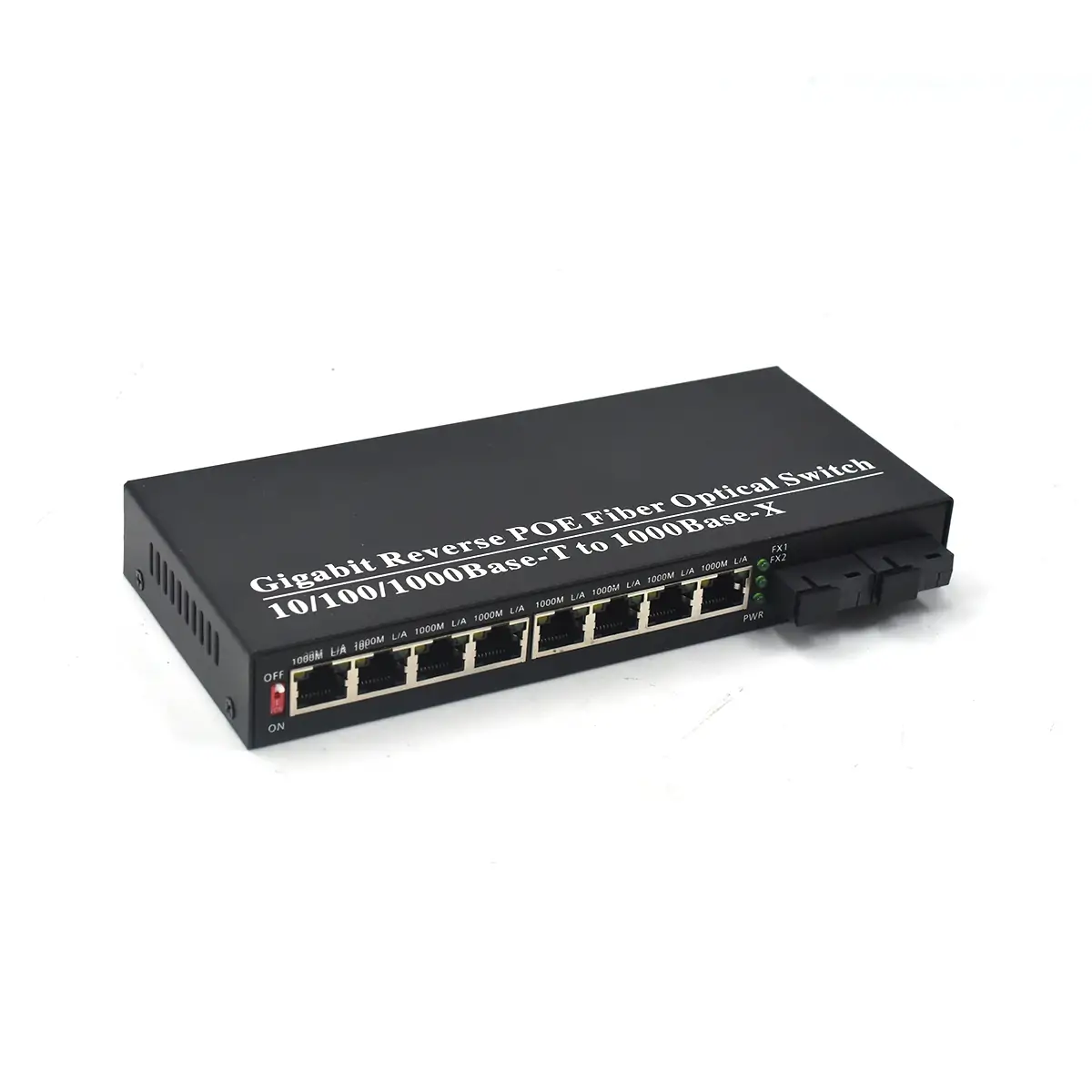

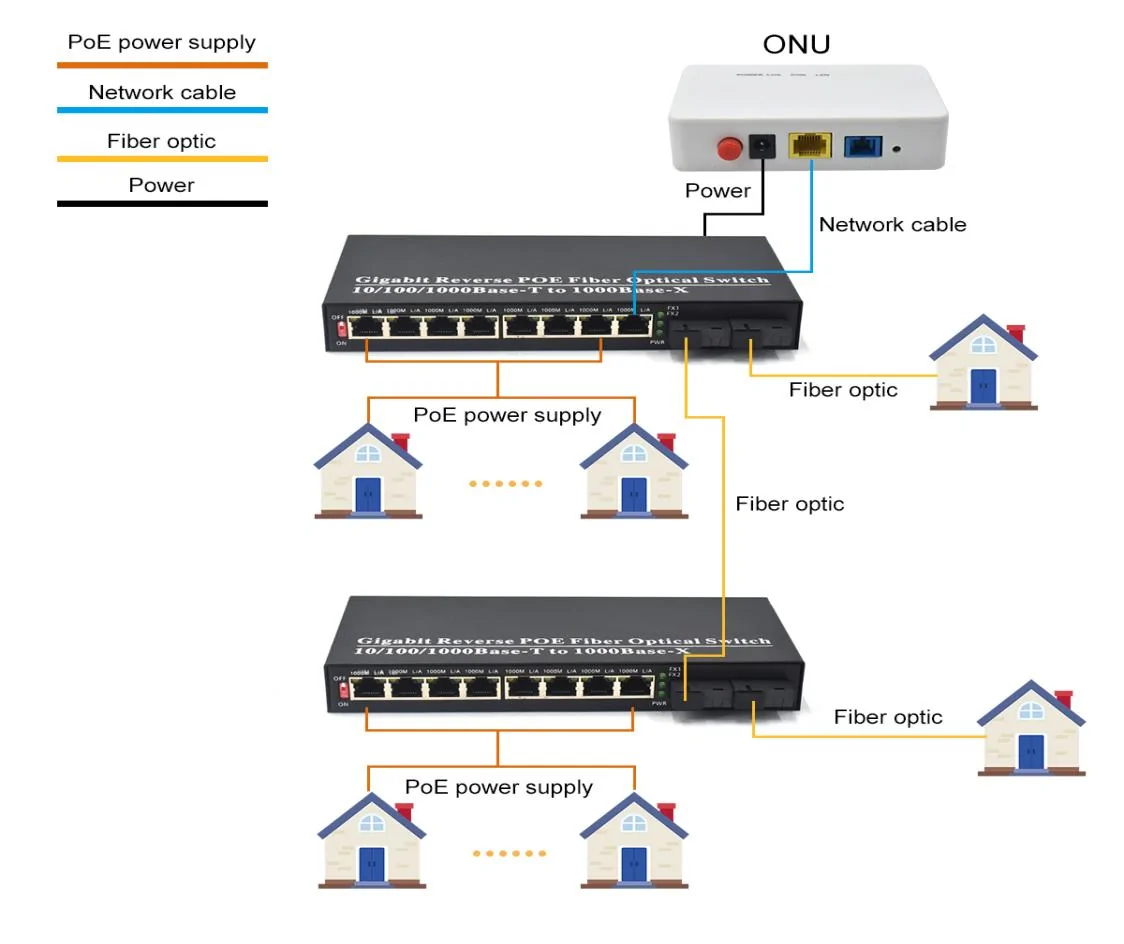

The SG802RP Gigabit 8-Port Passive PoE Switch is a robust networking solution designed to handle high-speed data transmission and power delivery. It features 2 SC fiber optic ports with speeds of 1.25G and 8 Ethernet ports that support 10/100/1000 Mbps. Out of the Ethernet ports, 7 support PoE input (Power over Ethernet), while 1 supports PoE output. Additionally, a DC jack provides 12V input/output for powering other devices, effectively addressing power supply challenges in specialized environments.
This switch is designed for easy installation and maintenance, helping to reduce costs associated with power provisioning and operational workloads. With its plug-and-play functionality, it requires no configuration, ensuring stable operation and simplifying maintenance. This makes it an ideal choice for various commercial and industrial applications.
Key Features
- 8 x 10/100/1000Base-T Ethernet ports and 2 x 1000Base-X fiber ports for flexible and high-speed connectivity.
- 7 PoE input ports (supporting 12-48V) to power connected devices, while 1 port provides PoE output.
- A DC jack delivers 12V/1A output for powering additional devices.
- Supports 9K jumbo frame transmission for efficient handling of large data packets.
- Features a one-click switch for toggling between VLAN mode and long-distance transmission mode (up to 250m).
- All ports support 10/100/1000 Mbps speed auto-negotiation for seamless connectivity.
- Half/full duplex auto-negotiation and auto MDI/MDI-X functionality on all ports for easy integration into existing networks.
- Supports wire-speed forwarding to ensure smoother data transmission across all ports.
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.1p tagged frames IEEE802.3x Flow control, |
| Interface information | Single-mode SC fiber port: 2 1000Base-X optical ports (SC/FC/SFP optional) |
| Transmission rate: 1.25 | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| Ethernet port: 8 10/100/1000M Base-T ports (rj45) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

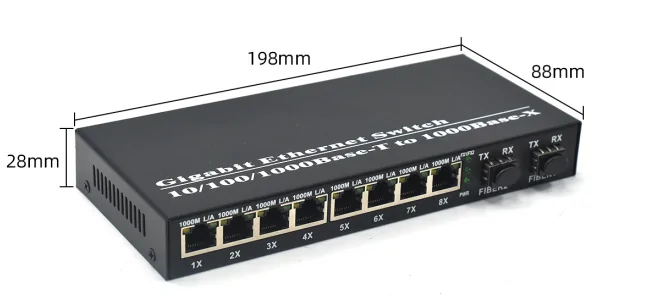

| Appearance dimensions (length*depth*height):201mm×88mm×27mm | |
| Installation method: Desktop | |
| Heat dissipation method: natural cooling, no fan | |
| G.W.: <0.15KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 20Gbps |
| Packet forwarding rate (whole machine) : 14.88Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 4K | |
| Case space : 1.5m | |
| Jumbo frame: 9k | |
| Power supply | Voltage: DC 12V(DC sock) |
| PoE input: 12-48V（port 1-7） | |
| PoE output:12-48V（port 8） | |
| Power consumption: < 3w | |
| Indicator | Ethernet portLink/Act: Green(10/100/1000M)Vlan offVlan on |
| Fiber port(FX): Green | |
| PWR: Green |
