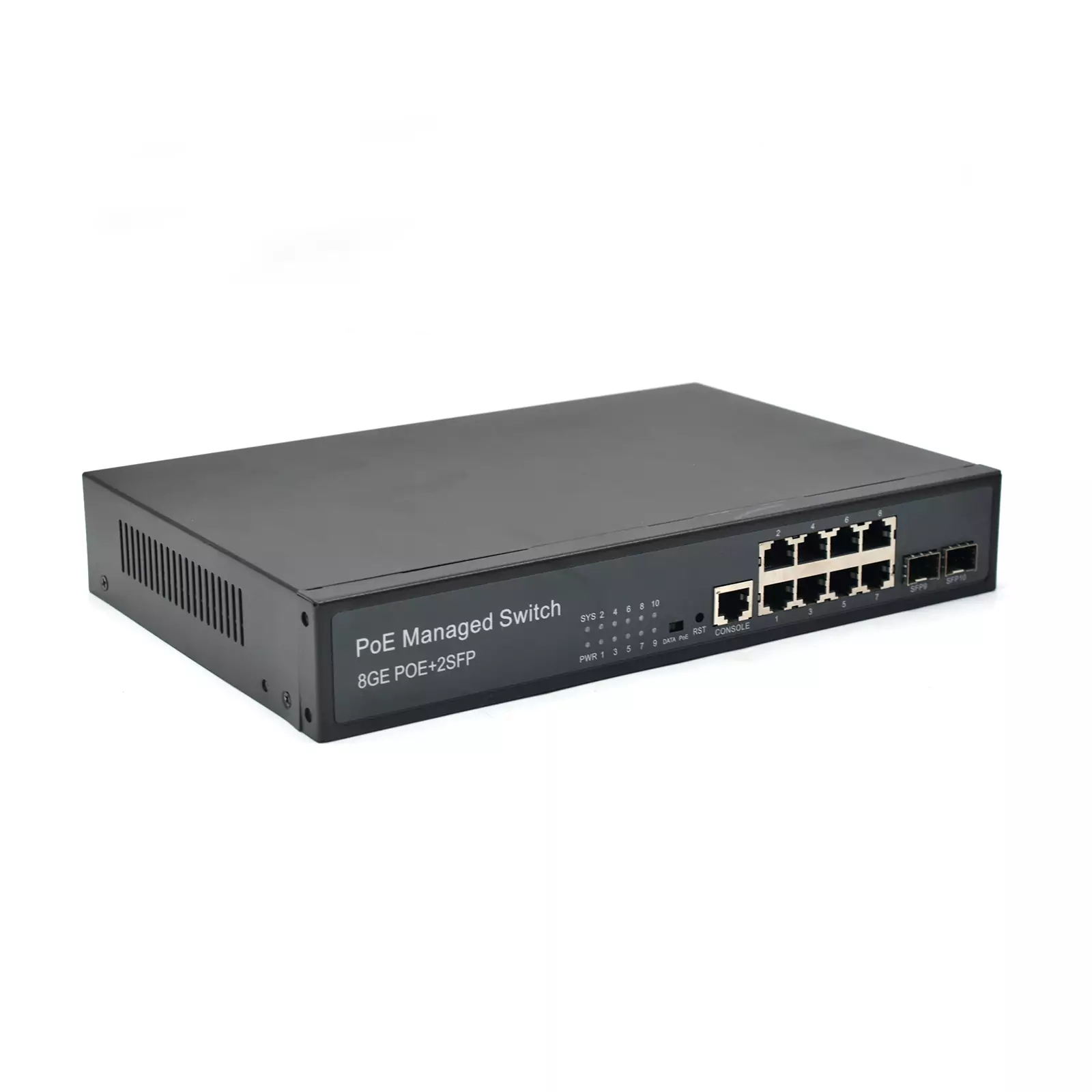

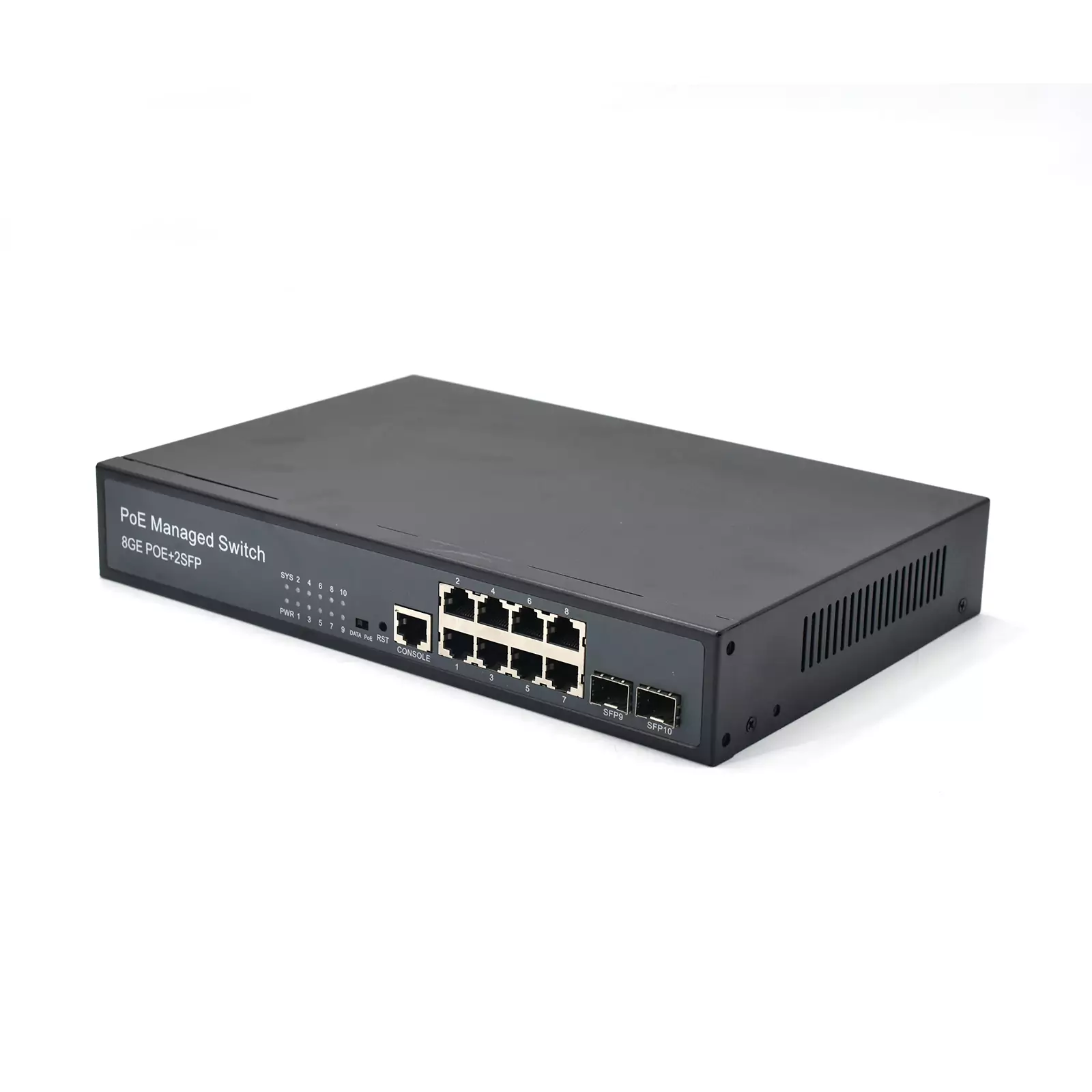

The SG802MP-SFP is a newly developed Layer 2 Gigabit Managed PoE Switch, featuring 8 fixed 10/100/1000Base-T adaptive Ethernet ports, 2 1000M SFP optical ports, and 1 console port. Each of the 8 Ethernet ports supports the IEEE 802.3 af/at PoE power supply standard, providing a maximum of 25.4W per port. This switch can automatically detect and identify powered devices, delivering power over network cables to compliant devices such as wireless access points, IP cameras, VoIP phones, and video intercom systems.
Equipped with a user-friendly web management interface, the SG802MP-SFP supports both IPv4 and IPv6 management. It incorporates a comprehensive security framework, robust ACL/QoS policies, and extensive VLAN features, making it easy to manage and maintain. The switch also supports various network redundancy protocols, including STP, RSTP, and MSTP, along with industrial ERPS ring network functionality, ensuring maximum network stability. Management options are versatile, including Web, CLI, SNMP, and Telnet, allowing for efficient PoE management, port management, traffic control, VLAN configuration, IGMP, and security policy setup. This switch is ideal for hotels, campuses, parks, supermarkets, scenic spots, factory dormitories, and small to medium-sized enterprises seeking to build cost-effective networks.
Key Features
- 8 x 10/100/1000Base-T Ethernet Ports: Reliable connectivity for various devices.
- 2 x 1000Base-X SFP Optical Ports: Flexible uplink options for enhanced network performance.
- IEEE 802.3 af/at PoE Support: Delivers power to connected devices via RJ45 ports.
- 4.1M Port Buffer: Ensures smooth video storage without congestion.
- Intelligent PoE Management: Supports smart power strategies and scheduled power delivery.
- Data Control: Implements 802.3X full-duplex flow control and network storm suppression.
- Redundant Network Support: Includes STP, RSTP, MSTP, and industrial ERPS for enhanced stability.
- Multicast Management: Supports IGMP Snooping (V1/V2/V3) for efficient multicast traffic handling.
- VLAN Support: Complies with IEEE 802.1Q VLAN to effectively isolate broadcast domains.
- Quality of Service (QoS): Supports CoS/DSCP with 4 queues and WRR/SP scheduling modes.
- Security Management: Features ACL access control, 802.1X support, and tiered user management.
- Management Options: Offers CLI, Web, and SNMP for versatile management capabilities.
- Monitoring and Maintenance: Supports port mirroring, interface status monitoring, and log management.
- Durable Design: Constructed with a metal casing and built-in power supply for efficient heat dissipation and long-term stability.
Product Parameters
Hardware attributes
| Standards & Protocol | 10Base-T, compliant with IEEE 802.3100Base-TX, compliant with IEEE 802.3u1000Base-T, compliant with IEEE 802.3ab1000Base-X, compliant with IEEE 802.3zFlow control, following IEEE 802.3xEnvironmentally friendly, compliant with IEEE 802.3azPOE power supply, comply with IEEE 802.3af/at |
| Interface information | SFP optical port: 2 1000Base-X ports (compatible with 100M) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 8 10/100/1000M Base-T network ports (standard RJ45) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Reset interface | Reset button(5-10 seconds) |
| Fluctuation switch | 1 indicator light fluctuation switch (2nd gear: DATA, POE) |
| Mechanical properties | Shell material: metal shell |
| Appearance dimensions (length*depth*height): 270mm×180mm×44mm | |
| Installation method: desktop/ rack-mount installation; long mounting ears can be mounted on the rack (standard configuration); | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <1.5KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -10℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 20Gbps |
| Packet forwarding rate (whole machine) : 15Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Case space : 4.1m | |

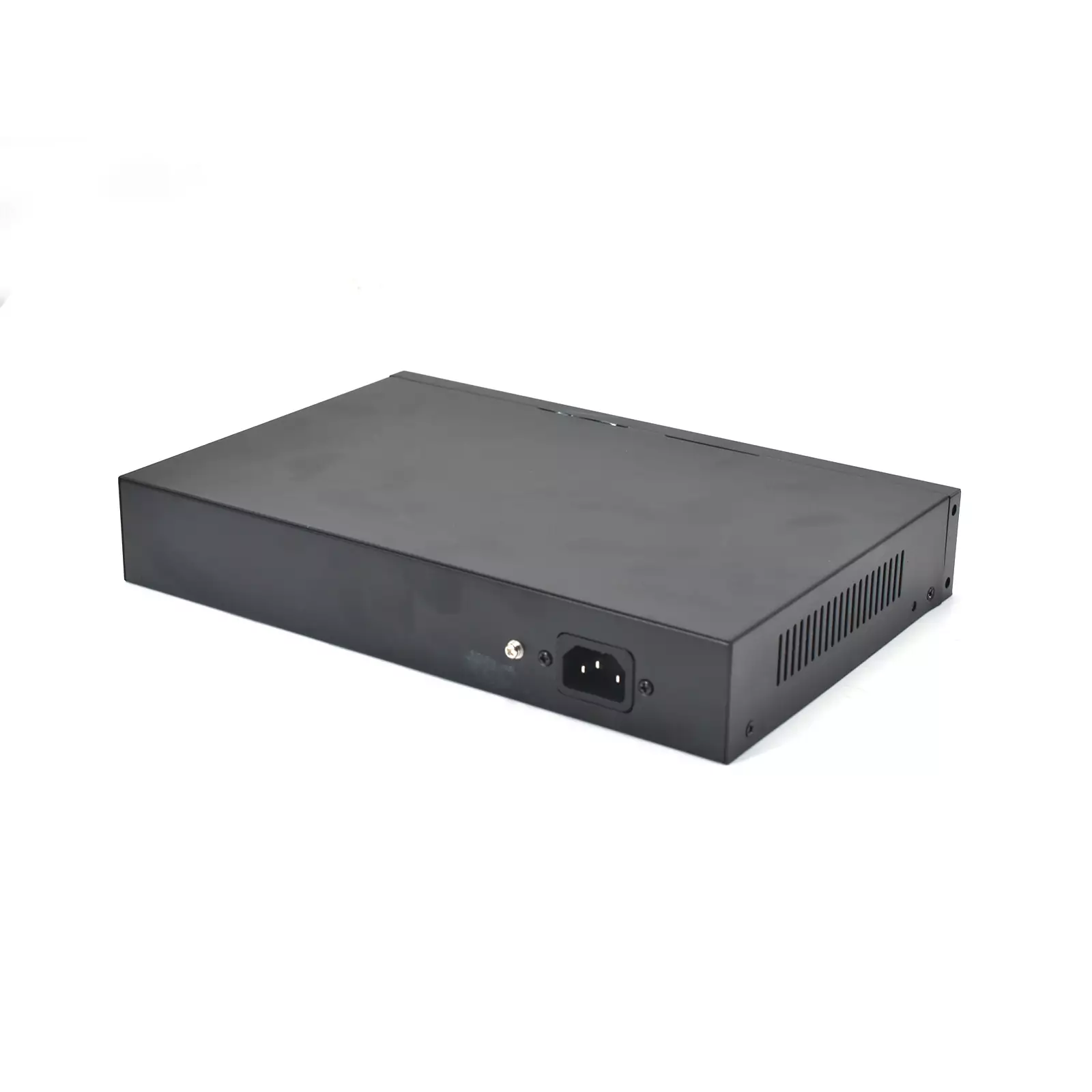

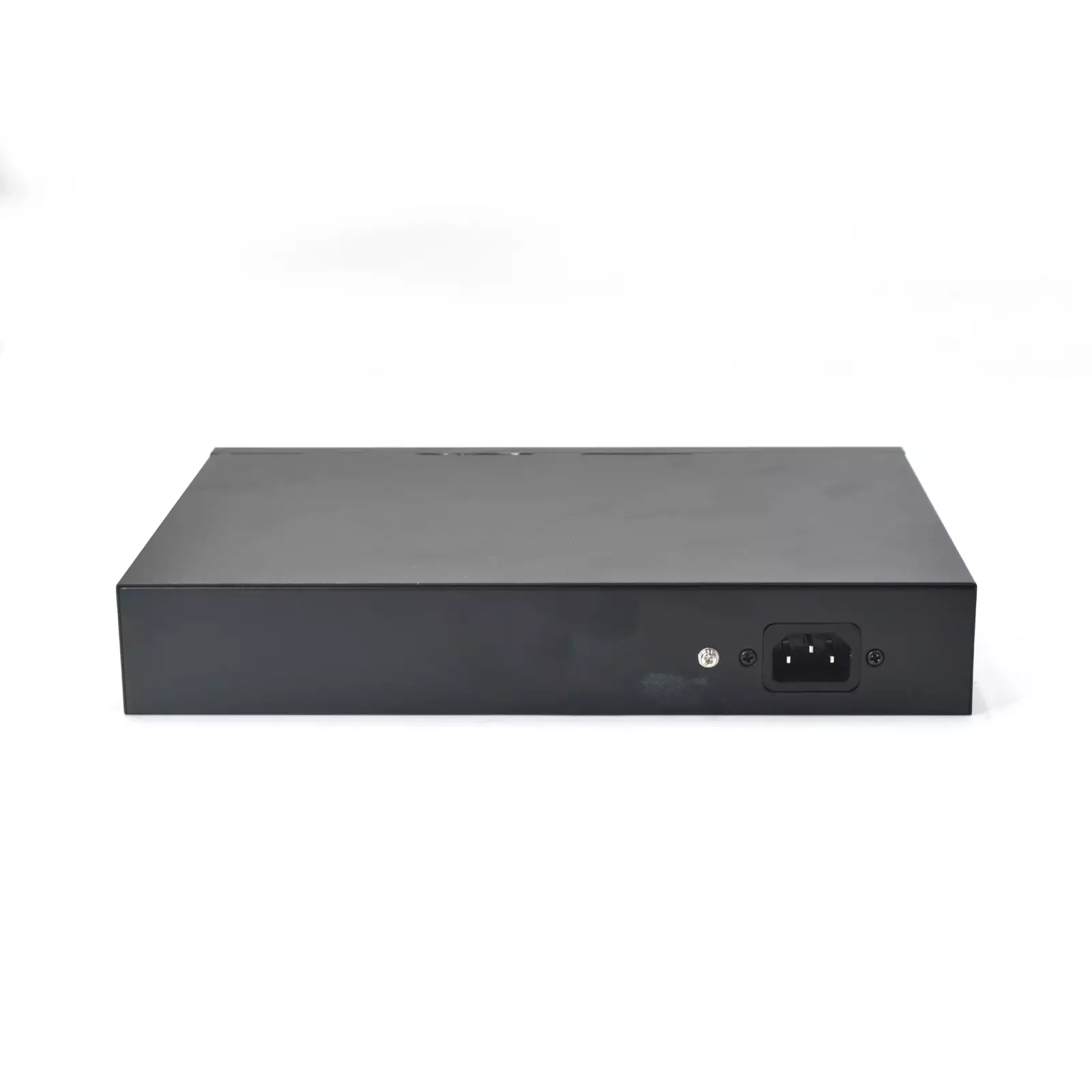

| Power supply | Input voltage: AC 100~240V |
| Standby: < 10W, full load: < 150W | |
| Indicator light | Port light (fluctuation switch control):Points to DATA: 10/100M Link/ACT yellow, 1000M Link/ACT green;Points to POE: POE yellow; |
| POWER: Green | |
| System: Green | |
| Warranty | 3 years |
Software attributes
| Monitoring function | Information such as device model, serial number, MAC, hardware version, software version, system time, running time, CPU utilization, memory utilization, etc. can be viewed |
| Support port statistics | |
| VLAN function | Support management VLAN |
| Support management IP configuration | |
| Support port VLAN | |
| Supports VLANs for IP subnets | |
| Support MAC VLAN | |
| Support Voice VLAN | |
| Support GVRP | |
| Port function | Support port configuration |
| Support port aggregation | |
| Support port mirroring | |
| Support port speed limit | |
| Support port isolation | |
| Support port energy saving | |
| POE function | Support POE power supply |
| Support POE power supply priority | |
| Support POE total power setting | |
| Support POE timing strategy | |
| Support POE intelligent power supply strategy | |
| Scene function | Support MAC configuration (static binding and dynamic binding) |
| Support DHCP Snooping | |
| Support IGMP-Snooping, MLD Snooping | |
| Support LLDP configuration | |
| Support QOS configuration | |
| Support Jumbo Frame | |
| security function | Support ARP configuration |
| Support storm control | |
| Support ACL (based on IP, MAC, time) | |
| Support attack prevention (DOS, Icmp-echo) | |
| Support DHCP Snooping | |
| Support 802.1X | |
| Support Radius authentication | |
| Ring network function | Support STP |
| Support RSTP | |
| Support MSTP | |
| Support ERPS | |
| Troubleshooting function | Support loop protection |
| Support log management | |
| Support Ping detection | |
| Support traceroute | |
| Support line detection | |
| Device management function | Support HTTP/HTTPS |
| Support TELNET | |
| Support SNMP | |
| Support RMON | |
| Equipment maintenance function | Support system time (local and NTP) |
| Support account management (hierarchical management of accounts and password protection) | |
| Support configuration management (configuration import, export, restore factory settings) | |
| Support system upgrade | |
| Support device restart |
