Product Overview
The ISG802M 8-Port Managed Ethernet Switch is a high-performance gigabit switch designed to meet industrial-grade standards. Featuring 8 x 10/100/1000Base-T ports and 2 x 1000M SFP fiber interfaces, this switch is ideal for applications in industrial automation, road traffic control, building automation systems, and data center monitoring. Its robust design enables it to endure harsh environmental conditions, while its compact form factor allows for easy installation in space-constrained control cabinets. With advanced hardware and software capabilities, this switch ensures stable, reliable, and efficient networking, laying the groundwork for a solid industrial Internet of Things (IoT) system.
Key Features
- 8 x 10/100/1000Base-T ports and 2 x 1000Base-X SFP fiber ports for versatile connectivity.
- Supports a 4.1M port buffer, ensuring no congestion for video storage and high-bandwidth applications.
- Data control: Implements 802.3X full-duplex flow control and network storm suppression to maintain optimal network performance.
- Redundant networking support: Includes STP/RSTP/MSTP and industrial ERPS ring network functionalities to enhance network stability.
- Multicast management: Supports IGMP Snooping (V1/V2/V3) to manage multicast traffic efficiently.
- VLAN support: Implements IEEE 802.1Q VLAN functionality to effectively isolate broadcast domains, enhancing network security.
- Quality of Service (QoS): Supports COS/DSCP with 4 queues and both WRR and SP scheduling modes to prioritize critical traffic.
- Security management: Features ACL (Access Control List), 802.1X, and user-level access management for enhanced network security.
- Management capabilities: Compatible with CLI, WEB, and SNMP management methods for easy configuration and monitoring.
- Monitoring and maintenance tools: Offers port mirroring, interface status monitoring, and log management for proactive system maintenance.
- Wide temperature range: Operates reliably in environments from -40°C to +75°C, making it suitable for diverse operational conditions.
- IP40 protection level: Constructed with a corrugated high-strength metal casing that provides durability and resistance to environmental factors.
- Fanless design: Ensures low-power operation combined with IEC Class A electromagnetic protection and high EMC (Electromagnetic Compatibility) ratings.
Product Parameters
| Standards & Protocol | 10Base-T, compliant with IEEE 802.3 100Base-TX, compliant with IEEE 802.3u 1000Base-T, compliant with IEEE 802.3ab 1000Base-X, compliant with IEEE 802.3z Flow control, following IEEE 802.3x Environmentally friendly, compliant with IEEE 802.3az |
| Interface information | SFP Fiber Ports: 2 1000Base-X ports (compatible with 100M) |
| Transmission Rate: 1.25G | |
| Multi-mode: 550m/2km | |
| Single-mode: 2/20/40/60/80/100km | |
| Wavelengths: Multi-mode: 850nm/1310nm; Single-mode: 1310nm/1550nm/1490nm | |
| RJ45 Ports: 8 10/100/1000M Base-T ports | |
| Speed: 10/100/1000Mbps auto-negotiation | |
| 10Base-T: ≤100m (CAT3, 4, 5 UTP) | |
| 100Base-T: ≤100m (CAT3, 4, 5 UTP) | |
| 1000Base-T: ≤100m (CAT3, 4, 5 UTP) | |
| Reset interface | Reset button |
| Dip switch | 1 (2 positions: DATA, POE) |
| Mechanical properties | Shell material: metal shell |

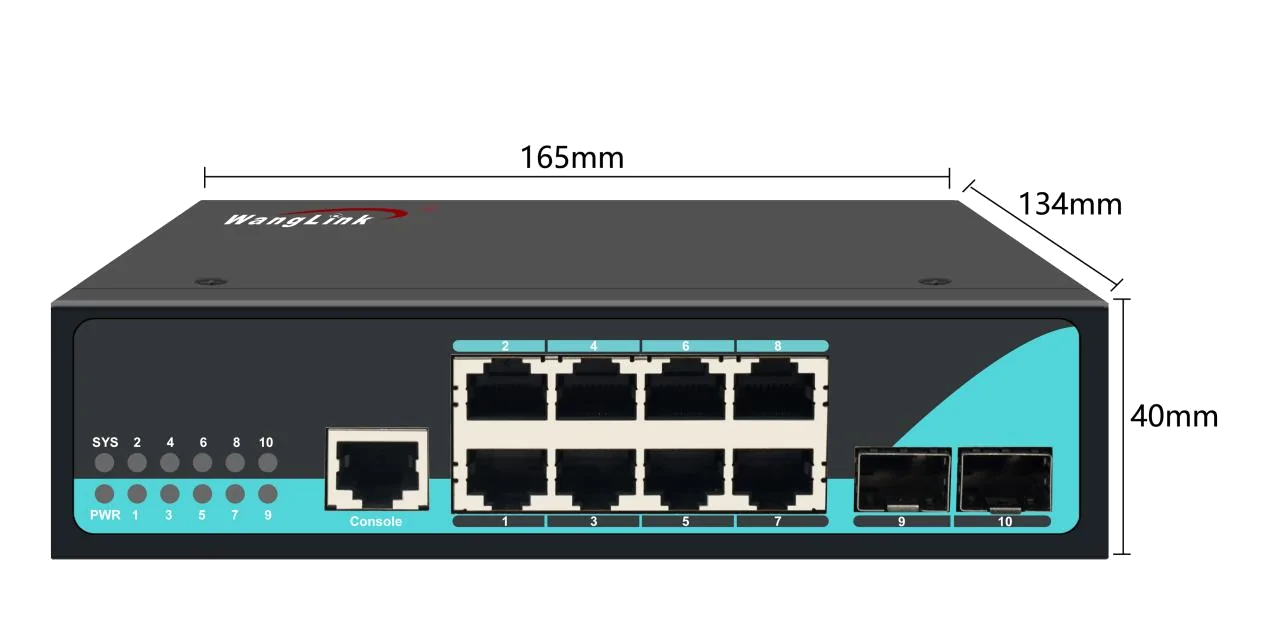

| Appearance dimensions (length*depth*height): 165mm×134mm×40mm | |
| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: 0.782KG | |
| Environmental properties | Working temperature: -40℃～+75℃ |
| Storage temperature: -40℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 20Gbps |
| Packet forwarding rate (whole machine) : 15Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Pocket buffer : 4.1m | |
| Power supply | Input voltage: DC 24V (dual redundant) |
| Power interface: 6-pin Phoenix terminal | |
| Power Protection: Reverse polarity protection | |
| Power consumption: < 10W | |
| Indicator light | Port Indicators: DIP switch point to DATA: 10/100M Link/ACT (yellow), 1000M Link/ACT (green) |
| POWER: Green | |
| System: Green | |
| Security properties | Shell protection: IP40 |
| Surge impact IEC61000-4-5 (optional):Signal end: common mode ±4KV, differential mode ±2KVPower supply end: common mode ±4KV, differential mode ±2KV | |
| Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV | |
| Pulse immunity IEC61000-4-4: signal terminal: ±2KV, power terminal: ±2KV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| MTBF: 100000 hours | |
| Warranty | 3 years |
Software features
| Monitoring function | Information such as device model, serial number, MAC, hardware version, software version, system time, running time, CPU utilization, memory utilization, etc. can be viewed |
| Support port statistics | |
| VLAN function | Support management VLAN |
| Support management IP configuration | |
| Support port VLAN | |
| Supports VLANs for IP subnets | |
| Support MAC VLAN | |
| Support Voice VLAN | |
| Support GVRP | |
| Port function | Support port configuration |
| Support port aggregation | |
| Support port mirroring | |
| Support port speed limit | |
| Support port isolation | |
| Support port energy saving | |
| Scene function | Support MAC configuration (static binding and dynamic binding) |
| Support DHCP Snooping | |
| Support IGMP-Snooping, MLD Snooping | |
| Support LLDP configuration | |
| Support QOS configuration | |
| Support Jumbo Frame | |
| security function | Support ARP configuration |
| Support storm control | |
| Support ACL (based on IP, MAC, time) | |
| Support attack prevention (DOS, Icmp-echo) | |
| Support DHCP Snooping | |
| Support 802.1X | |
| Support Radius authentication | |
| Ring network function | Support STP |
| Support RSTP | |
| Support MSTP | |
| Support ERPS | |
| Troubleshooting function | Support loop protection |
| Support log management | |
| Support Ping detection | |
| Support traceroute | |
| Support line detection | |
| Device management function | Support HTTP/HTTPS |
| Support TELNET | |
| Support SNMP | |
| Support RMON | |
| Equipment maintenance function | Support system time (local and NTP) |
| Support account management (hierarchical management of accounts and password protection) | |
| Support configuration management (configuration import, export, restore factory settings) | |
| Support system upgrade | |
| Support device restart |
