Product Overview
The SG411P-E 4 Port PoE Gigabit Ethernet Switch is a robust and versatile networking solution ideal for powering and connecting devices in various environments. This 4 port PoE gigabit ethernet switch features 5 10/100/1000Base-T Ethernet ports and 1 1000Base-X SFP slot for flexible connectivity. Ports 1-4 support the IEEE 802.3af/at PoE standard, each providing a maximum output power of 25.4W, ensuring efficient power delivery to compatible devices. With its intelligent PoE detection capabilities, this switch prevents damage to non-PoE devices by supplying power only to compliant devices.
Key Features
- 5 10/100/1000Base-T Ethernet ports and 1 1000Base-X SFP uplink slot, providing multiple connectivity options.
- 4 RJ45 ports that support IEEE802.3 af/at standards, delivering up to 25.4W of power per port.
- One-key switch feature for easy toggling to VLAN mode for enhanced network management.
- All ports support adaptive speed of 10/100/1000Mbps, ensuring smooth performance across connections.
- Supports half/full duplex adaptive mode and automatic MDI/MDI-X functionality for simplified configuration.
- Line-speed forwarding on all ports promotes efficient and seamless data transmission.
- Optional surge protection with 6KV common mode and 4KV differential mode for added reliability.
- Optional AI network self-healing (watchdog) function for enhanced network resilience.
- Can be installed on desktops or mounted on walls, offering flexibility in deployment.
- Plug-and-play operation allows for quick and easy setup without configuration.
- Built with a metal casing and featuring an internal power supply for excellent heat dissipation, ensuring stable long-term operation.

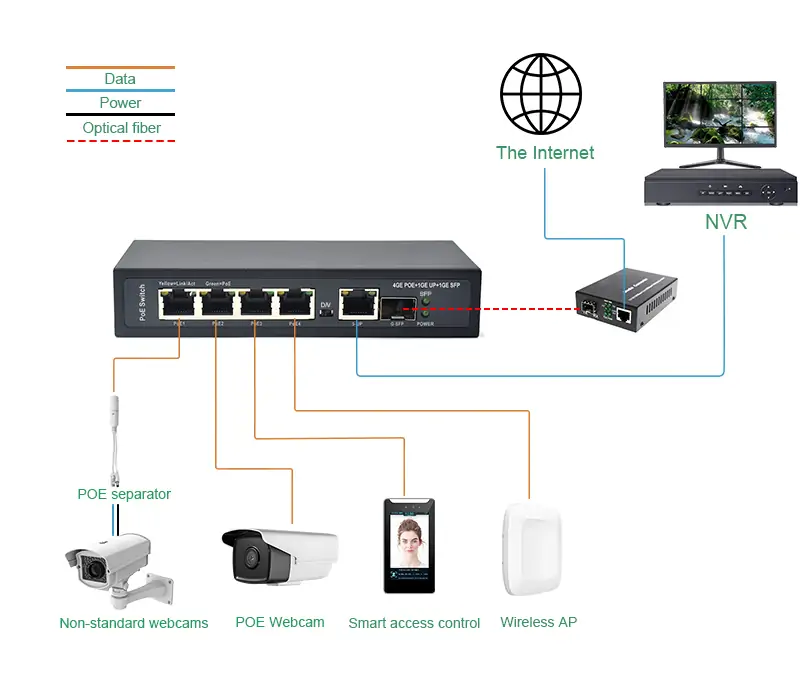

Ideal Applications
This switch is perfect for video surveillance networking in environments such as hotels, retail shops, supermarkets, residential homes, and small to medium-sized enterprises.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3x flow control |
| Fiber Port Characteristic | Connector Type | SFP slot |
| Transmission rate | 1.25Gbps | |
| Transmission distance | Multi-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km | |
| Wavelength | Multi-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm | |
| Ethernet port Characteristic | Connector Type | 1×4 RJ45，1×1 RJ45 |
| Transmission rate | 10/100/1000Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 1Mb | |
| Jumbo frames | 9216b | |
| Packet Forwarding Rate | 8.928Mpps@64byte | |
| Bandwidth | 12G（non-blocking） | |
| LED indicator | Power indicator | Green, PWR |
| SFP port indicator | Green, SFP slot | |
| Link/Act indicator | Yellow, 1 for each ethernet port | |
| 1000M indicator | Green, 1 for uplink port 5 | |
| PoE indicator | Green, 1 for each PoE port | |
| Power parameters | Input voltage | AC100~240V，50Hz |
| Power consumption | ≤2W | |
| PoE pin | 1/2+，3/6- | |
| The port max rate | ≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

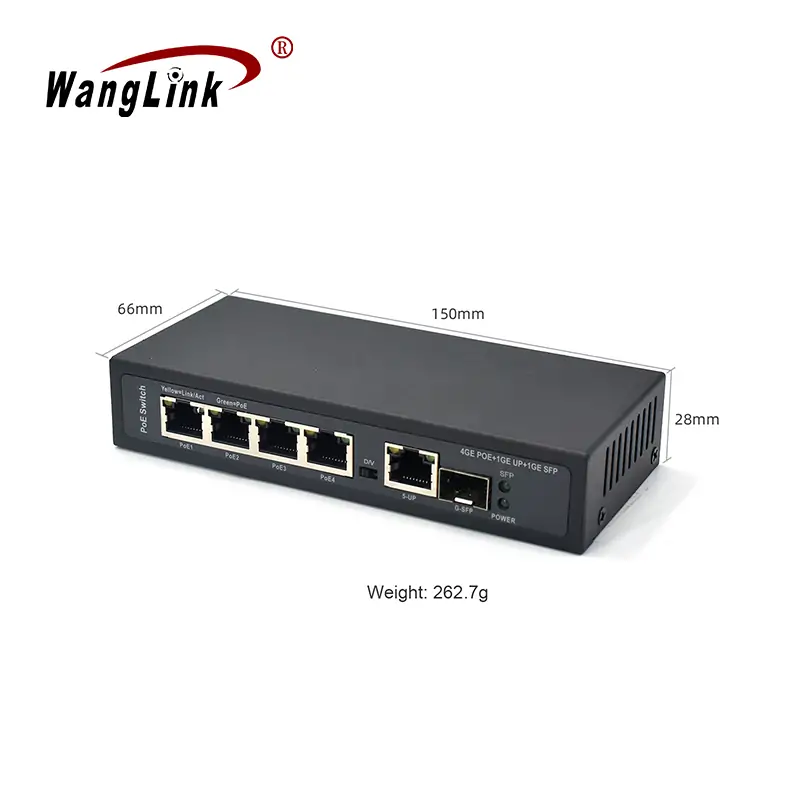

| Physical properties | Size | 150×66×28mm |
| Weight | 263g |
