Product Overview
The SG402P-MINI is a high-performance 4 port switch PoE designed to meet the demands of modern network environments. This PoE switch features 4 10/100/1000Base-T Ethernet ports and 2 1000Base-X fiber ports, with ports TP1-TP4 supporting the IEEE802.3 af/at PoE (Power over Ethernet) protocol. Each PoE port can deliver a maximum output power of 25.4W, while the total PoE power output for the entire switch is 65W. This ensures efficient power delivery to compatible devices, automatically detecting and supplying power only to PoE-enabled devices, thus protecting non-PoE devices from potential damage.
Key Features
- 4 10/100/1000Base-T Ethernet ports and 2 1000Base-X fiber ports for versatile connectivity.
- IEEE802.3 af/at PoE support on RJ45 ports, providing up to 25.4W per port for powered devices.
- One-key switch functionality to easily toggle between VLAN mode, 10mbps mode, and VLAN & 10mbps mode.
- Auto-negotiation for 10/100/1000Mbps speeds, ensuring optimal performance.
- Adaptive Half/Full duplex operation with auto MDI/MDI-X capabilities for seamless connections.
- All ports support wire-speed forwarding for efficient data transmission.
- Flexible installation options with support for desktop and wall-mounted setups.
- Plug and Play design requiring no configuration, making setup quick and easy.
- Robust metal case with an internal power supply for excellent heat dissipation, ensuring long-term stability and reliability.
The SG402p-MINI is an ideal choice for video surveillance networking in environments such as hotels, shops, supermarkets, family homes, and small to medium-sized enterprises. Its ability to reduce broadcast storms and isolate network conflicts enhances overall communication efficiency.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE 802.3x flow control |
| Fiber Port Characteristic | Connector Type | SC/FC/ST |
| Transmission rate | 1.25Gbps | |
| Transmission distance | Multi-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km | |
| Wavelength | Multi-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm | |
| Ethernet port Characteristic | Connector Type | 1×4 RJ45 |
| Transmission rate | 10/100/1000Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 1Mb | |
| Jumbo frames | 9216b | |
| Packet Forwarding Rate | 8.928Mpps@64byte | |
| Bandwidth | 12G（non-blocking） | |
| LED indicator | Power indicator | PWR, green |
| Fiber port | FX1/FX2, green | |
| Link/Act indicator | TP1/TP2/TP3/TP4, green | |
| Function switch | OFF | Standard, All ports can communicate with each other. |
| VLAN | VLAN mode，TP1~TP4 are isolate with each other but can communicate with FX1-FX2 uplink port. | |
| 10M | Extend mode，extend the TP1-TP4 transmission distance to 250m. | |
| ON | VLAN mode and 10mbps mode effective | |
| Power parameters | Input voltage | AC100~240V, 50Hz |
| Power consumption | Standby: ≤2W; whole: ≤65W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | ≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

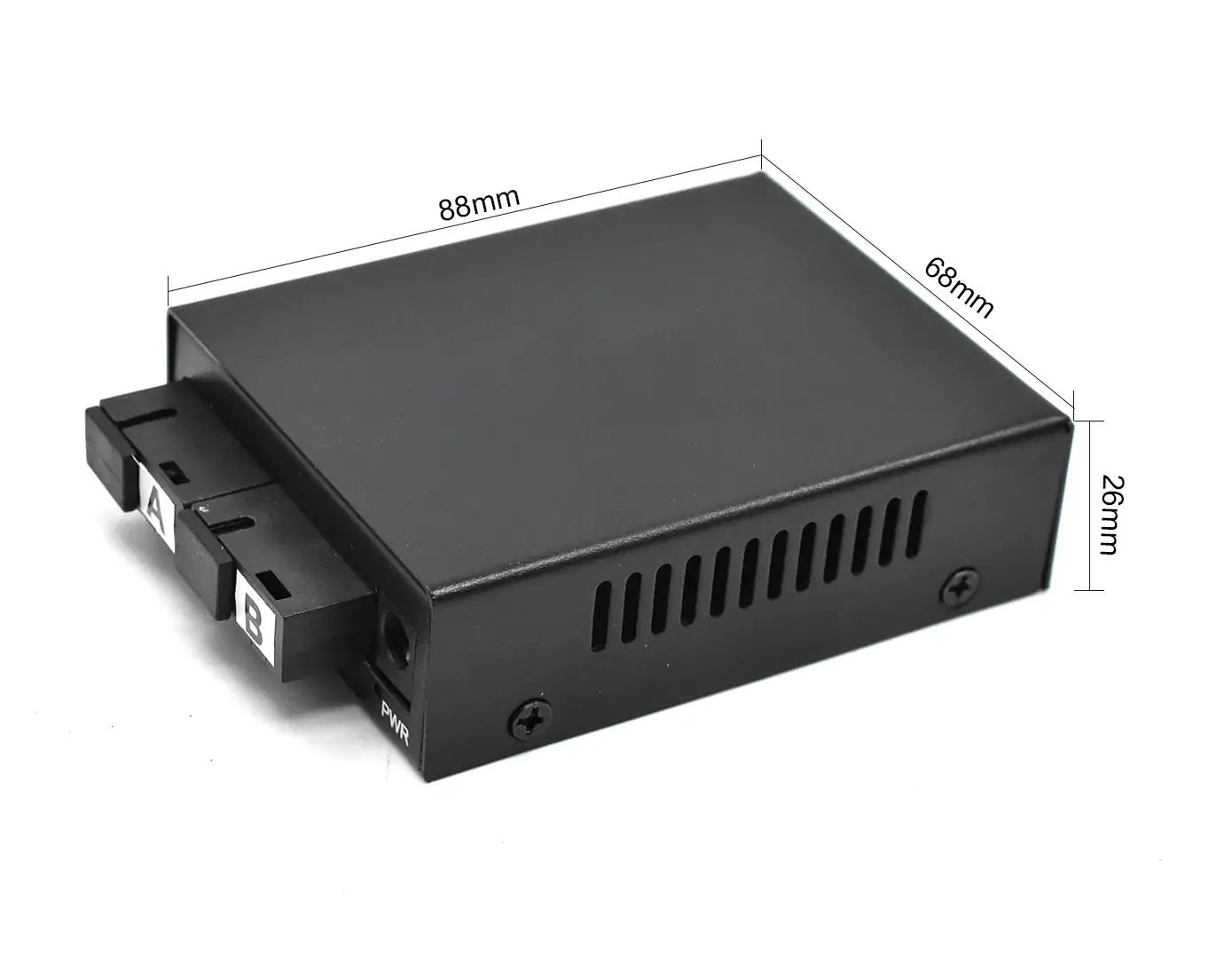

| Physical properties | Size | 88×68×26mm |
| Weight | Net weight:0.2kg,Gross weight: 0.7kg |
