Product Overview

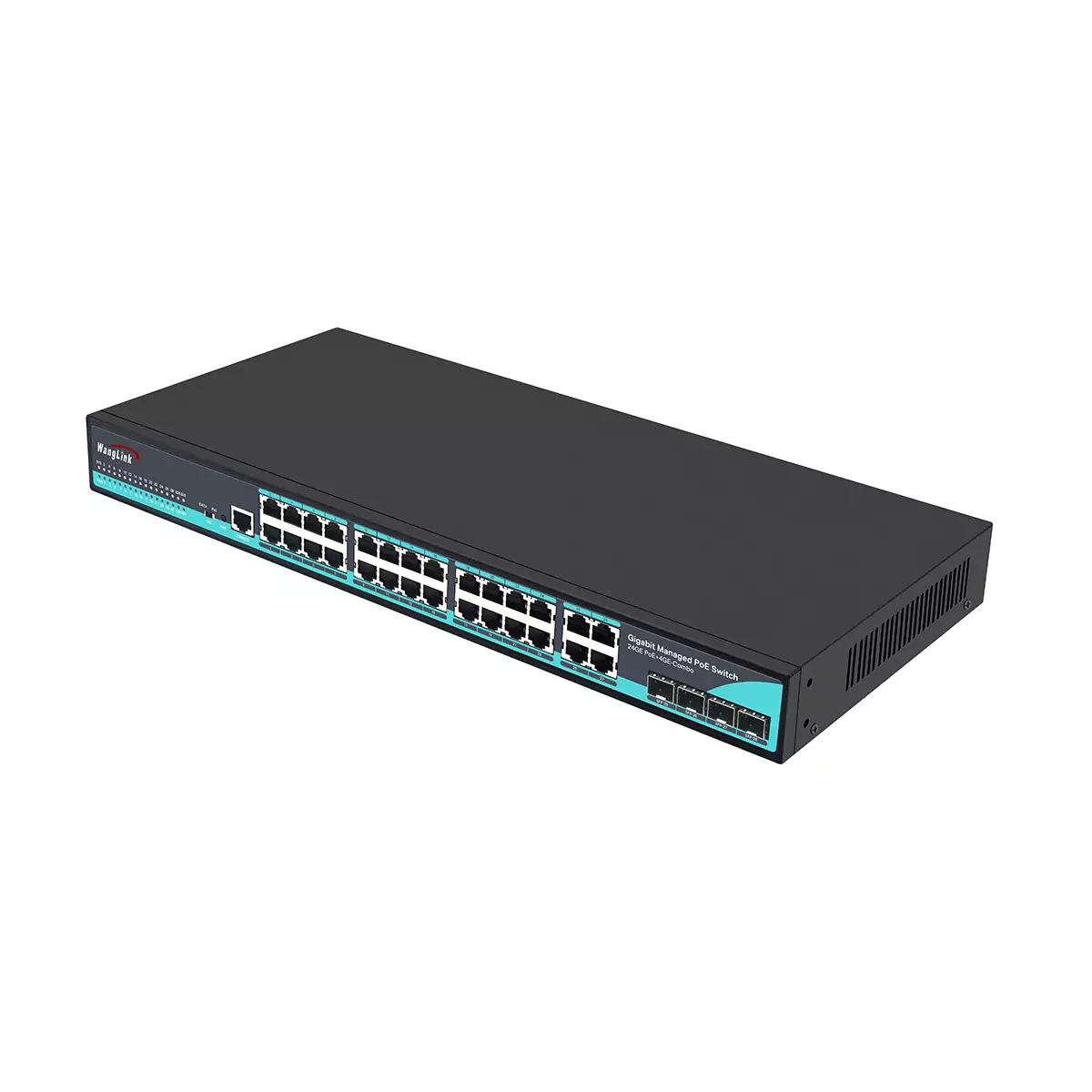

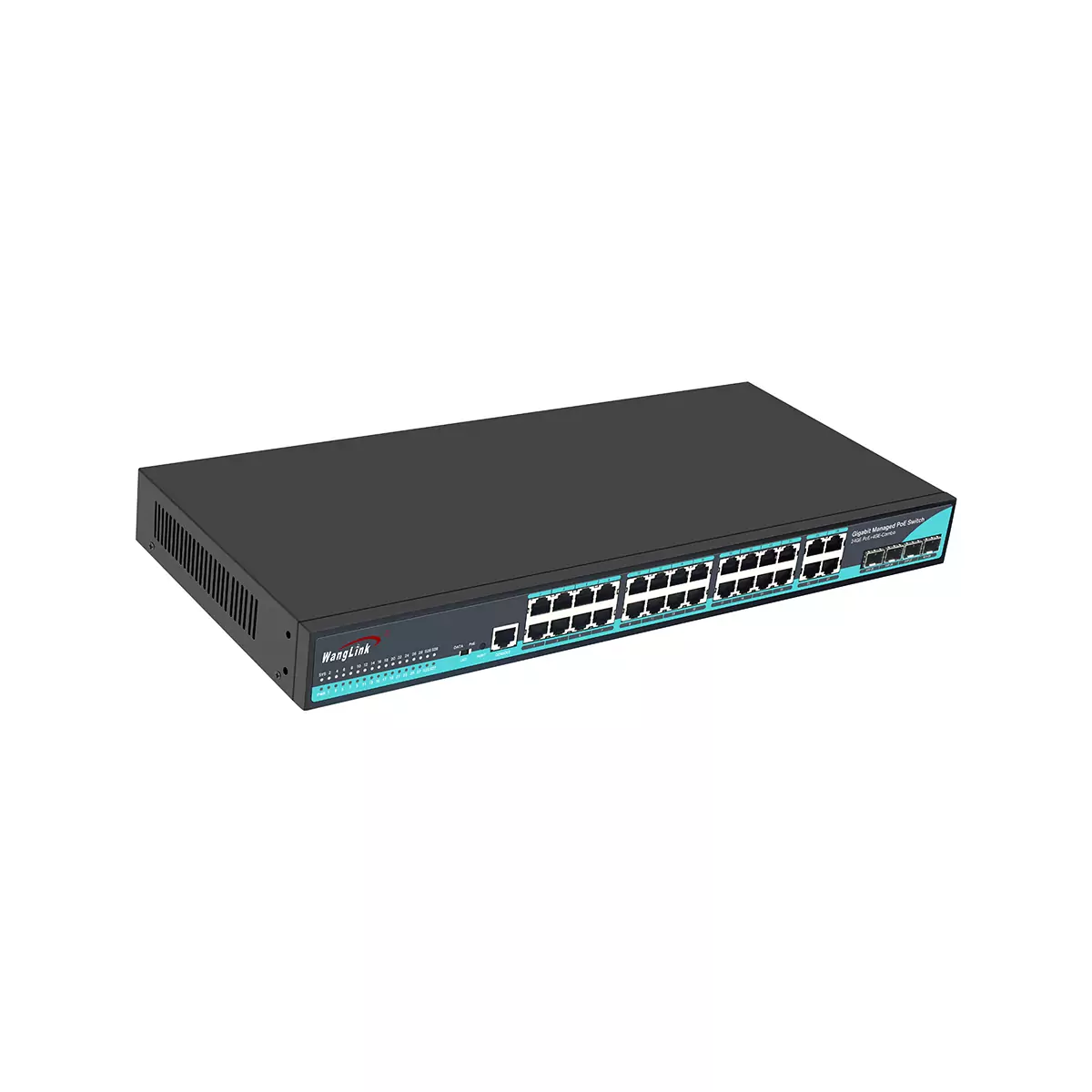

The SG2402MP is a Layer 2 Gigabit Managed PoE Switch independently developed by our company. This versatile switch features 24 10/100/1000Base-T adaptive PoE Ethernet ports, 4 1000M SFP combo ports, and 1 console port. Each of the 24 PoE Ethernet RJ45 ports supports the IEEE 802.3 af/at standard, providing a maximum of 25.4W of power to connected devices.

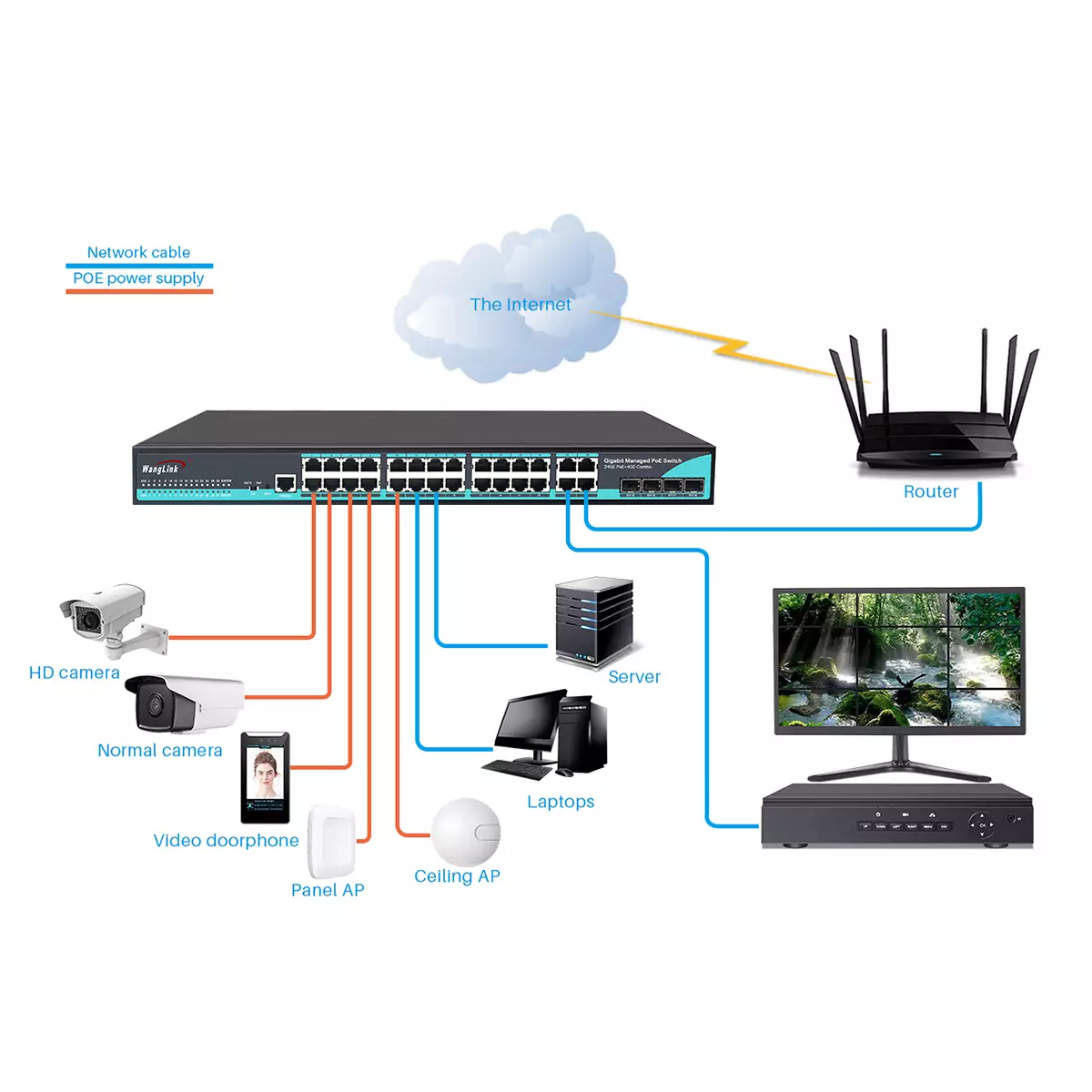

With a user-friendly web management interface, the SG2402MP supports both IPv4 and IPv6 management. It includes comprehensive security features, detailed ACL and QoS policies, and rich VLAN capabilities, making it easy to manage and maintain. The switch also supports multiple redundancy protocols, including STP, RSTP, and MSTP, as well as industrial ERPS ring network functionality to ensure network stability. Management options such as Web, CLI, SNMP, and Telnet enable efficient port management, traffic control, VLAN configurations, IGMP handling, and security policy setups. This switch is ideal for hotels, campuses, parks, supermarkets, scenic spots, factory dormitories, and small to medium-sized enterprises looking to establish cost-effective networks.
Key Features
- 24 x 10/100/1000Base-T PoE Ethernet Ports: Supports PoE and PoE+ for powering various devices.
- 4 x 1000Base-X SFP Combo Ports: Flexible uplink connectivity options for enhanced network efficiency.
- 4.1M Port Buffer: Guarantees smooth video storage and minimizes congestion.
- Data Control: Implements 802.3X full-duplex flow control and network storm suppression for optimal performance.
- Redundant Network Support: Features STP, RSTP, MSTP, and industrial ERPS for improved network reliability.
- Multicast Management: Supports IGMP Snooping (V1/V2/V3) for efficient multicast traffic handling.
- VLAN Support: Complies with IEEE 802.1Q to effectively isolate broadcast domains.
- Quality of Service (QoS): Supports CoS/DSCP with 4 queues for efficient traffic prioritization.
- Security Management: Includes ACL access control, 802.1X support, and tiered user management.
- Management Options: Offers CLI, Web, and SNMP for comprehensive management capabilities.
- Monitoring and Maintenance: Supports port mirroring, interface status monitoring, and log management for easy troubleshooting.
Product Parameters
| Standards & Protocol | 10Base-T, compliant with IEEE 802.3100Base-TX, compliant with IEEE 802.3u1000Base-T, compliant with IEEE 802.3ab1000Base-X, compliant with IEEE 802.3zFlow control, following IEEE 802.3xEnvironmentally friendly, compliant with IEEE 802.3az |
| Interface information | SFP optical port: 4 1000Base-X ports (combo ports compatible with 100M) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 24 10/100/1000M Base-T ethernet ports (POE, POE+) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Reset interface | Reset button(5-10s) |
| Fluctuation switch | 1 indicator light fluctuation switch (2nd gear: DATA, POE) |
| Mechanical properties | Shell material: metal shell |

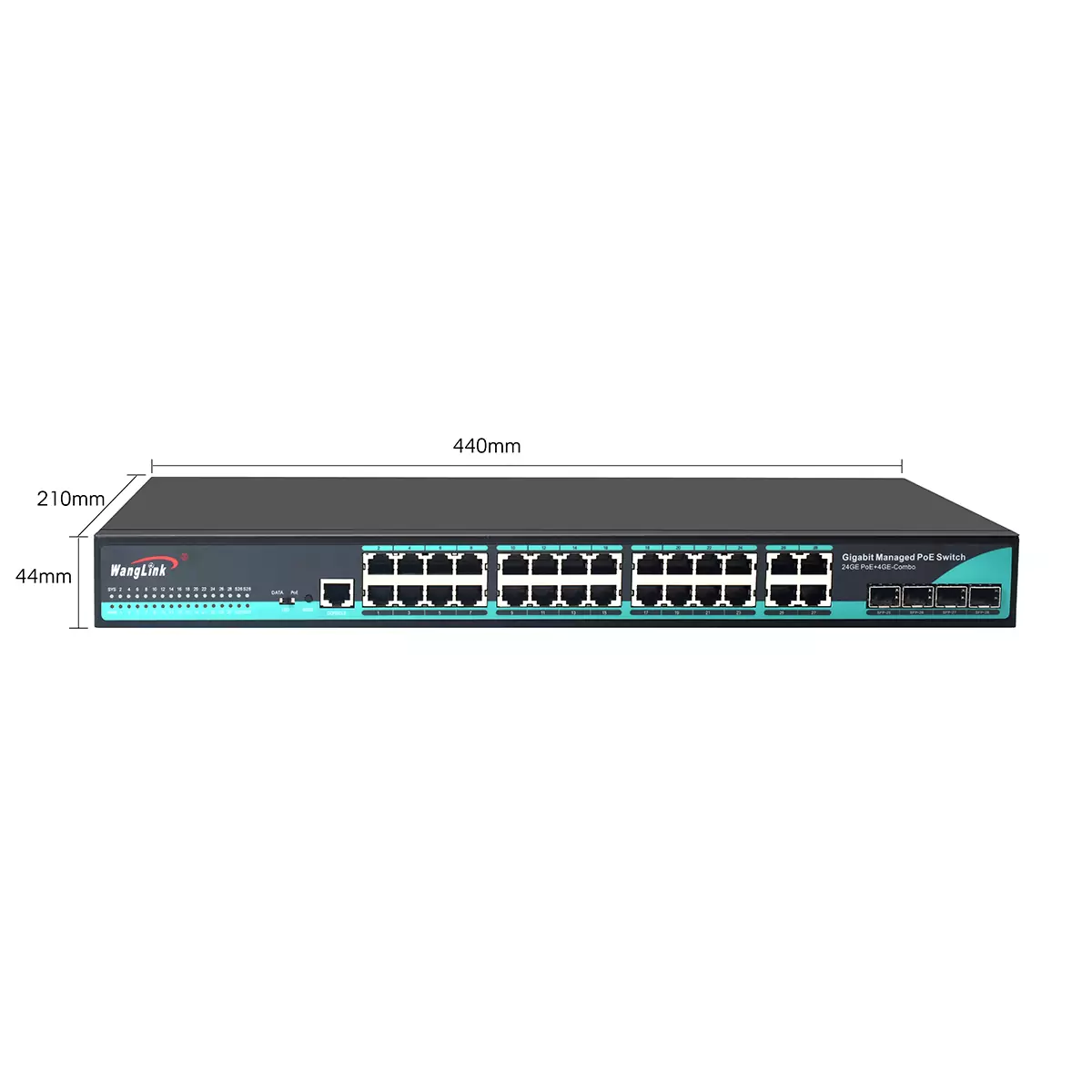

| Appearance dimensions (length*depth*height): 440mm×210mm×44mm | |
| Installation method: Desktop, Chassis | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <3.5KG | |
| Environmental properties | Working temperature: -5℃～+60℃ |
| Storage temperature: -10℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 56Gbps |
| Packet forwarding rate (whole machine) : 42Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Case space : 4.1m | |

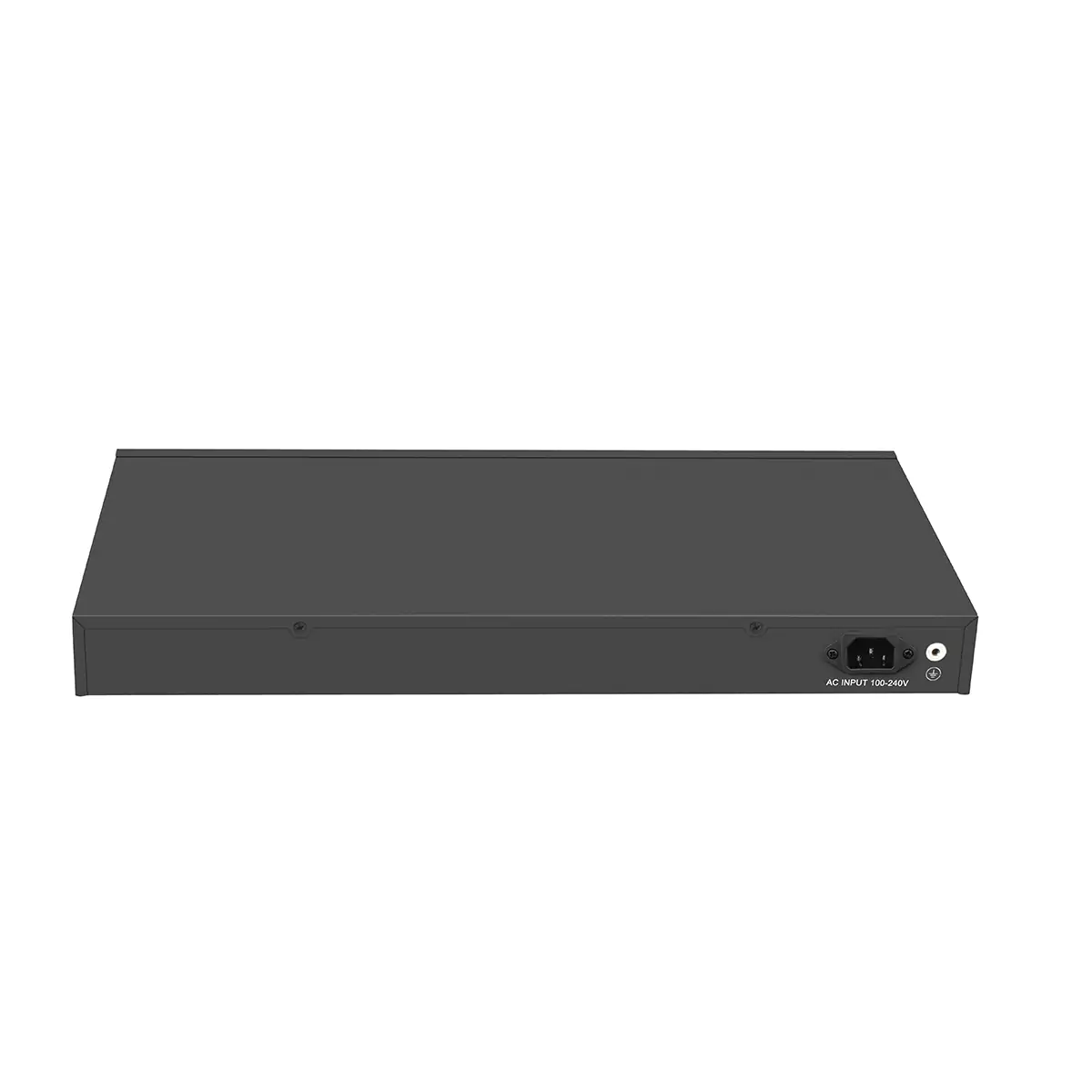

| Power supply | Input voltage: AC 100～240V |
| Power consumption:standby < 10W; Full load: <300/400w | |
| Indicator | Port indicator(fluctuation switch control) When Switch Point to Data : 10/100M Link/ACT yellow, 1000M Link/ACT green; |
| Fiber port: Green | |
| Power supply: Green | |
| System: Green |
Software features
| Monitoring function | Information such as device model, serial number, MAC, hardware version, software version, system time, running time, CPU utilization, memory utilization, etc. can be viewed |
| Support port statistics | |
| VLAN function | Support management VLAN |
| Support management IP configuration | |
| Support port VLAN | |
| Supports VLANs for IP subnets | |
| Support MAC VLAN | |
| Support Voice VLAN | |
| Support GVRP | |
| Port function | Support port configuration |
| Support port aggregation | |
| Support port mirroring | |
| Support port speed limit | |
| Support port isolation | |
| Support port energy saving | |
| Scene function | Support MAC configuration (static binding and dynamic binding) |
| Support DHCP Snooping | |
| Support IGMP-Snooping, MLD Snooping | |
| Support LLDP configuration | |
| Support QOS configuration | |
| Support Jumbo Frame | |
| security function | Support storm control |
| Support ACL (based on IP, MAC, time) | |
| Support attack prevention (DOS, Icmp-echo) | |
| Support DHCP Snooping | |
| Support 802.1X | |
| Support Radius authentication | |
| Ring network function | Support STP |
| Support RSTP | |
| Support MSTP | |
| Support ERPS | |
| Troubleshooting function | Support loop protection |
| Support log management | |
| Support Ping detection | |
| Support traceroute | |
| Support line detection | |
| Device management function | Support HTTP/HTTPS |
| Support TELNET | |
| Support SNMP | |
| Support RMON | |
| Equipment maintenance function | Support system time (local and NTP) |
| Support account management (hierarchical management of accounts and password protection) | |
| Support configuration management (configuration import, export, restore factory settings) | |
| Support system upgrade | |
| Support device restart |
