Product Overview

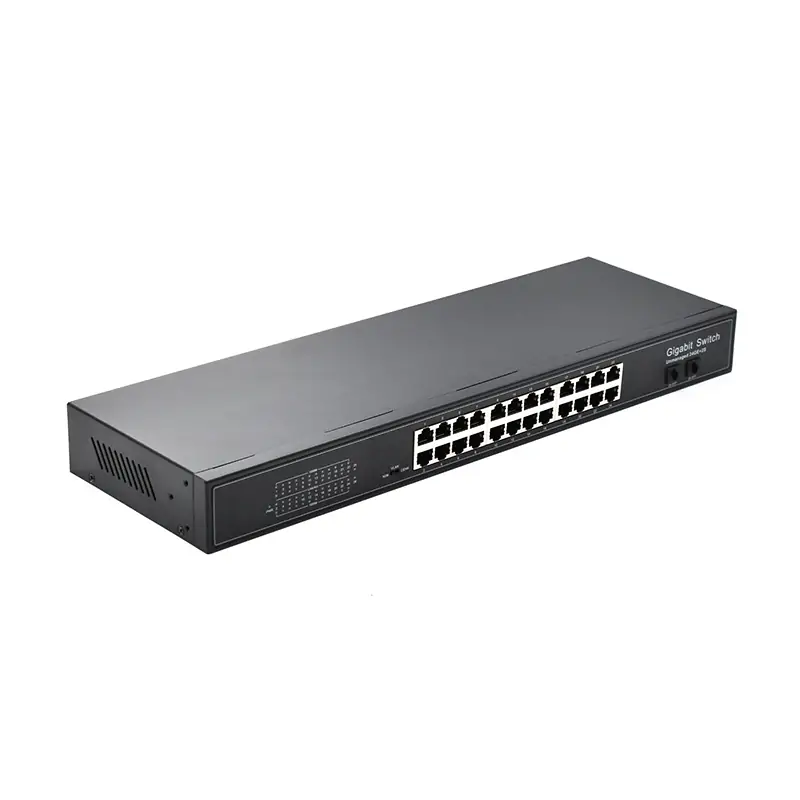

The SG2402-Ris a 24-port Gigabit Ethernet switch designed for efficient networking in small to medium-sized environments. It features 24 10/100/1000Base-T Ethernet ports and 2 1000Base-X SFP optical uplink ports, utilizing high-quality, high-speed network ICs. With a fanless, silent design, this switch effectively addresses noise issues typically associated with deploying small switches in office settings.

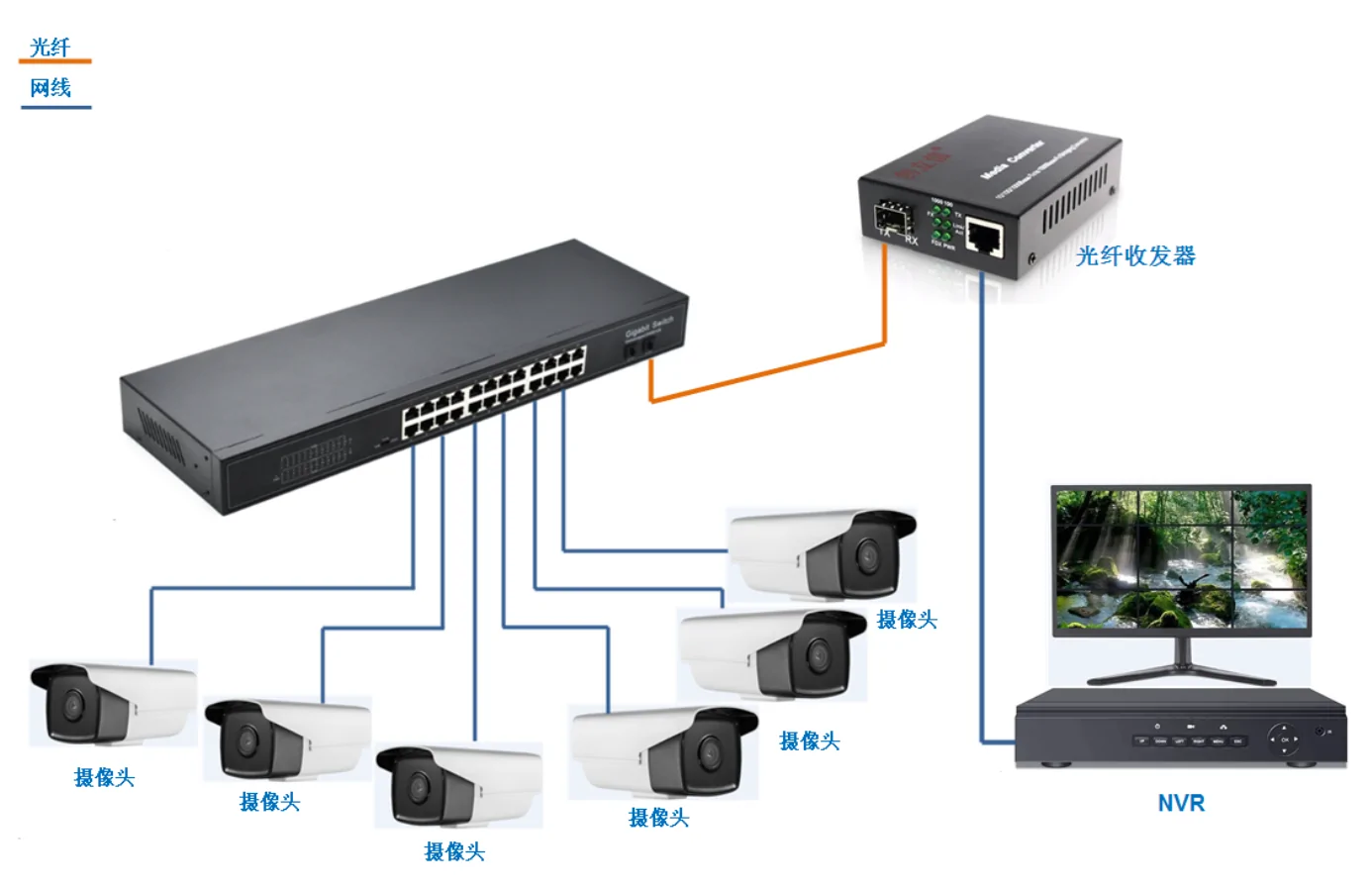

The SG2402R supports three working modes and allows for easy switching between modes with a one-touch DIP switch, making it convenient to manage and maintain. This switch is suitable for a variety of applications, including security network video surveillance, hotels, campuses, and network engineering for small to medium-sized enterprises.
Key Features
- 24 x 10/100/1000Base-T Ethernet ports and 2 x 1000Base-X uplink SFP ports
- One-click mode switching between Standard, VLAN, and Flow Control modes
- 6kV lightning protection feature for enhanced safety
- All ports support 10/100/1000 Mbps rate adaptation and half/full duplex adaptation
- Automatic MDI/MDI-X functionality on all ports
- Line-speed forwarding on all ports for smoother transmission
- Plug-and-play design for easy operation, requiring no configuration
- Constructed with a metal casing and built-in power supply, providing excellent heat dissipation to ensure long-term stable operation
Product Parameters
| Standards and Protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.1p tagged frames IEEE 802.3x flow control |
| Interface Information | Single-mode SFP Optical Ports: 2 x 1000Base-X SFP optical ports (uplink ports) Transmission Rate: 1.25 Multi-mode Range: 550m/2km; Single-mode Range: 2/20/40/60/80/100km Multi-mode Wavelengths: 850nm/1310nm, Single-mode Wavelengths: 1310nm/1550nm/1490nm RJ45 Ports: 24 x 10/100/1000M Base-T ports Adaptive Speed: 10/100/1000Mbps 10Base-T: ≤100m (CAT3, CAT4, CAT5 UTP) 100Base-TX: ≤100m (CAT3, CAT4, CAT5 UTP) 1000Base-T: ≤100m (CAT3, CAT4, CAT5 UTP) |

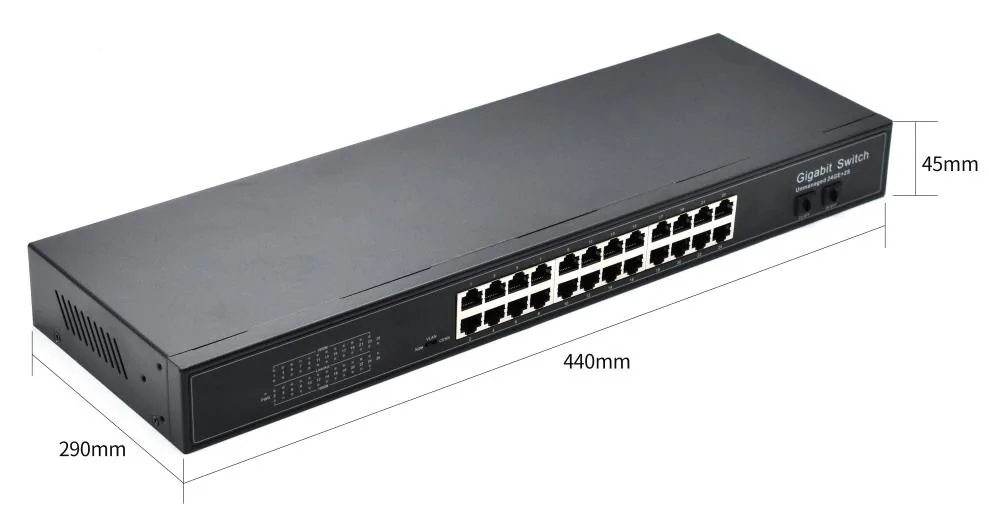

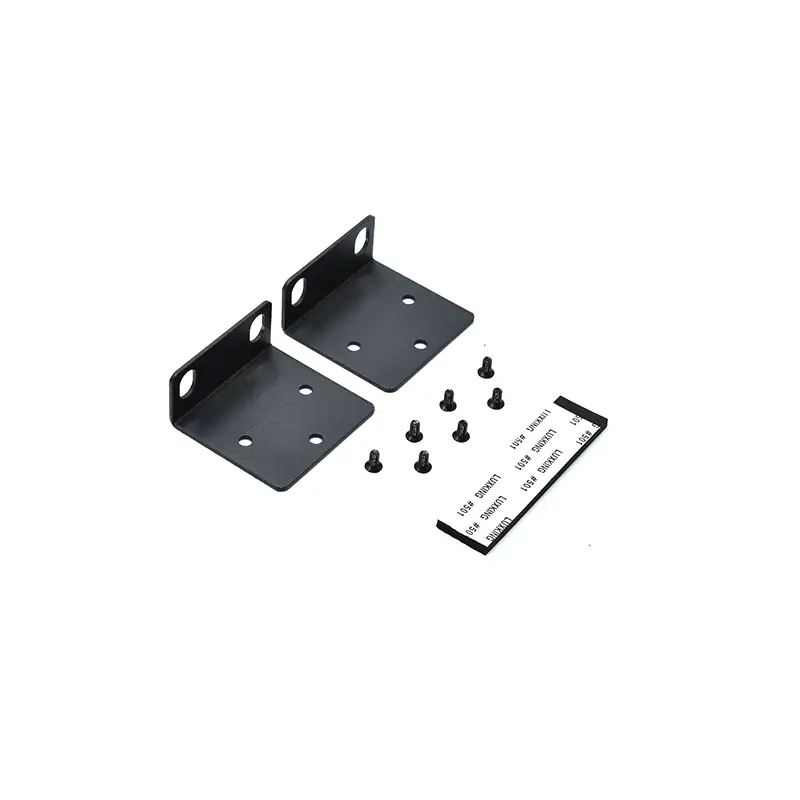

| Mechanical Properties | Shell Material: Metal enclosure Dimensions (LDH): 440mm * 290mm * 45mm Mounting Method: Desktop or Rack-mounted Cooling Method: Natural cooling with fan Weight: < 3.3kg net weight |
| Environmental Properties | Operating Temperature: -10℃ to +55℃ Storage Temperature: -40℃ to +75℃ Relative Humidity: 5% to 95% (non-condensing) |
| Switching Properties | Switching Capacity: 56Gbps Packet Forwarding Rate (Overall): 41.67Mpps Switching Method: Store-and-forward MAC Table: 8K Packet Buffer: 4.1M |
| Power Requirements | Input Voltage: AC: 100-240Vac 50-60Hz Standby Power Consumption: ≤10W |
| Indicator Lights | Port Lights (Switch control): • Indicator lights (1-24 ports): 10/100/1000M Link/ACT green; • N: Standard shared mode • V: Port isolation mode • C: Flow control mode Optical Port Indicator Lights: Green (25-26) Power Light (PWR): Green |
