Product Overview

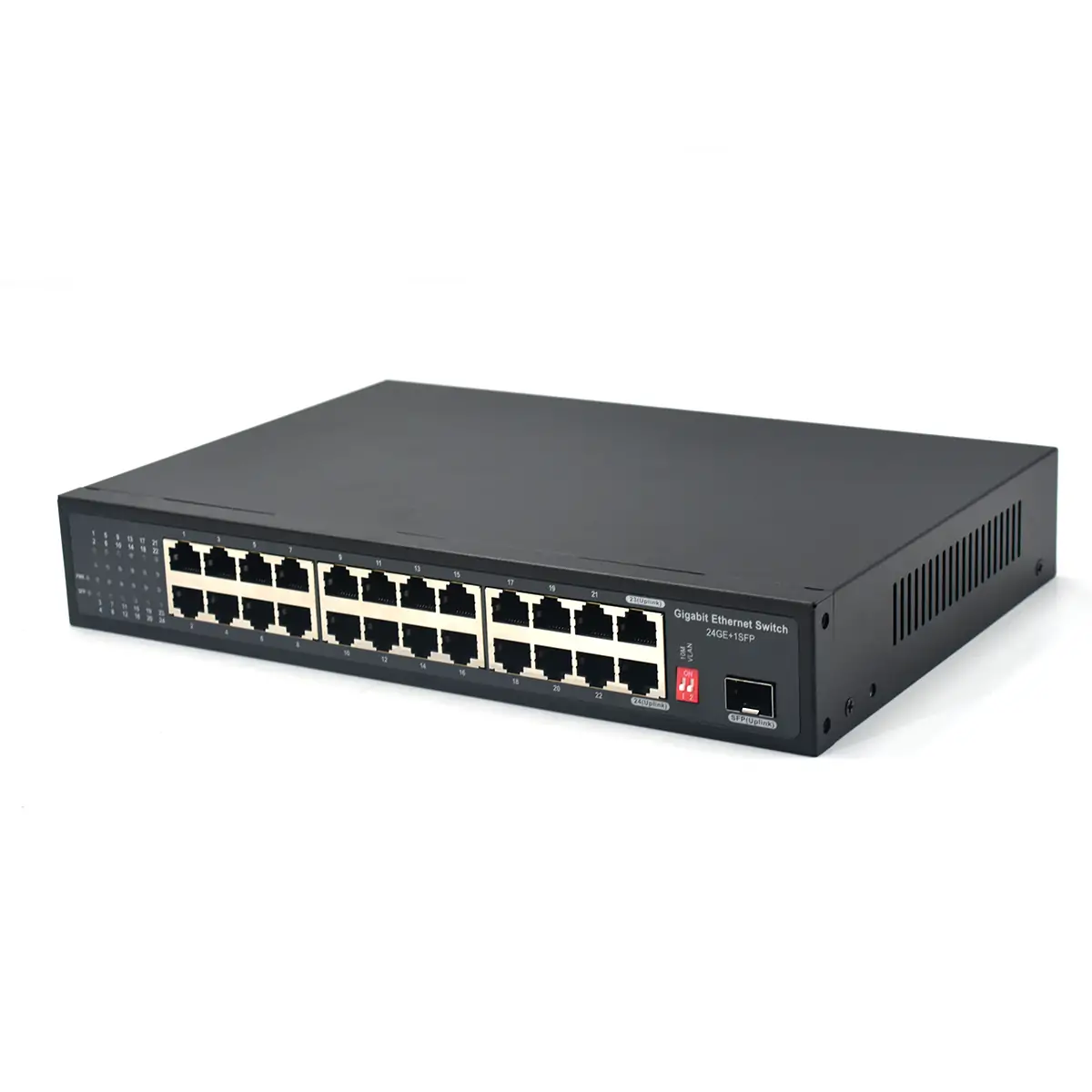

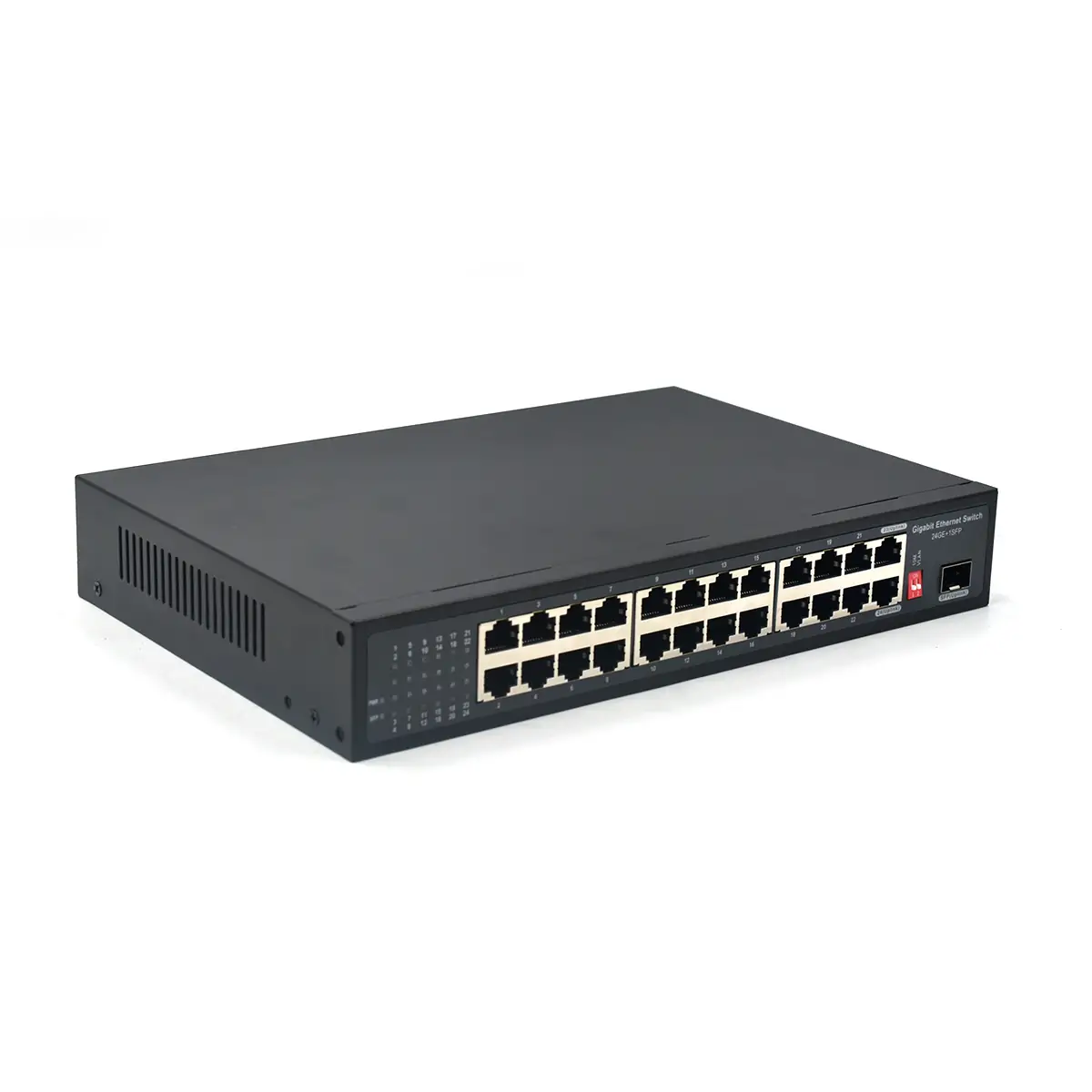

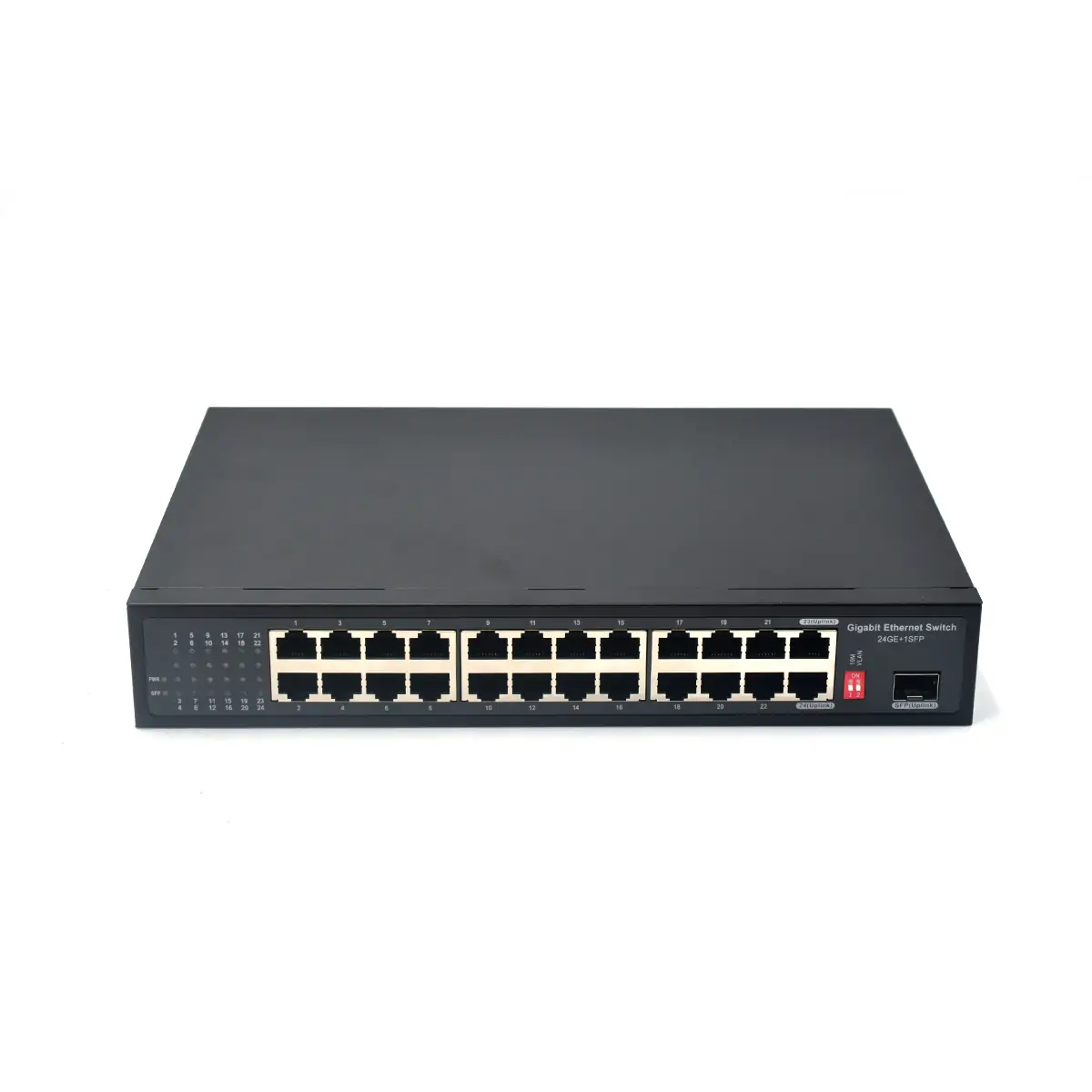

The SG2401 is a 24-port Gigabit Ethernet switch designed to meet the networking needs of small and medium-sized enterprises. It offers 24 standard 10/100/1000Base-T RJ45 ports and one 1000Base-X SFP optical uplink port.

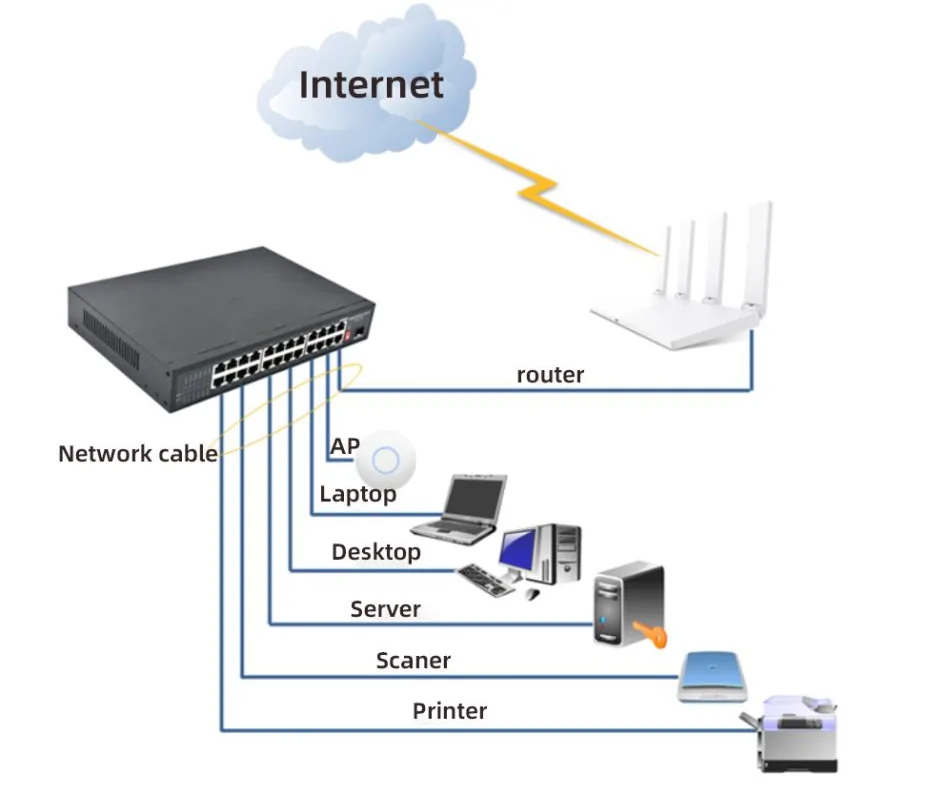

This switch features a DIP switch that allows for the adjustment of the transmission rate of ports 1-24 to 10 Mbps, enabling a maximum transmission distance of 250 meters over existing twisted pairs. In this mode, ports 1-22 are mutually isolated, but each can still communicate with the uplink ports (23-24 and the SFP port). This configuration helps effectively isolate collision and broadcast domains, reducing broadcast storms and improving overall network communication efficiency. The SG2401 is an ideal choice for video surveillance networking in environments such as hotels, shops, supermarkets, homes, and small to medium-sized businesses.
Key Features
- 24 x 10/100/1000Base-T Ethernet ports and 1 x 1000Base-X SFP uplink slot
- Supports switching to VLAN mode and 10 Mbps transmission mode
- All ports support 10/100/1000 Mbps rate adaptation
- Automatic half/full duplex adaptation and MDI/MDI-X functionality on all ports
- Line-speed forwarding on all ports for smoother transmission
- Compatible with both desktop and wall-mounted installations
- Plug-and-play operation for easy setup with no configuration required
- Constructed with a metal casing and built-in power supply for excellent heat dissipation, ensuring stable long-term operation
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3x flow control |
| Interface information | Single-mode SFP: 1 1000Base-X SFP optical ports (uplink port) |
| Transmission rate: 1.25 | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| Ethernet port: 24 10/100/1000M Base-T ports (uplink: 23-24) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤250m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

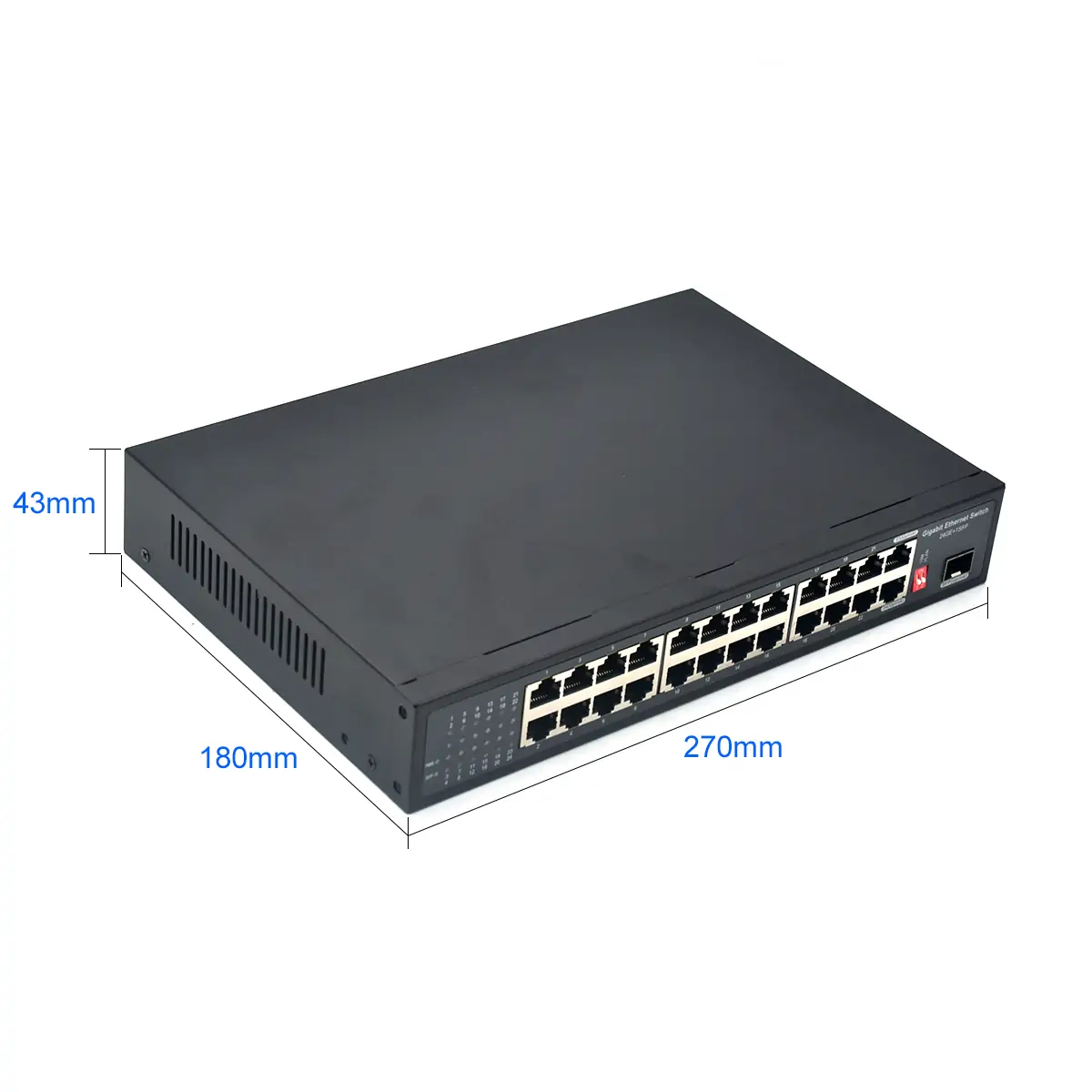

| Appearance dimensions (length*depth*height): 269×180×44mm | |
| Installation method: Desktop | |
| Heat dissipation method: natural cooling, no fan | |
| G.W.: <2.1KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 50Gbps |
| Packet forwarding rate (whole machine) : 37.2Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Case space : 4m | |
| Jumbo frame: 15k | |

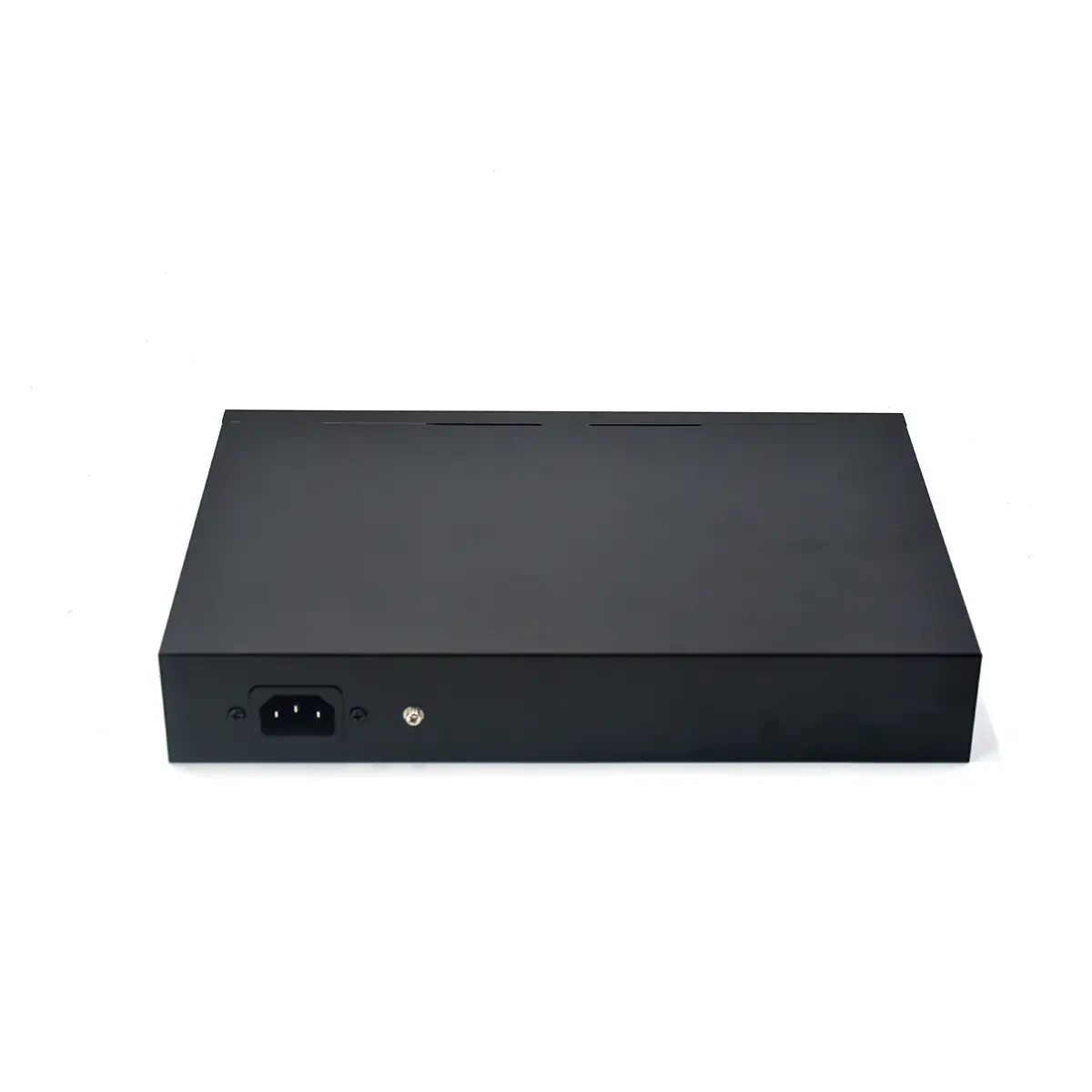

| Power supply | Input voltage: AC100~240V，50Hz |
| Power consumption: < 5- 10W | |
| PoE pin | 802.3AF/AT/BT(1/2+，3/6-) |
| Indicator | Ethernet port (fluctuation switch control):Link/Act: Green(10/100/1000M)10m extension mode: extension port 1-22 transmission distance to 250m. Vlan on, port 1-16 are isolated from each other, but each can communicate with port 23-24 and SFP. |
| Fiber port(SFP): Green | |
| PWR: Green | |
| Warranty | 3 year |
