Product Overview

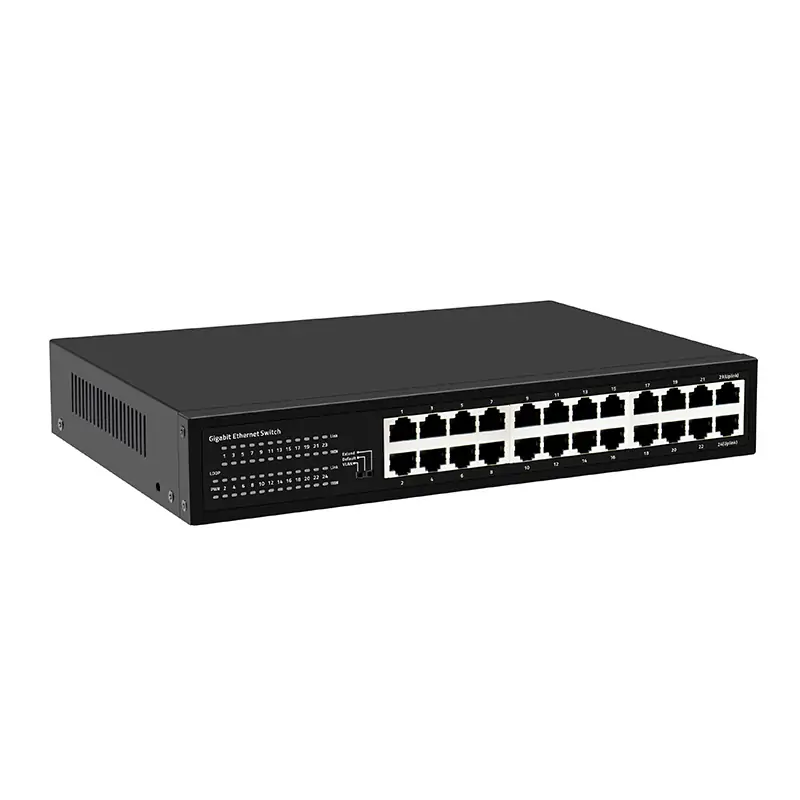

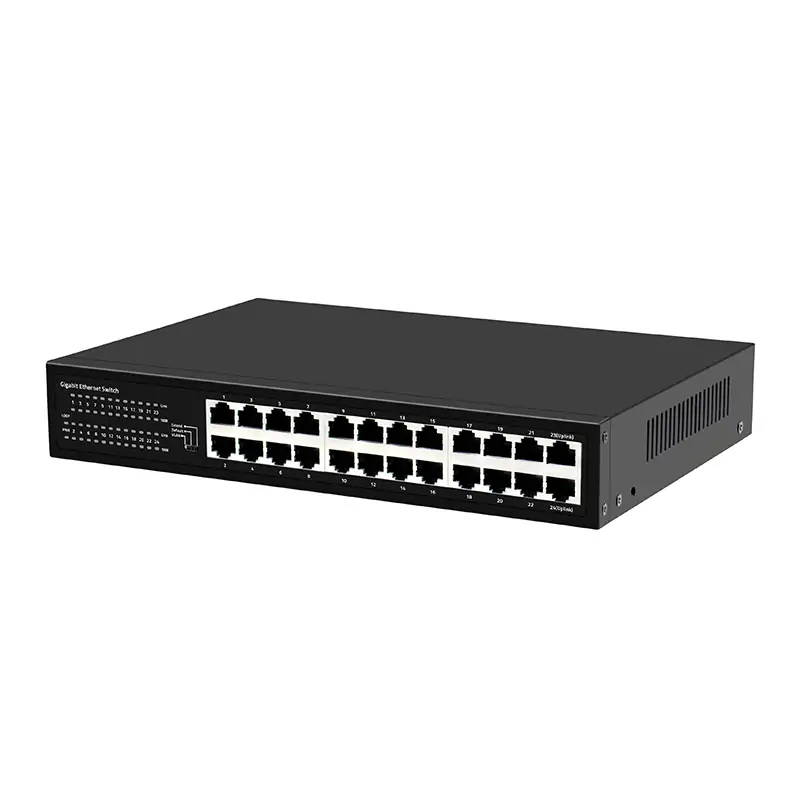

The SG2400 is a 24-port Gigabit intelligent Ethernet switch featuring high-quality, high-speed network ICs. Designed with a fanless and silent operation, this switch effectively addresses noise issues commonly associated with deploying switches in office environments. With 24 RJ45 ports supporting 10/100/1000 Mbps, it ensures seamless connectivity for various Ethernet applications.

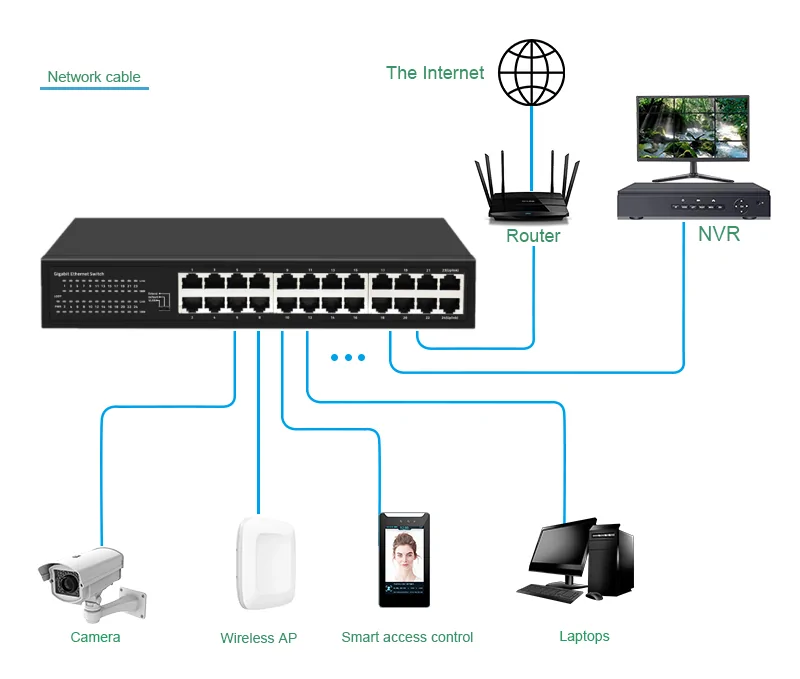

This switch supports three working modes and allows for easy switching between modes with a single click using the DIP switch. It is easy to manage and maintain, making it widely used in applications such as security network video surveillance, hotels, campuses, and small to medium-sized enterprise networking.
Key Features
- 24 x 10/100/1000Base-TX Ethernet RJ45 ports
- Ports 1-8 support QoS data prioritization
- Equipped with an 8K MAC address table
- All ports support 10/100/1000 Mbps rate adaptation
- Automatic half/full duplex adaptation and MDI/MDI-X functionality on all ports
- Line-speed forwarding on all ports for smoother transmission
- Compatible with both desktop and wall-mounted installations
- Panel indicators to monitor operational status and assist in fault analysis
- Three-position one-touch intelligent DIP switch, supporting VLAN, Default, and Extend modes
- Plug-and-play operation for simple setup with no configuration required
- Constructed with a metal shell for excellent heat dissipation, ensuring long-term stability of operation
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE 802.1p tagged frames IEEE 802.3x flow control |
| Interface information | RJ45 port: 24 10/100/1000M Base-T ports (standard RJ45) |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Mechanical properties | Shell material: metal shell |

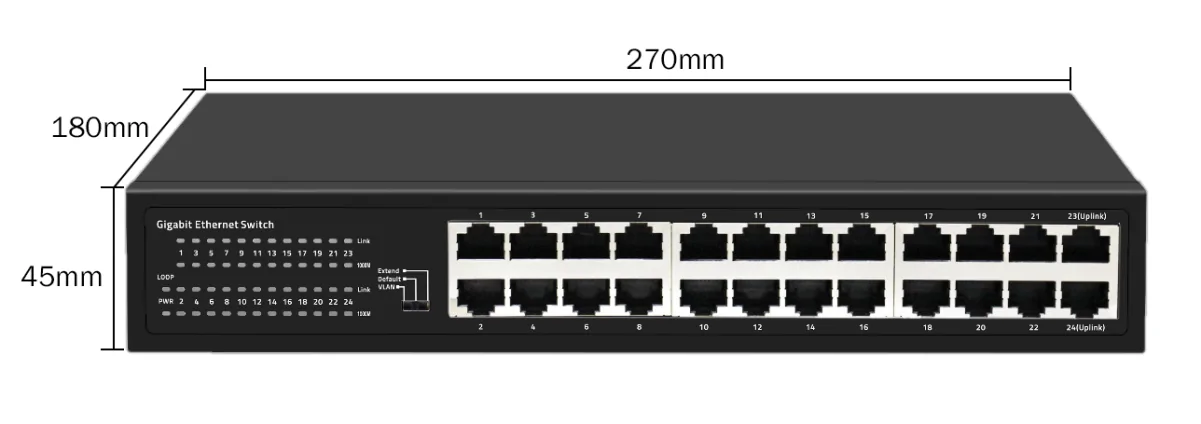

| Appearance dimensions (length*depth*height): 270*180*45mm | |
| Installation method: Desktop | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <1.16KG | |
| Environmental properties | Working temperature: -10℃～+50℃ |
| Storage temperature: -40℃～+70℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth:48Gbps |
| Packet forwarding rate (whole machine) : 35.71Mpps@64byte | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Case space : 4m | |

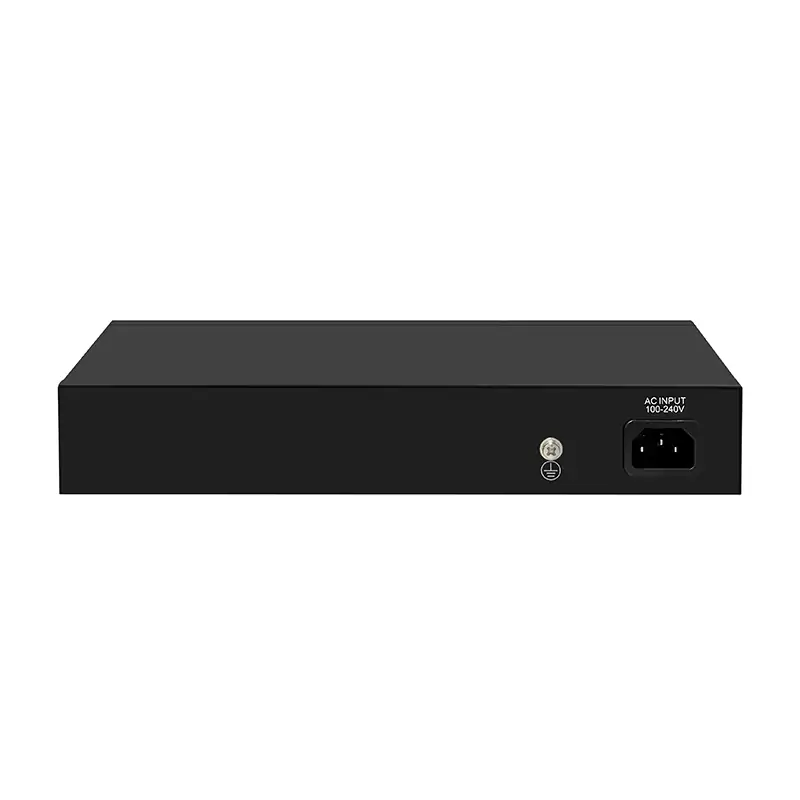

| Power supply | Input voltage: AC100V-240V; Output voltage：12V 2A |
| Power consumption: < 15 W | |
| Indicator | Port (fluctuation switch control):Ethernet: 100M green; 1000M;LOOP (loop alarm): green (flashing);Link/Act (link & data): green (flashing);VLAN mode: Port isolation, ports 1-22 are isolated from each other, and all communicate with ports 23 and 24;Default mode: Default mode, supports loop alarm;Extend mode: Monitoring mode, ports 1-22 support 100M speed reduction negotiation, 10M mode supports 250 meters, ports 23-24serve as aggregation. |
| POWER(Power system indicator light): Green |
