Product Overview

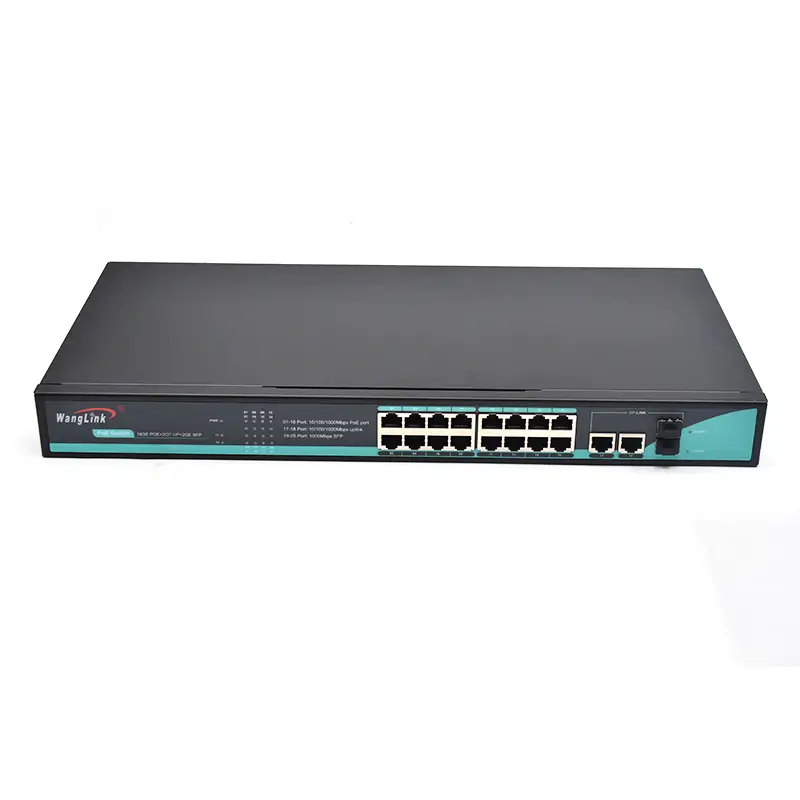

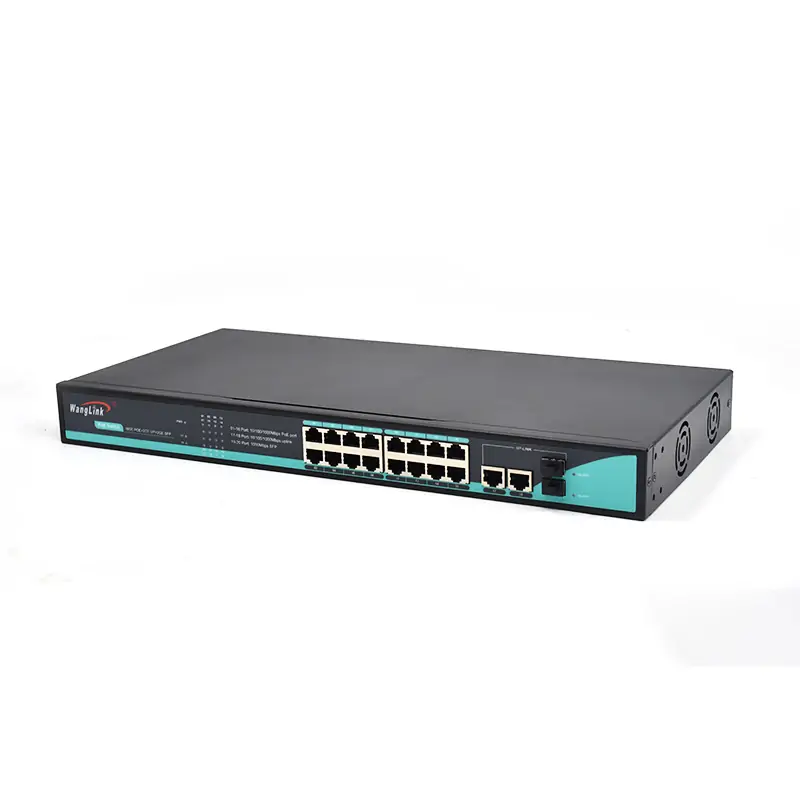

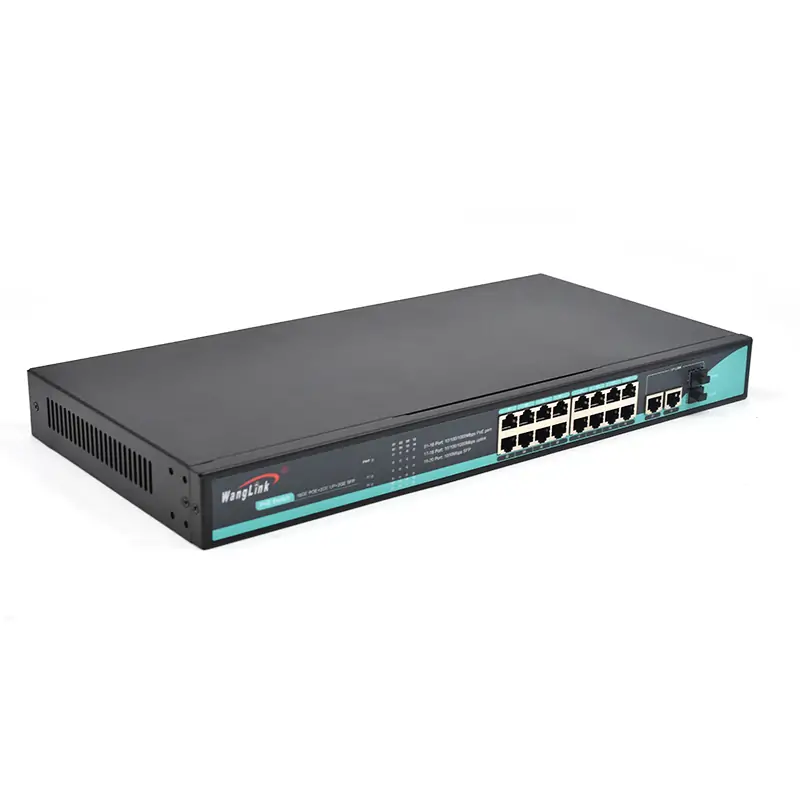

Introducing our 16 Port Gigabit Ethernet Switch PoE, a versatile networking solution designed to power and connect devices efficiently. This switch features 18 10/100/1000Base-T Ethernet ports, with ports 1-16 supporting the IEEE 802.3 af/at Power over Ethernet (PoE) protocol. Each PoE port can deliver a maximum output power of 25.4W, ensuring reliable power supply for devices such as IP cameras, wireless access points, and VoIP phones.

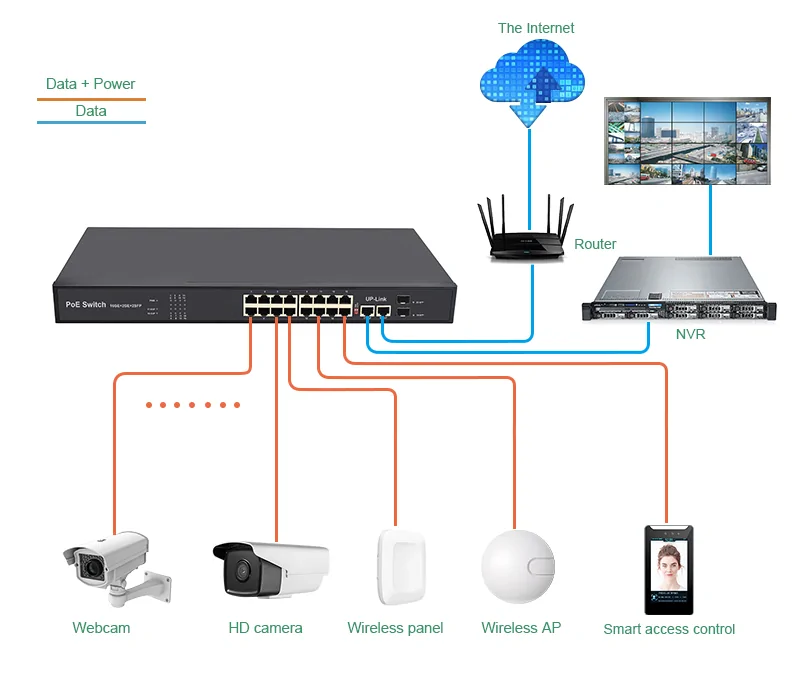

The switch is equipped with 2 1000Base-X SFP slots for flexible uplink options and supports standard PoE protocol, automatically detecting whether connected devices are PoE-compatible. This feature prevents damage to non-PoE devices by supplying power only to compliant devices. Designed for easy installation, this switch supports plug-and-play functionality, requiring no configuration. Its robust design makes it suitable for various commercial office environments, including hotels, shops, supermarkets, and homes, making it an ideal choice for video surveillance networking in residential and small to medium-sized enterprises.
Key Features
- 18 Ethernet Ports: 16 10/100/1000Base-T PoE ports and 2 1000Base-X SFP uplink slots for versatile connectivity.
- Power over Ethernet: Supports IEEE 802.3 af/at PoE protocol, with each PoE RJ45 port capable of supplying up to 25.4W.
- Auto-Negotiation: All Ethernet ports support 10/100/1000Mbps auto-negotiation for optimal speed.
- Adaptive Duplex: Supports half/full duplex adaptive mode and auto MDI/MDI-X functionality for seamless integration.
- Wire-Speed Forwarding: All ports support wire-speed forwarding for efficient data handling.
- Flexible Installation: Suitable for desktop, wall-mounted, and rack-mount installation to fit various environments.
- Plug and Play: Easy setup with no configuration required; simply connect your devices and start using.
- Durable Design: Metal casing with an internal power supply ensures excellent heat dissipation for stable long-term operation.
- Surge Protection: Optional 6KV common mode and 4KV differential mode surge protection for enhanced reliability.
- AI Network Self-Healing: Optional AI network self-healing (watchdog) function for automatic recovery from network issues.
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3af/at Power Over Ethernet IEEE 802.3x flow control |
| Interface information | Single-mode SFP optical port: 2 1000Base-X optical port (uplink optical port) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| RJ45 ethernet port: 16 10/100/1000M Base-T ethernet ports (POE, POE+) | |
| RJ45 ethernet port: 2 10/100/1000M Base-T ethernet ports (uplink port) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

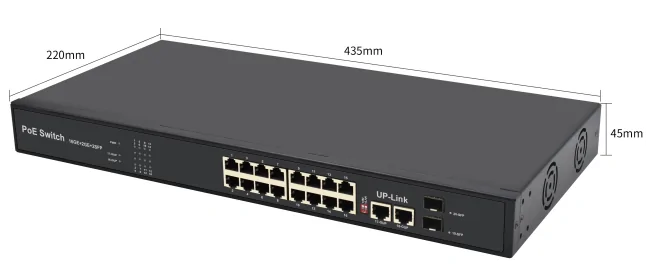

| Product size:(length*depth*height): 440×220×45mm | |
| Installation method: desktop, wall-mounted, rack-mounted | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <2.6KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth:40Gbps |
| Packet forwarding rate (whole machine) : 29.76Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 4K | |
| Case space : 1.5m | |
| Jumbo frame: 9K | |
| Power supply | Input voltage: AC100~240V，50Hz |
| Standby: ≤5W; Full-load: ≤320W | |
| PoE | 802.3AF/AT(1/2+，3/6-) |
| indicator light | Ethernet Port light (fluctuation switch control):Link/ACT/POE: Green (10/100/1000M); |
| Fiber port indicator: Green | |
| Power(Power system indicator light): Green |
