Product Overview

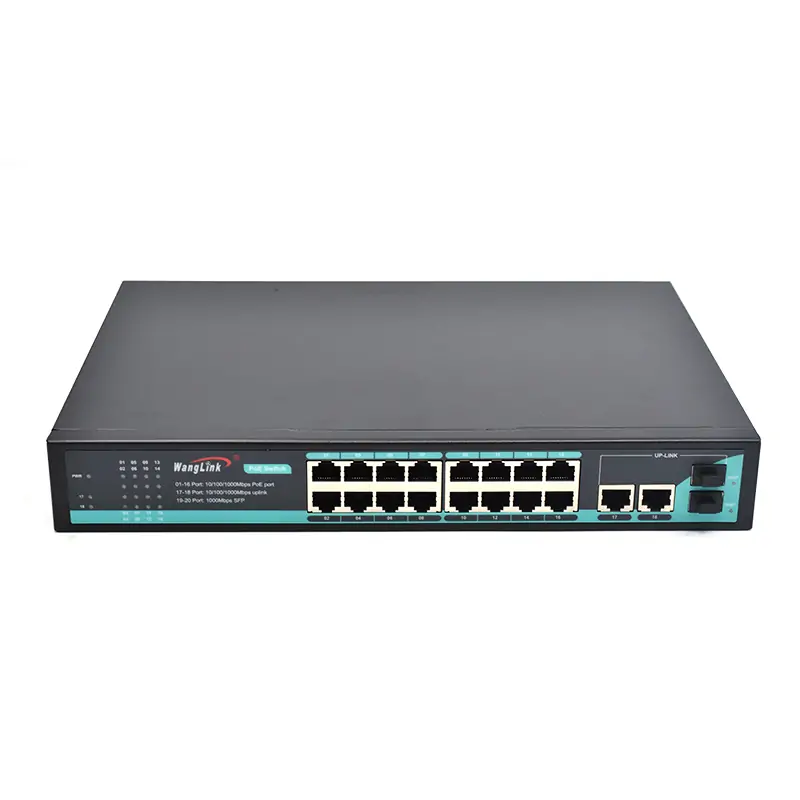

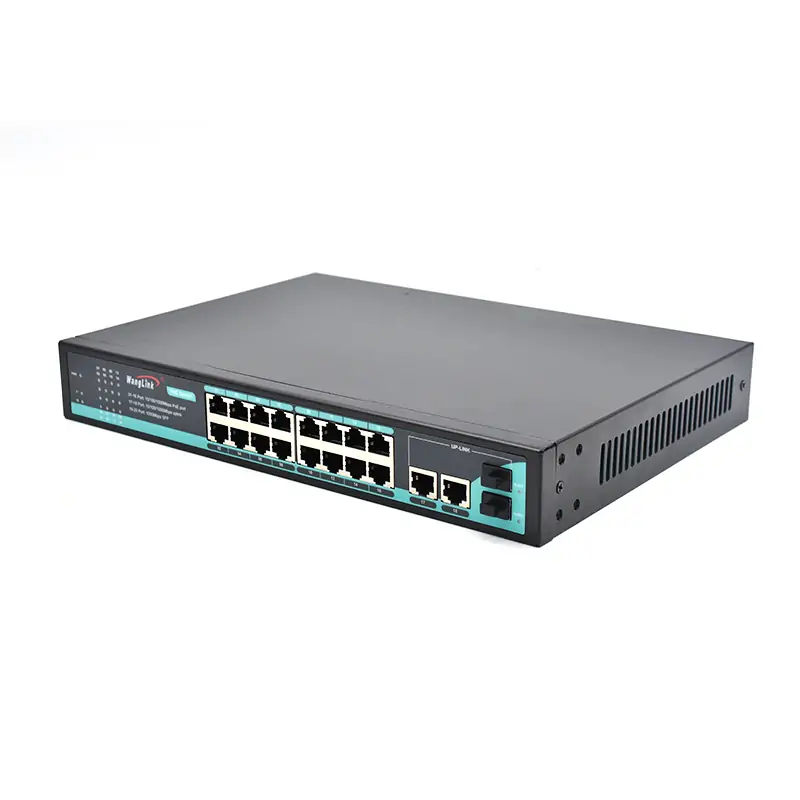

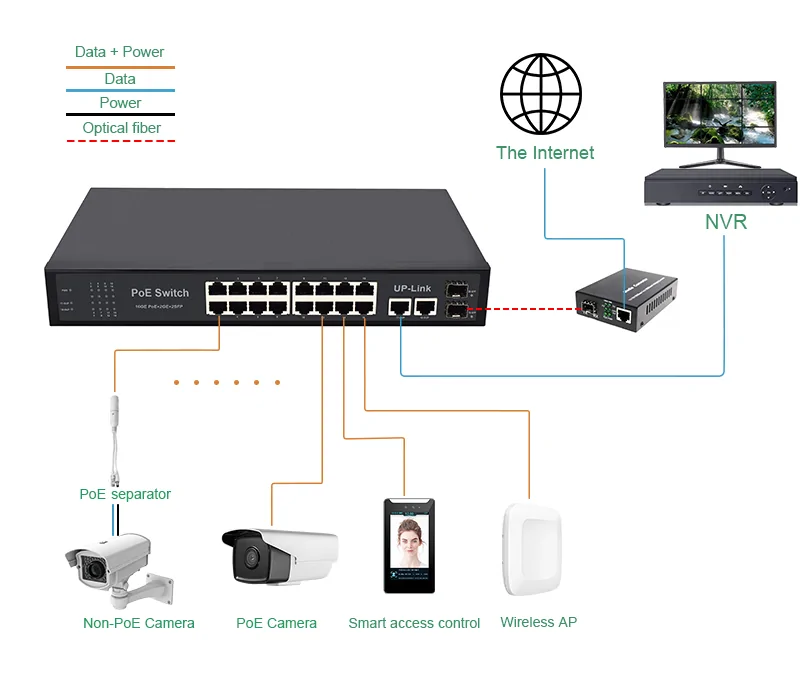

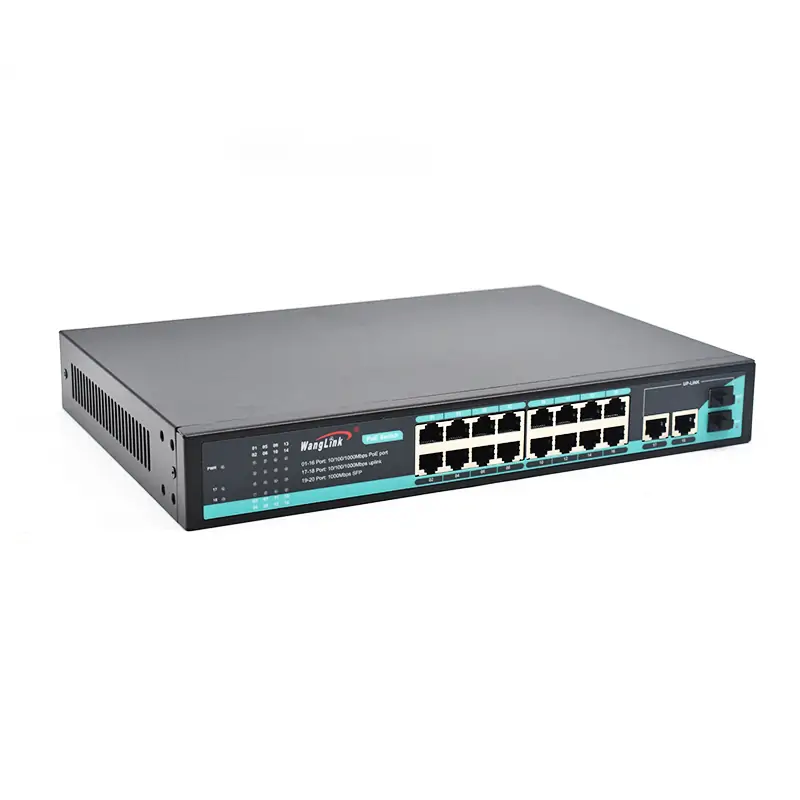

Introducing our Switch PoE 16 Port, a robust networking solution designed to efficiently power and connect a variety of devices. This switch features 18 10/100/1000Base-T Ethernet ports, with ports 1-16 supporting the IEEE 802.3 af/at Power over Ethernet (PoE) protocol. Each PoE port can deliver a maximum output power of 25.4W, contributing to a total PoE power budget of 320W, making it ideal for powering devices such as IP cameras, wireless access points, and VoIP phones.
In addition to its PoE capabilities, the switch includes 2 1000Base-X SFP uplink slots for flexible connectivity options. It automatically detects whether connected devices support PoE, ensuring that power is only supplied to compatible devices, thereby preventing damage to non-PoE devices. With features such as auto-negotiation and adaptive duplex, this switch guarantees optimal performance for your network.
Key Features
- 18 Ethernet Ports: 18 10/100/1000Base-T ports, with ports 1-16 supporting IEEE 802.3 af/at PoE, delivering up to 25.4W per port.
- Uplink Slots: 2 1000Base-X SFP slots for versatile uplink connectivity.
- Auto-Negotiation: Supports 10/100/1000Mbps auto-negotiation for seamless data transfer.
- Adaptive Duplex: Half/Full duplex adaptive mode and auto MDI/MDI-X functionality for easy integration.
- Wire-Speed Forwarding: All ports support wire-speed forwarding for efficient data handling.
- Flexible Installation: Suitable for desktop, wall-mounted, and rack-mount installation to fit various environments.
- Plug and Play: Easy setup with no configuration required; simply connect your devices and start using.
- Durable Design: Metal casing with an internal power supply ensures excellent heat dissipation, providing stable operation over time.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3x flow control |
| Fiber Port Characteristic | Connector Type | SFP slot |
| Transmission rate | 1.25Gbps | |
| Transmission distance | Multi-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km | |
| Wavelength | Multi-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm | |
| Ethernet port Characteristic | Connector Type | 2×4 RJ45，1×1 RJ45 |
| Transmission rate | 10/100/1000Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 4K | |
| Case space | 1.5Mb | |
| Jumbo frames | 9216b | |
| Packet Forwarding Rate | 29.76Mpps@64byte | |
| Bandwidth | 40G | |
| LED indicator | Power indicator | Green, PWR |
| Link/Act indicator | Yellow, 1 for each ethernet port and fiber port | |

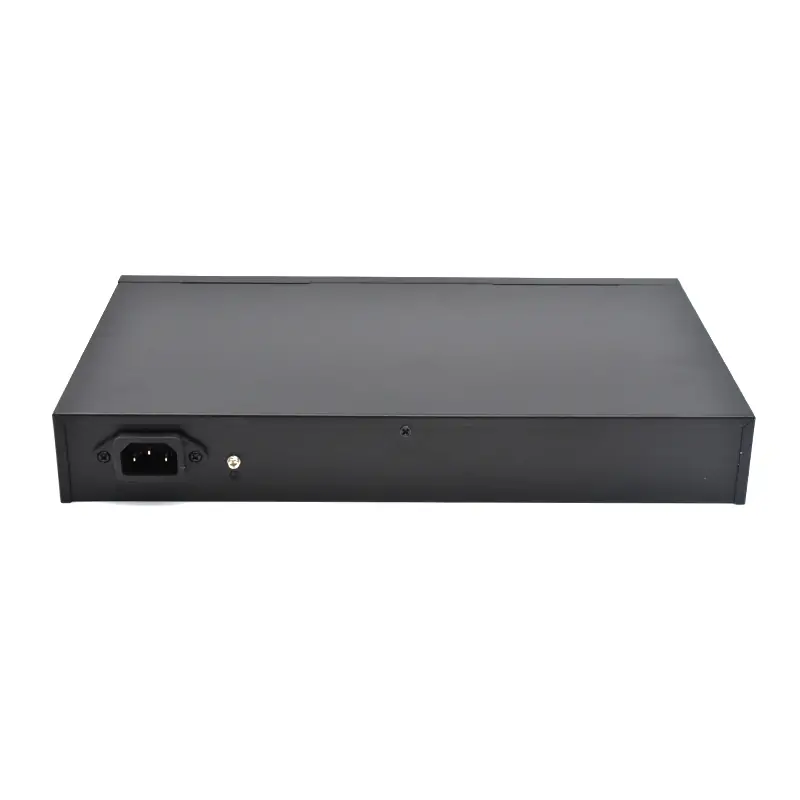

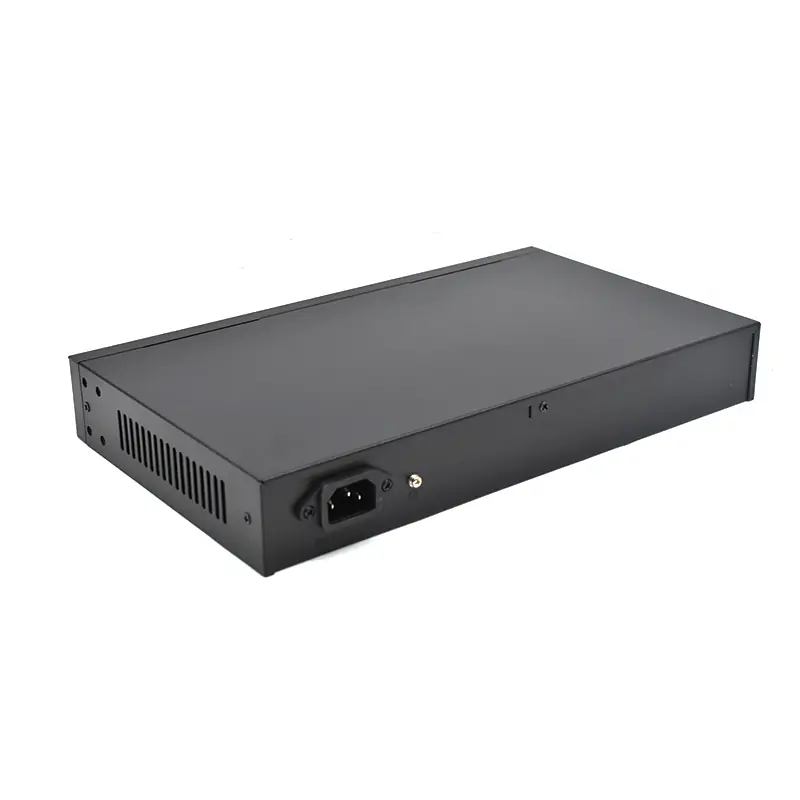

| Power parameters | Input voltage | AC100~240V, 50Hz |
| Power consumption | Standby: ≤5W; whole: ≤320W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | ≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

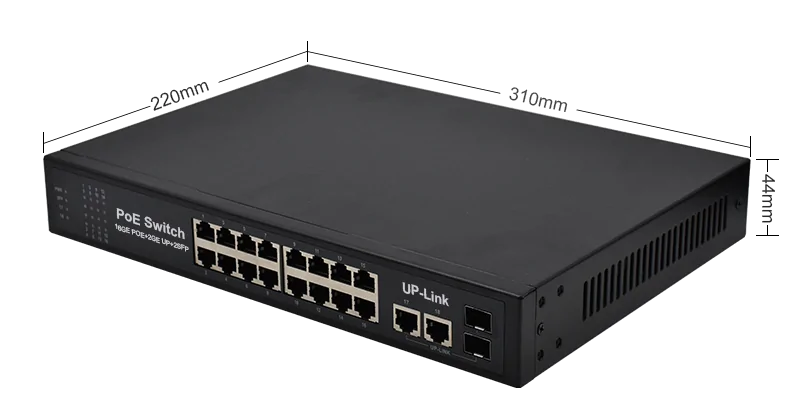

| Physical properties | Size | 305×220×44mm |
| Weight | Net weight:2.1kg,Gross weight: 2.3kg |
