Product Overview

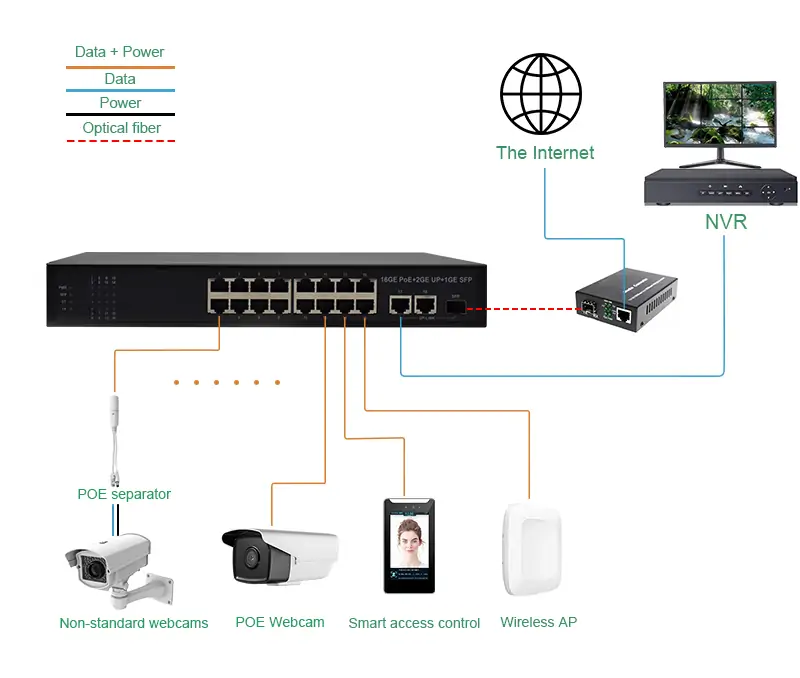

Introducing our PoE Ethernet Switch 16 Port, a high-performance networking solution designed to efficiently power and connect your devices. This switch features 18 10/100/1000Base-T Ethernet ports, with ports 1-16 supporting the IEEE 802.3 af/at Power over Ethernet (PoE) protocol. Each PoE port can deliver a maximum output power of 25.4W, contributing to a total PoE power budget of 320W. This capability makes it ideal for powering devices such as IP cameras, wireless access points, and VoIP phones.
The switch also includes a 1000Base-X SFP uplink slot for flexible connectivity options. It automatically detects whether connected devices support PoE, providing power only to compliant devices to prevent damage to non-PoE devices. With features such as auto-negotiation and adaptive duplex, this switch ensures optimal performance for your network.
Key Features
- 18 Ethernet Ports: 18 10/100/1000Base-T ports, with ports 1-16 supporting IEEE 802.3 af/at PoE, delivering up to 25.4W per port.
- Uplink Slot: 1 1000Base-X SFP slot for versatile uplink connectivity.
- Auto-Negotiation: Supports 10/100/1000Mbps auto-negotiation for optimal speed and performance.
- Adaptive Duplex: Half/Full duplex adaptive mode and auto MDI/MDI-X functionality for seamless integration.
- Wire-Speed Forwarding: All ports support wire-speed forwarding for efficient data transfer.
- Flexible Installation: Suitable for desktop, wall-mounted, and rack-mount installation for various setups.
- Plug and Play: Easy setup with no configuration required; simply connect your devices and start using.
- Durable Design: Metal casing with an internal power supply ensures excellent heat dissipation, providing stable long-term operation.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE802.3ab 1000Base-TIEEE 802.3x flow control |
| Fiber Port Characteristic | Connector Type | SFP slot |
| Transmission rate | 1.25Gbps | |
| Transmission distance | Multi-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km | |
| Wavelength | Multi-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm | |
| Ethernet port Characteristic | Connector Type | 2×4 RJ45，1×1 RJ45 |
| Transmission rate | 10/100/1000Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 4K | |
| Case space | 1.5Mb | |
| Jumbo frames | 9216b | |
| Packet Forwarding Rate | 28.272Mpps@64byte | |
| Bandwidth | 38G（non-blocking） | |
| LED indicator | Power indicator | Green, PWR |
| Link/Act indicator | Yellow, 1 for each ethernet port and fiber port | |
| Power parameters | Input voltage | AC100~240V, 50Hz |
| Power consumption | Standby: ≤5W; whole: ≤320W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | ≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

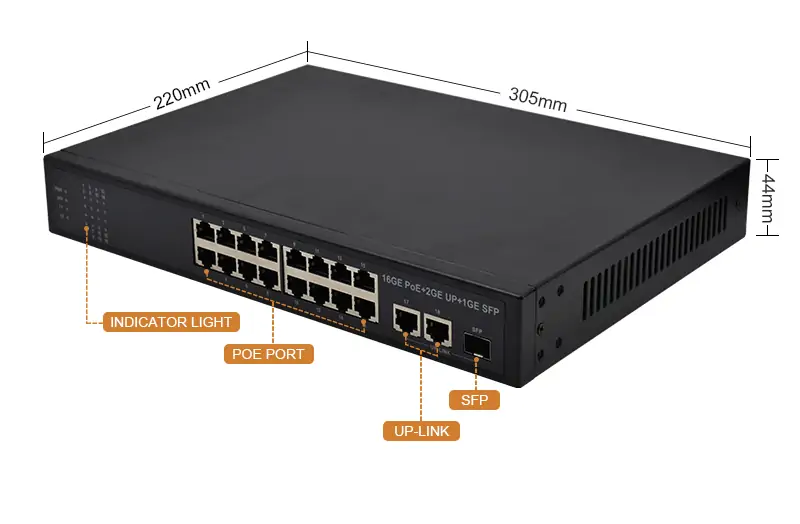

| Physical properties | Size | 305×220×44mm |
| Weight | Net weight:2.1kg,Gross weight: 2.3kg |
