Product Overview

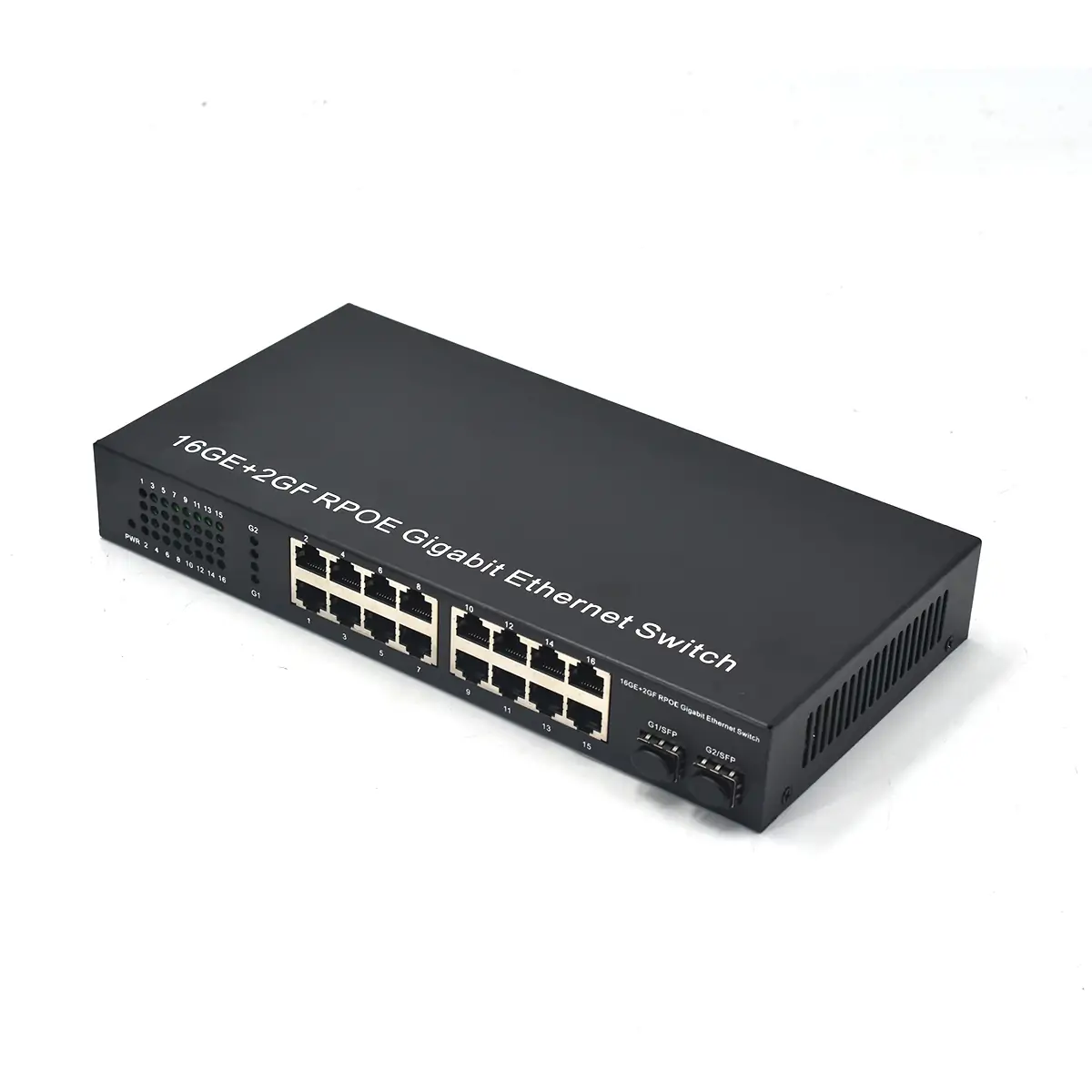

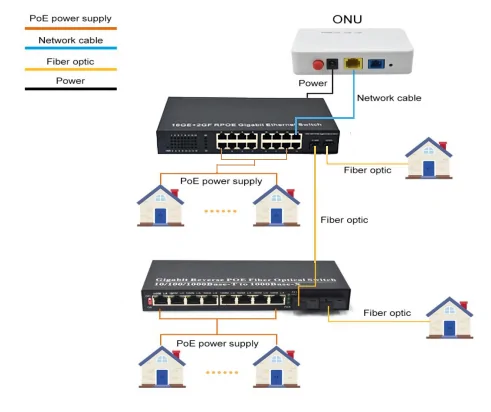

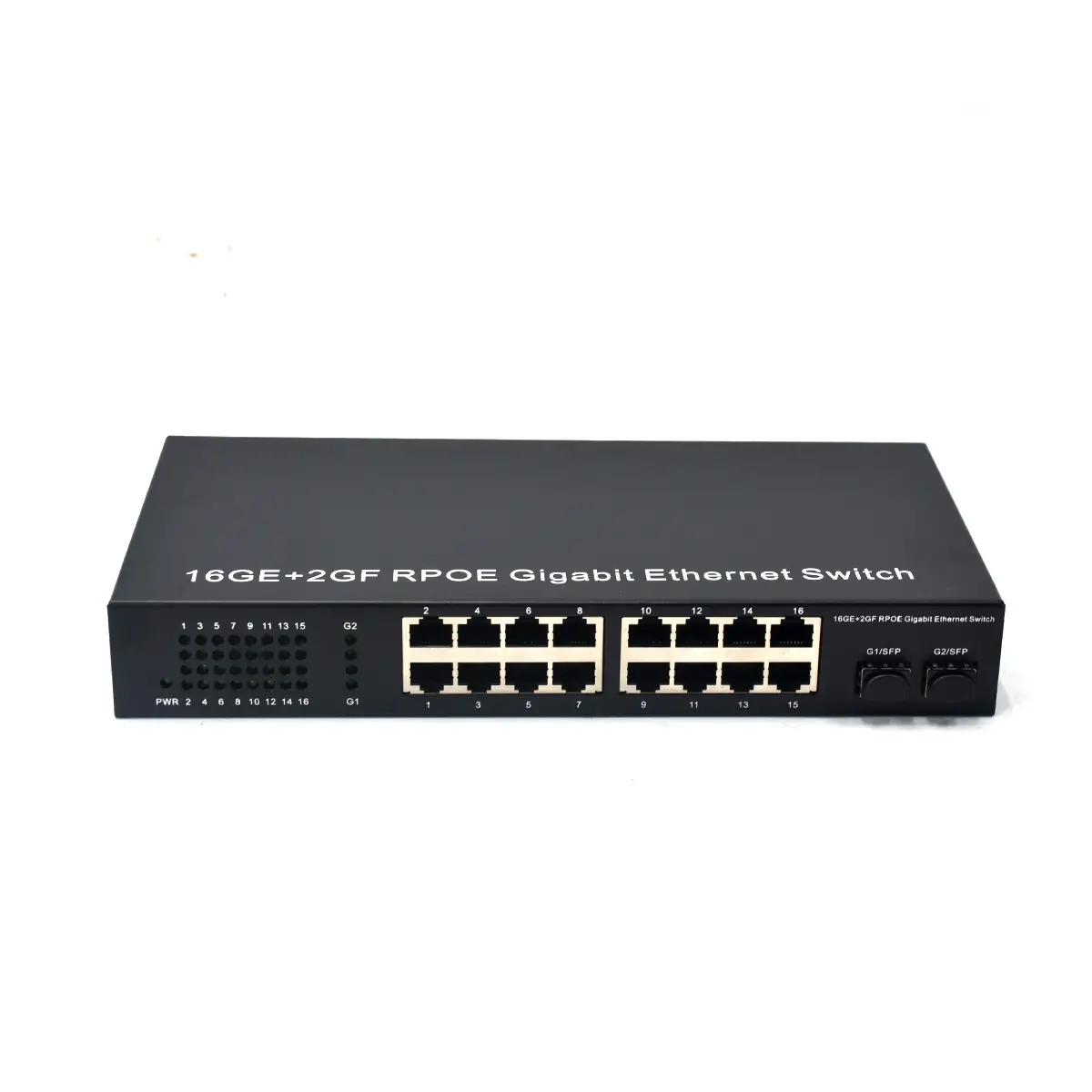

The SG1602RP 16-Port Passive PoE Switch is a high-performance networking solution designed to facilitate efficient data transmission and power delivery in challenging environments. This switch features 2 SFP fiber ports with speeds of 1.25G and 16 Ethernet ports that support 10/100/1000 Mbps. Ports 1-15 can receive power via PoE, while port 16 provides PoE power output. Additionally, it is equipped with a DC socket that outputs 12V to power other devices, effectively addressing the power supply challenges often faced by customer access devices.
Designed for ease of installation and maintenance, the SG1602RP helps reduce the costs associated with power provisioning and operational workloads. Its plug-and-play functionality ensures no configuration is needed, facilitating stable operation and easy maintenance across various commercial and industrial applications.
Key Features
- 16 x 10/100/1000Base-T Ethernet ports and 2 x 1000Base-X fiber ports for flexible and high-speed connectivity.
- 15 Ethernet ports support PoE power reception (with input modes of 12-24V).
- 1 Ethernet port supports PoE power output (12-24V) for powering other devices.

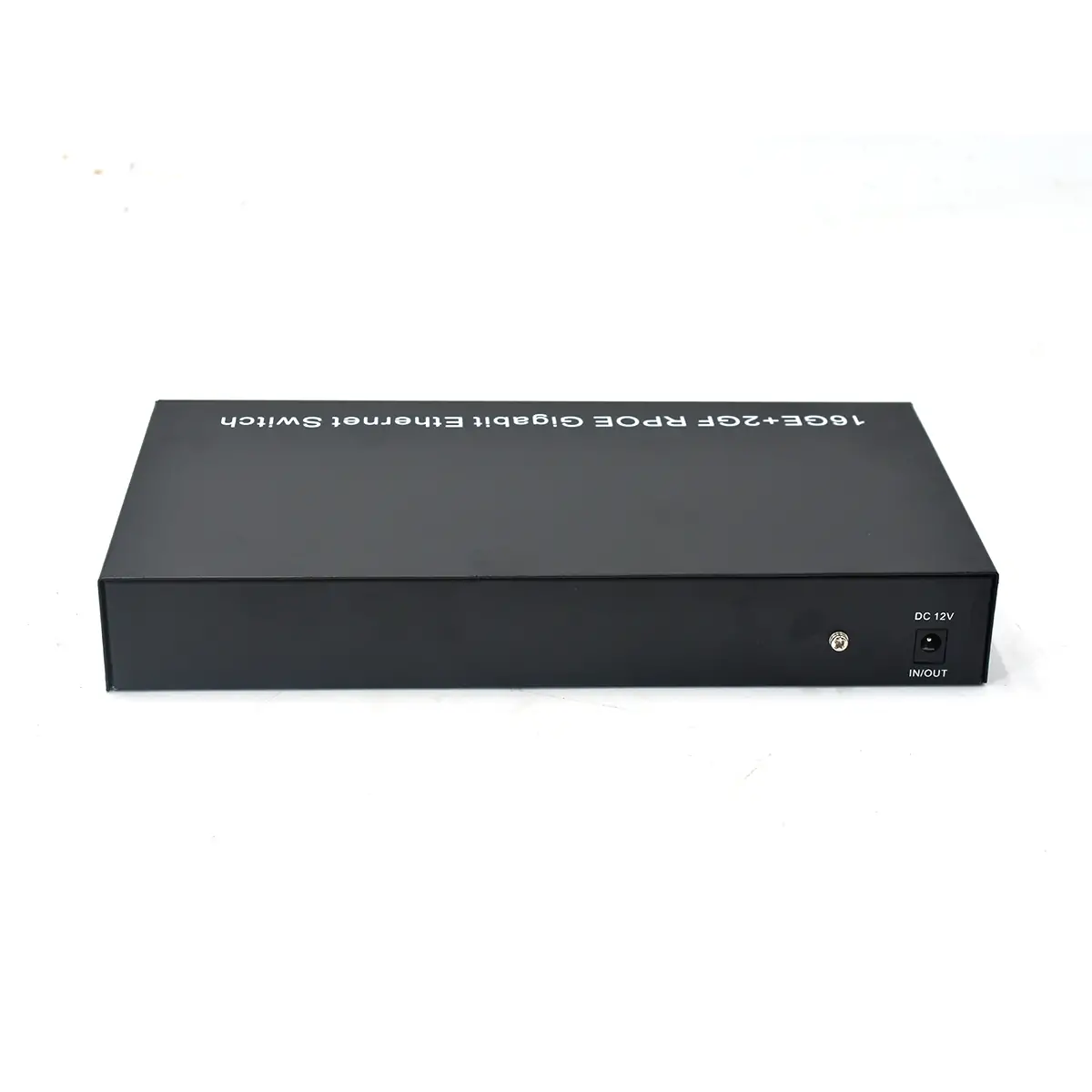

- 1 DC jack provides additional 12V output to power other devices conveniently.
- Supports 10K jumbo frame transmission for enhanced data packet handling.
- All Ethernet ports support auto-negotiation for 10/100/1000 Mbps speeds, ensuring seamless communication.
- Each port supports half/full-duplex auto-negotiation and automatic MDI/MDI-X functionality for easy integration.
- All Ethernet ports feature wire-speed forwarding, allowing for smoother data transmission across the network.
- Equipped with 4KV common mode and 2KV differential mode surge protection to safeguard connected devices.
- Plug-and-play design facilitates simple operation with no configuration required.
- Constructed with a metal casing and an external power supply design for excellent heat dissipation, ensuring stable operation even under heavy use.
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE802.3x Flow control, |
| Interface information | Single-mode SFP: 2 1000Base-X SFP optical ports |
| Transmission rate: 1.25 | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| Ethernet port: 16 10/100/1000M Base-T ports (rj45) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

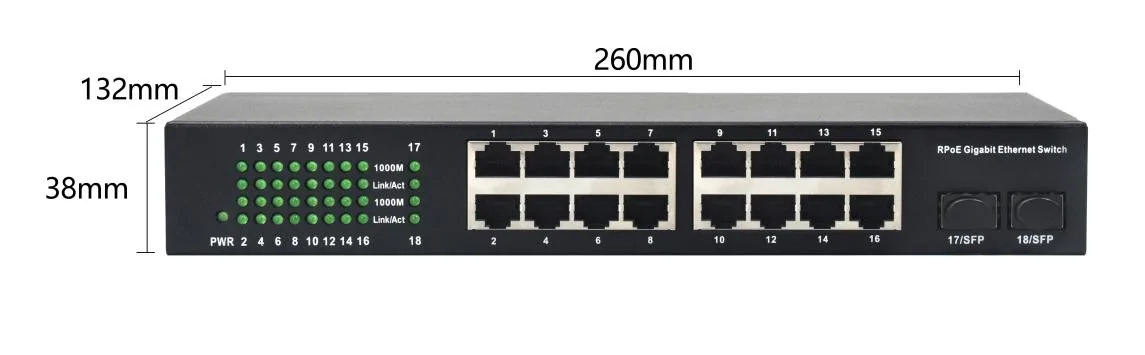

| Appearance dimensions (length*depth*height): 260mm×132mm×38mm | |
| Installation method: Desktop | |
| Heat dissipation method: natural cooling, no fan | |
| G.W.: <0.828KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth:36Gbps |
| Packet forwarding rate (whole machine) : 26.784Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Case space : 4m | |
| Jumbo frame: 10k | |
| Power supply | Voltage: DC 12V(DC sock) |
| PoE Input (12-24V) for Ports 1-15: Power supply mode: 12+/36-, 45+/78-. | |
| PoE Output (12-24V) for Port 16: Power supply mode: 45+/78-. | |
| Power consumption: <12w | |
| Indicator | Ethernet portLink/Act: Green(10/100/1000M) |
| Fiber port(FX): Green | |
| PWR: Green |
