Product Overview
The SG1602MP is a Gigabit Layer 2 Managed PoE Switch, specifically designed for small and medium-sized enterprises. This next-generation switch offers a simple, flexible, and reliable solution for various applications, including office environments and production areas, facilitating the digital transformation of businesses.

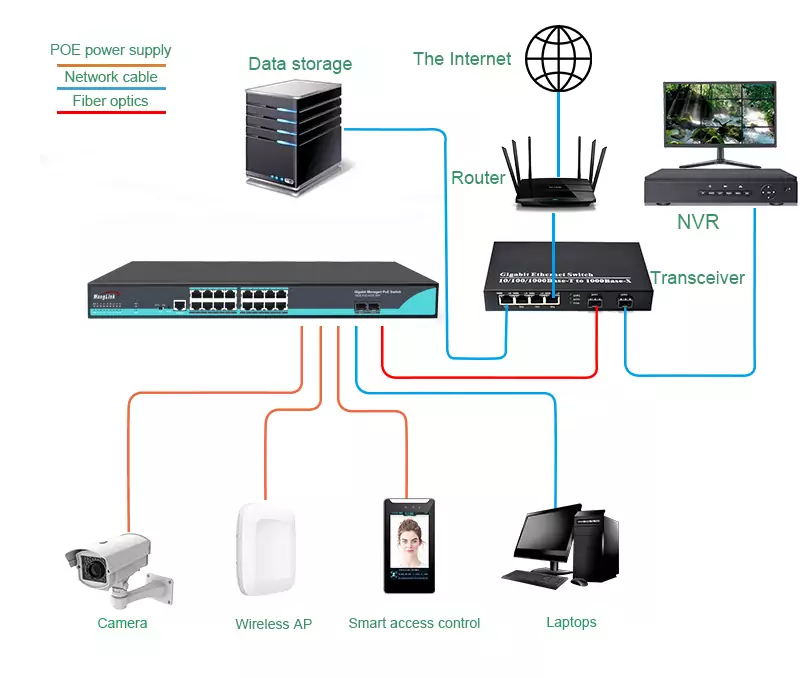

With 16 10/100/1000Base-T downlink Ethernet ports (supporting PoE and PoE+ power supply) and 2 1000M uplink SFP optical ports, the SG1602MP enhances connectivity options. The device supports both Web and CLI management, enabling easy configuration, monitoring, diagnosis, and maintenance, simplifying network management for users. Its PoE capabilities allow for the convenient powering of terminal devices, streamlining deployments for IP telephony, wireless access points, video surveillance, and other IoT solutions. Capable of Gigabit Ethernet speeds, the SG1602MP addresses the high bandwidth needs of enterprise operations while enhancing network reliability through advanced features like Quality of Service (QoS) and industrial-grade ring network support (ERPS).
Key Features
- 16 x 10/100/1000Base-T Ethernet Ports: Supports PoE and PoE+ for powering devices directly.
- 2 x SFP Optical Ports: Facilitates long-distance connectivity with independent uplink options.
- 4.1M Port Buffer: Ensures smooth video storage without congestion.
- Data Control: Implements 802.3X full-duplex flow control and network storm suppression for reliable operation.
- Redundant Network Support: Includes STP, RSTP, MSTP, and industrial-grade ERPS for enhanced network stability.
- Multicast Management: Supports IGMP Snooping (V1/V2/V3) for efficient multicast traffic handling.
- VLAN Support: Complies with IEEE 802.1Q to effectively isolate broadcast domains.
- Quality of Service (QoS): Supports CoS/DSCP with 4 queues, enabling efficient traffic prioritization.
- Security Management: Features ACL access control, 802.1X support, and user tier management.
- Management Options: Offers CLI, Web, and SNMP for comprehensive management capabilities.
- Monitoring and Maintenance: Supports port mirroring, interface status monitoring, and log management for easy troubleshooting.
Product Parameters
Hardware features
| Standards & Protocol | 10Base-T, compliant with IEEE 802.3100Base-TX, compliant with IEEE 802.3u1000Base-T, compliant with IEEE 802.3ab1000Base-X, compliant with IEEE 802.3zFlow control, following IEEE 802.3xEnvironmentally friendly, compliant with IEEE 802.3az |
| Interface information | Downlink ports: 16 10/100/1000M Base-T ports (supports POE, POE+) |
| Uplink port: 2 1000Base-X ports (SFP port, compatible with 100M) | |
| Management port: 1 Console port | |
| Reset interface | Reset button |
| Mechanical properties | Shell material: metal shell |

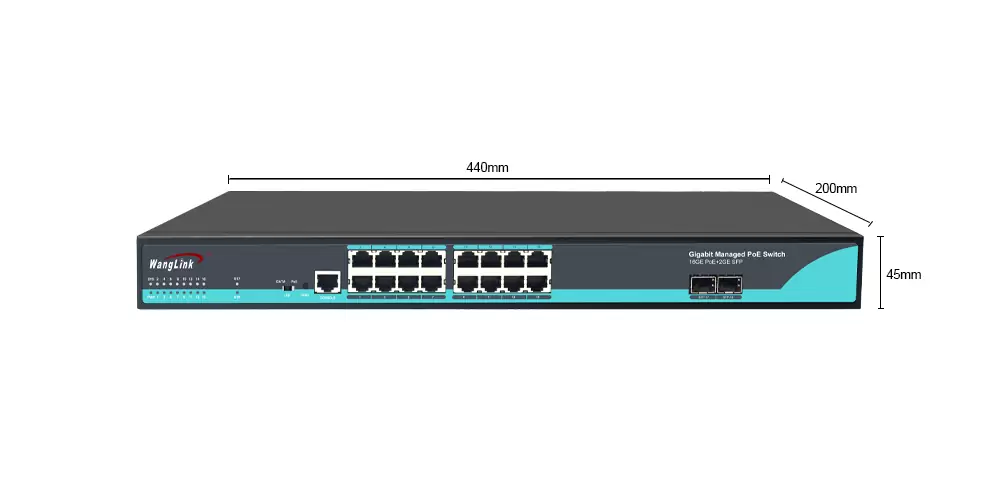

| Appearance dimensions (length*depth*height): 440mm×200mm×45mm | |
| Installation method: Chassis | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <3.5KG | |
| Environmental properties | Working temperature: -40℃～+75℃ |
| Storage temperature: -40℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 36Gbps |
| Packet forwarding rate (whole machine) : 27Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Case space : 4.1m | |
| Power supply | Input voltage: AC 110～240V/50～60Hz |
| Power interface: Triangle socket | |
| Power supply type: built-in power supply, power output 12V-2A | |
| Power consumption: < 20W | |
| Indicator light | Port light: 10/100M Link/ACT yellow, 1000M Link/ACT green; |
| POWER: Green | |
| System: Green | |
| Warranty | 1 years |
Software features
| Monitoring function | Information such as device model, serial number, MAC, hardware version, software version, system time, running time, CPU utilization, memory utilization, etc. can be viewed |
| Support port statistics | |
| VLAN function | Support management VLAN |
| Support management IP configuration | |
| Support port VLAN | |
| Supports VLANs for IP subnets | |
| Support MAC VLAN | |
| Support Voice VLAN | |
| Support GVRP | |
| Port function | Support port configuration |
| Support port aggregation | |
| Support port mirroring | |
| Support port speed limit | |
| Support port isolation | |
| Support port energy saving | |
| Scene function | Support MAC configuration (static binding and dynamic binding) |
| Support DHCP Snooping | |
| Support IGMP-Snooping, MLD Snooping | |
| Support LLDP configuration | |
| Support QOS configuration | |
| Support Jumbo Frame | |
| security function | Support ARP configuration |
| Support storm control | |
| Support ACL (based on IP, MAC, time) | |
| Support attack prevention (DOS, Icmp-echo) | |
| Support DHCP Snooping | |
| Support 802.1X | |
| Support Radius authentication | |
| Ring network function | Support STP |
| Support RSTP | |
| Support MSTP | |
| Support ERPS | |
| Troubleshooting function | Support loop protection |
| Support log management | |
| Support Ping detection | |
| Support traceroute | |
| Support line detection | |
| Device management function | Support HTTP/HTTPS |
| Support TELNET | |
| Support SNMP | |
| Support RMON | |
| Equipment maintenance function | Support system time (local and NTP) |
| Support account management (hierarchical management of accounts and password protection) | |
| Support configuration management (configuration import, export, restore factory settings) | |
| Support system upgrade | |
| Support device restart |
