Product Overview

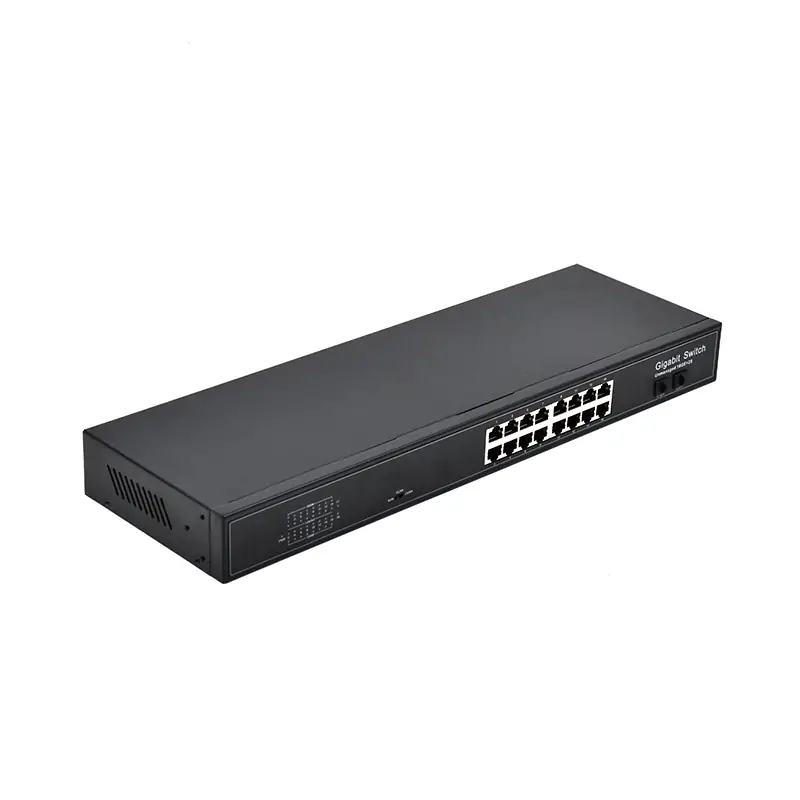

The SG1602-R is a 16-port Gigabit Ethernet switch designed for small to medium-sized network environments. It features 16 10/100/1000Base-T Ethernet ports and 2 1000Base-X SFP optical uplink ports, utilizing high-quality, high-speed network ICs. With a fanless, silent design, this switch effectively resolves noise issues commonly encountered when deploying small switches in office settings.

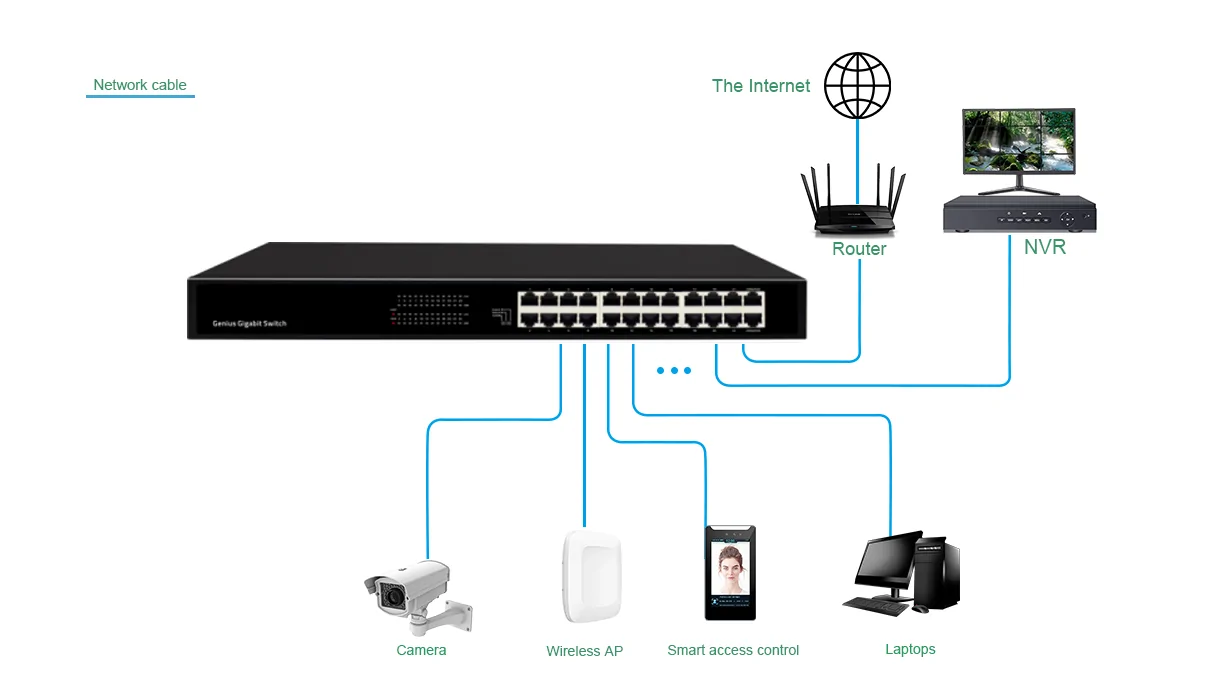

This switch supports three working modes and allows for easy switching between modes with a one-touch DIP switch, making it simple to manage and maintain. The SG1602R is widely used in applications such as security network video surveillance, hotels, campuses, and small to medium-sized enterprise networking.
Key Features
- 16 x 10/100/1000Base-T Ethernet ports and 2 x 1000Base-X uplink SFP ports
- One-click mode switching between Standard, VLAN, and Flow Control modes
- 6kV lightning protection feature for enhanced safety
- All ports support 10/100/1000 Mbps rate adaptation and half/full duplex adaptation
- Automatic MDI/MDI-X functionality on all ports
- Line-speed forwarding on all ports for smoother transmission
- Plug-and-play design for easy operation, requiring no configuration
- Constructed with a metal casing and built-in power supply for excellent heat dissipation, ensuring long-term stable operation
Product Parameters
| Standards and Protocols | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-SX/LX IEEE 802.1p tagged frames IEEE 802.3x flow control |
| Interface Information | Single-mode SFP Optical Port: 2 x 1000Base-X SFP optical ports (uplink ports) Transmission Rate: 1.25 Gbps Multimode: 550m/2km; Single-mode: 2/20/40/60/80/100 km Multimode: 850nm/1310nm; Single-mode: 1310nm/1550nm/1490nm RJ45 Ethernet Port: 16 x 10/100/1000M Base-T ports 10/100/1000Mbps auto-negotiation 10Base-T: ≤100m (CAT3,4,5 UTP) 100Base-TX: ≤100m (CAT3,4,5 UTP) 1000Base-T: ≤100m (CAT3,4,5 UTP) |

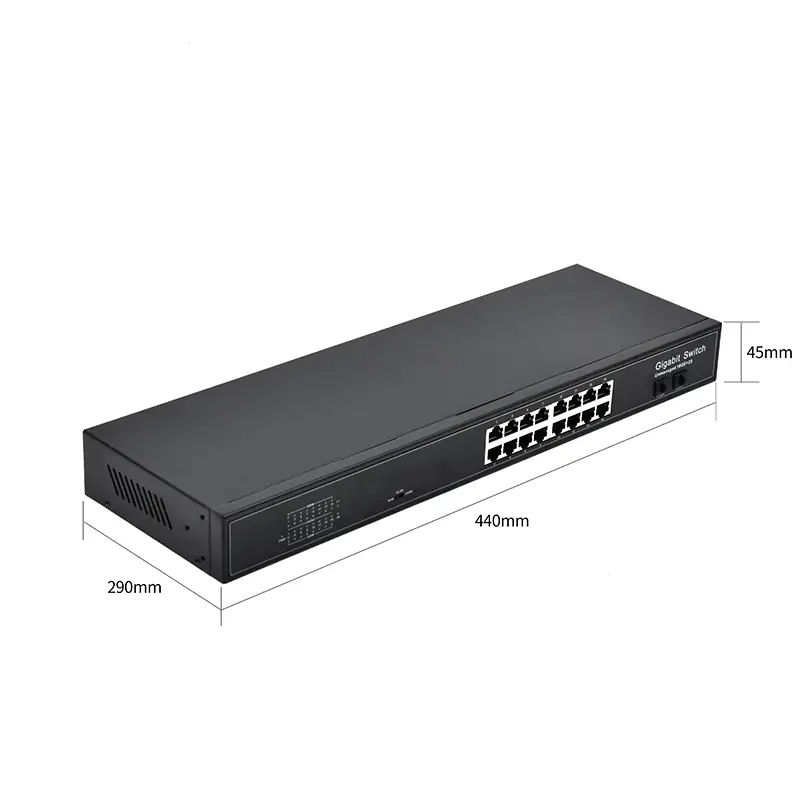

| Mechanical Attributes | Enclosure Material: Metal Dimensions (L x D x H): 440mm x 290mm x 45mm Installation Method: Desktop or Rack-mounted Cooling Method: Natural cooling, Fan Weight: <3.3kg (Net weight) |
| Environmental Attributes | Operating Temperature: -10℃ to +55℃ Storage Temperature: -40℃ to +75℃ Relative Humidity: 5% to 95% (Non-condensing) |
| Switching Attributes | Switching Capacity: 56Gbps Packet Forwarding Rate (System): 41.67Mpps Switching Mode: Store-and-forward MAC Table: 8K Packet Buffer: 4.1M |

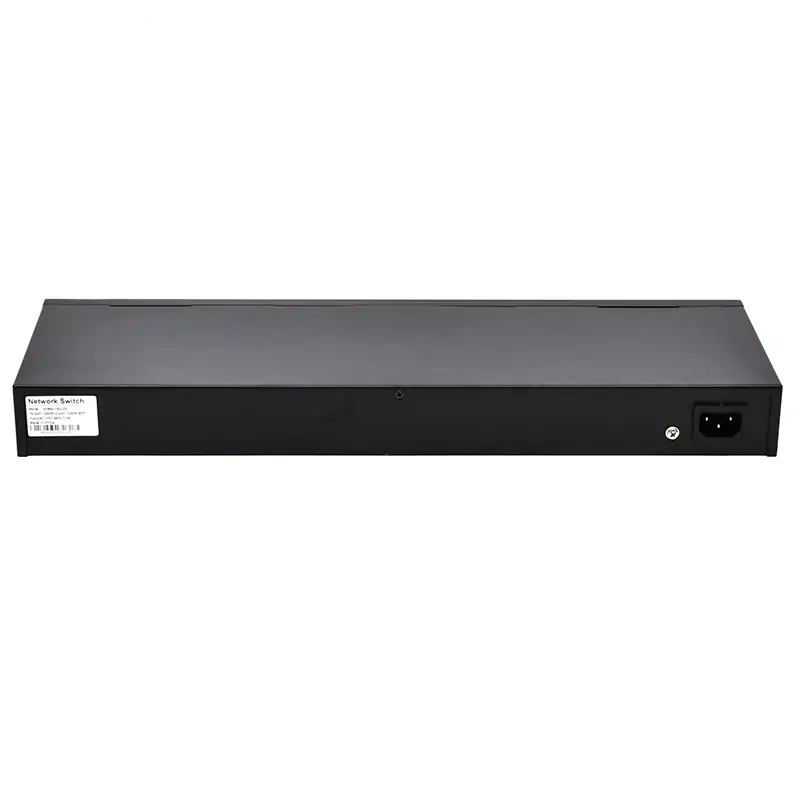

| Power Requirements | Input Voltage: AC 100-240V, 50-60Hz Standby Power Consumption: ≤10W |
| Indicators | Ethernet Port Indicators (Toggle switch control): – Port 1-16 indicators: 10/100/1000M Link/ACT (Green) – N: Standard shared mode – V: Port isolation mode – C: Flow control mode Optical Port Indicators: Green (17-18) Power Indicator (PWR): Green |
