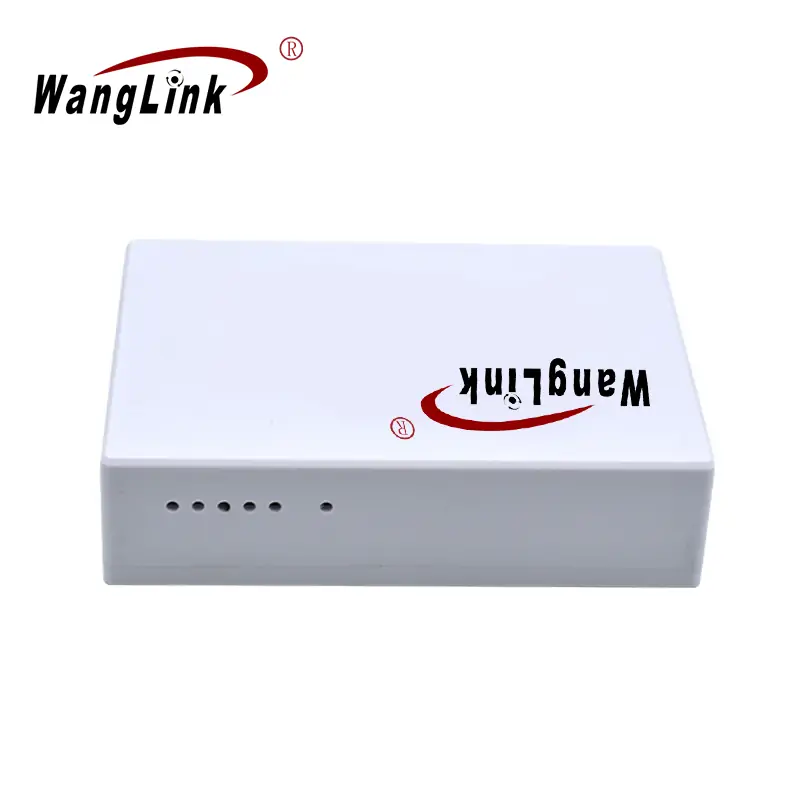

Product Overview

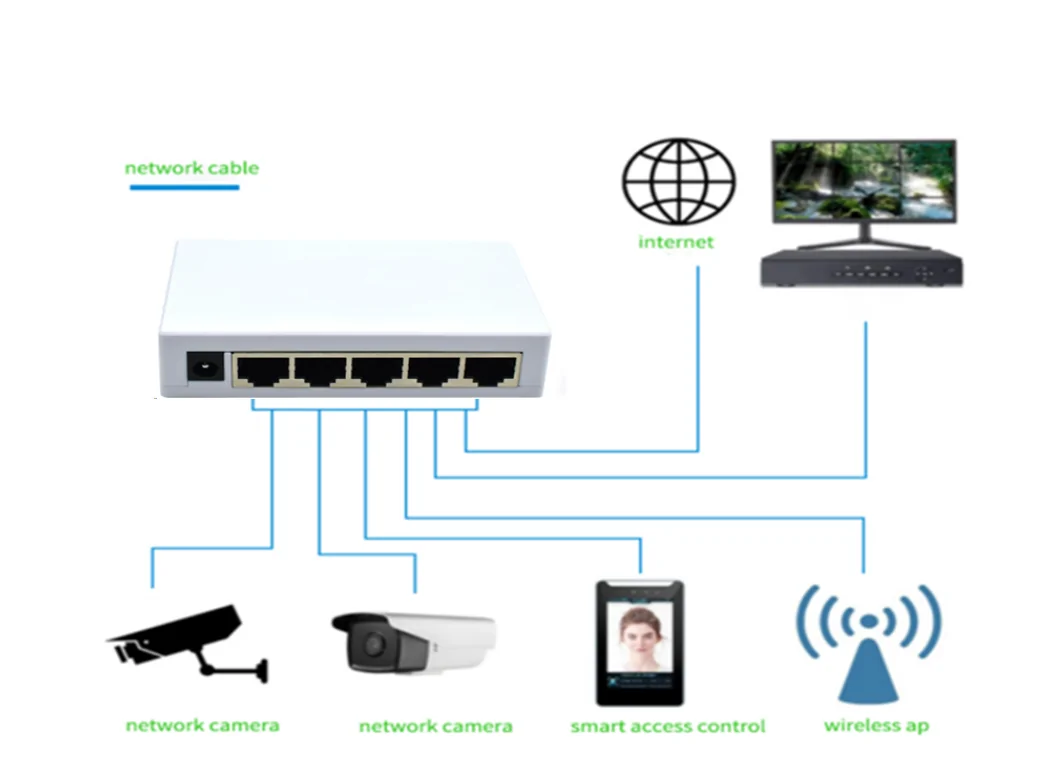

The SG05S is a five port Gigabit Ethernet switch designed for small to medium-sized network environments. It features five adaptive ports, which support transmission rates of 10/100/1000 Mbps. Each port includes the automatic flip function for crossover/parallel twisted pair (Auto MDI/MDI-X), offering a maximum bidirectional transmission rate of 2000 Mbps. With its user-friendly installation and maintenance, the SG05S is undoubtedly the ideal choice for building small to medium-sized corporate networks.
Key Features
- 5 10/100/1000Base-TX ports
- Supports transmission of 9K jumbo packets
- Features an 8K MAC address table
- All ports adapt to 10/100/1000 Mbps rates
- Automatic adaptation of half/full duplex with Auto MDI/MDI-X functionality
- Wire-speed forwarding for smooth data transmission
- Supports both desktop and wall-mounted installations
- Plug and play design for easy operation, with no configuration needed
- Built with a plastic shell for excellent heat dissipation, ensuring stable operation over long periods
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3u 1000Base-T IEEE 802.3x flow control |

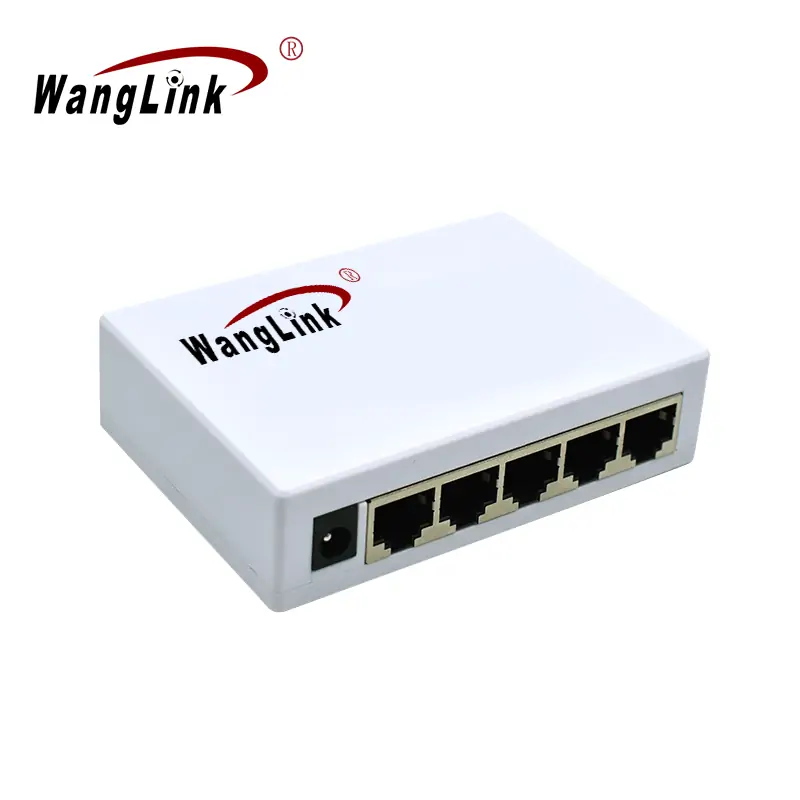

| Ethernet port Characteristic | Connector Type | 1×5 RJ45 |
| Transmission rate | 10/100/1000Mbps auto-negotiate； | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 8K | |
| Case space | 1Mb | |
| Packet Forwarding Rate | 7.44Mpps@64byte | |
| Bandwidth | 10G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Link/Act indicator | Yellow, per ethernet port | |
| Power parameters | Input voltage | DC 5-12V |
| Power consumption | ≤3W; | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature | -20℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

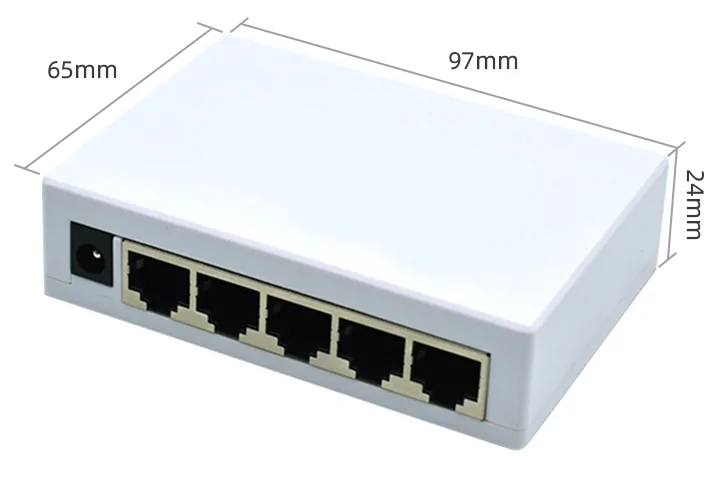

| Physical properties | Size | 97×65×24mm |
| Weight | 80g |
