Product Overview

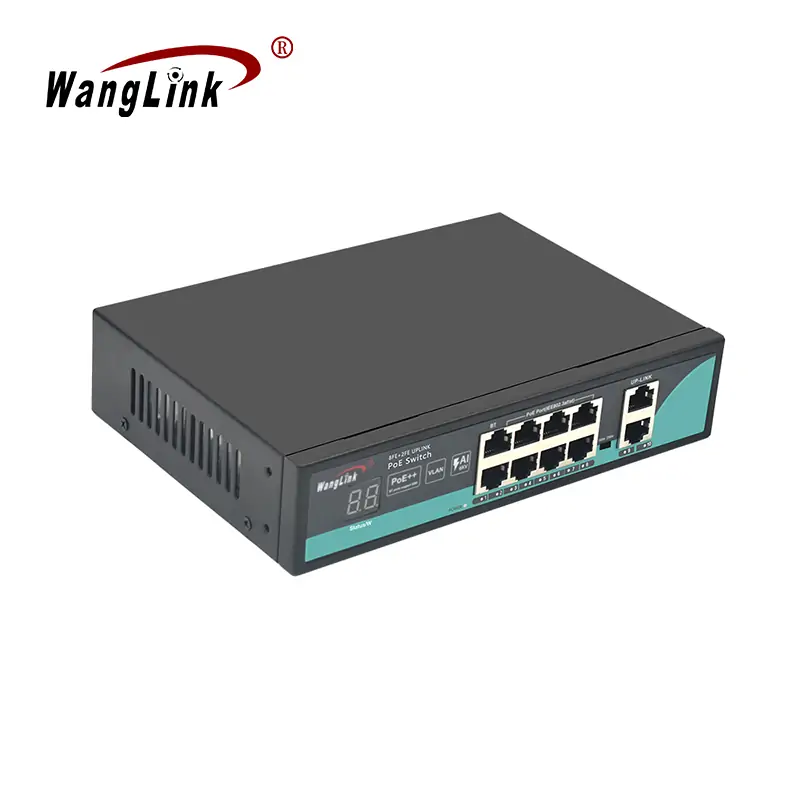

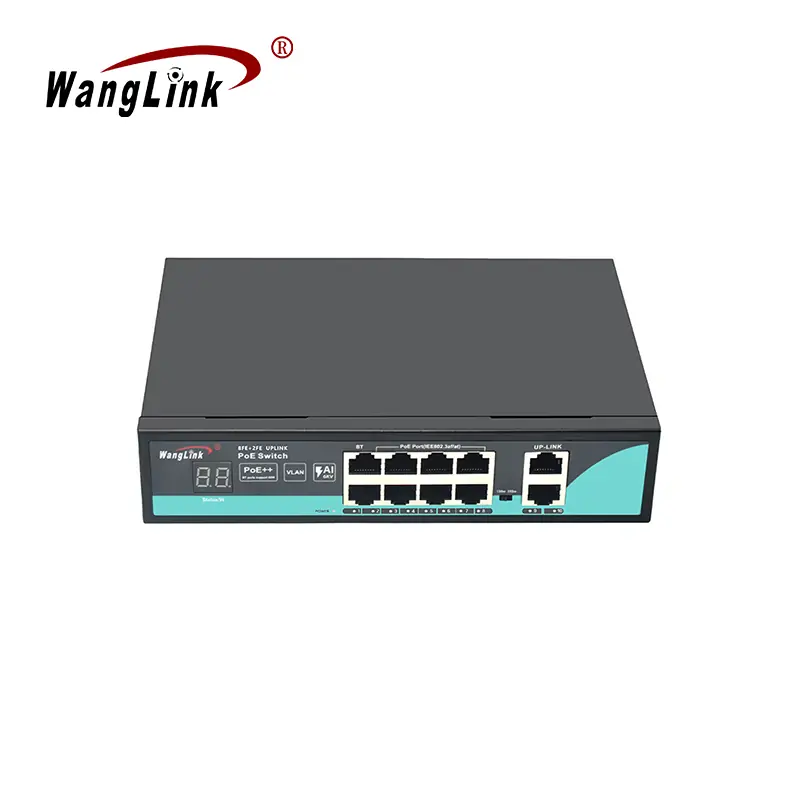

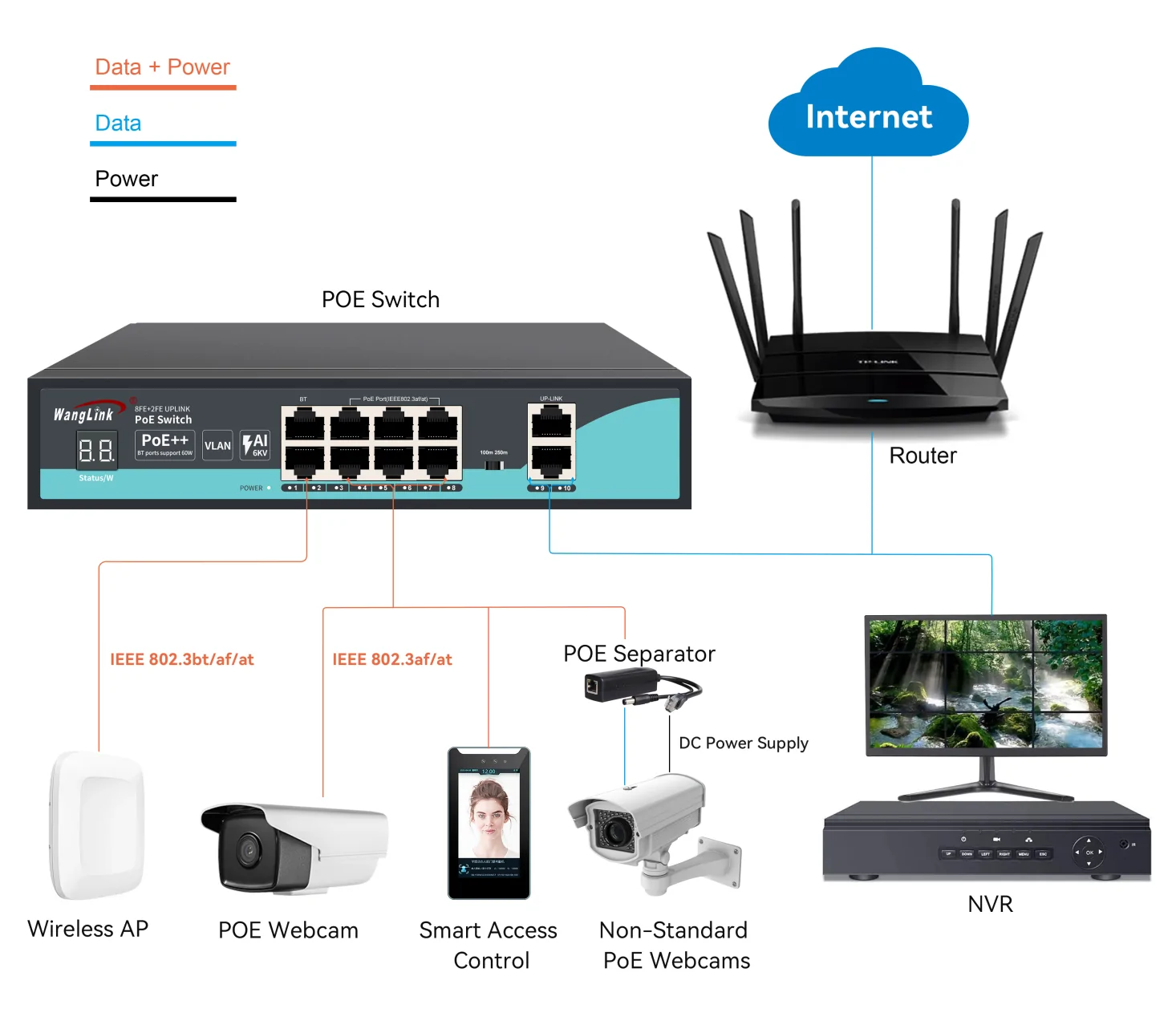

The SF82P-V2 8 Ports PoE Switch is a robust and reliable networking solution, perfect for expanding your network with Power over Ethernet capabilities. This PoE switch features 10 10/100Base-TX Ethernet ports, offering ample connectivity for a variety of devices. It includes one port supporting the latest IEEE 802.3BT (PoE++) standard, as well as seven ports compatible with IEEE 802.3 af/at PoE. The PoE++ port can deliver up to 60W of power, while the af/at PoE ports provide 25.4W each. With a total PoE power budget of 120W, this 8 port PoE switch ensures sufficient power for all your PoE-enabled devices. The switch intelligently detects PoE devices, providing power only to compatible equipment and preventing damage to non-PoE devices.
Key Features
- 8 10/100Base-TX PoE ports and 2 10/100Base-T uplink ports for versatile connectivity.
- Supports IEEE802.3 BT/af/at PoE protocol for efficient and reliable power delivery.
- One-key switch to VLAN mode and 250m long distance transmission mode, extending network reach.
- Digital tube display for real-time monitoring of PoE online utilization rate.
- Supports 10/100Mbps auto-negotiation for optimized connection speeds.
- Half/Full duplex adaptive and auto MDI/MDI-X functionality for seamless integration.
- All ports support wire-speed forwarding for maximum data throughput.
- Designed for easy desktop or wall-mounted installation.
- Plug and Play operation for quick and hassle-free setup.

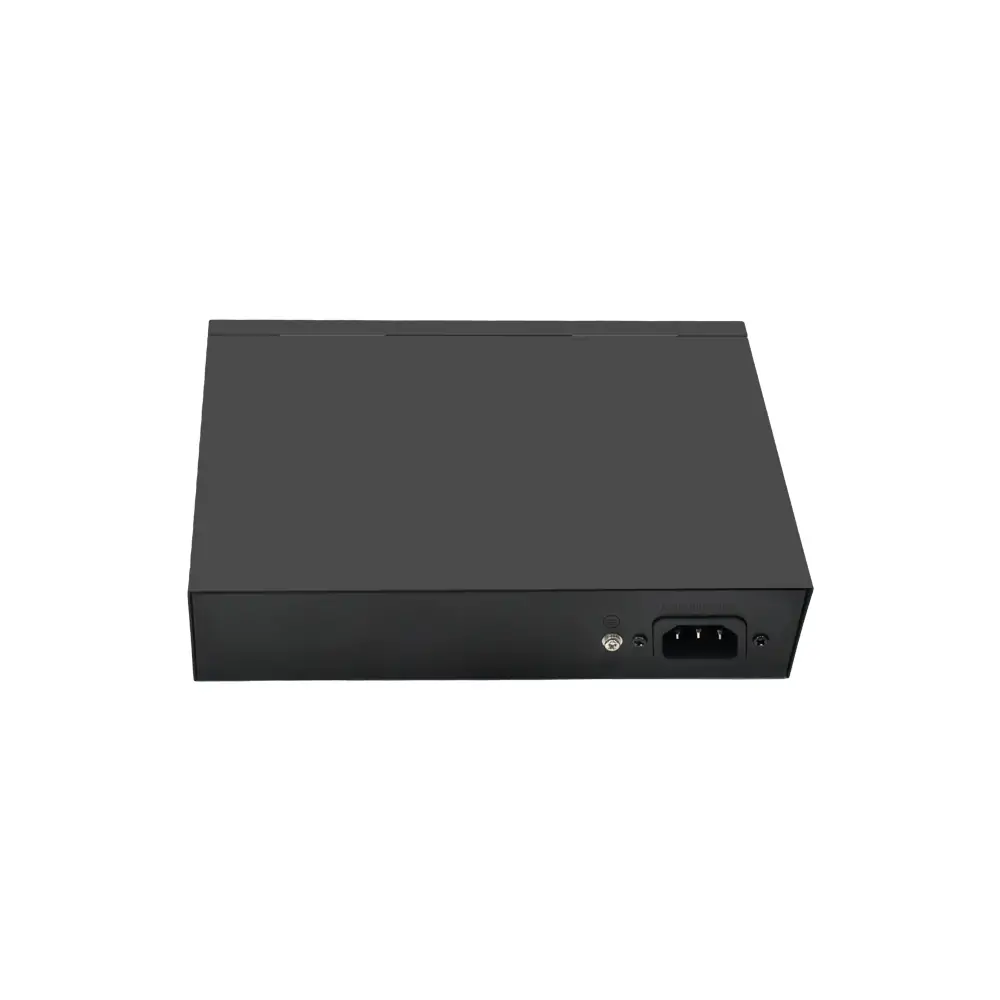

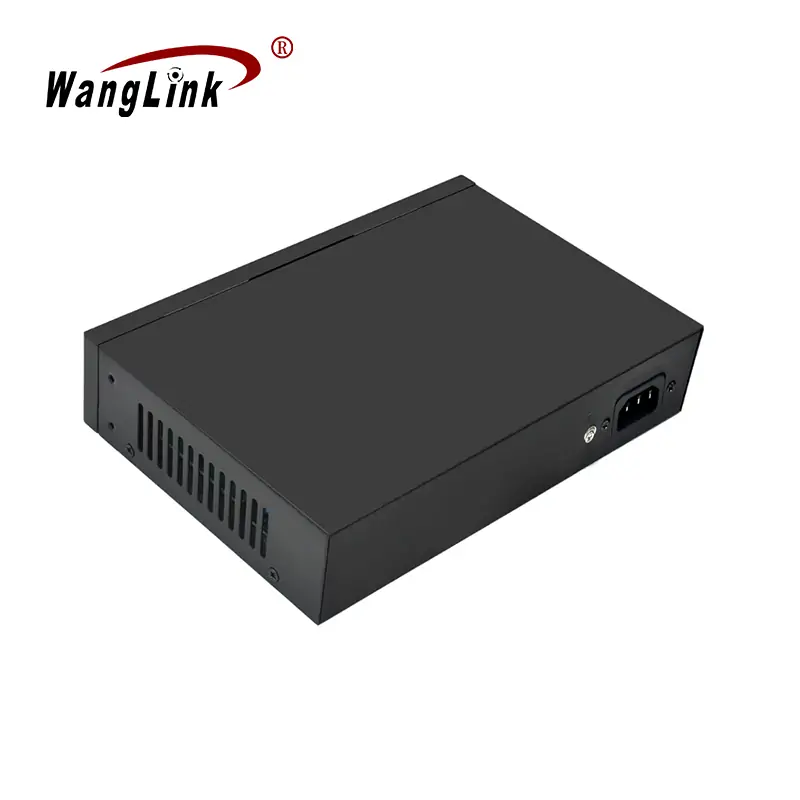

- Durable metal casing with internal power supply for long-lasting reliability.
- Optional 6KV common mode/4KV differential mode surge protection for increased protection.
- Optional AI network self-healing (watchdog) function for enhanced network stability.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.1p tagged frames IEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 1×8 RJ45，1×2 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate； | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 768Kb | |
| Jumbo frames | 2048b | |
| Packet Forwarding Rate | 1.488Mpps@64byte | |
| Bandwidth | 2G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Ethernet indicator | Green, per ethernet port | |
| DIP switch | 100m | Standard mode – All ports can communicate with each other. |
| 250m | Extend mode, port 1-4 are isolated from each other, transmission distance can up to 250m, and can communicate with port 5-6. | |
| Power parameters | Input voltage | AC100~240V, 50Hz |
| Power consumption | Standby: ≤3W; whole: ≤120W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | Bt port≤60W，af/at port≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

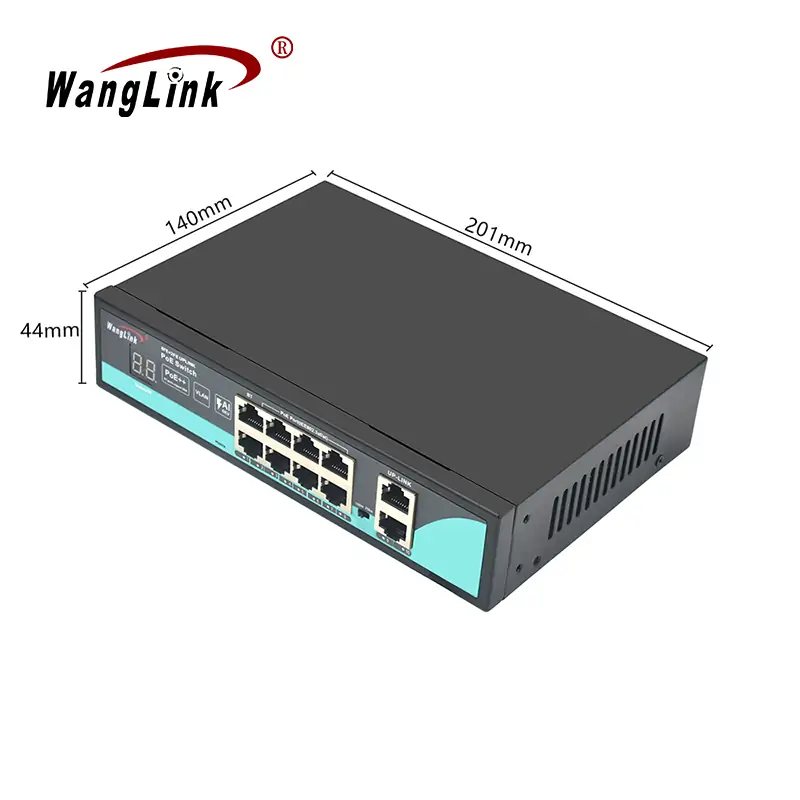

| Physical properties | Size | 201×140×44mm |
| Weight | Net weight:0.7kg,Gross weight: 0.9kg |
