Product Overview
The SF82P-E 8 Port Switch PoE is a reliable and efficient networking solution designed to power and connect devices in various environments. This 8 port switch PoE features 10 10/100Base-TX Ethernet ports, out of which ports 1-8 support the IEEE802.3 af/at PoE (Power over Ethernet) protocol, providing up to 25.4W of power per port. With a total PoE power output of 96W, this switch intelligently detects compatible devices, supplying power only to those that support PoE, thereby protecting non-PoE equipment from damage.
Key Features
- 8 10/100Base-TX PoE ports and 2 10/100Base-T uplink ports for versatile connectivity options.
- Each PoE port supports the IEEE802.3 af/at standard, delivering a maximum power output of 25.4W.
- Supports one-key switching to VLAN mode and 250m long-distance transmission mode. (Ports can be set to 10Mbps for extended reach).
- Full support for 10/100Mbps auto-negotiation, ensuring optimal connection speeds.
- All ports feature half/full duplex adaptive mode and auto MDI/MDI-X functionality for seamless configuration.
- Supports wire-speed forwarding on all ports, enabling efficient data transmission.
- Designed for desktop and wall-mounted installation for flexible deployment.
- Plug and Play functionality allows for easy setup without any configuration required.
- Optional 6KV common mode/4KV differential mode surge protection for reliable operation.
- Optional AI network self-healing (watchdog) function for enhanced network reliability.
Ideal Applications

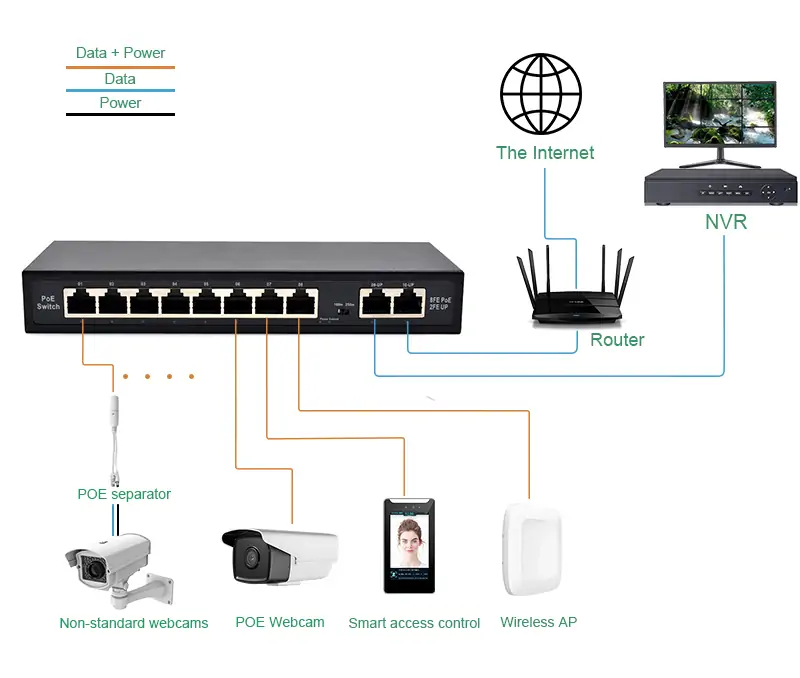

The SF82P-E is perfect for video surveillance networking and is well-suited for applications in hotels, retail shops, supermarkets, residential homes, and small to medium-sized enterprises.
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.1p tagged frames IEEE 802.3x flow control |
| Interface information | Downlink ports: 8 10/100M Base-T ports (supports POE, POE+) |
| Uplink port: 2 10/100M Base-T ports | |
| Mechanical properties | Shell material: metal shell |

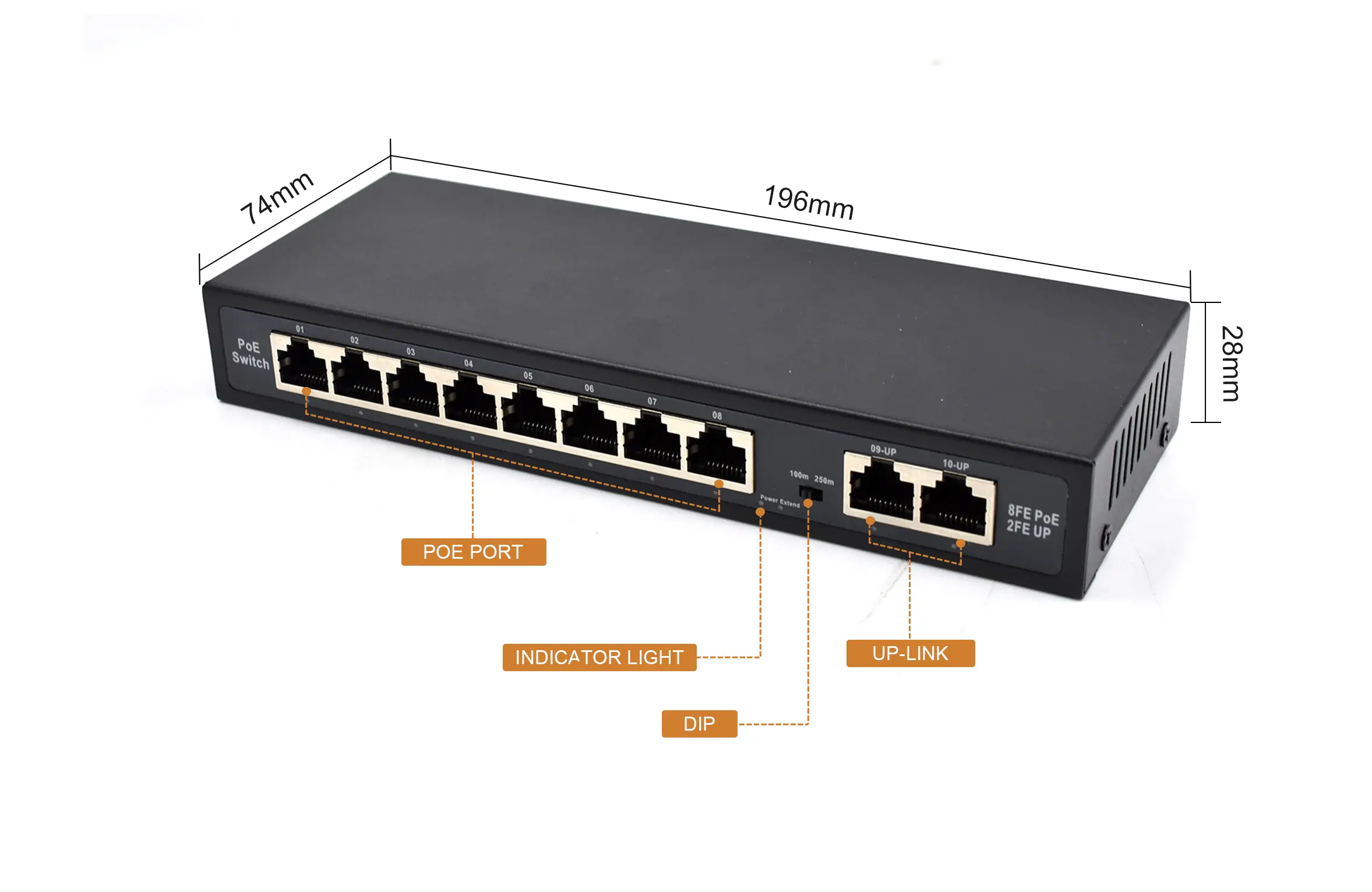

| Appearance dimensions (length*depth*height): 196mm×74mm×28mm | |
| Installation method: Desktop | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <0.4KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth:2Gbps |
| Packet forwarding rate (whole machine) : 1.488 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Case space : 1m | |
| Power supply | Input voltage: DC48V-57V |
| Power consumption: < 3 W | |
| PoE | Pin: 1/2+, 3/6-; Maximum output: 25.4W |
| (Full load) AF mode ≤ 120W, AT mode ≤ 200W | |
| indicator light | Port light (fluctuation switch control):Indicator light: green;PoE indicator light: green ;VLAN OFFVLAN ON |
| Extend Mode(Function indicator light): Green | |
| Power(Power system indicator light): Green |
