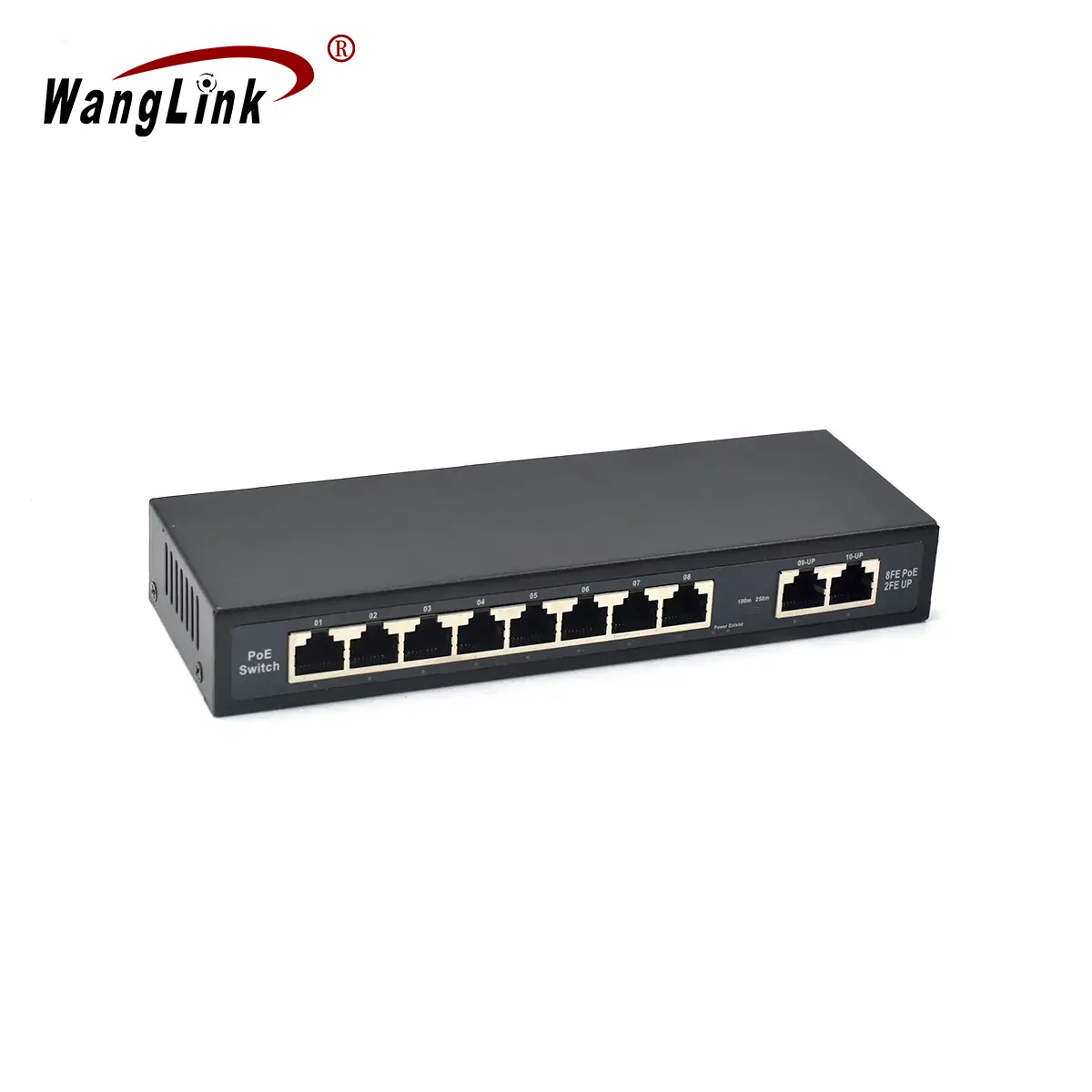

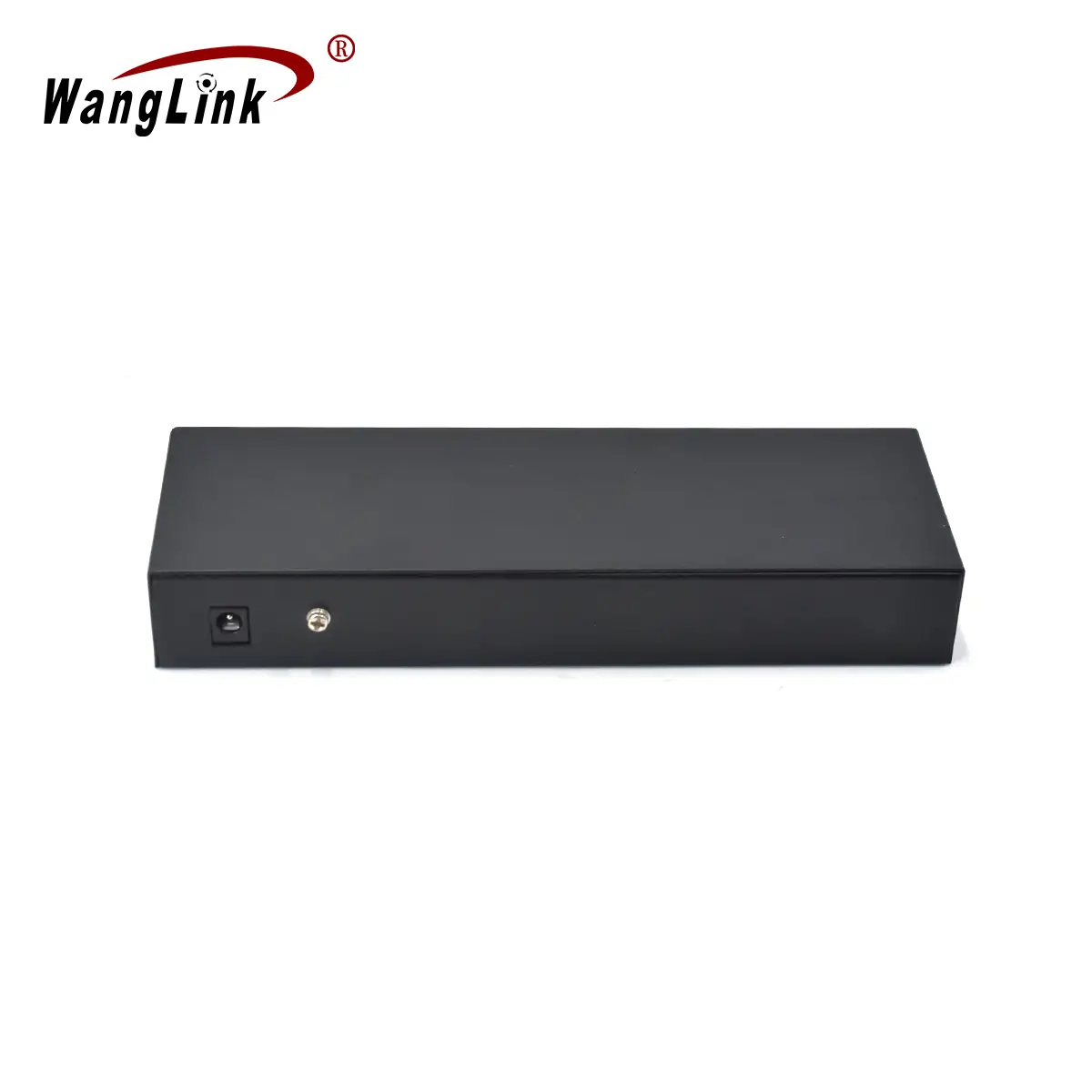

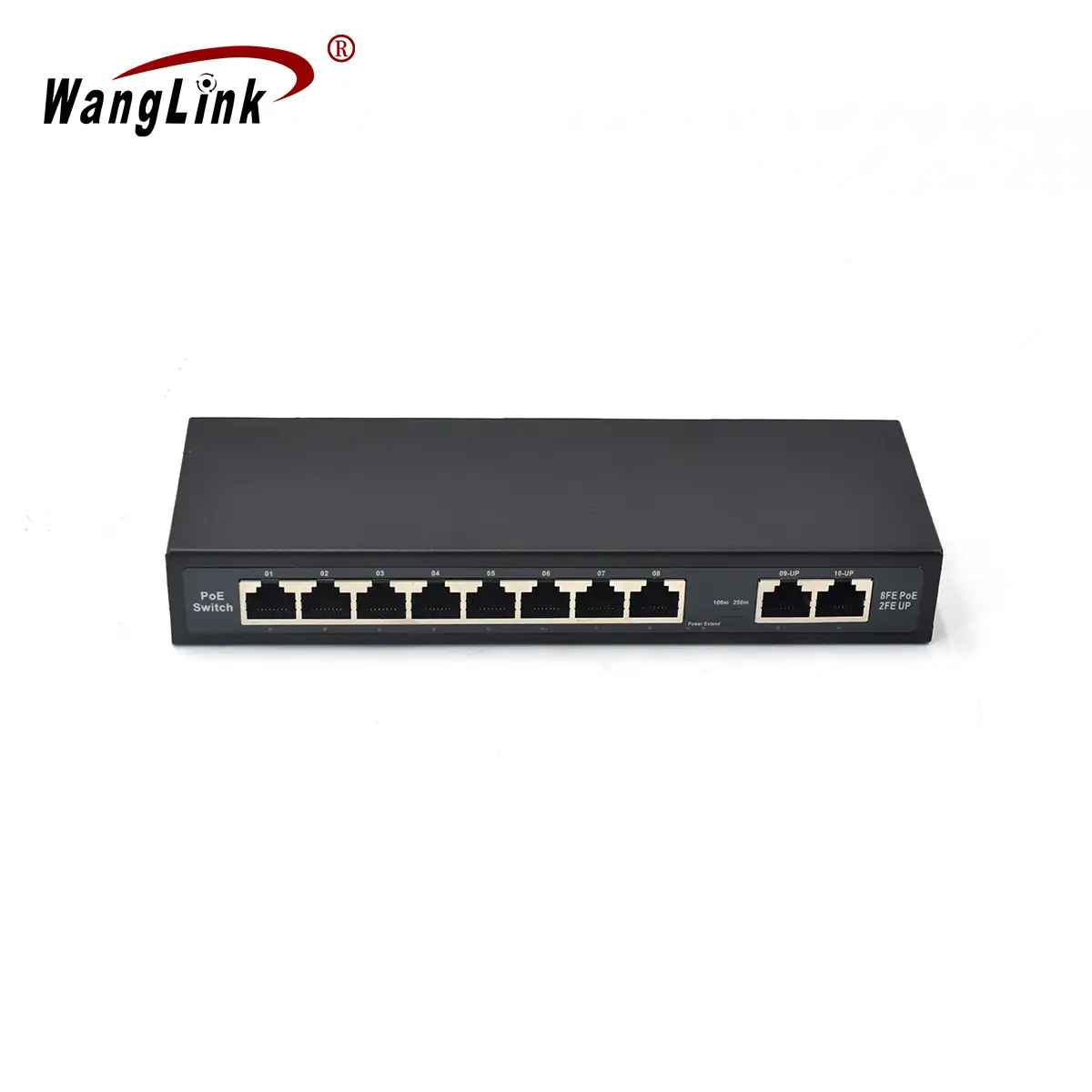

8 Port Switch with PoE, SF82NP Product Overview

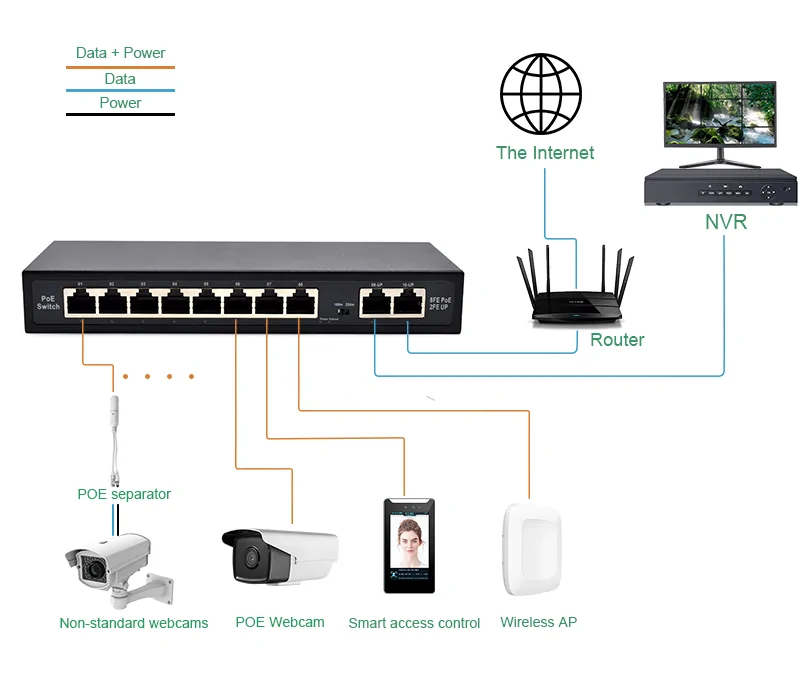

The 8 Port Switch with PoE, SF82NP is an advanced Ethernet switch designed for small and medium-sized enterprise networks. This switch features 8 PoE ports that not only support data transmission for IP-based terminal equipment but also provide power through a non-standard PoE transmission protocol. With a total of 10 10/100Base-TX Ethernet ports, this device is both versatile and efficient.
8 Port Switch with PoE, SF82NP Key Features
- 8 PoE Ports: Each of the 8 RJ45 ports supports a maximum output current of 1A, ensuring reliable power delivery to connected devices.
- Uplink Ports: Includes 2 additional 10/100Base-T uplink ports for enhanced connectivity.
- 2K Address Table: Capable of supporting up to 2,000 MAC addresses for effective network management.
- Rate Adaptation: All ports automatically adapt to 10/100Mbps rates, ensuring optimal performance.
- Adaptive Duplex: Each port supports half/full duplex operation and automatic MDI/MDI-X functions for seamless integration.
- Line-Speed Forwarding: Facilitates smooth data transmission across all ports.
- Installation Flexibility: Designed for both desktop and wall-mounted installations to fit various environments.
- User-Friendly: Plug-and-play functionality allows for simple operation with no configuration required.

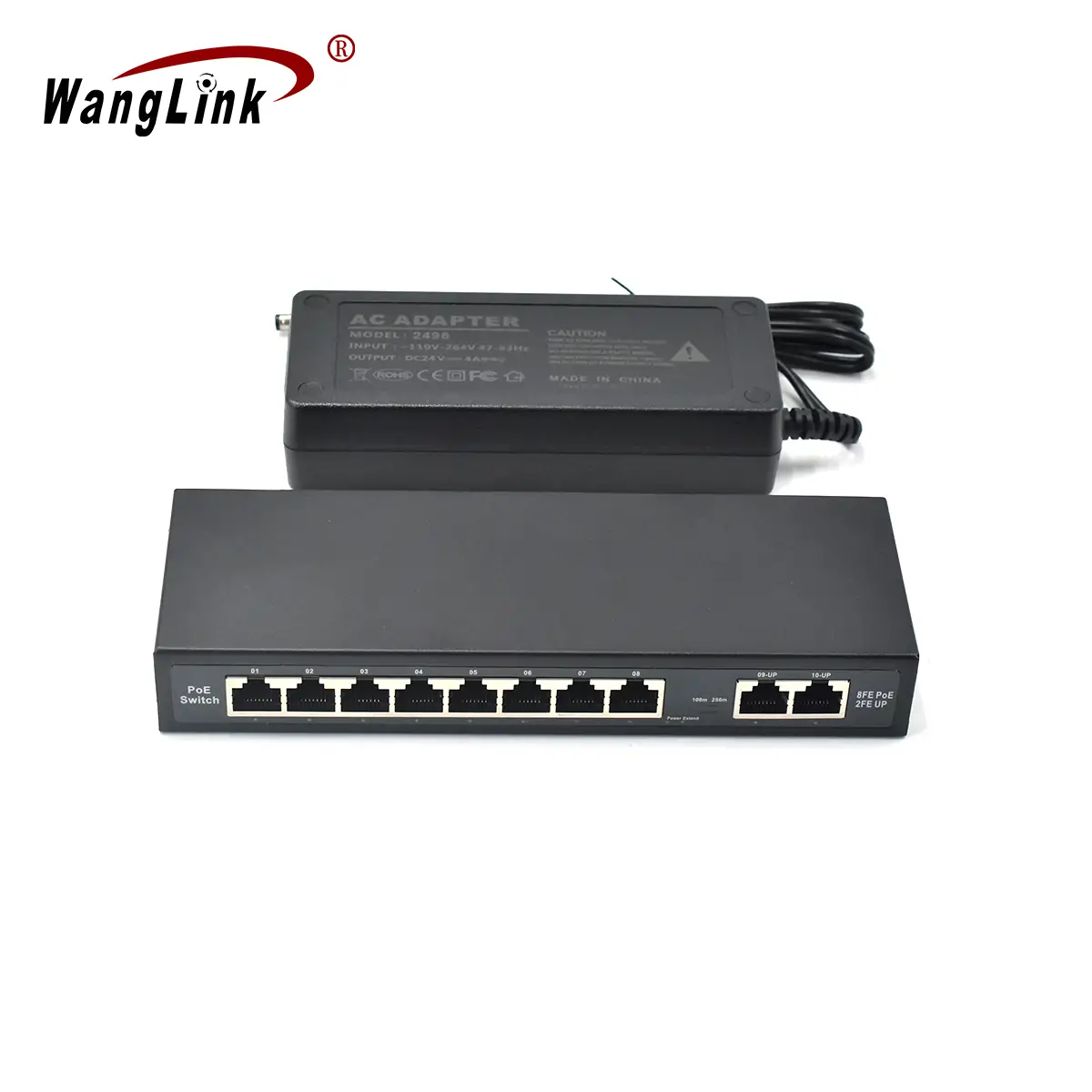

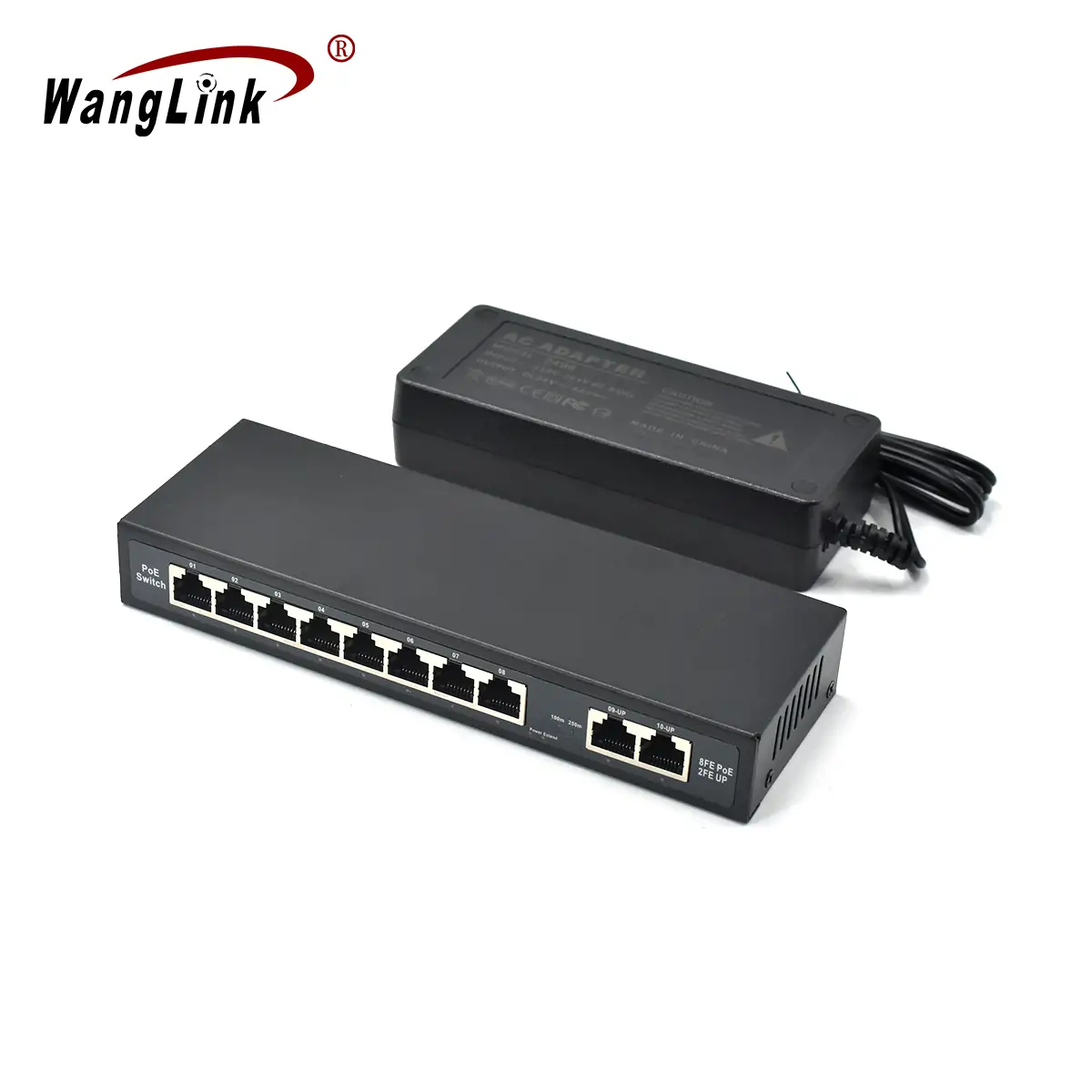

- Durable Design: Constructed with a metal shell and built-in power supply, this switch offers excellent heat dissipation and long-term stability.
8 Port Switch with PoE, SF82NP Product Parameters
| Protocol | Standard | IEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 1×4 RJ45，1×2 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate； | |
| Transmission distance | 10Base-T: ≤100m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 1mb | |
| Bandwidth | 2G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Link/Act indicator | Green, per ethernet port and fiber port | |
| Power parameters | Input voltage | DC 24V |
| Power consumption | ≤3W | |
| PoE pin | 4/5+，7/8- | |
| PoE power supply voltage | 24V | |
| Port max power | ≤24W（1A） | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

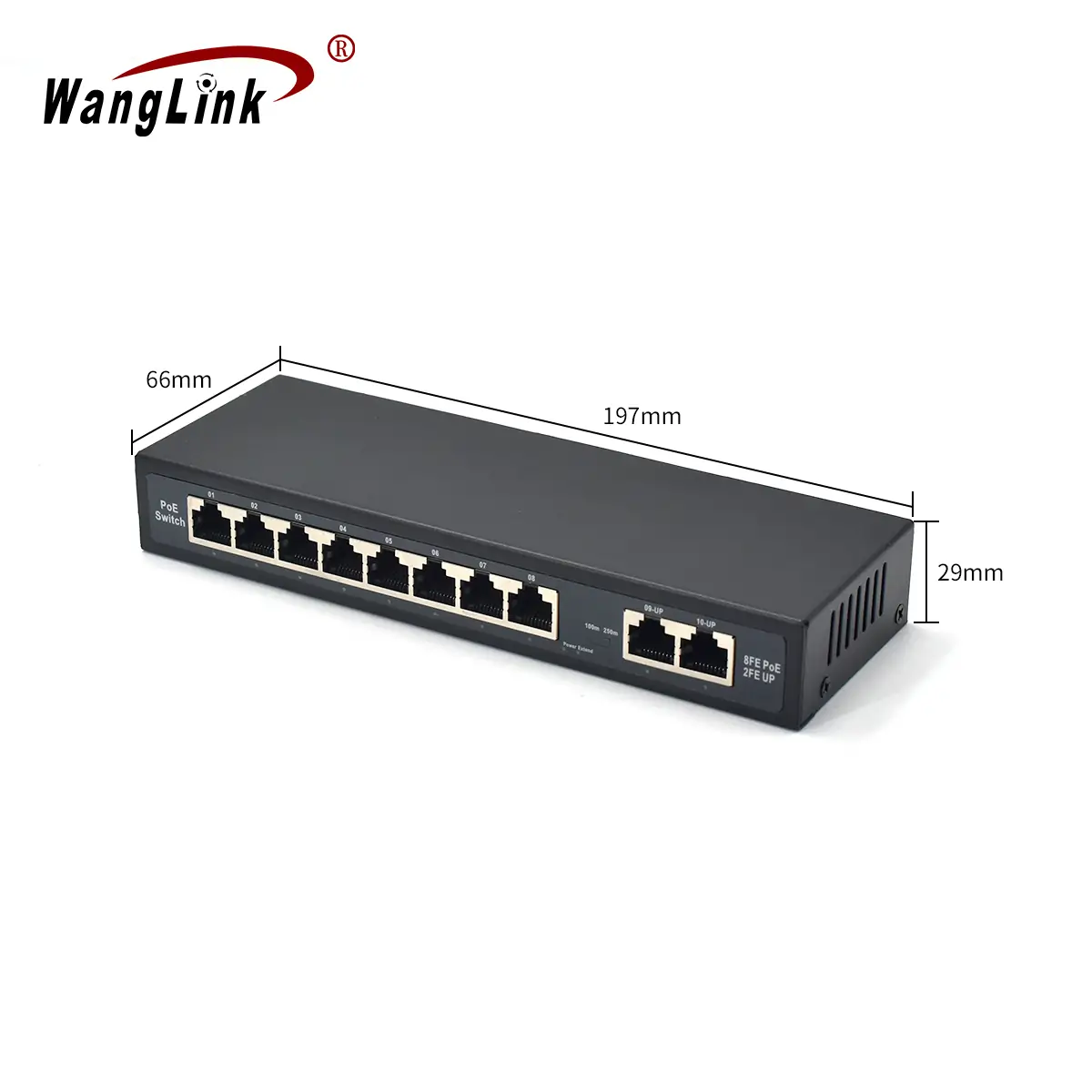

| Physical properties | Size | 196×74×28mm |
| Weight | 0.28KG |
