Product Overview

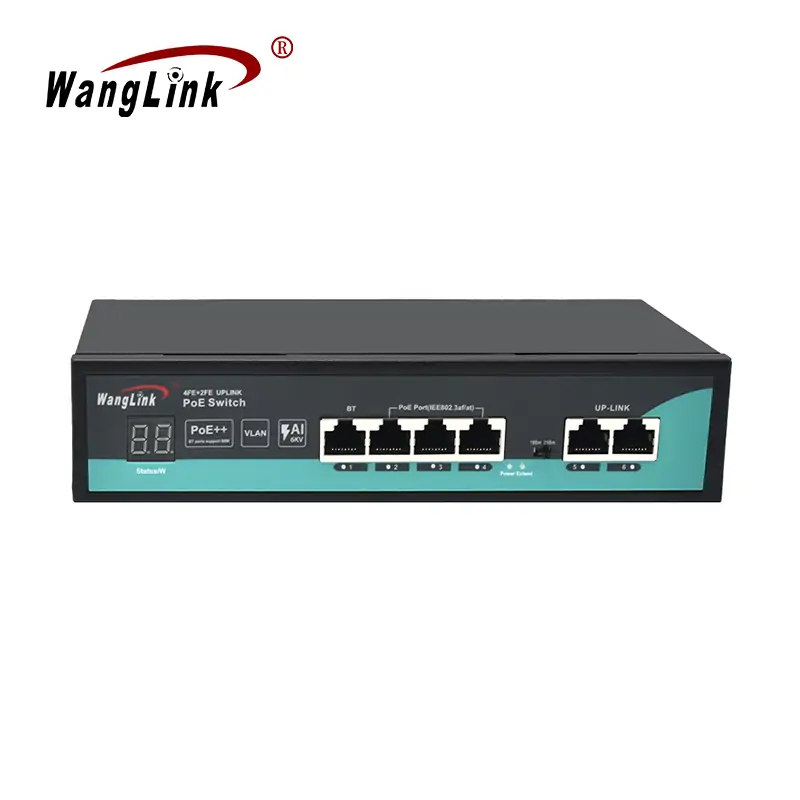

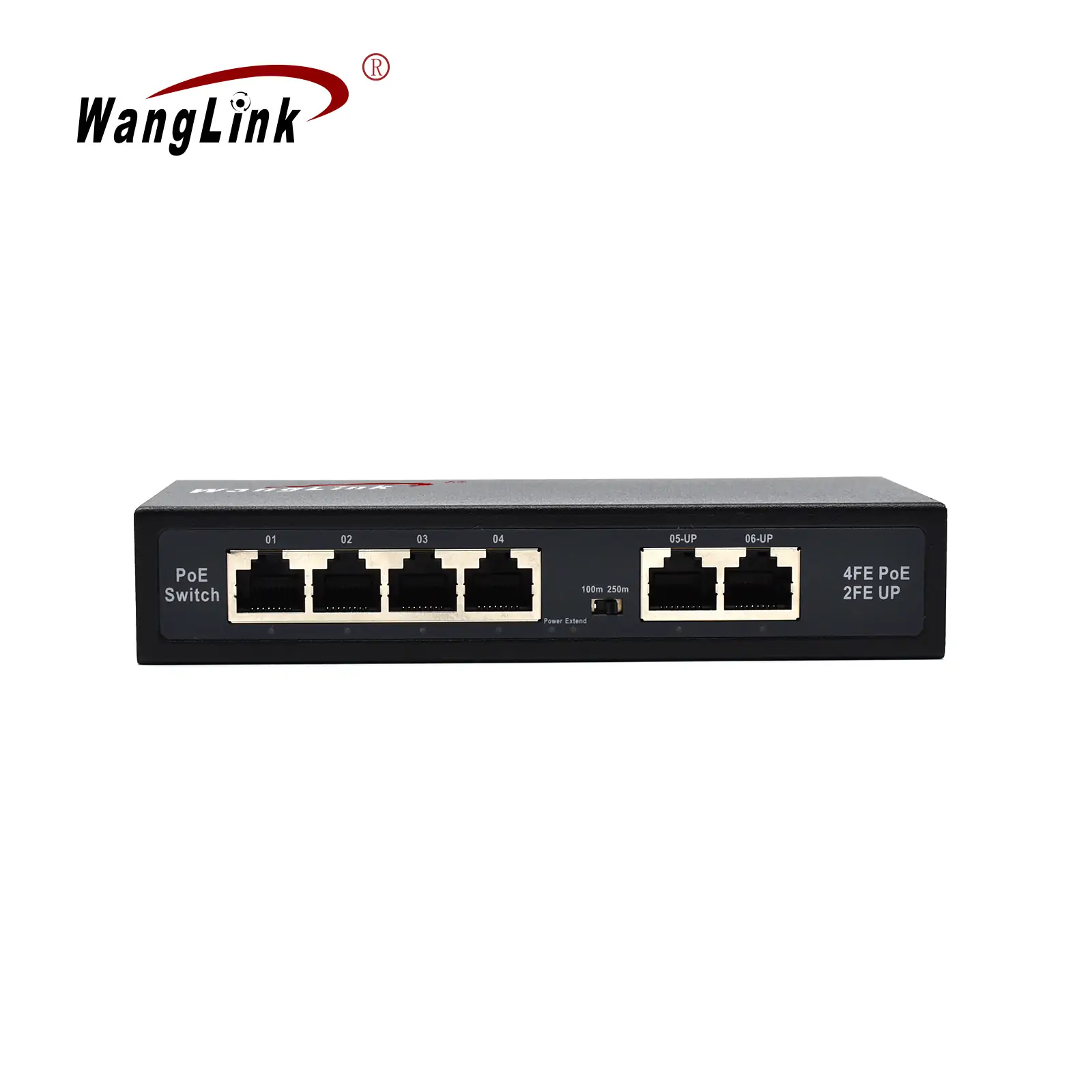

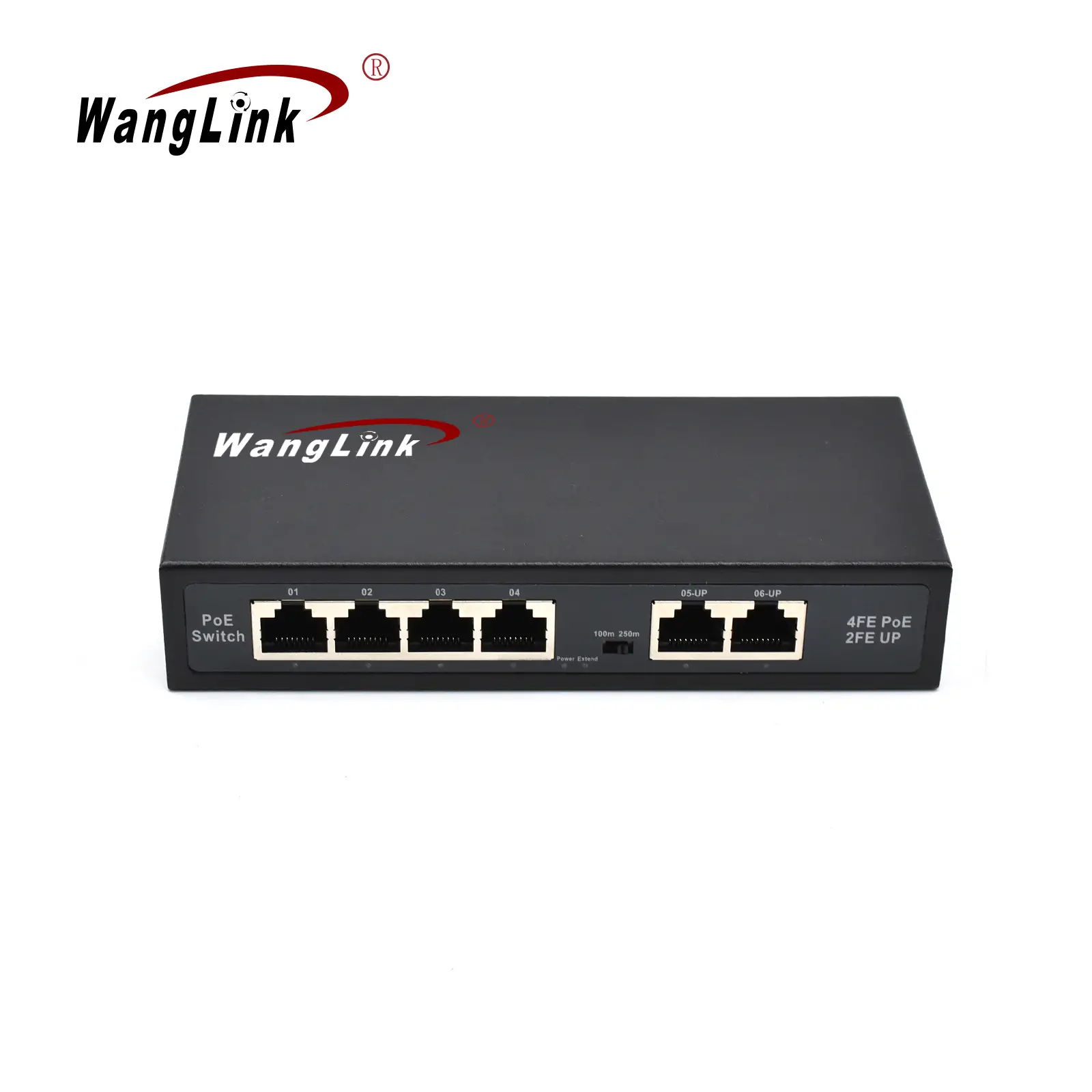

The SF42P-E 4 PoE Switch is a compact and efficient networking solution designed to meet the needs of various applications, including video surveillance, in hotels, shops, supermarkets, and small to medium-sized enterprises. This 4 PoE switch features 6 10/100Base-TX Ethernet ports, with ports 1-4 supporting IEEE802.3 af/at protocols for Power over Ethernet (PoE). Each PoE port can deliver a maximum output of 25.4W, while the total PoE power output for the entire switch is 65W. The switch intelligently detects whether connected devices support PoE, supplying power only to compatible devices to prevent damage to non-PoE equipment.
Key Features
- 6 10/100Base-TX Ethernet ports, with 4 PoE-enabled ports that support IEEE802.3 af/at standards for flexible power distribution.
- Maximum output power of 25.4W per PoE port and a total switch capacity of 65W.
- Automatic detection of PoE-compatible devices, ensuring only compliant powered devices receive power.
- Supports reduced transmission rate to 10Mbps for ports 1-4 via DIP switch, allowing for extended transmission distances of up to 250m using standard twisted pair cables.
- Ports 1-6 are isolated from each other to minimize conflict and broadcast domains, which helps reduce broadcast storms and enhance network communication efficiency.

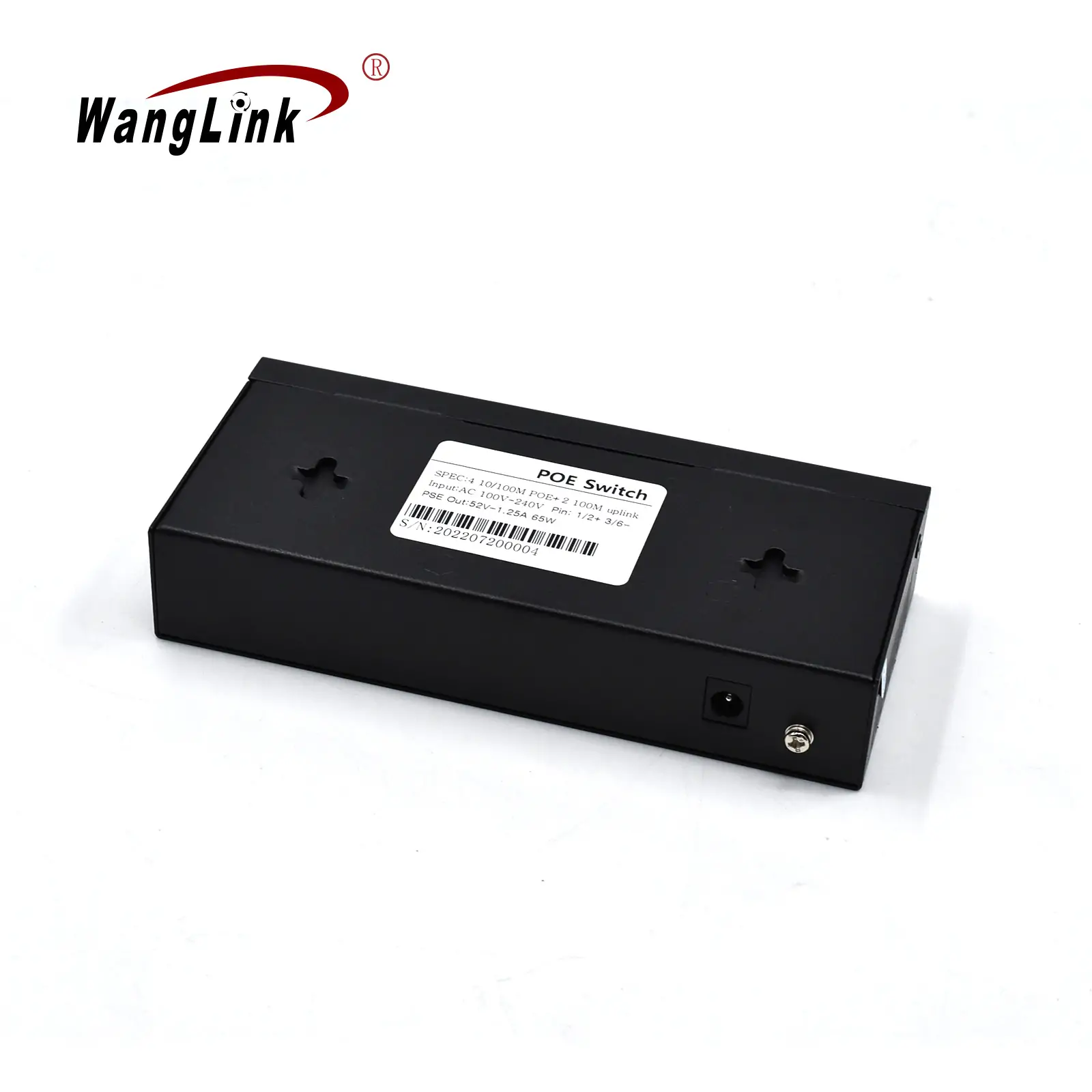

- Easy installation with support for both desktop and wall mounting.
- Plug and Play functionality for straightforward setup with no configuration required.

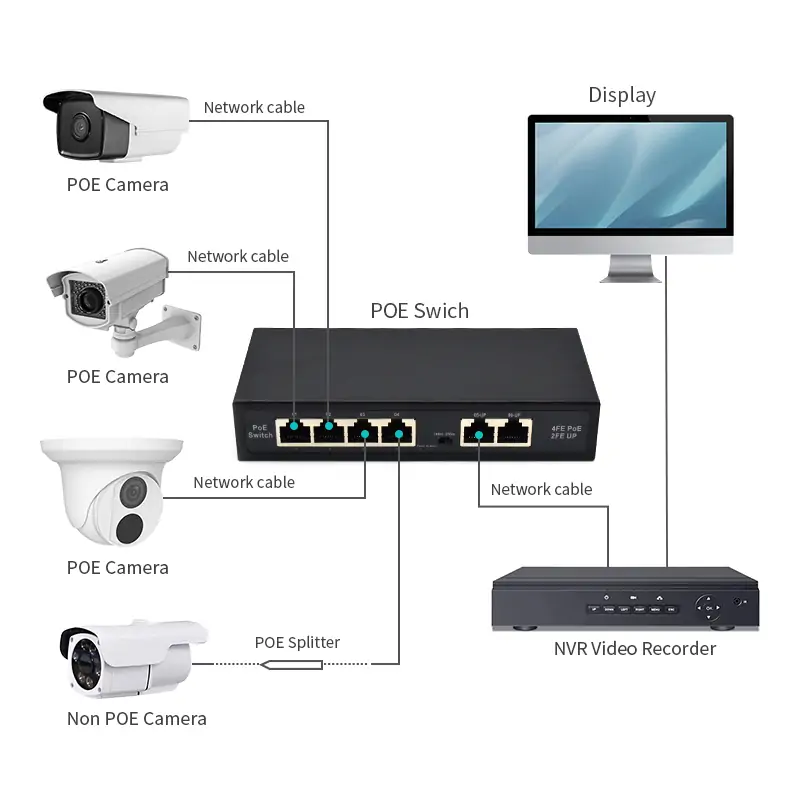

- Ideal for applications in video surveillance, ensuring reliable connectivity for cameras and other security devices.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.1p tagged frames IEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 1×4 RJ45，1×2 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate； | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 768Kb | |
| Jumbo frames | 2048b | |
| Packet Forwarding Rate | 0.8298Mpps@64byte | |
| Bandwidth | 1.2G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Ethernet indicator | Green, per ethernet port | |
| DIP switch indicator | Green, Extend mode. | |
| DIP switch | 100m | Standard mode – All ports can communicate with each other. |
| 250m | Extend mode, port 1-4 are isolated from each other, transmission distance can up to 250m, and can communicate with port 5-6. | |

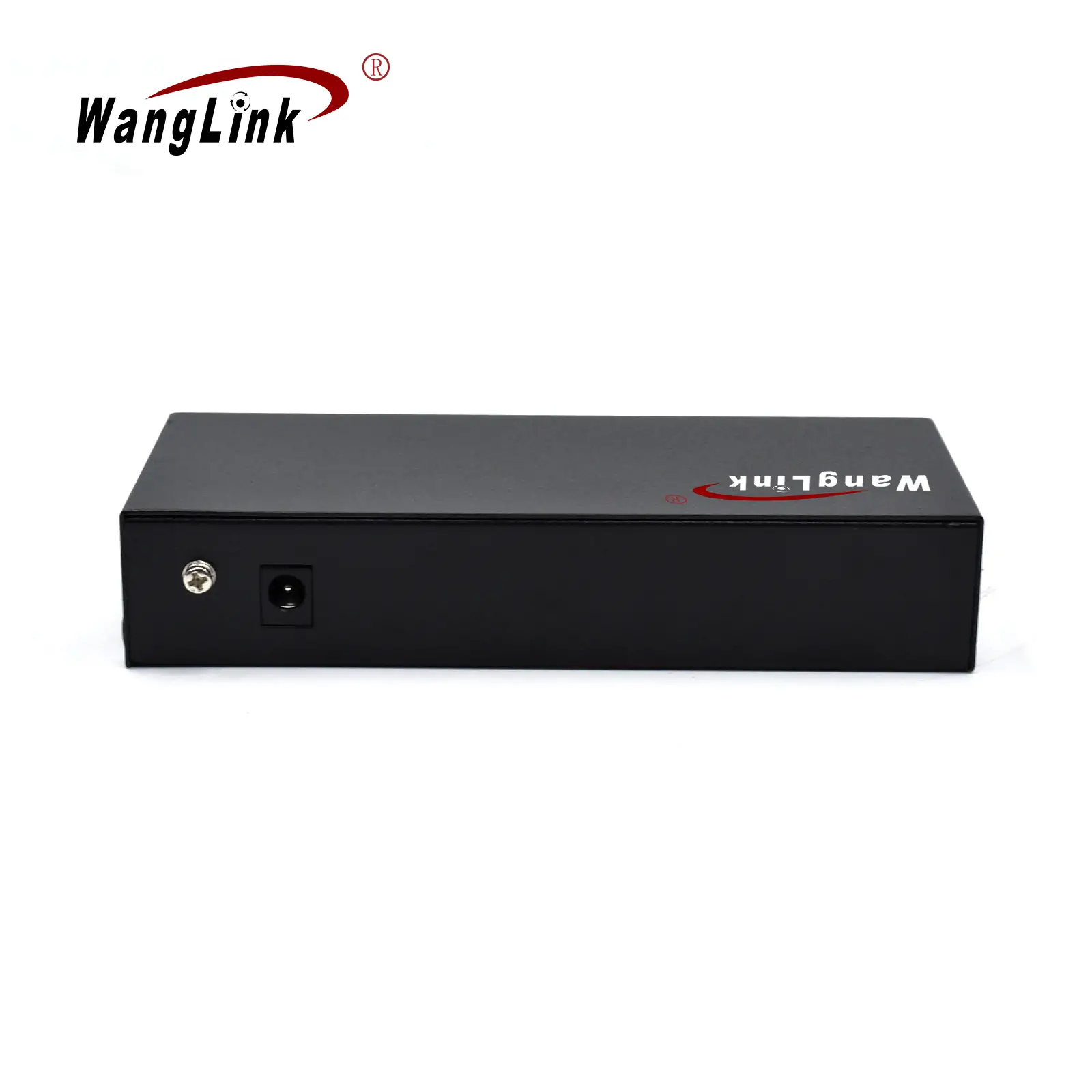

| Power parameters | Input voltage | DC 48-57V |
| Power consumption | Standby: ≤5W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | ≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |
| Physical properties | Size | 150mm×66mm×29mm |
| Weight | Net weight:0.7kg,Gross weight: 0.95kg |
