Product Overview

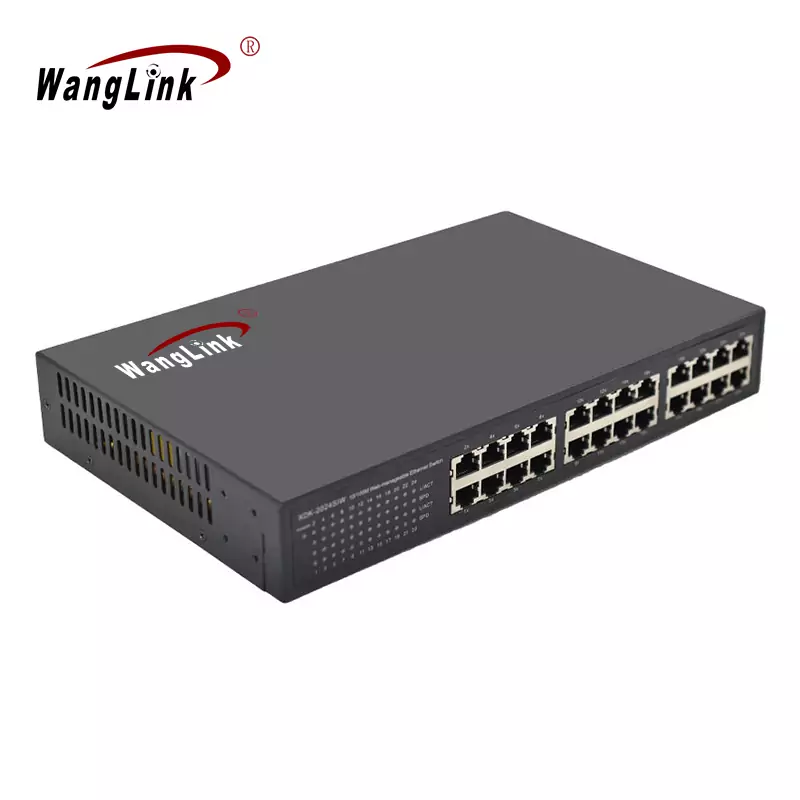

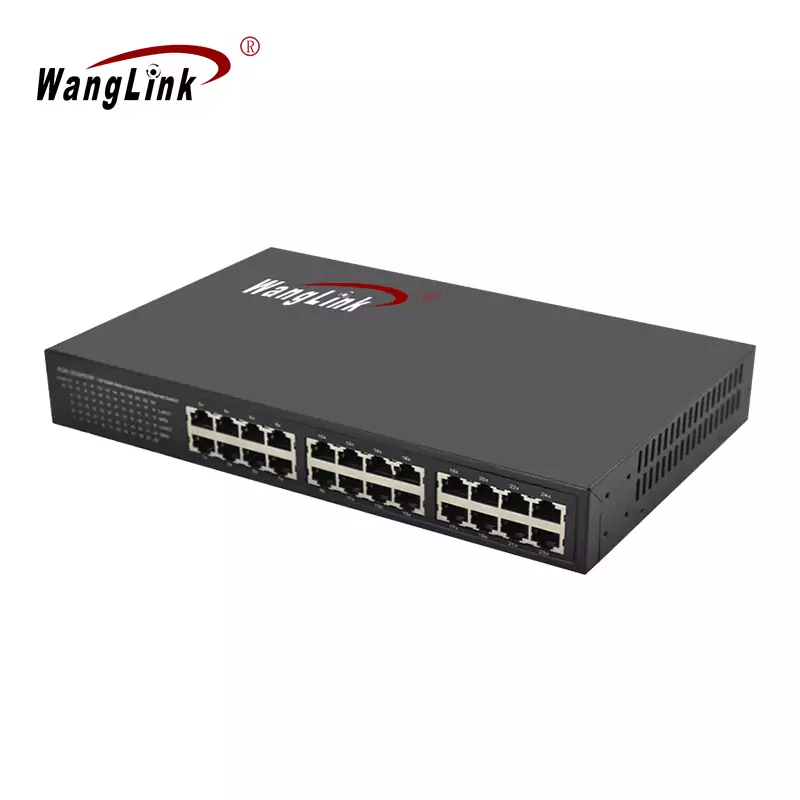

The 24 Port Ethernet Switch is expertly designed for small to medium-sized network environments, providing 24 adaptive ports with speeds of 10/100 Mbps. Each port supports automatic crossover detection with Auto MDI/MDI-X, simplifying connectivity. With a bidirectional transmission rate of up to 200 Mbps per port, this switch is an excellent choice for establishing reliable networks in small and medium enterprises.
Easy to install and maintain, this switch delivers a seamless networking experience, ensuring efficiency and stability for various applications.
Key Features
- 24 x 10/100Base-TX Ports: Offers extensive connectivity options for multiple devices.
- Jumbo Frame Support: Capable of handling 9K jumbo frames for enhanced data performance.
- Large MAC Address Table: Supports an 8K MAC address table for effective network management.
- Rate Adaptation: All ports automatically adapt to 10/100 Mbps speeds for optimal performance.
- Flexible Duplex Support: Each port supports half/full duplex operation and Auto MDI/MDI-X functionality.
- Line-Speed Forwarding: Ensures smooth transmission of data without bottlenecks.
- Installation Versatility: Suitable for both desktop and wall-mounted configurations.
- Plug-and-Play Functionality: Quick and easy setup with no configuration required.

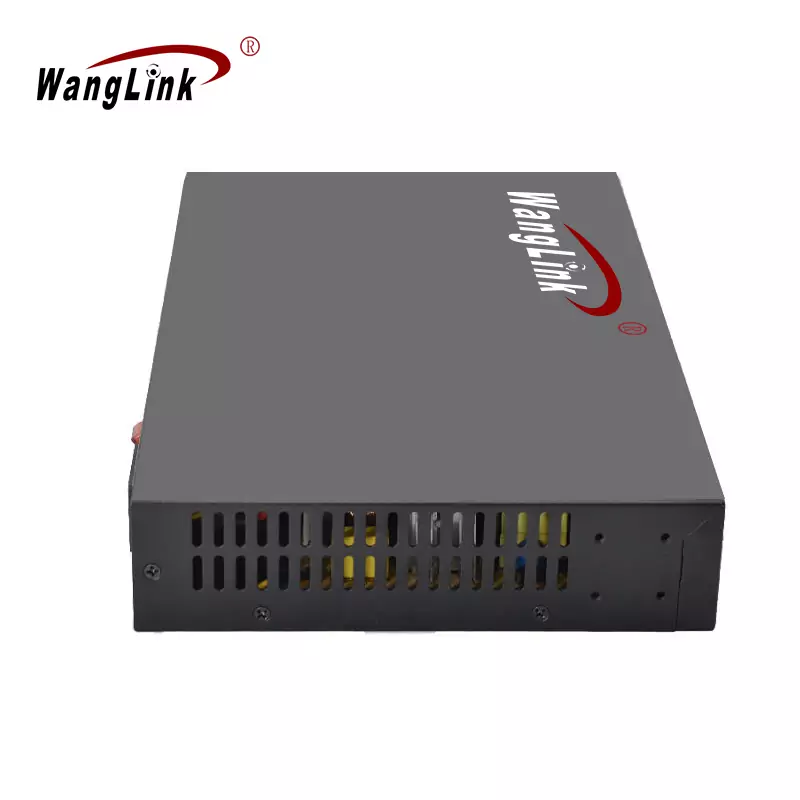

- Durable Metal Housing: Excellent heat dissipation ensures stable and long-term operation.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 2×4×3 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 8K | |
| Case space | 1Mb | |
| Packet Forwarding Rate | 3.5712Mpps@64byte | |
| Bandwidth | 4.8G（non-blocking） | |

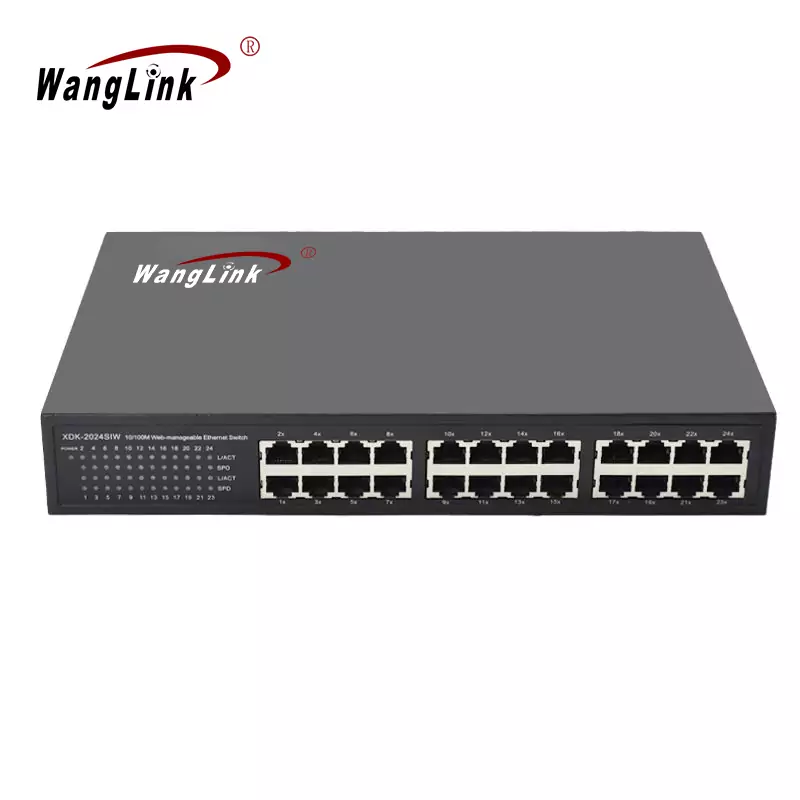

| LED indicator | Power indicator | PWR, green |
| Link/Act indicator | 1~24, green | |

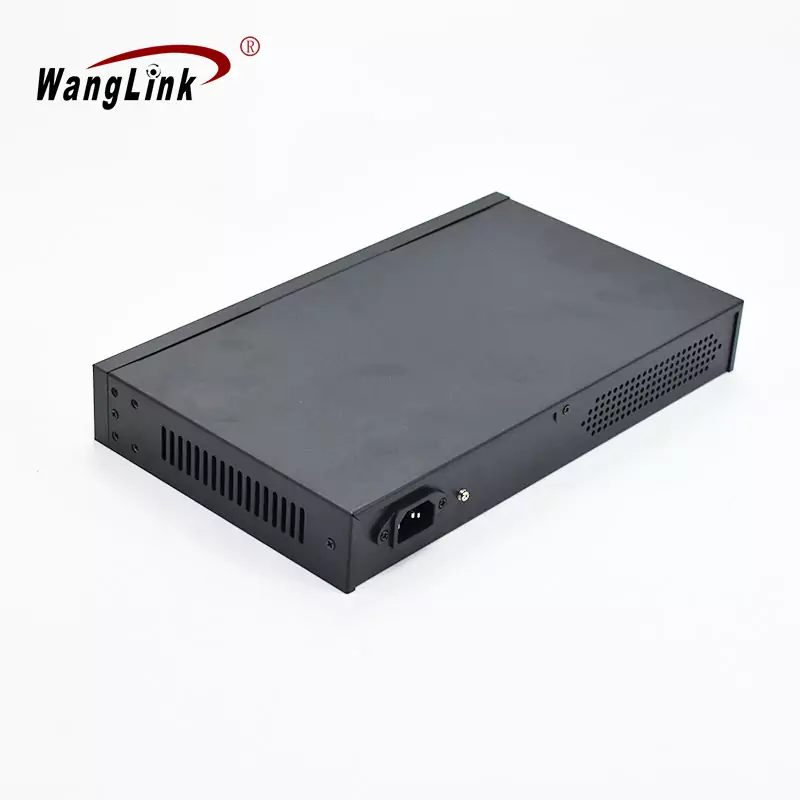

| Power parameters | Input voltage | AC100~240V, 50Hz |
| Power consumption | ≤7W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |
| Physical properties | Size | 238×178×44mm |
| Weight | Net weight:0.8kg,Gross weight: 1kg |
