Product Overview

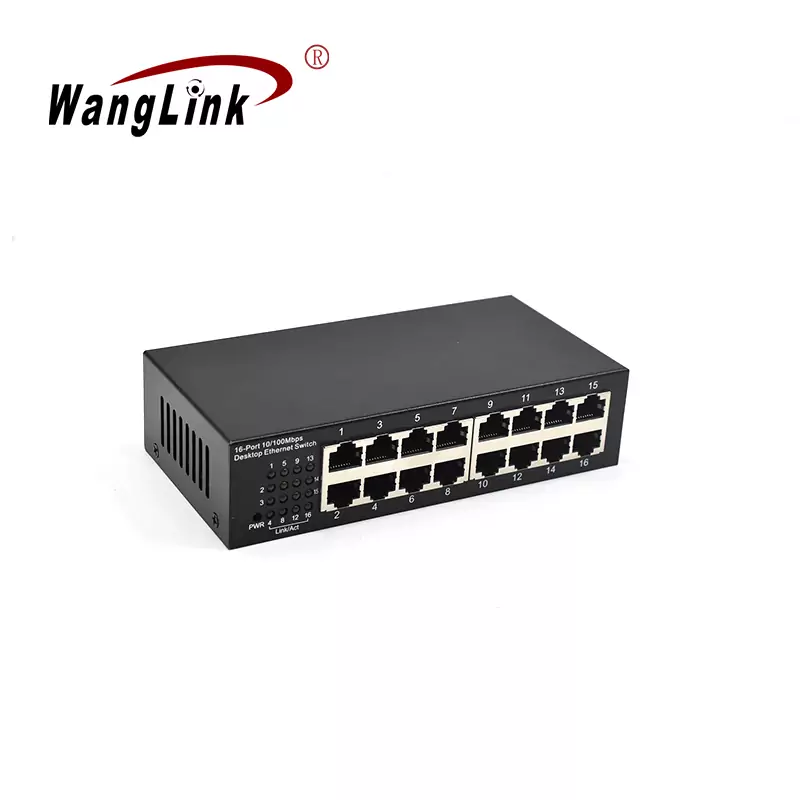

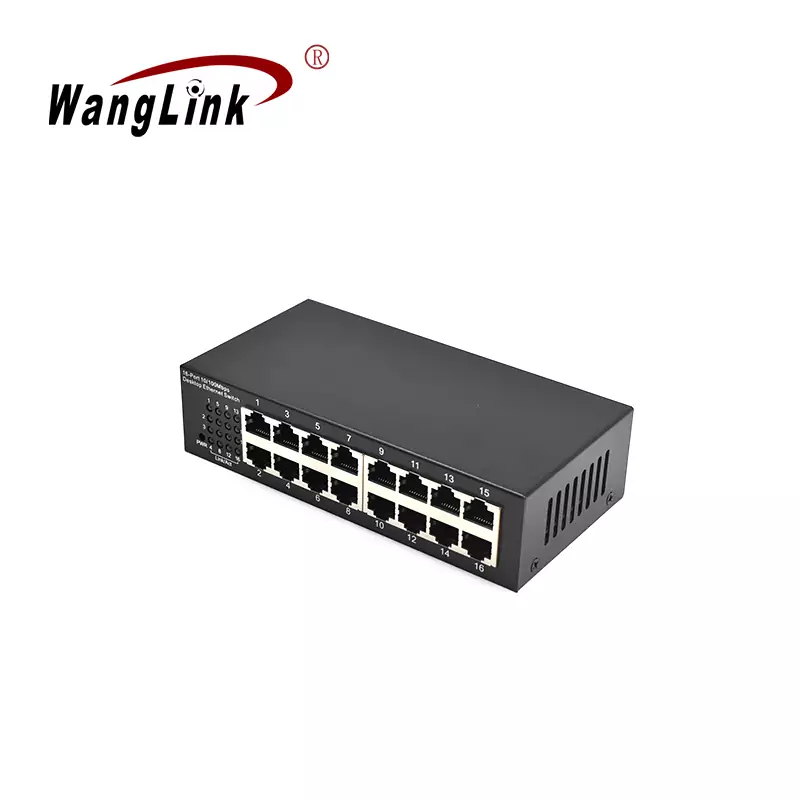

The Ethernet Switch 16 Port is engineered for small to medium-sized network environments, providing a robust 100 Mbps Fast Ethernet solution. This switch features 16 adaptive ports with capabilities of 10/100 Mbps, ensuring seamless connectivity for various devices. Each port supports Auto MDI/MDI-X, allowing automatic crossover detection to simplify network setup. With a maximum bidirectional transmission rate of 200 Mbps per port, this switch is an ideal choice for building efficient networks in small to medium enterprises.
Designed for simplicity, this switch offers straightforward installation and maintenance, making it suitable for diverse applications across a variety of settings.
Key Features
- 16 x 10/100Base-TX Ethernet Ports: Allows for multiple device connections in your network.
- Jumbo Frame Support: Capable of transmitting 9K jumbo frames for improved data handling.
- Large Address Table: Supports up to 8K MAC addresses for effective resource management.
- Auto-Adaptation: All ports automatically adjust to 10/100 Mbps speeds for optimal performance.
- Flexible Duplex Support: Automatic negotiation for half-duplex and full-duplex modes on all ports.
- Line-Speed Forwarding: Ensures smooth and efficient data transmission without congestion.
- Installation Options: Supports both desktop and wall-mounted installations for versatile placement.
- Plug-and-Play Functionality: Simple setup with no configuration needed for immediate use.
- Durable Metal Casing: Provides excellent heat dissipation for long-term stable operation.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 2×4×2 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 8K | |
| Case space | 1Mb | |
| Packet Forwarding Rate | 2.384Mpps@64byte | |
| Bandwidth | 3.2G（non-blocking） | |
| LED indicator | Power indicator | PWR, Red |
| Link/Act indicator | 1~16, Green | |
| Power parameters | Input voltage | DC5~12V |
| Power consumption | ≤6W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

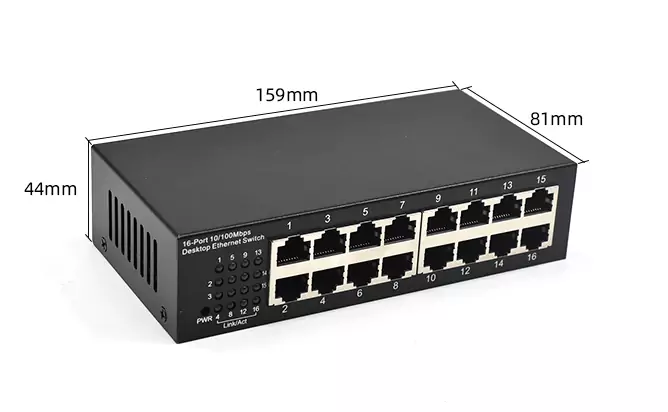

| Physical properties | Size | 160×80×40mm |
| Weight | 0.4kg |
