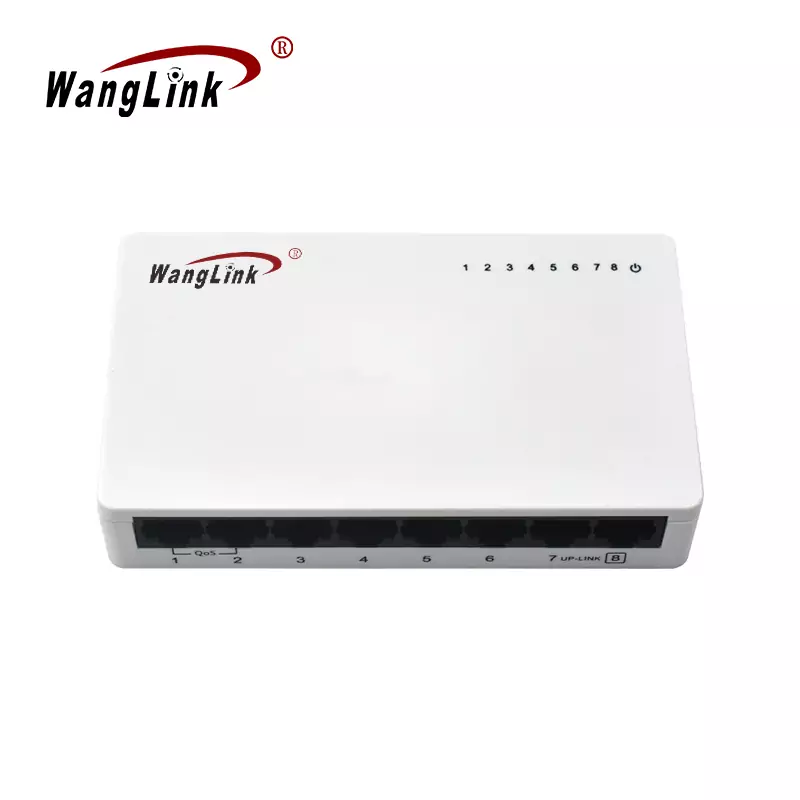

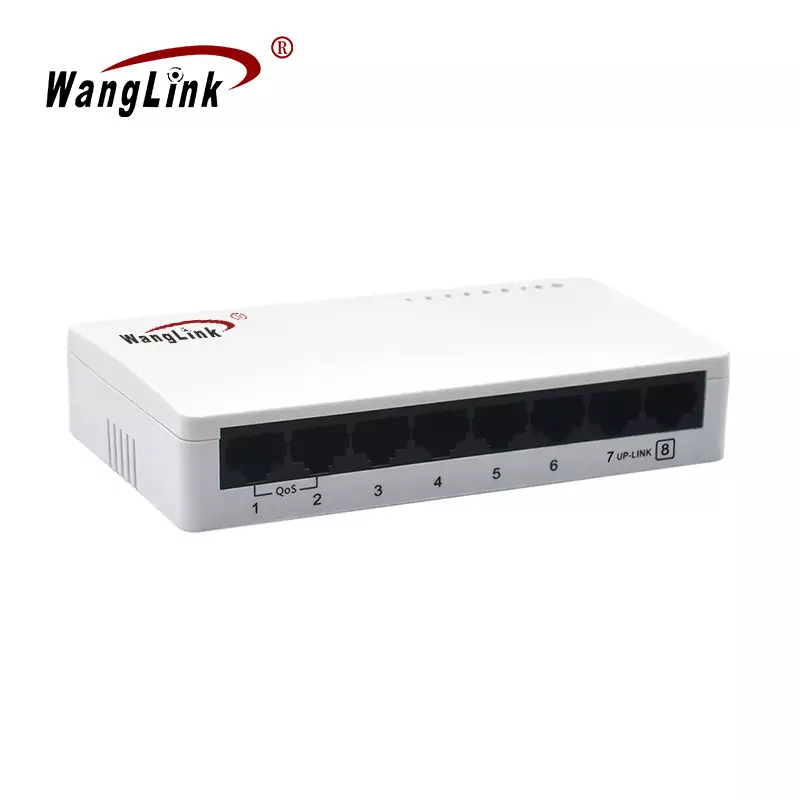

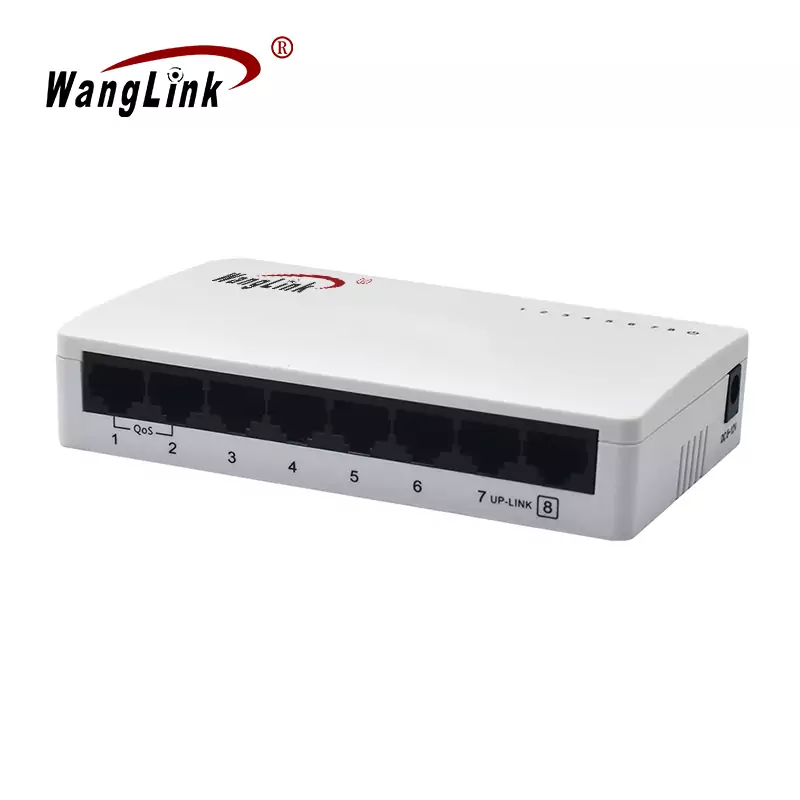

Product Overview
The 8-Port 100Mbps Unmanaged Ethernet Switch is a versatile networking solution designed for small to medium-sized businesses, offices, hotels, and home environments. Featuring eight 10/100Base-TX RJ45 standard ports, this switch supports plug-and-play functionality for effortless installation and operation without the need for configuration. All interfaces comply with international standards, ensuring reliable connectivity.

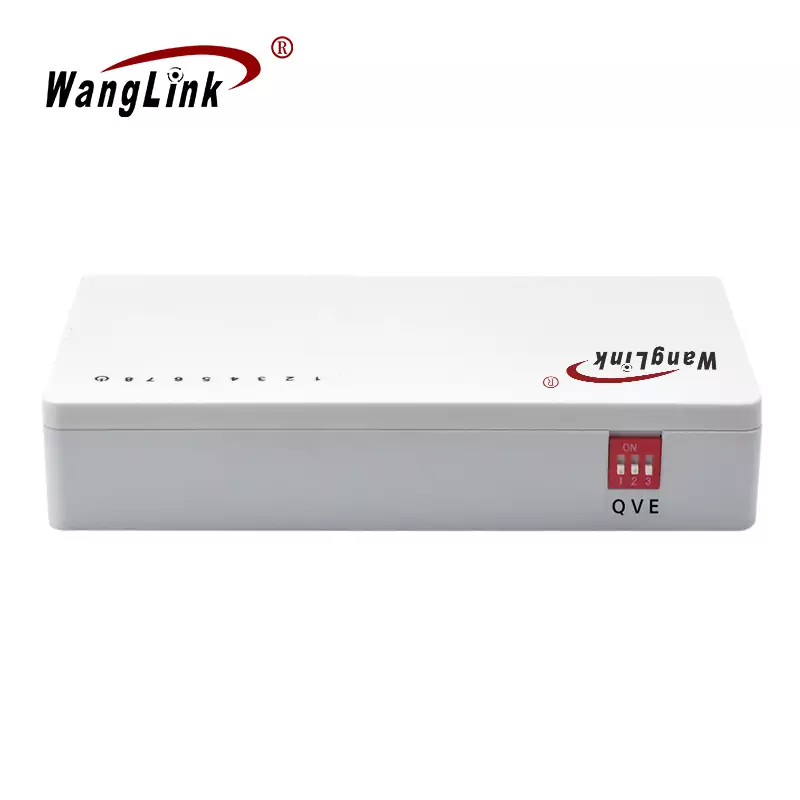

This switch includes DIP switches for easily switching between VLAN mode, QoS mode, and Extend mode, allowing for effective port isolation and enhanced data confidentiality. The QoS feature smartly manages network traffic, minimizes congestion, reduces packet loss, and guarantees smooth bandwidth distribution for various services. In QoS mode, priority is given to network data on ports 1 and 2, optimizing performance for critical applications.
Key Features
- 8 x 10/100Base-TX RJ45 Ports: Provides flexible connections for multiple devices.
- Speed: Automatic negotiation for all ports supporting 10/100Mbps.
- Duplex: Half/full duplex auto-negotiation supported on all ports for optimal performance.
- MDI/MDI-X: Automatic MDI/MDI-X configuration on all ports for easy connectivity.
- Wire-Speed Forwarding: Ensures smooth data transmission without bottlenecks.
- One-Key Functionality: Easily switch between VLAN, QoS, and Extend modes.
- Jumbo Frame Support: Capable of transmitting 2K jumbo frames for improved performance.
- MAC Address Table: Supports up to 2K MAC addresses for efficient network management.
- Flexible Installation: Can be mounted on a desktop or wall for convenience.
- User-Friendly: Plug-and-play operation with no configuration required.
- Durable Housing: Made of plastic for excellent heat dissipation, ensuring long-term stable operation.
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.1p General Registration Protocol IEEE 802.1Q VLAN IEEE 802.3x flow control |
| Interface information | RJ45 port: 8 10/100M Base-TX ports |
| Mechanical properties | Shell material: Plastic |

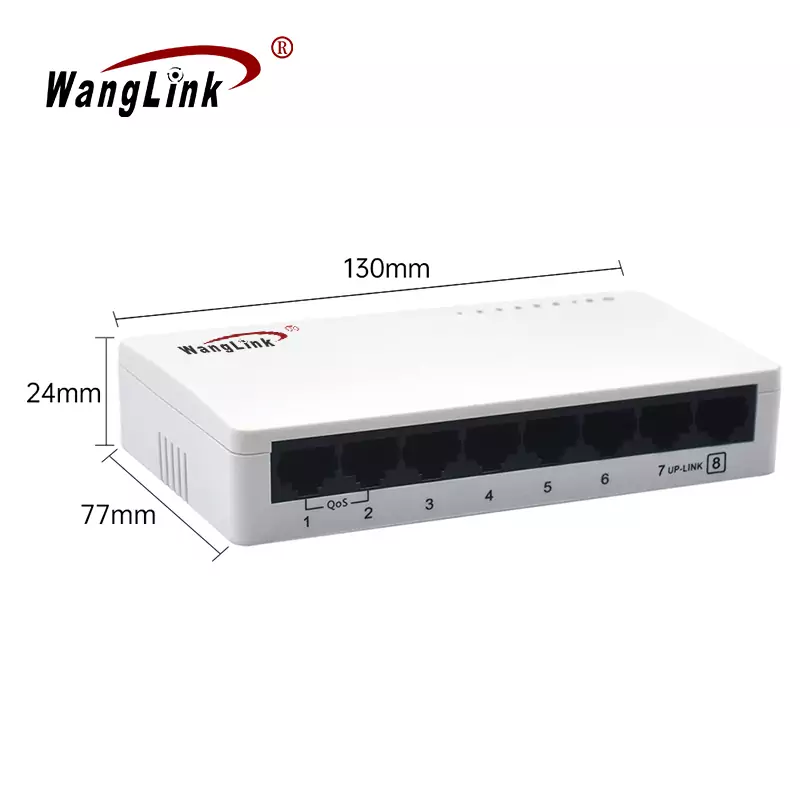

| Appearance dimensions (length*depth*height): 130mm×77mm×24mm | |
| Installation method: Desktop | |
| Heat dissipation method: natural cooling, no fan | |
| G.W: < 121g | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 1.6Gbps |
| Packet forwarding rate (whole machine) : 1.1904Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Packet buffer : 768Kbit | |
| Jumbo frame: 2k | |
| Power supply | Input voltage: 5-12V |
| Power consumption: < 3W | |
| Indicator | Ethernet port (fluctuation switch control):· Power LED: Green· Port Status LEDs: 10/100M Link/ACT Green· E Switch: (Ports 1-7 forced to 10M for long-distance communication)· Q Switch: (Ports 1-2 data prioritized, passing through port 8 UP-LINK)· V Switch: (Ports 1-7 isolated, each can communicate with port 8 UP-LINK) |
