Product Overview

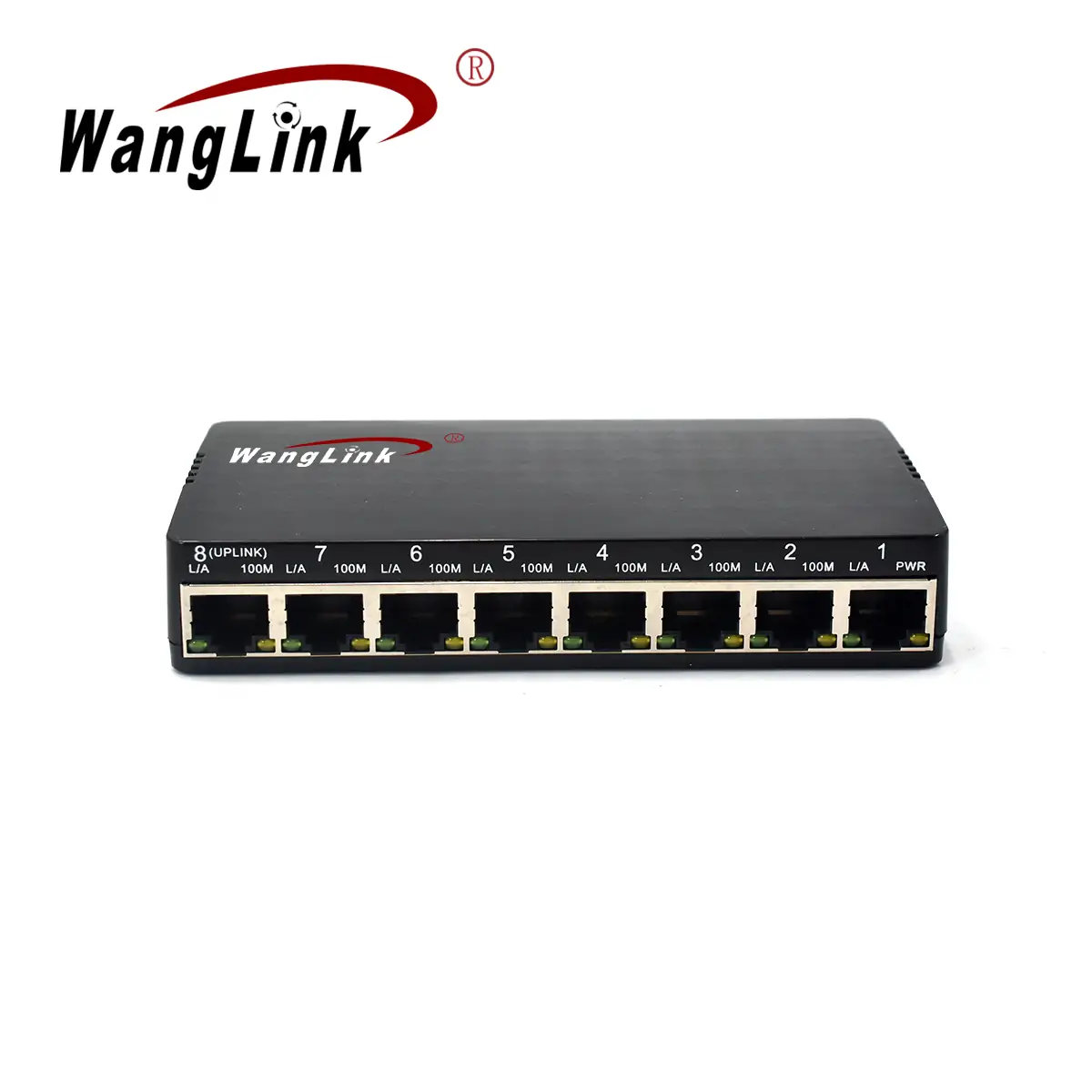

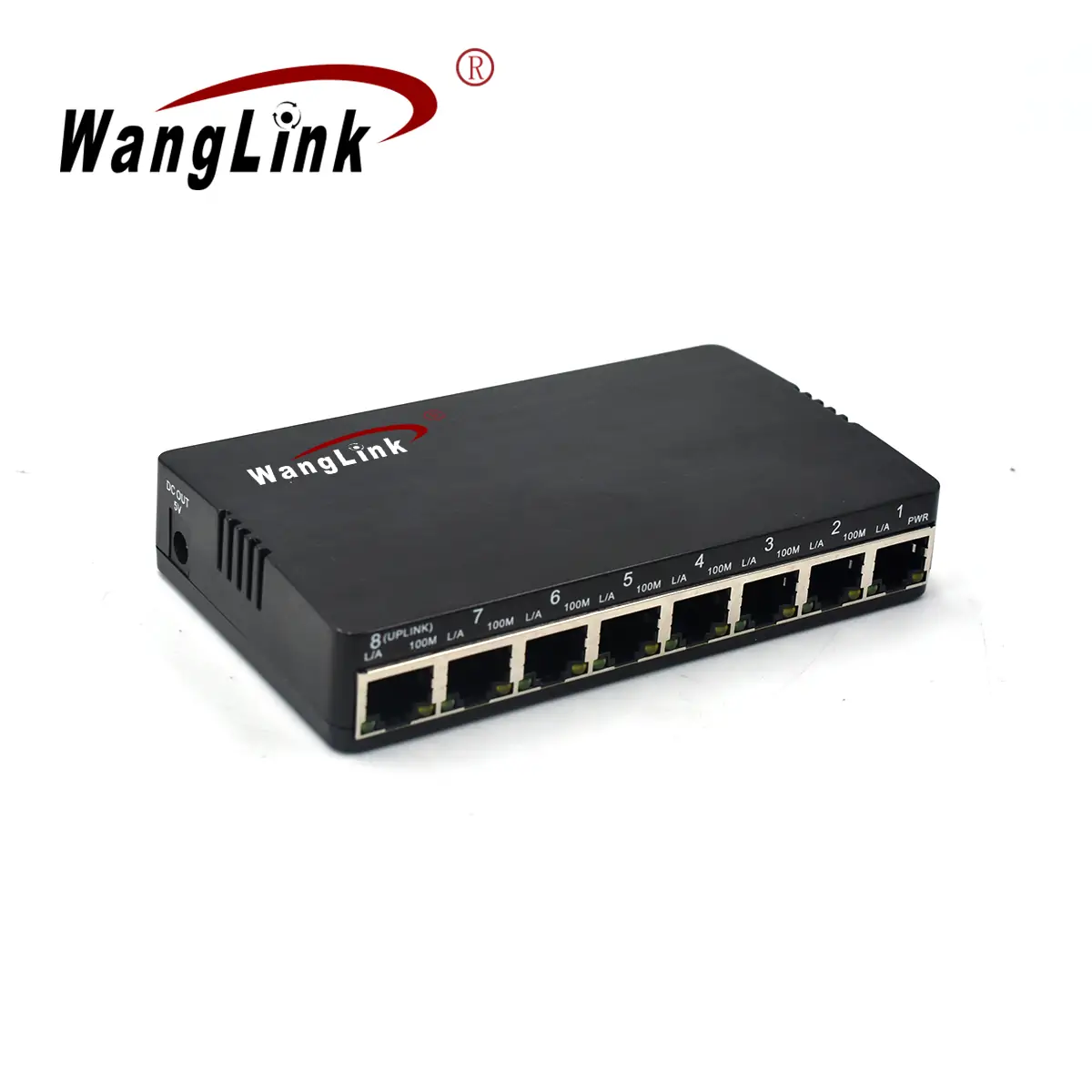

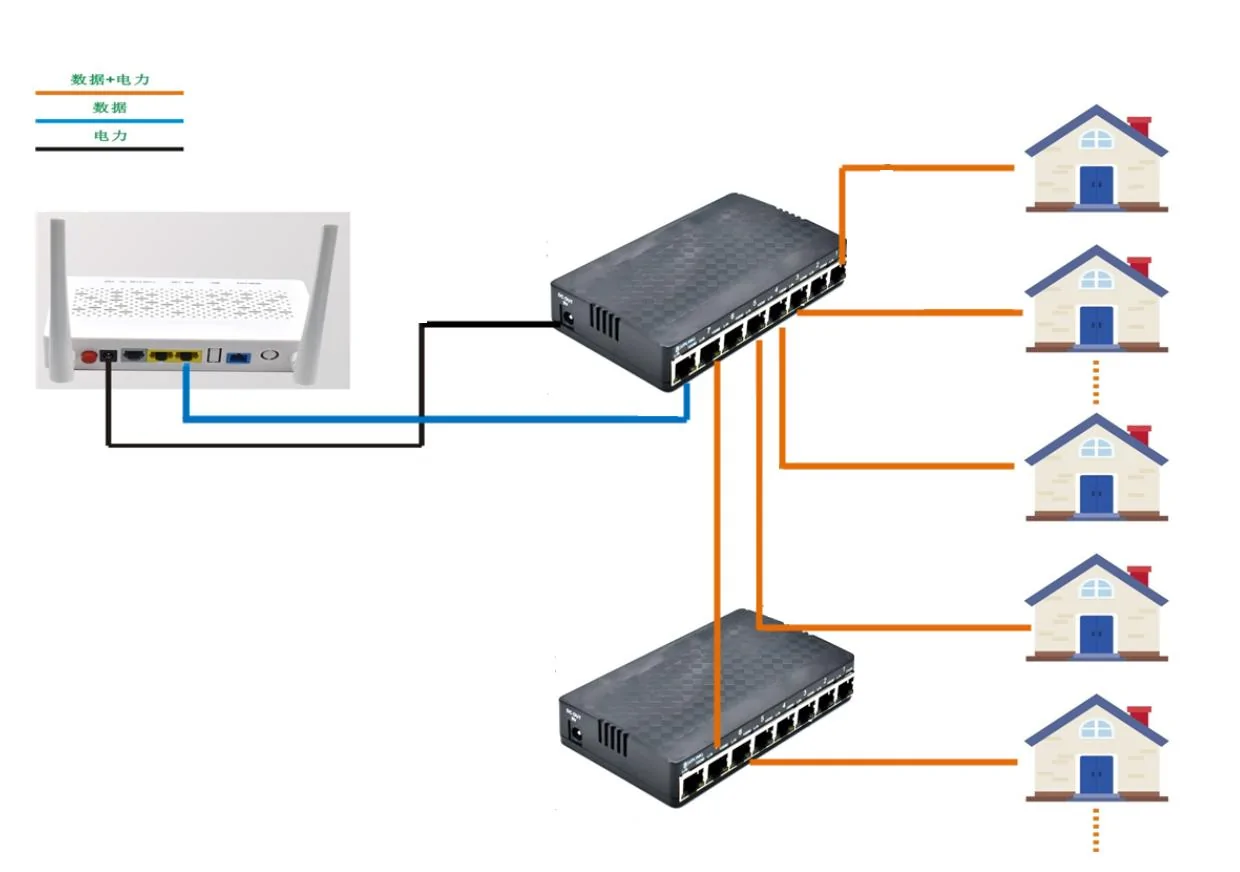

The SF08RP-2S Passive PoE Switch is an efficient networking solution designed to provide reliable power and data connectivity. It features 8 ports of 10/100Base-TX, with Ports 1 through 7 supporting PoE input and Port 8 supporting PoE output. This configuration addresses the challenges of powering customer access devices, such as access switches and ONUs, in specialized environments, making installation and maintenance simple and straightforward. Additionally, it helps reduce costs associated with power provisioning and operational workloads.
Key Features
- 8 x 10/100Base-TX ports for versatile connectivity and data transfer.
- Supports a 2K MAC address table for effective network management.

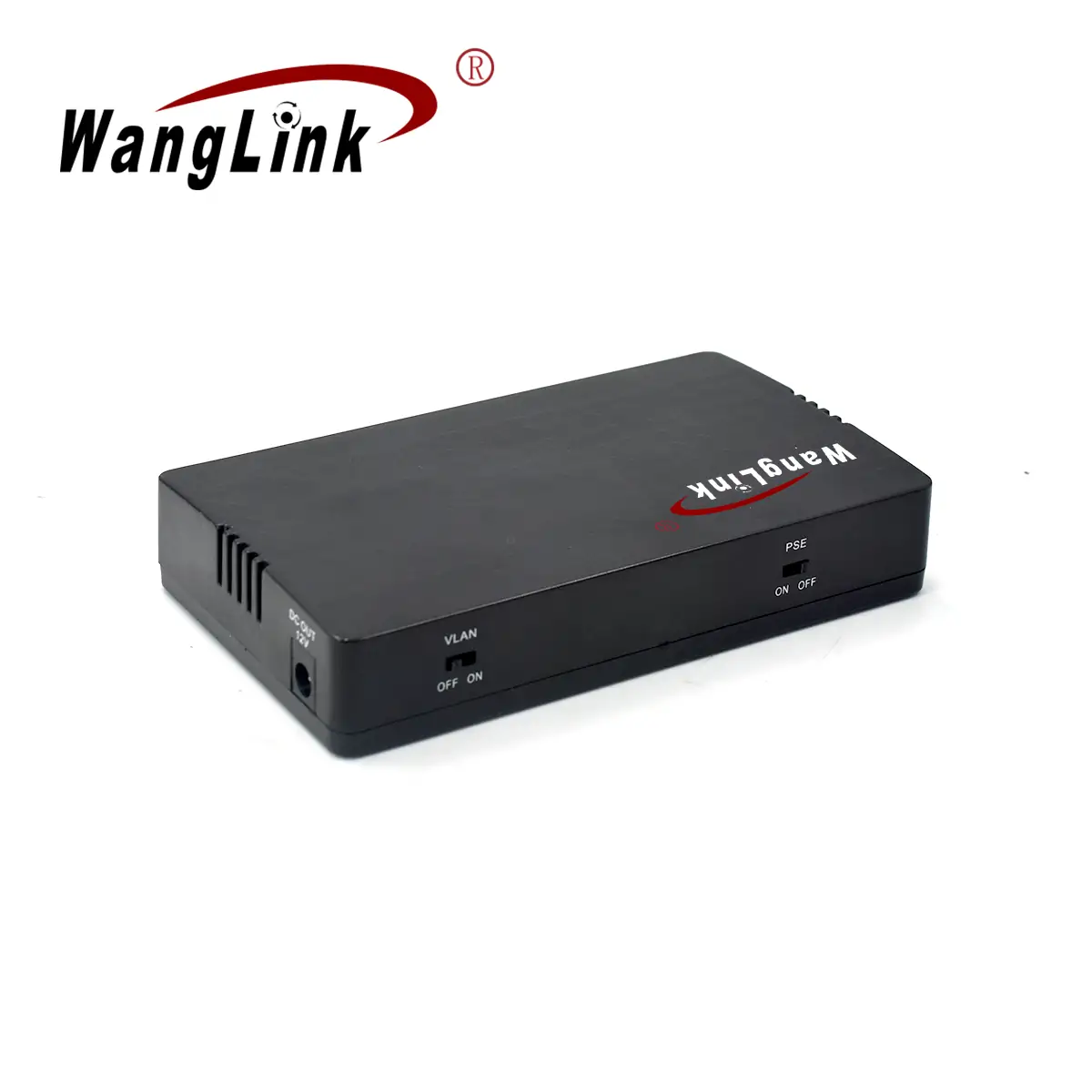

- Features a one-click switch for VLAN physical isolation, enhancing security.
- One-click switch option for enabling power output on Port 8 for easy control.
- Wide input voltage range of 15~48VDC to accommodate various power requirements.
- Can output 12V/1A and 5V/1A via two DC jacks to power additional devices.
- Port 8 can deliver power to other devices through idle lines 4/5+ and 7/8-.
- Ports 1-7 can receive power through idle lines 4/5+ and 7/8- for flexible integration.
- All ports support half/full duplex, 10/100Mbps auto-negotiation, and automatic MDI/MDI-X functionality for optimal performance.
- Supports wire-speed forwarding on all ports, ensuring smoother data transmission.
- Offers both desktop and wall-mount installation options for adaptability.
- Plug-and-play operation for easy setup with no configuration required.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.1p tagged frames IEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 1×8 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate； | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 768Kb | |
| Jumbo frames | 2048b | |
| Packet Forwarding Rate | 1.1904Mpps@64byte | |
| Bandwidth | 1.6G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Ethernet indicator | Green, per ethernet port | |
| Power parameters | Input voltage | 14V- 48V DC |
| Power consumption | ≤2W | |
| PoE pin | 4/5+,7/8- | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

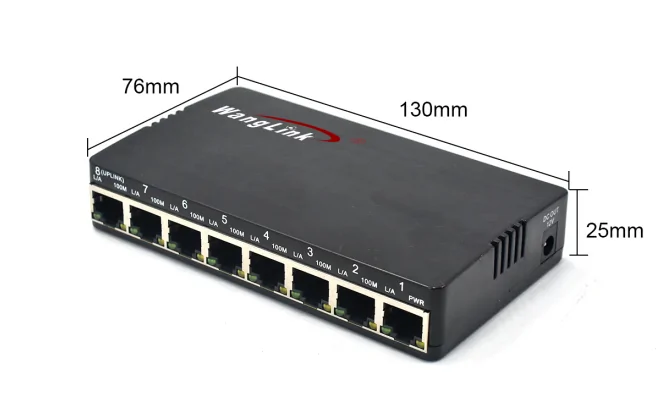

| Physical properties | Size | 130×76×25mm |
| Weight | Net weight:150g |
