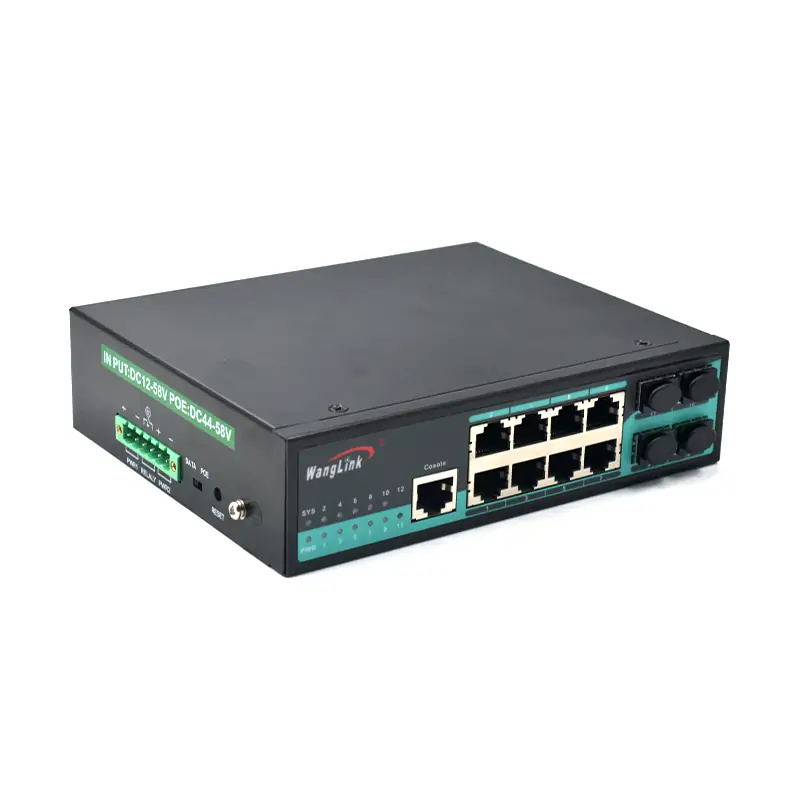

Product Overview
The ISG804M is a high-performance Gigabit managed industrial switch featuring 8 x 10/100/1000Base-T ports and 4 x 1000M SFP fiber ports. This switch is designed with exceptional durability to withstand harsh environmental conditions and can be conveniently installed in compact control cabinets. With its unique hardware and software capabilities, it supports flexible networking, making it ideal for applications in industrial automation control, traffic control systems, building automation systems, and data center monitoring. The ISG804M operates reliably and efficiently, providing a solid foundation for a resilient industrial Internet of Things (IoT) network.
Key Features
- Port Configuration: Equipped with 8 x 10/100/1000Base-T ports and 4 x 1000Base-X SFP ports for versatile connectivity options.
- Port Buffering: Supports a 4.1M port buffer to effectively prevent congestion during video storage.
- Data Control: Implements 802.3X full-duplex flow control and network storm suppression to optimize performance.
- Redundant Networking: Supports STP/RSTP/MSTP and industrial ERPS ring network functionality for enhanced network stability.
- Multicast Management: Supports IGMP Snooping (V1/V2/V3) for efficient management of multicast traffic.
- VLAN Support: Implements IEEE 802.1Q VLAN to effectively isolate broadcast domains, enhancing security and performance.
- Quality of Service (QoS): Supports COS/DSCP, with 4 queues and both WRR and SP scheduling modes to prioritize critical traffic.
- Security Management: Features ACL (Access Control List), 802.1X, and user-level management for secure access.
- Management Functions: Supports various management methodologies, including CLI, WEB, and SNMP for easy configuration and monitoring.
- Monitoring and Maintenance: Offers support for port mirroring, interface status monitoring, and log management for proactive system maintenance.
- Wide Temperature Design: Operates efficiently in extreme temperatures from -40℃ to +75℃, ensuring reliability in challenging environments.
- IP40 Protection: Constructed with rugged metal housing, designed without a fan to ensure low power consumption and long-lasting durability.
- EMC Protection: Meets IEC Class A electromagnetic protection standards, offering high electromagnetic compatibility (EMC).
Product Parameters
| Standards & Protocol | 10Base-T, compliant with IEEE 802.3 100Base-TX, compliant with IEEE 802.3u 1000Base-T, compliant with IEEE 802.3ab 1000Base-X, compliant with IEEE 802.3z Flow control, following IEEE 802.3x Environmentally friendly, compliant with IEEE 802.3az |
| Interface information | SFP: 4 1000Base-X（compatible with 100M) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multimode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 8 10/100/1000M Base-T ethernet ports (standard RJ45) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Reset interface | Reset button |
| Fluctuation switch | 1 indicator light fluctuation switch (2nd gear: DATA, POE) |
| Mechanical properties | Shell material: metal shell |

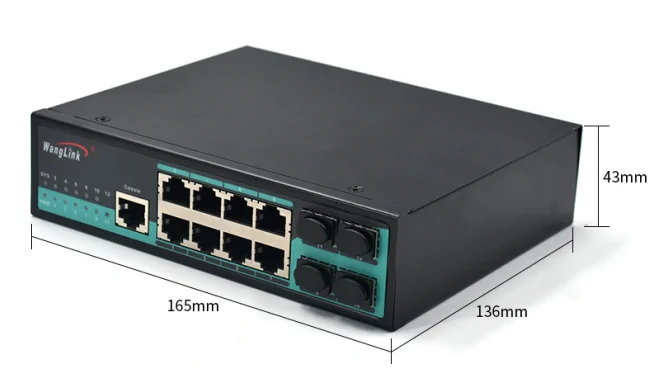

| Appearance dimensions (length*depth*height): 164mm×137mm×45mm | |

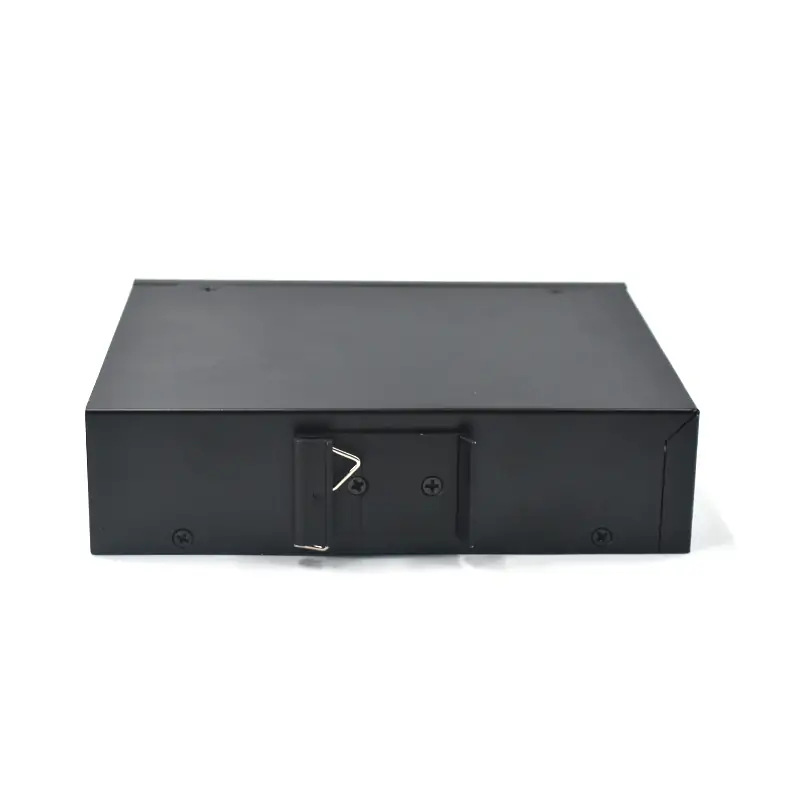

| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <1.5KG | |
| Environmental properties | Working temperature: -40℃～+75℃ |
| Storage temperature: -40℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 24Gbps |
| Packet forwarding rate (whole machine) : 18Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Case space : 4.1m | |
| Power supply | Input voltage: DC 44V-58V |
| Power interface: 6-core Phoenix terminal | |
| Power supply protection: positive and negative pole misconnection protection | |
| Power consumption: < 10 W | |
| Indicator | Port indicator(fluctuation switch control):When Switch Point to Data : 10/100M Link/ACT yellow, 1000M Link/ACT green;When Switch Point to PoE: PoE yellow |
| Power supply: Green | |
| System: Green | |
| Security properties | Shell protection: IP40 |
| Surge impact IEC61000-4-5 (optional):Signal end: common mode ±4KV, differential mode ±2KVPower supply end: common mode ±4KV, differential mode ±2KV | |
| Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV | |
| Pulse immunity IEC61000-4-4: signal terminal: ±2KV, power terminal: ±2KV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| MTBF: 100000 hours | |
| Warranty | 3 years |
Software features
| Monitoring function | Information such as device model, serial number, MAC, hardware version, software version, system time, running time, CPU utilization, memory utilization, etc. can be viewed |
| Support port statistics | |
| VLAN function | Support management VLAN |
| Support management IP configuration | |
| Support port VLAN | |
| Supports VLANs for IP subnets | |
| Support MAC VLAN | |
| Support Voice VLAN | |
| Support GVRP | |
| Port function | Support port configuration |
| Support port aggregation | |
| Support port mirroring | |
| Support port speed limit | |
| Support port isolation | |
| Support port energy saving | |
| Scene function | Support MAC configuration (static binding and dynamic binding) |
| Support DHCP Snooping | |
| Support IGMP-Snooping, MLD Snooping | |
| Support LLDP configuration | |
| Support QOS configuration | |
| Support Jumbo Frame | |
| security function | Support ARP configuration |
| Support storm control | |
| Support ACL (based on IP, MAC, time) | |
| Support attack prevention (DOS, Icmp-echo) | |
| Support DHCP Snooping | |
| Support 802.1X | |
| Support Radius authentication | |
| Ring network function | Support STP |
| Support RSTP | |
| Support MSTP | |
| Support ERPS | |
| Troubleshooting function | Support loop protection |
| Support log management | |
| Support Ping detection | |
| Support traceroute | |
| Support line detection | |
| Device management function | Support HTTP/HTTPS |
| Support TELNET | |
| Support SNMP | |
| Support RMON | |
| Equipment maintenance function | Support system time (local and NTP) |
| Support account management (hierarchical management of accounts and password protection) | |
| Support configuration management (configuration import, export, restore factory settings) | |
| Support system upgrade | |
| Support device restart |
