Product Overview

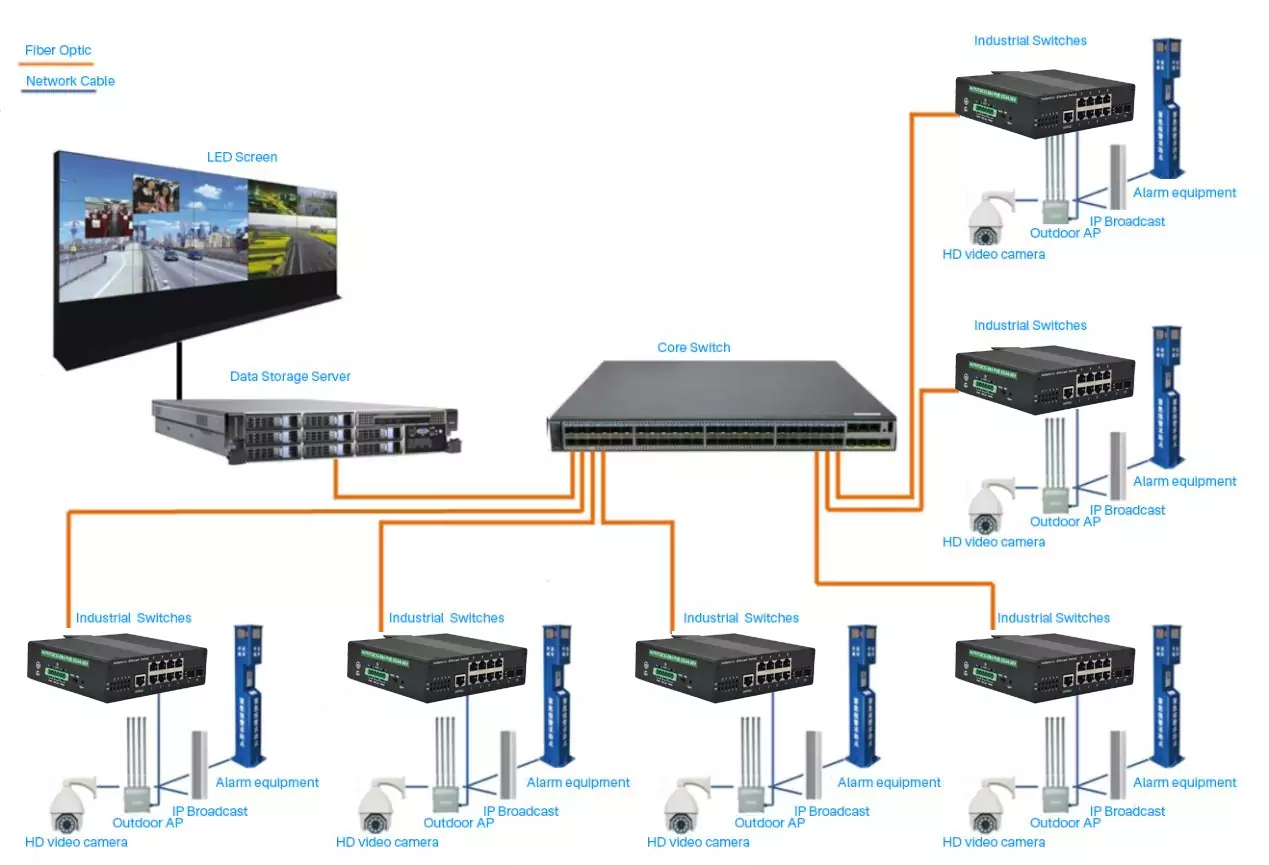

Introducing our industrial PoE++ switch, a high-performance gigabit managed device designed for demanding environments. This switch features 8 fixed 10/100/1000Base-T ports and 2 1000M SFP fiber interfaces, with all 8 ports supporting the IEEE 802.3 af/at/bt PoE standards, delivering a maximum of 60W per port. Engineered for exceptional durability, this switch is perfect for installation in compact control cabinets. Its unique hardware and software capabilities allow for flexible networking, making it suitable for a wide range of industrial applications, including automation in industrial control, traffic management systems, building automation, and server room monitoring. With its reliable and efficient performance, this switch is essential for building a stable and robust industrial IoT network.
Key Features
- Port Configuration: 8 x 10/100/1000Base-T ports and 2 x 1000Base-X SFP fiber ports.
- PoE Support: Compliant with IEEE 802.3 af/at/bt standards for power over RJ45 ports.
- Buffer Capacity: 4.1M port buffer to prevent video storage congestion.
- Intelligent PoE: Supports smart power management and scheduled power delivery.
- Data Control: Implements 802.3X full-duplex flow control and network storm suppression.
- Redundant Networking: Features STP/RSTP/MSTP and industrial ERPS ring network support for enhanced stability.
- Multicast Management: Supports IGMP Snooping V1/V2/V3 for efficient multicast traffic handling.
- VLAN Support: Compliant with IEEE 802.1Q VLAN for effective broadcast domain isolation.
- Quality of Service (QoS): Supports COS/DSCP with 4 queues and WRR/SP scheduling modes.
- Security Management: Offers ACL access control lists, 802.1X support, and tiered user management.
- Management Options: Manageable via CLI, WEB, and SNMP interfaces for flexible control.
- Monitoring and Maintenance: Features port mirroring, interface status monitoring, and log management.
- Wide Temperature Range: Operates in -40℃ to +75℃, ensuring adaptability to harsh environments.
- IP40 Protection: Rugged metal casing with a fanless design for low power consumption.
- Electromagnetic Compatibility: IEC Class A electromagnetic protection for superior EMC performance.
Product Parameters
Hardware attributes
| Items | Spercification |
| Standards and protocols | 10Base-T, compliant with IEEE 802.3100Base-TX, compliant with IEEE 802.3u1000Base-T, compliant with IEEE 802.3ab1000Base-X, compliant with IEEE 802.3zFlow control, compliant with IEEE 802.3xEnvironmental protection, compliant with IEEE 802.3azPOE power supply, compliant with IEEE 802.3af/at/bt |
| Interface information | SFP optical port: 2 1000Base-X ports (compatible with 100M) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 8 10/100/1000M Base-T network port (POE power supply network port) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Reset interface | Reset button 1 |
| Switch | Indicator light fluctuation switch 1 (2 gears: DATA, POE) |
| Mechanical properties | Shell material: metal shell |

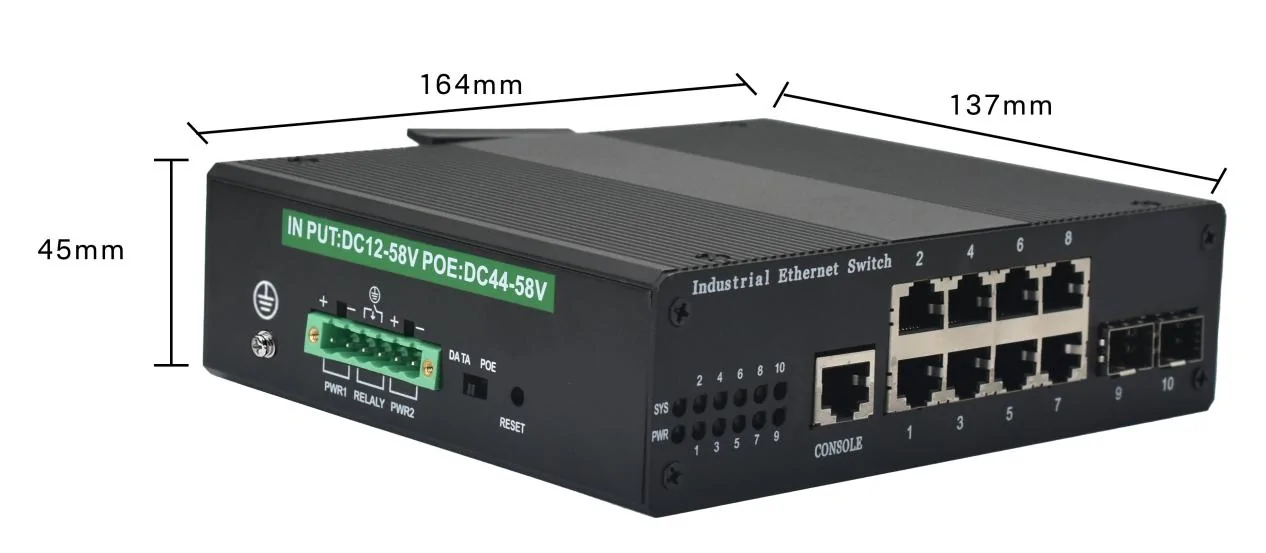

| Appearance size (length * depth * height): 164mm×137mm×45mm | |
| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: < 0.782KG | |
| Environmental properties | Operating temperature: -40℃～+75℃ |
| Storage temperature: -40℃～+85℃ | |
| Relative humidity: 5%～95% (non-condensing) | |
| Switching properties | Switching capacity: 20Gbps |
| Packet forwarding rate (whole machine): 15Mpps | |
| Switching method : Store-and-Forward | |
| MAC Table: 8K | |
| Packet Buffer: 4.1M | |
| Power requirements | Input Voltage: DC44V-58V (Dual Redundancy) |
| Power Interface: 6-core Phoenix Terminal | |
| Power Protection: Positive and Negative Pole Misconnection Protection | |
| Power Consumption: < 10W | |
| PoE power supply | 802.3AF/AT/BT (1/2+, 3/6-) |
| Indicator lights | Port Light (Switch Control):ØIndicator Light Switch Points to DATA: 10/100M Link/ACT Yellow,1000M Link/ACT Green;ØIndicator switch points to POE: POET yellow; |
| Power light: green | |
| System light: green | |
| Standards and protocols | Shell protection: IP40 |
| Surge impact IEC61000-4-5 (optional):Signal end: common mode ±4KV, differential mode ±2KVPower end: common mode ±4KV, differential mode ±2KVAnti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV | |
| Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV | |
| Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV | |
| Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV | |
| Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV | |
| Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV | |
| Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV |
Software attributes
| Monitoring function | Information such as device model, serial number, MAC, hardware version, software version, system time, running time, CPU utilization, memory utilization, etc. can be viewed |
| Support port statistics | |
| VLAN function | Support management VLAN |
| Support management IP configuration | |
| Support port VLAN | |
| Supports VLANs for IP subnets | |
| Support MAC VLAN | |
| Support Voice VLAN | |
| Support GVRP | |
| Port function | Support port configuration |
| Support port aggregation | |
| Support port mirroring | |
| Support port speed limit | |
| Support port isolation | |
| Support port energy saving | |
| POE function | Support POE power supply |
| Support POE power supply priority | |
| Support POE total power setting | |
| Support POE timing strategy | |
| Support POE intelligent power supply strategy | |
| Scene function | Support MAC configuration (static binding and dynamic binding) |
| Support DHCP Snooping | |
| Support IGMP-Snooping, MLD Snooping | |
| Support LLDP configuration | |
| Support QOS configuration | |
| Support Jumbo Frame | |
| security function | Support ARP configuration |
| Support storm control | |
| Support ACL (based on IP, MAC, time) | |
| Support attack prevention (DOS, Icmp-echo) | |
| Support DHCP Snooping | |
| Support 802.1X | |
| Support Radius authentication | |
| Ring network function | Support STP |
| Support RSTP | |
| Support MSTP | |
| Support ERPS | |
| Troubleshooting function | Support loop protection |
| Support log management | |
| Support Ping detection | |
| Support traceroute | |
| Support line detection | |
| Device management function | Support HTTP/HTTPS |
| Support TELNET | |
| Support SNMP | |
| Support RMON | |
| Equipment maintenance function | Support system time (local and NTP) |
| Support account management (hierarchical management of accounts and password protection) | |
| Support configuration management (configuration import, export, restore factory settings) | |
| Support system upgrade | |
| Support device restart |
