Product Overview

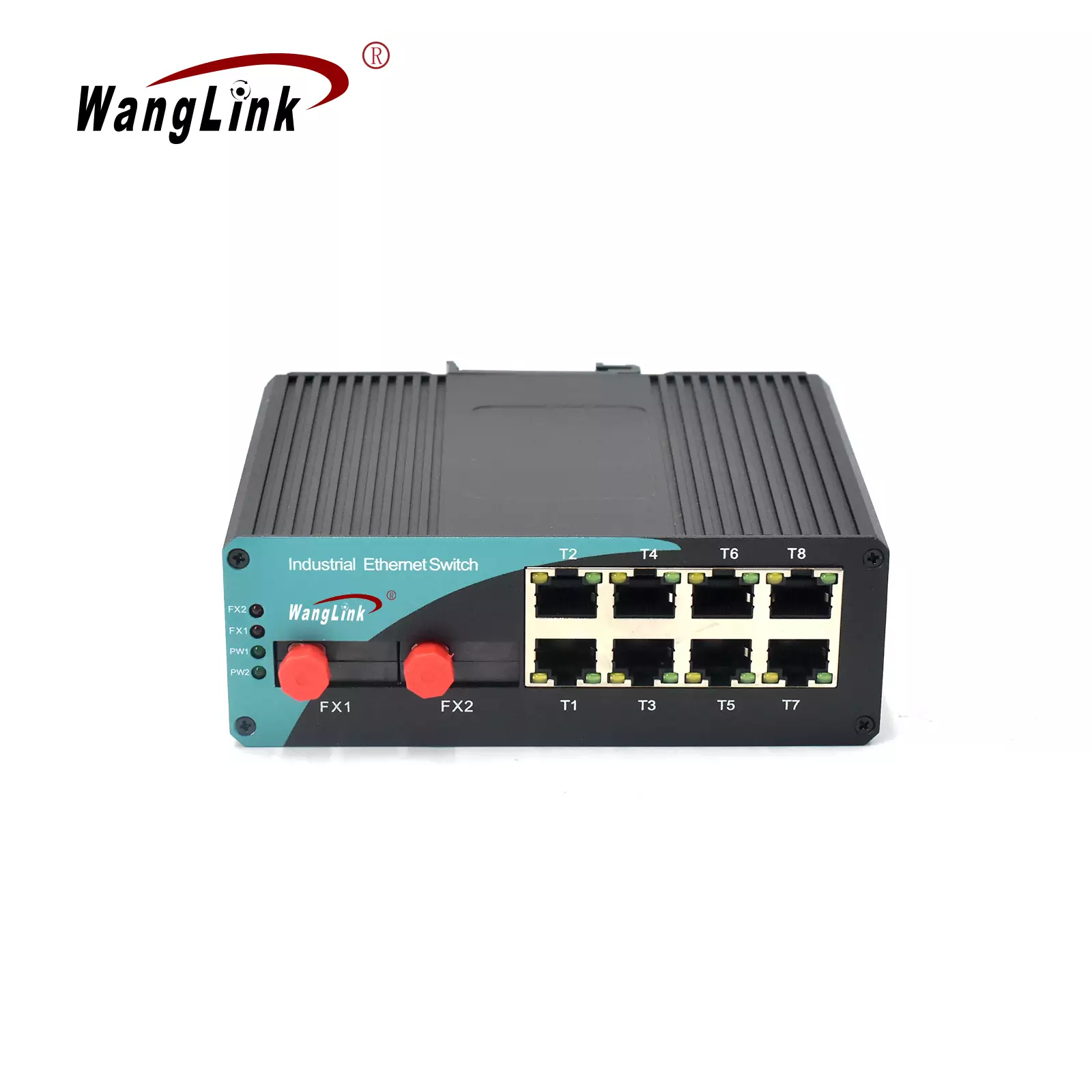

The Gigabit industrial-grade optical fiber media converter is an unmanaged 8 port industrial ethernet switch designed for high-performance data transmission in demanding environments. It features 8 x 10/100/1000Base-T RJ45 ports and 2 x 1000Base-X SC optical fiber ports, utilizing advanced switching and store-and-forward technologies to ensure seamless communication between different network media. Built to industrial standards, this switch supports dual redundant power supplies and is engineered to withstand dust, moisture, lightning, and extreme temperatures. With an average time between failures of 300,000 hours, it is ideal for applications in industrial control automation, traffic management, building automation systems, and computer room monitoring.
Key Features
- Versatile Port Configuration: Equipped with 8 x 10/100/1000Base-T Ethernet ports and 2 x 1000Base-X Fiber ports for flexible connectivity options.
- Adaptive Rate Support: All RJ45 ports support 10/100/1000Mbps rate adaptation, half/full duplex, and automatic MDI/MDI-X functions for easy integration.
- Efficient Data Transmission: Line-speed forwarding on all RJ45 ports ensures smooth and uninterrupted data flow.
- Robust Lightning Protection: Features imported lightning protection devices to safeguard against lightning strikes, high voltage, and surges.
- Wide Operating Temperature Range: Designed to operate reliably in extreme temperatures from -45℃ to +85℃, making it suitable for harsh environments.
- Redundant Power Supply: Supports dual redundant power supplies with overload and reverse connection protection for enhanced reliability.
- User-Friendly Installation: Plug-and-play functionality allows for quick setup with no configuration required.
- Durable Construction: IP40 protection level with a rugged, high-strength metal casing, fanless design, and low power consumption for long-term reliability.
- High Electromagnetic Compatibility: Complies with IEC Class A electromagnetic protection standards, ensuring superior EMC performance.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3x flow control |
| Interface information | Single-mode SC optical fiber port: 2 1000Base-X fiber port (SC/FC/SFP optional) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 8 10/100/1000M Base-T ethernet port (standard RJ45) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |
| Appearance dimensions (length*depth*height): 139mm×108mm×50mm | |
| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: < 0.6kg | |
| Environmental properties | Working temperature: -45 ℃ ～+ 85 ℃ |
| Storage temperature: -45 ℃ ～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 20Gbps |
| Packet forwarding rate (whole machine) : 14.88 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 16K | |
| Case space : 2M | |
| Jumbo Frame: 10K | |
| Power supply | Input voltage: DC 12V-58V (dual redundant) |
| Power interface: 6- core Phoenix terminal | |
| Power supply protection: positive and negative pole misconnection protection | |
| Power consumption: < 5 W | |
| Indicator | Ethernet Port:Indicator: 1000M Link/ACT Yellow;Indicator: 100M Link/ACT Green; |
| Fiber port Indicator: Red | |
| Power supply indicator: Green | |
| Security properties | Shell protection: IP40 |
| Surge impact IEC61000-4-5:Signal end: common mode ±4KV, differential mode ±2KV;Power supply end: common mode ±4KV, differential mode ±2KV | |
| Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV | |
| Pulse immunity IEC61000-4-4: signal terminal: ±2KV, power terminal: ±2KV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| MTBF: 300000 hours | |
| warranty period | 3 years |
