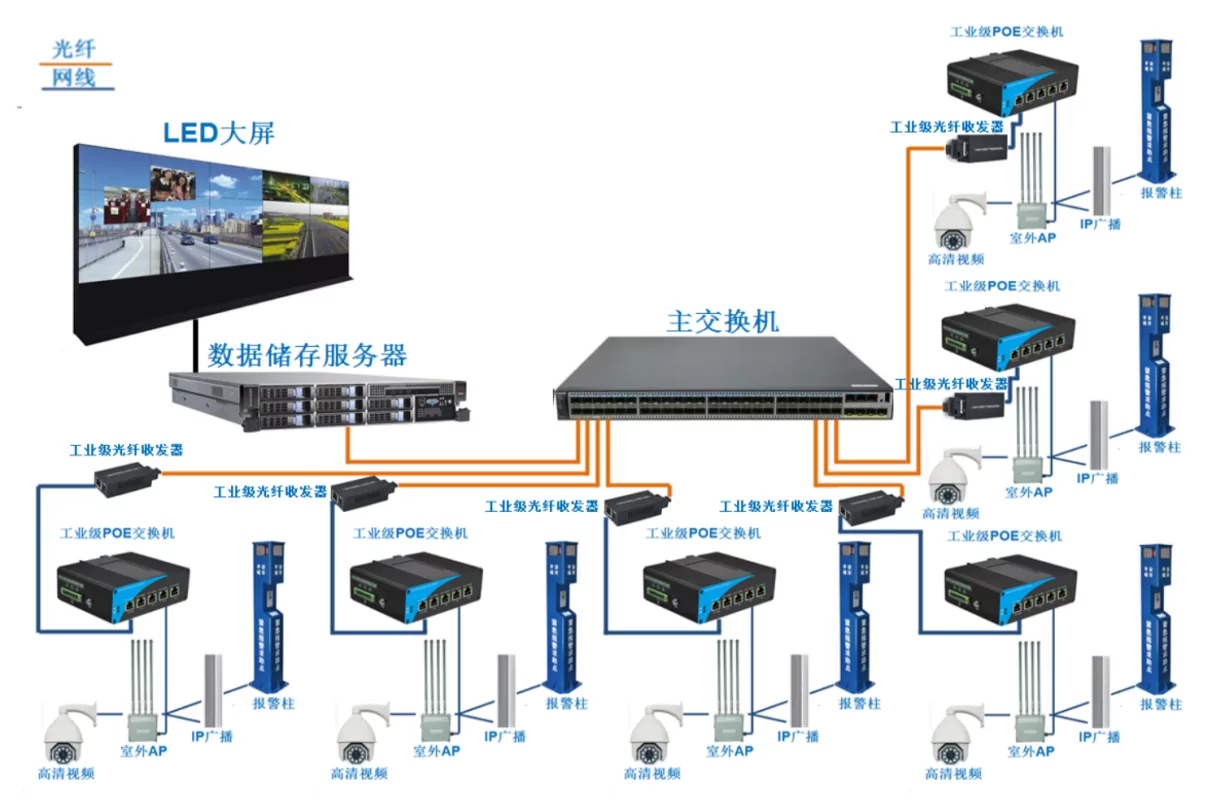

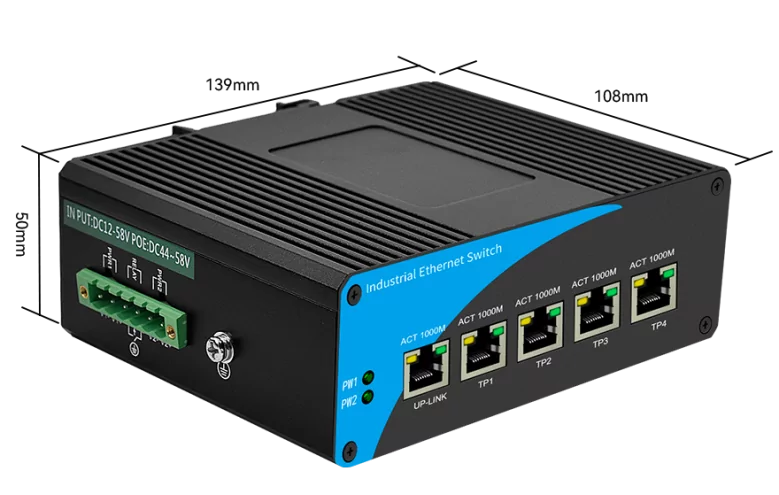

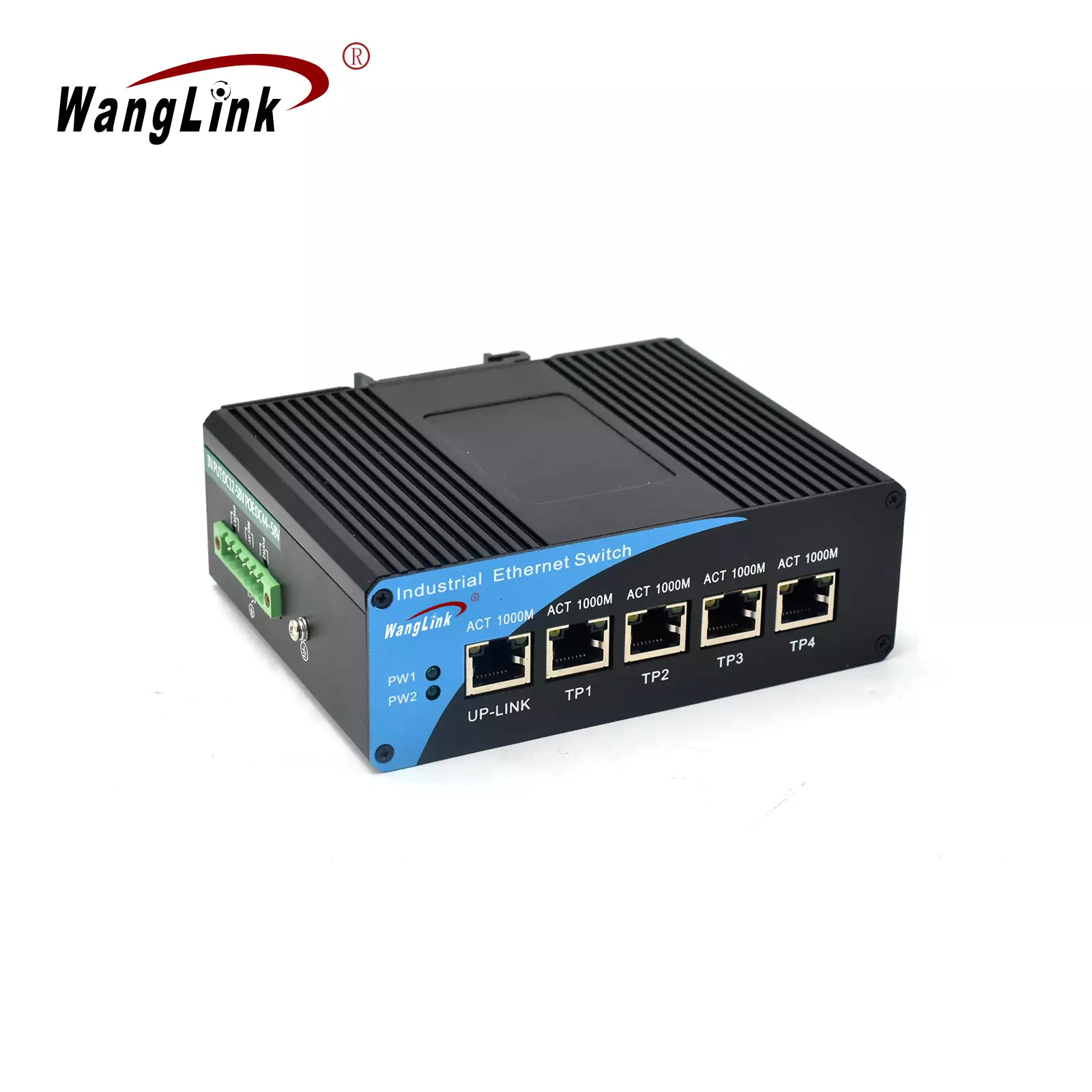

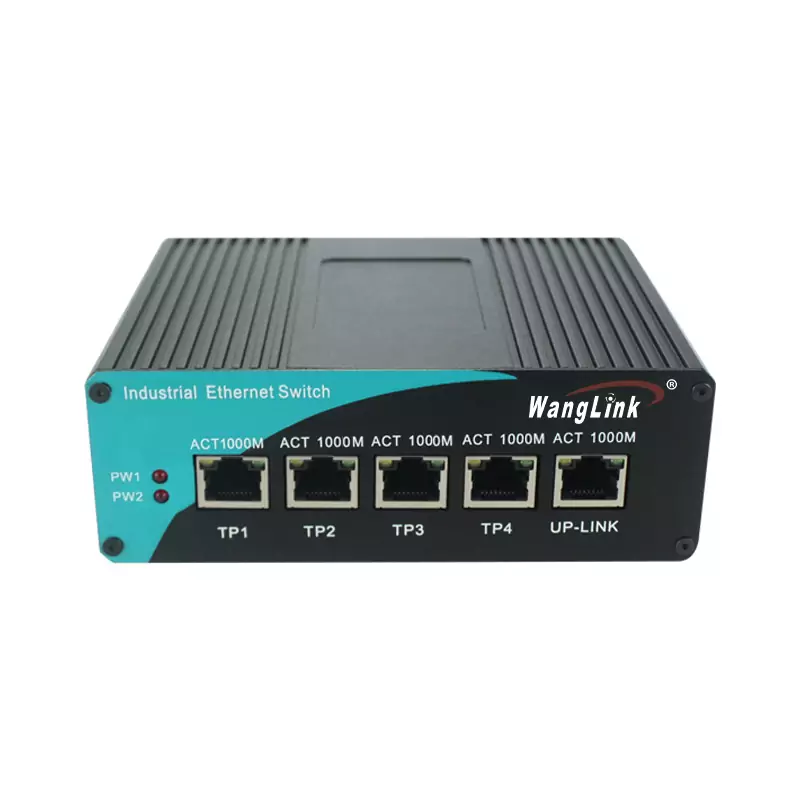

The 5 port industrial ethernet switch is specifically designed for harsh industrial environments, featuring 5 x 10/100/1000 Mbps ports. Built to industrial-grade standards, this switch supports dual redundant power supplies and is equipped with dust and moisture resistance, lightning protection, and the ability to endure extreme temperatures. With an average fault-free time of 300,000 hours, it is widely applicable in industrial automation control, road traffic control systems, building automation, and data center monitoring. This switch ensures stable, reliable, and efficient operation, creating a robust industrial IoT solution suitable for prolonged use in various challenging conditions.
Key Features
- Versatile Port Configuration: Includes 5 x 10/100/1000Base-T Ethernet ports for flexible connectivity.
- Adaptive Rate Support: All RJ45 ports support 10/100/1000Mbps rate adaptation, half/full duplex, and automatic MDI/MDI-X functions for seamless integration.
- Smooth Data Transmission: Line-speed forwarding on all RJ45 ports enhances data flow efficiency.
- Robust Lightning Protection: Features imported lightning protection devices to safeguard against lightning strikes, high voltage, and surges.
- Wide Operating Temperature Range: Designed to operate reliably in extreme temperatures from -45℃ to +85℃, ensuring adaptability to harsh environments.
- Redundant Power Supply: Supports dual redundant power supplies with overload and reverse connection protection for enhanced reliability.
- User-Friendly Installation: Plug-and-play functionality allows for quick setup with no configuration required.
- Durable Construction: IP40 protection level with a rugged, high-strength metal casing, fanless design, and low power consumption for long-term reliability.
- High Electromagnetic Compatibility: Complies with IEC Class A electromagnetic protection standards, ensuring superior EMC performance.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3x flow control |
| Interface information | Downlink Ports: 4 x 10/100/1000M Base-T ports |
| Uplink Port: 1 x 10/100/1000M Base-T port | |
| standard RJ45 | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |
| Appearance dimensions (length*depth*height): 139mm×108mm×50mm | |
| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: < 0.6kg | |
| Environmental properties | Working temperature: -45 ℃ ～+ 85 ℃ |
| Storage temperature: -45 ℃ ～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 10Gbps |
| Packet forwarding rate (whole machine) : 7.44 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 16K | |
| Case space : 2M | |
| Jumbo Frame: 10K | |
| Power supply | Input voltage: DC 12 V-58V (dual redundant) |
| Power interface: 6- core Phoenix terminal | |
| Power supply protection: positive and negative pole misconnection protection | |
| Power consumption: < 5 W | |
| Indicator | Ethernet Port:Indicator: 1000M Link/ACT Yellow;Indicator: 100M Link/ACT Green; |
| Power supply indicator: Green | |
| Security properties | Shell protection: IP40 |
| Surge impact IEC61000-4-5:Signal end: common mode ±4KV, differential mode ±2KV;Power supply end: common mode ±4KV, differential mode ±2KV | |
| Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV | |
| Pulse immunity IEC61000-4-4: signal terminal: ±2KV, power terminal: ±2KV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| MTBF: 300000 hours | |
| warranty period | 3 years |
