Product Overview
The ISG410-2005 Industrial Ethernet Switch is a robust 5-port Gigabit unmanaged switch, designed specifically for demanding industrial environments. This switch features 5 10/100/1000Base-TX RJ45 Ethernet ports, providing flexible networking solutions for applications such as industrial control automation, road traffic control, building automation systems, and computer room monitoring. With its reliable and efficient performance, the ISG410-2005 is your ideal partner in building a solid Industrial Internet of Things (IIoT) infrastructure.
Key Features
- 5 Gigabit Ethernet Ports: Includes 5 x 10/100/1000Base-TX RJ45 ports for versatile connectivity and high-speed data transfer.
- Adaptive Speed Support: All ports automatically adapt to transmission speeds of 10/100/1000 Mbps, ensuring seamless integration with various devices.
- Duplex and Auto-Negotiation Support: Each port supports half/full duplex auto-negotiation along with automatic MDI/MDI-X functionality for simplified connections.
- High Backplane Bandwidth: Designed with a high backplane bandwidth to enable line-speed forwarding for all ports, optimizing data transmission performance.
- Broadcast Storm Suppression: Built-in broadcast storm suppression enhances network stability and reliability, reducing traffic congestion.
- Redundant Power Supply: Equipped with a redundant DC power supply to ensure continuous operation even in the event of power failure.
- High Electromagnetic Protection: Complies with IEC Class A electromagnetic protection standards, offering superior EMC (Electromagnetic Compatibility).
- Wide Operating Temperature Range: Designed for extreme conditions, operating efficiently in temperatures ranging from -40°C to +85°C.
- DIN Rail Installation: Supports DIN rail type installation, making it easy to integrate into existing setups.
- Rugged Construction: With an IP40 protection level and a corrugated high-strength metal casing, this fanless switch offers durability in harsh environments while maintaining low power consumption.

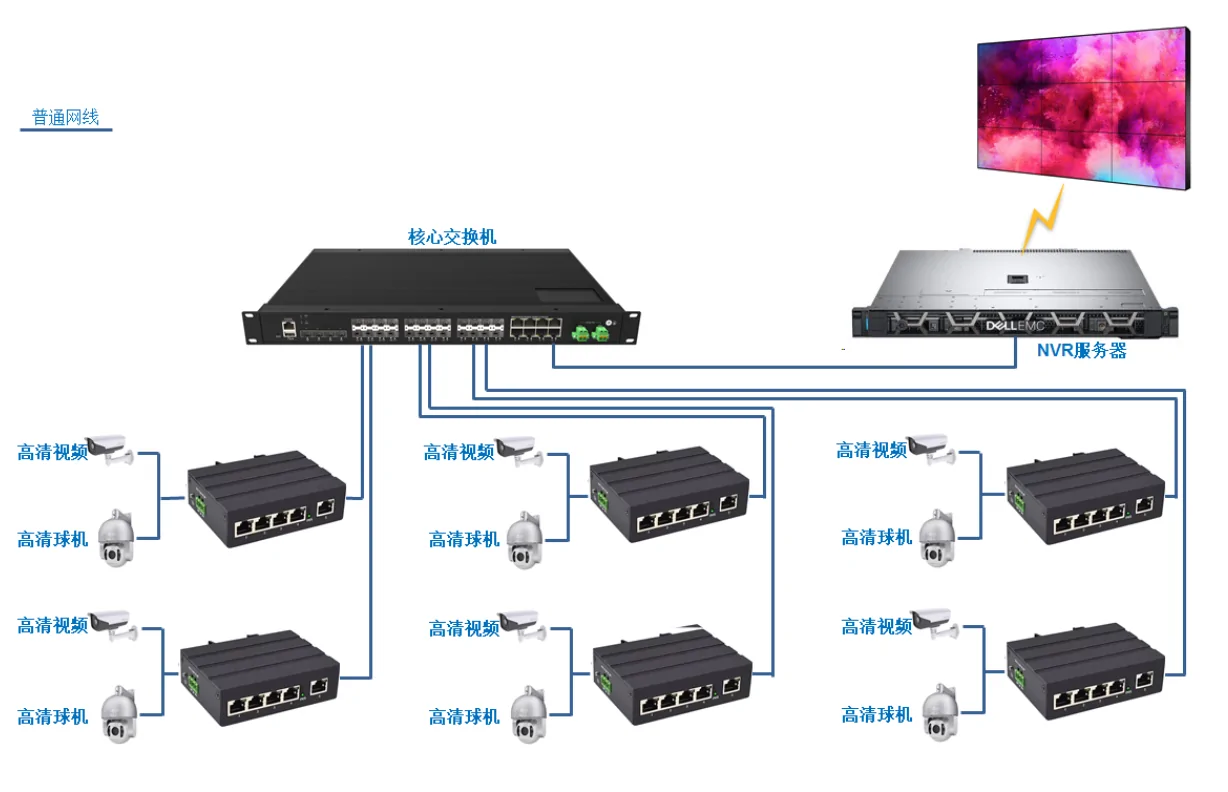

Ideal Applications
The ISG410-2005 Industrial Ethernet Switch is perfect for a range of industrial applications, including:
- Industrial Control Automation
- Road Traffic Control Systems
- Building Automation Systems
- Computer Room Monitoring Solutions
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE 802.3x flow control |
| Interface information | RJ45 port: 5 10/100/1000M Base-T X port |
| Mechanical properties | Shell material: metal shell |

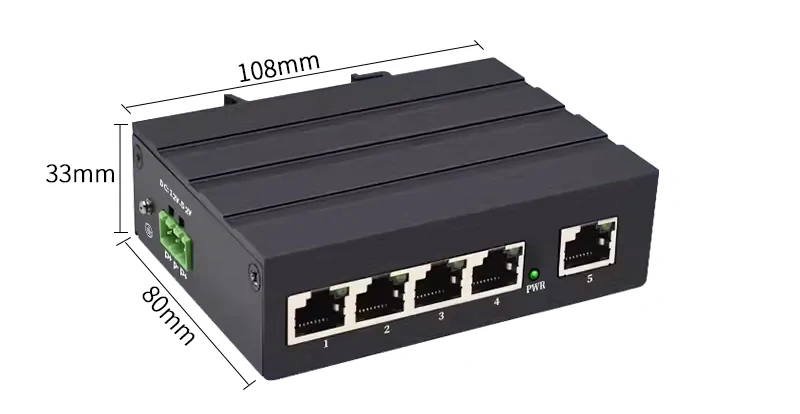

| Appearance dimensions (length*depth*height): 108 mm× 80 mm× 33 mm | |

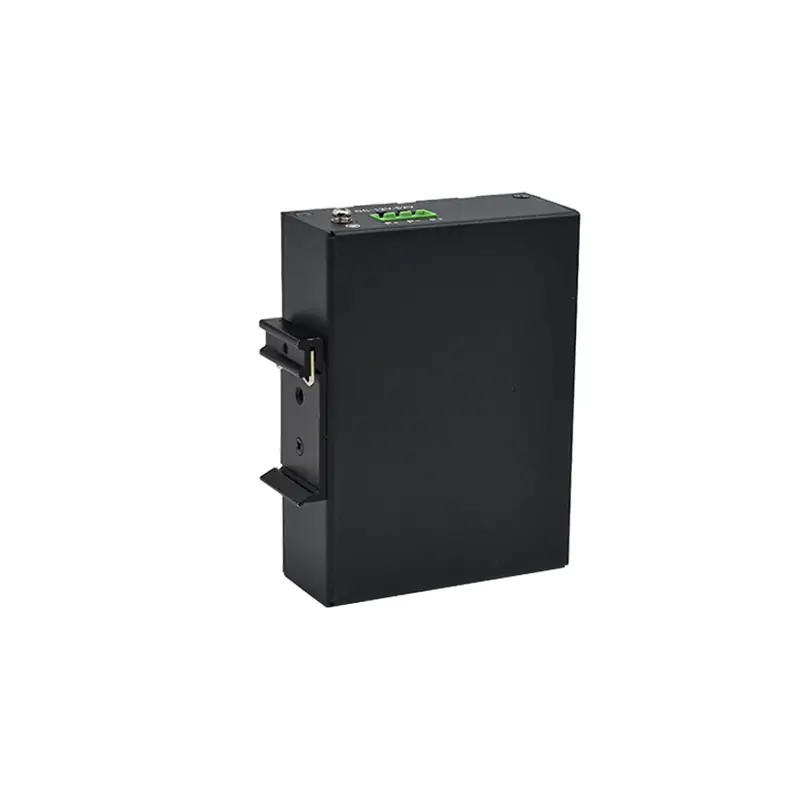

| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: < 450 G | |
| Environmental properties | Working temperature: -40 ℃ ～+ 85 ℃ |
| Storage temperature: -40 ℃ ～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 14Gbps |
| Packet forwarding rate (whole machine) : 7.5 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Case space : 512K | |

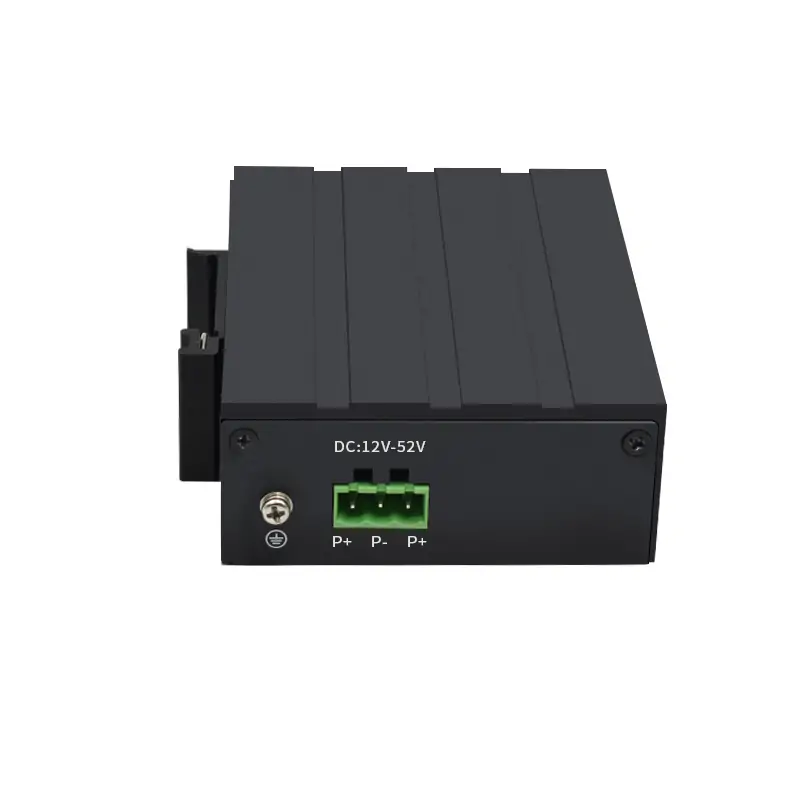

| Power supply | Input voltage: DC 12 V-57V (dual redundant) |
| Power interface: 3- core Phoenix terminal | |
| Power supply protection: positive and negative pole misconnection protection | |
| Power consumption: < 5 W | |
| indicator light | Port light (fluctuation switch control):Indicator light: 1000M Link/ACT green; |
| Power light: green | |
| Security properties | Shell protection: IP40 |
| Surge impact IEC61000-4-5 : (optional)Signal end: common mode ± 4KV, differential mode ± 2KVPower supply end: common mode ± 4KV, differential mode ± 2KV | |
| Anti-static interference IEC61000-4-2 : contact discharge ± 8KV, air discharge ± 15KV | |
| Pulse immunity IEC61000-4-4 : signal terminal: ± 2KV, power terminal: ± 2KV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| MTBF: 100000 hours | |
| warranty period | 5 years |
