Product Overview

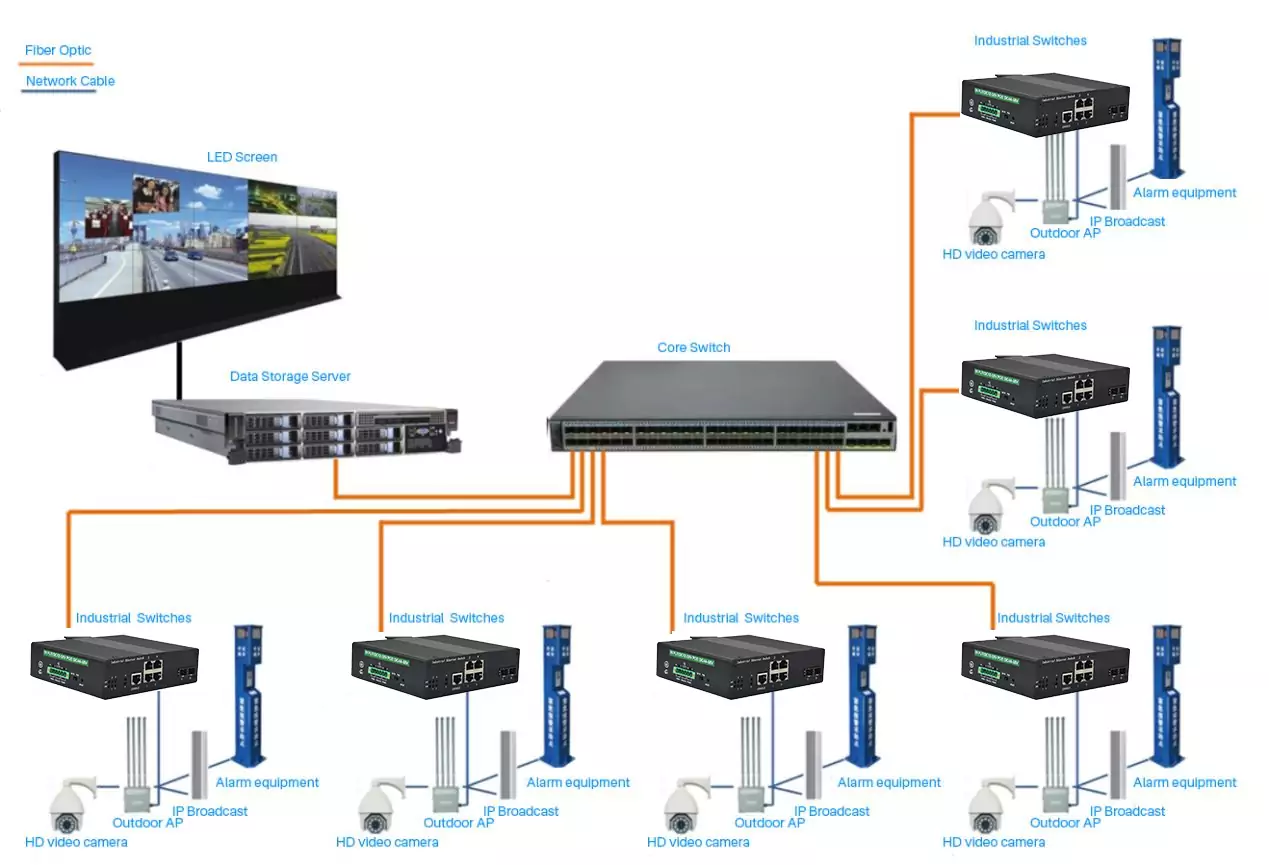

Introducing our Gigabit Industrial Managed PoE Switch, designed for high-performance networking in demanding environments. This robust switch features 4 x 10/100/1000Base-T Ethernet ports and 2 x 1000M SFP optical ports. The 4 Ethernet ports support the IEEE 802.3 af/at/bt PoE standards, providing up to 60W of power per port. With its exceptional durability, this switch can easily be installed in compact control boxes and is built to withstand harsh operational conditions. Its unique hardware and software capabilities enable flexible networking, making it suitable for a wide range of industrial applications, including automation in industrial control, road traffic management, building automation, and data center monitoring. This switch ensures stable, reliable, and efficient operations, forming a solid foundation for your Industrial Internet of Things (IIoT) infrastructure.
Key Features
- Port Configuration: 4 x 10/100/1000Base-T Ethernet ports and 2 x 1000Base-X SFP optical ports.
- PoE Support: Compliant with IEEE 802.3 af/at/bt standards, delivering power through RJ45 ports with a maximum of 60W per port.
- Buffer Capacity: Supports a 4.1M port cache to prevent video storage congestion.
- Intelligent PoE: Features smart power management strategies and scheduled power supply options for energy efficiency.
- Data Control: Implements 802.3X full-duplex flow control and includes network storm suppression for optimal performance.
- Redundant Networking: Supports STP/RSTP/MSTP protocols and industrial ERPS ring network functionality to ensure network stability.
- Multicast Management: Supports IGMP Snooping V1/V2/V3 for efficient multicast traffic handling.
- VLAN Support: Compliant with IEEE 802.1Q VLAN for effective broadcast domain isolation.
- Quality of Service (QoS): Supports COS/DSCP with 4 priority queues and WRR/SP scheduling modes.
- Security Management: Includes ACL access control lists, 802.1X authentication, and tiered user management.
- Management Options: Manageable via CLI, WEB, and SNMP for user-friendly operation.
- Monitoring and Maintenance: Features port mirroring, interface status monitoring, and log management for comprehensive oversight.
- Wide Temperature Range: Operates effectively in temperatures ranging from -40℃ to +75℃, ensuring reliability in harsh environments.
- IP40 Protection: Encased in a rugged corrugated metal housing; fanless design for low power consumption.
- Electromagnetic Compatibility: Meets IEC Class A for high electromagnetic interference (EMI) protection.
