Product Overview

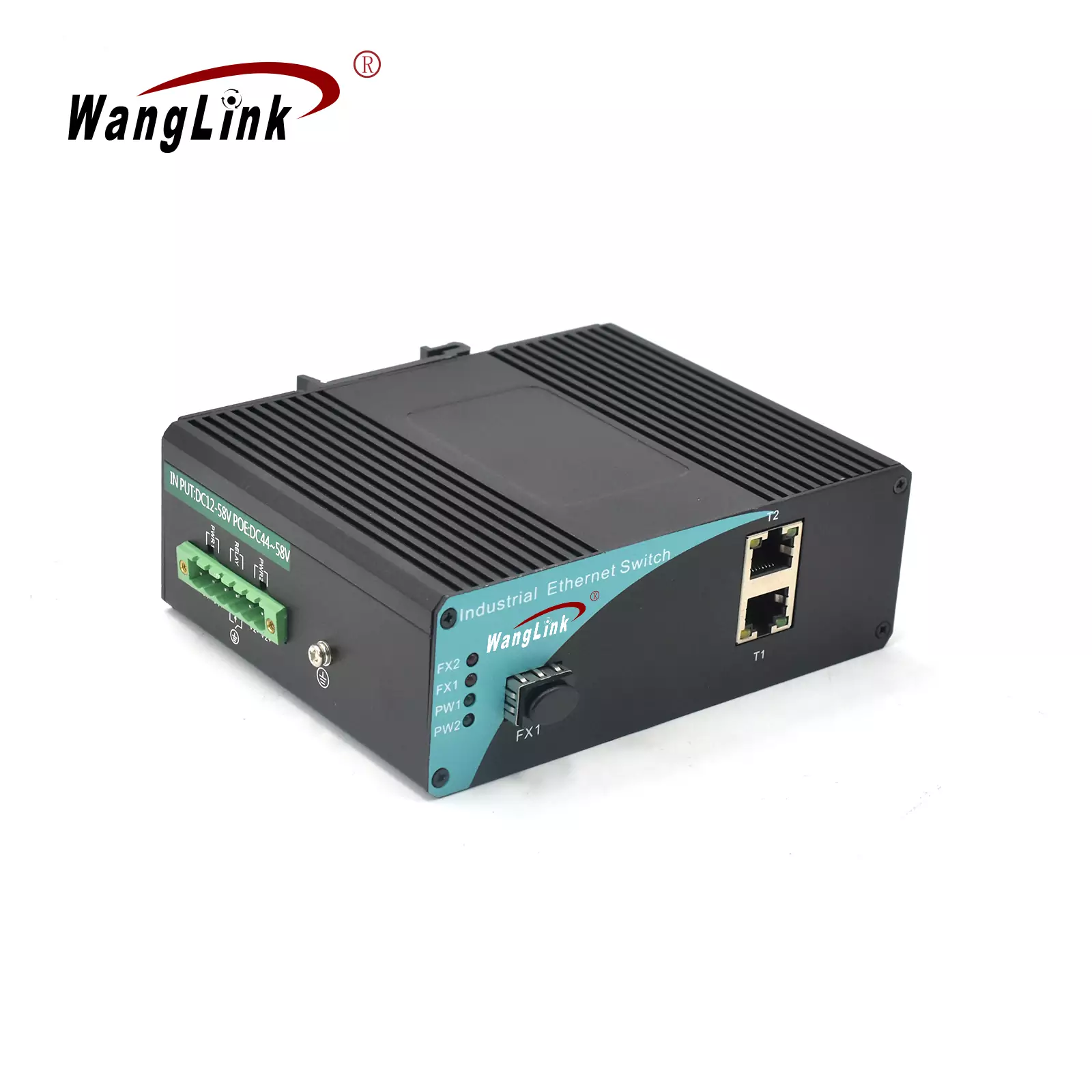

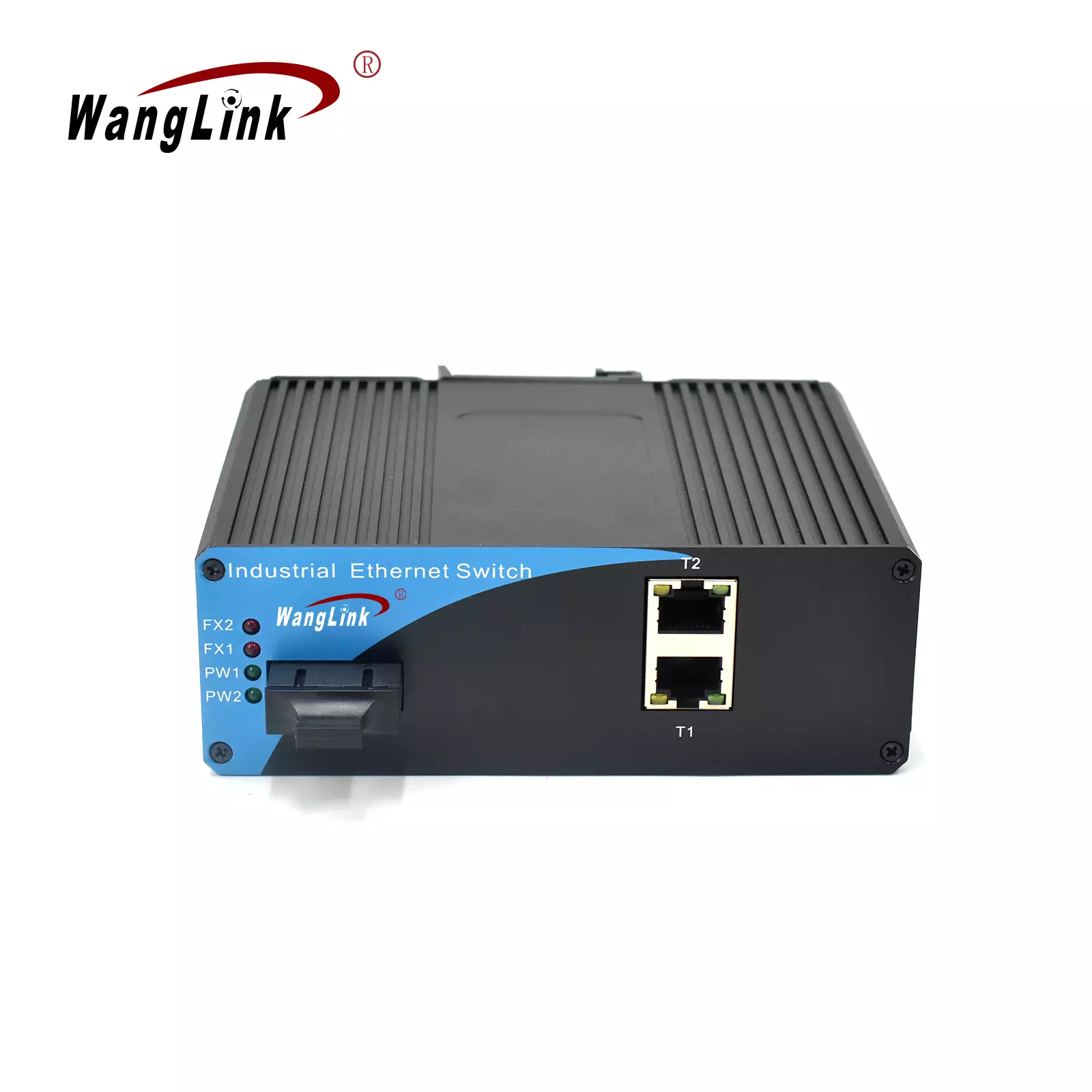

Introducing the Industrial PoE Switch Gigabit, engineered for harsh industrial environments. This robust switch features one 1.25G SC fiber port and two 10/100/1000Mbps Ethernet ports. All Ethernet ports comply with the IEEE802.3 af/at PoE power supply standard, providing up to 25.4W of power per port. The switch automatically detects whether connected devices support PoE, ensuring safe operation by only supplying power to compliant devices and preventing damage to non-PoE equipment.

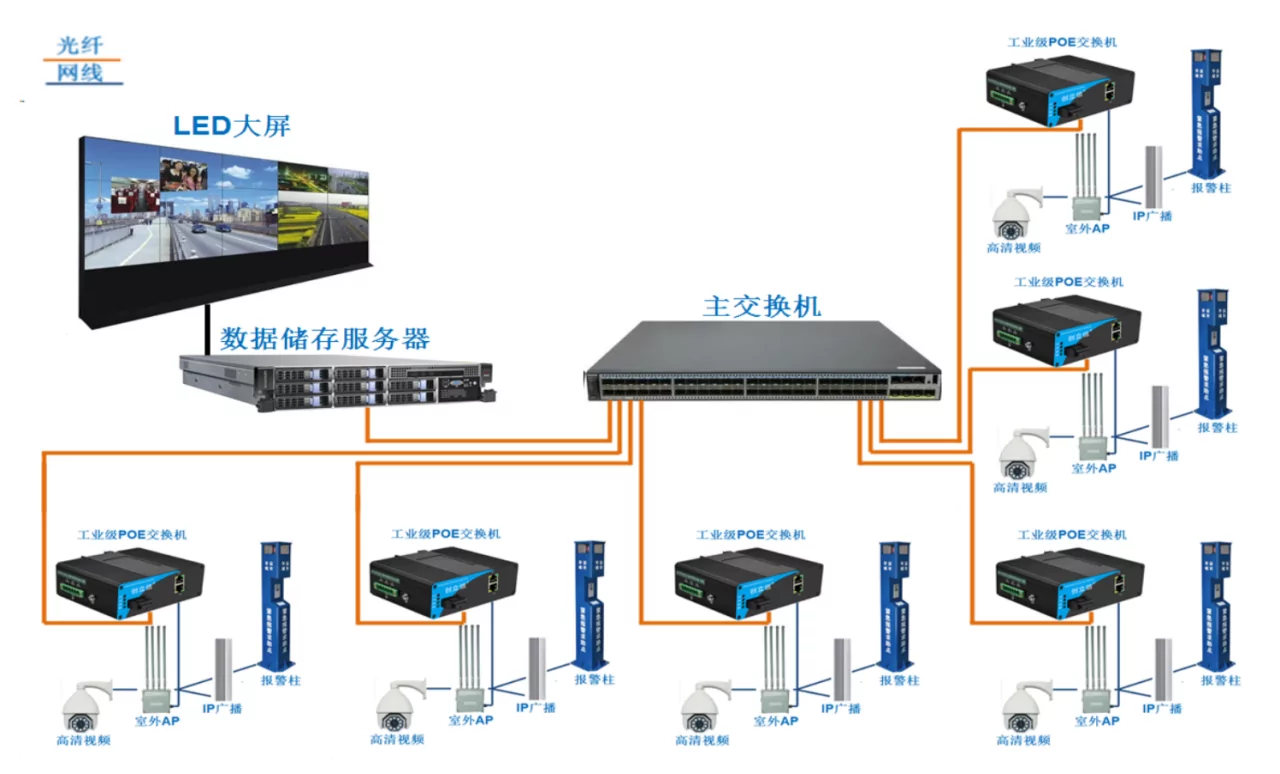

Designed to meet industrial-grade standards, this switch supports dual redundant power supplies and offers dustproof, moisture-proof, lightning protection, and high/low-temperature resistance. With a mean time between failures (MTBF) of 300,000 hours, it is highly reliable and efficient, making it ideal for applications such as industrial automation, road traffic control, building automation, and data center monitoring systems. This industrial PoE switch ensures stable operation even under challenging conditions, making it perfect for building a resilient industrial IoT network.
Key Features
- Ports: 2 x 10/100/1000Base-TX Ethernet ports and 1 x 1000Base-X optical port.
- PoE Support: 2 x RJ45 Ethernet ports supporting IEEE802.3 af/at PoE standards, with a maximum output power of 25.4W per port.
- Adaptive Rate: All Ethernet ports support 10/100/1000Mbps adaptive rate.
- Duplex Mode: All Ethernet ports support half/full duplex adaptive mode and automatic MDI/MDI-X functionality.
- Line-Speed Forwarding: Ensures smooth data transmission.
- Surge Protection: Equipped with imported surge protection devices to withstand lightning strikes and high voltage surges.
- Wide Temperature Range: Operates in temperatures from -45°C to +85°C, suitable for various harsh environments.
- Power Supply: Supports dual redundant power supply, overload protection, and reverse polarity protection.
- User-Friendly: Plug-and-play design requires no configuration.
- Durability: IP40 protection level with a corrugated high-strength metal casing, fanless design, and low power consumption.
- EMC Compliance: IEC Class A electromagnetic protection level for high EMC compatibility.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE802.3ab 1000Base-TIEEE802.3z 1000Base-SX/LX standardsIEEE 802.3af/at Power Over EthernetIEEE 802.3x flow control |

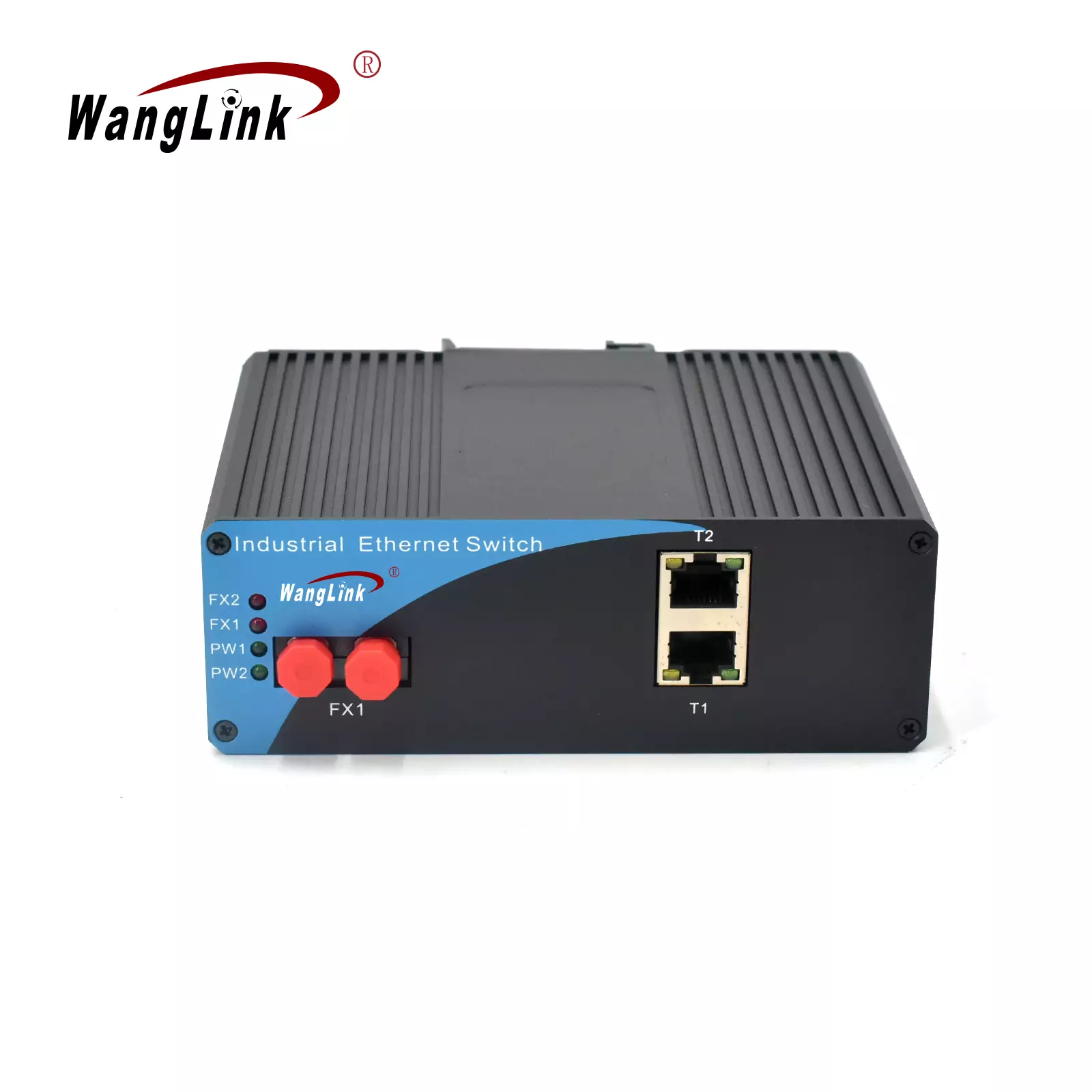

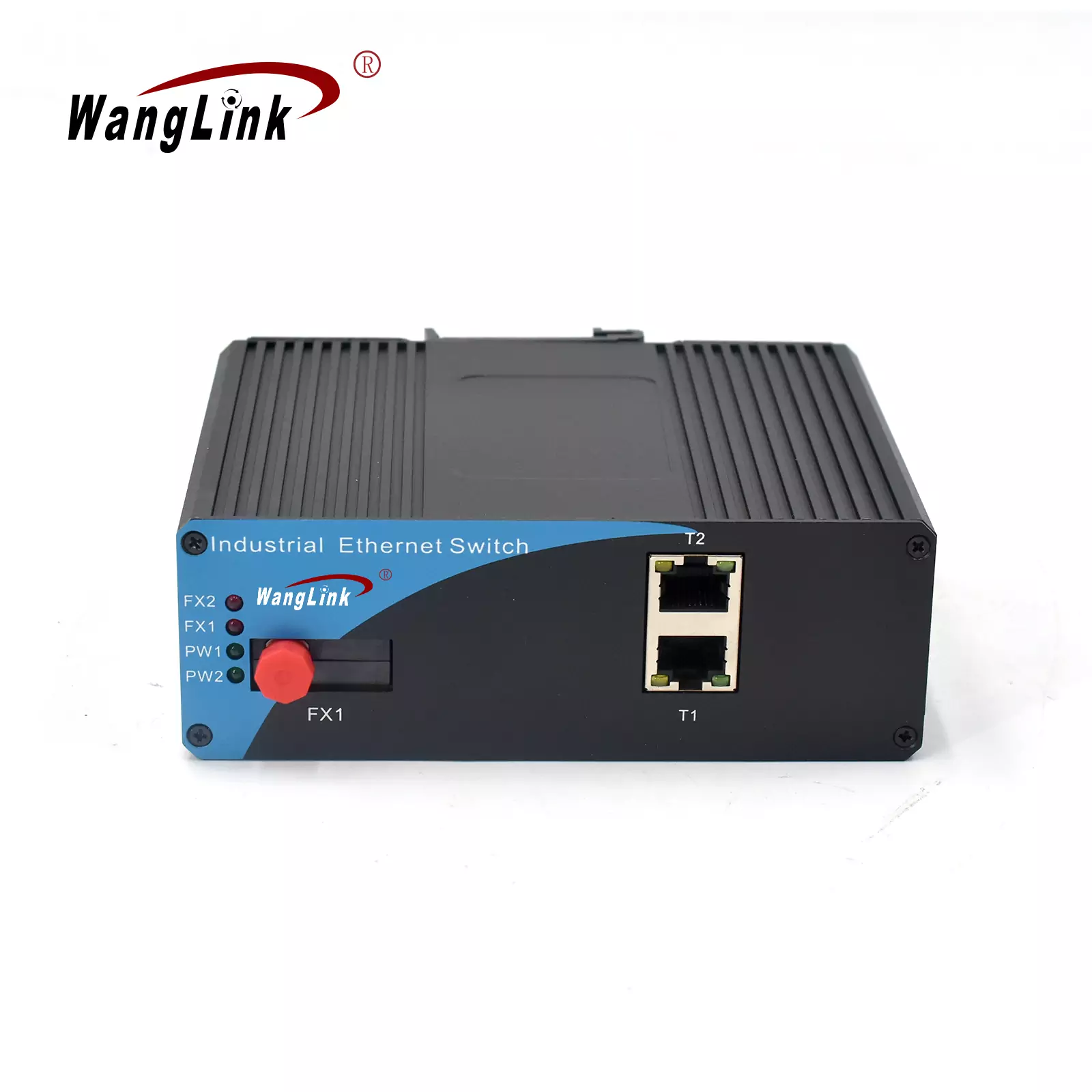

| Interface information | Single-mode SC fiber port: 1 1000Base-X fiber optic port (options: SC/FC/SFP). |
| Transmission rate: 1.25G | |
| Multimode fiber distance: 550 m/2 km; Single-mode fiber distance: 2/20/40/60/80/100 km | |
| Multimode wavelength: 850 nm/1310 nm; Single-mode wavelength: 1310 nm/1550 nm/1490 nm | |
| RJ45 Ethernet port: 2 10/100/1000Base-TX Ethernet port (standard RJ45) | |
| 10/100/1000 Mbps auto-negotiation | |
| 10Base-T: ≤100 m (CAT3, CAT4, CAT5 UTP) | |
| 100Base-TX: ≤100 m (CAT3, CAT4, CAT5 UTP) | |
| 1000Base-TX: ≤100 m (CAT3, CAT4, CAT5 UTP) | |
| Mechanical properties | Shell material: metal shell |

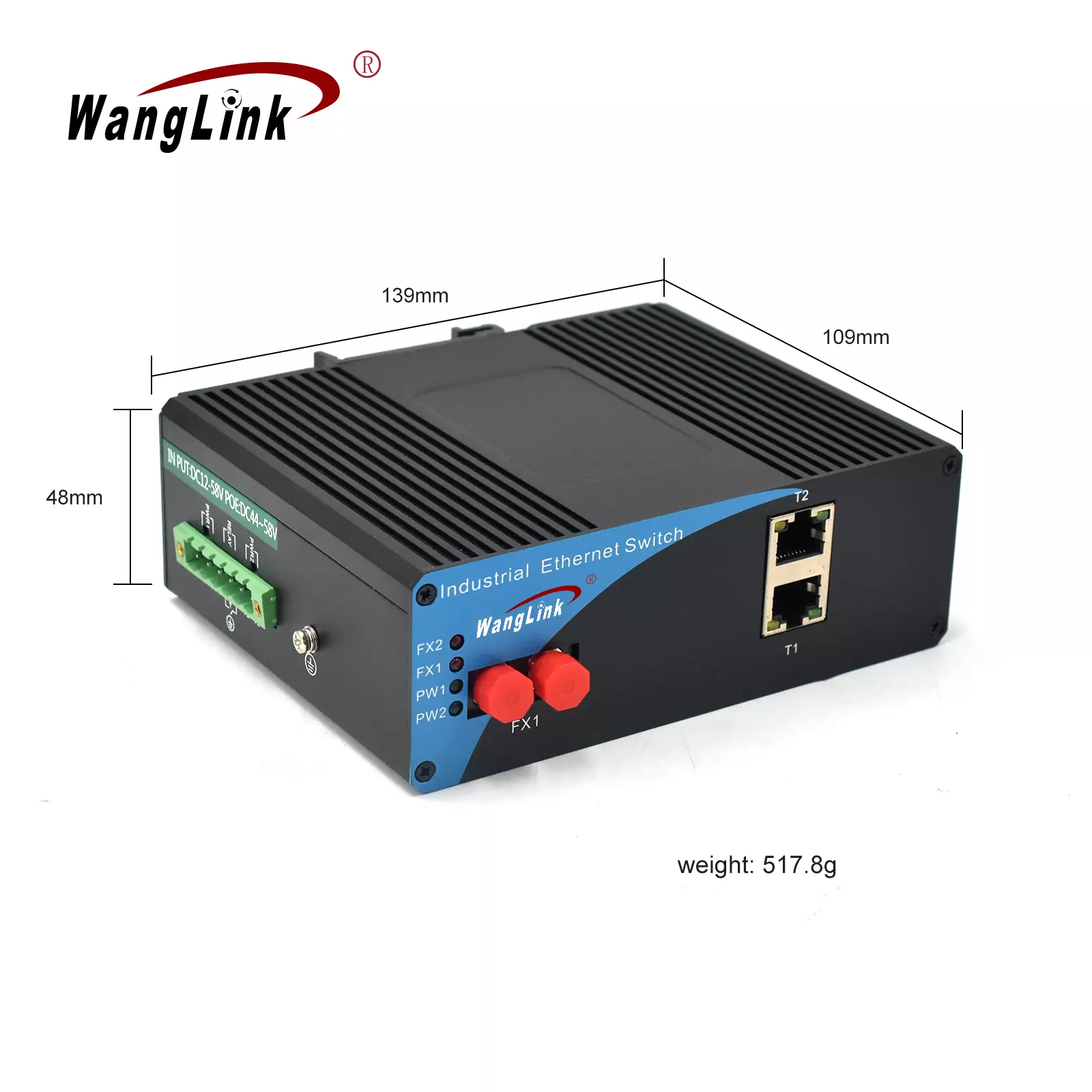

| Appearance dimensions (length*depth*height): 139mm×108mm×50mm | |
| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: < 0.6KG | |
| Environmental properties | Working temperature: -40 ℃ ～+ 85 ℃ |
| Storage temperature: -40 ℃ ～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 10Gbps |
| Packet forwarding rate (whole machine) : 7.44 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 1K | |
| Packet buffer : 1M | |
| Jumbo frame: 10K | |
| Power supply | Input voltage: DC 44 V-58V (dual redundant) |

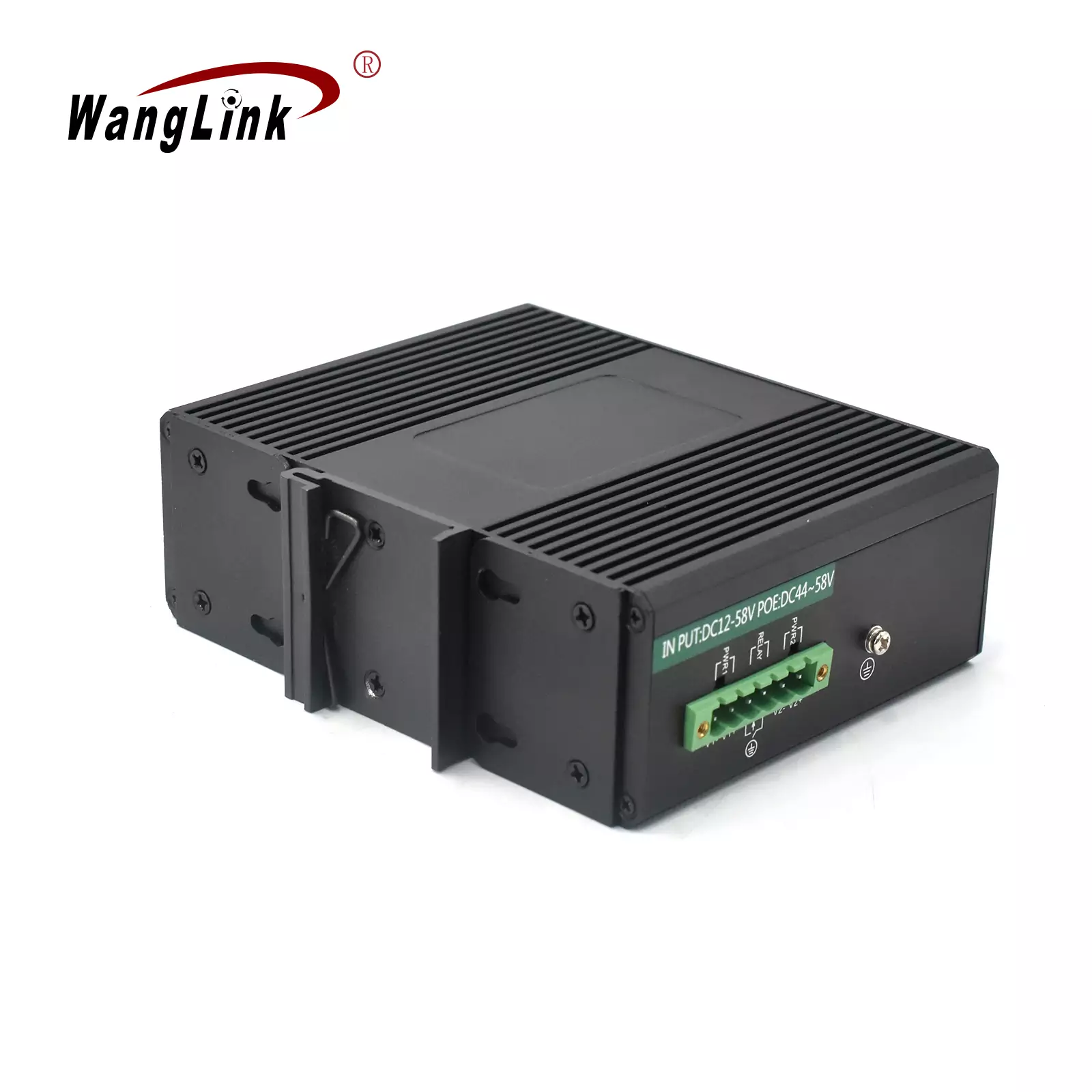

| Power interface: 6-core Phoenix terminal | |
| Power supply protection: positive and negative pole misconnection protection | |
| Minimum power consumption: < 5W, maximum power consumption: < 60W. | |
| PoE pin | 802.3AF/AT(1/2+，3/6-) |
| indicator light | Ethernet port :1000M Link/ACT yellowPoE: POET green |
| Fiber port: Red | |
| Power light: Green | |
| Security properties | Shell protection: IP40 |
| Surge impact IEC61000-4-5 : (optional)Signal end: common mode ± 4KV, differential mode ± 2KVPower supply end: common mode ± 4KV, differential mode ± 2KV | |
| Anti-static interference IEC61000-4-2 : contact discharge ± 8KV, air discharge ± 15KV | |
| Pulse immunity IEC61000-4-4 : signal terminal: ± 2KV, power terminal: ± 2KV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| MTBF: 100000 hours | |
| warranty period | 3 years |
