ISG201 | Gigabit ethernet industrial switch 2 port 1 SFP/LC/SC/FC/ST

Explore our Gigabit industrial-grade optical fiber media converter, a reliable unmanaged ethernet industrial switch with dual ports, robust protection, and a wide temperature range. Perfect for industrial applications in harsh environments.

Email:

Sample order

Product Overview

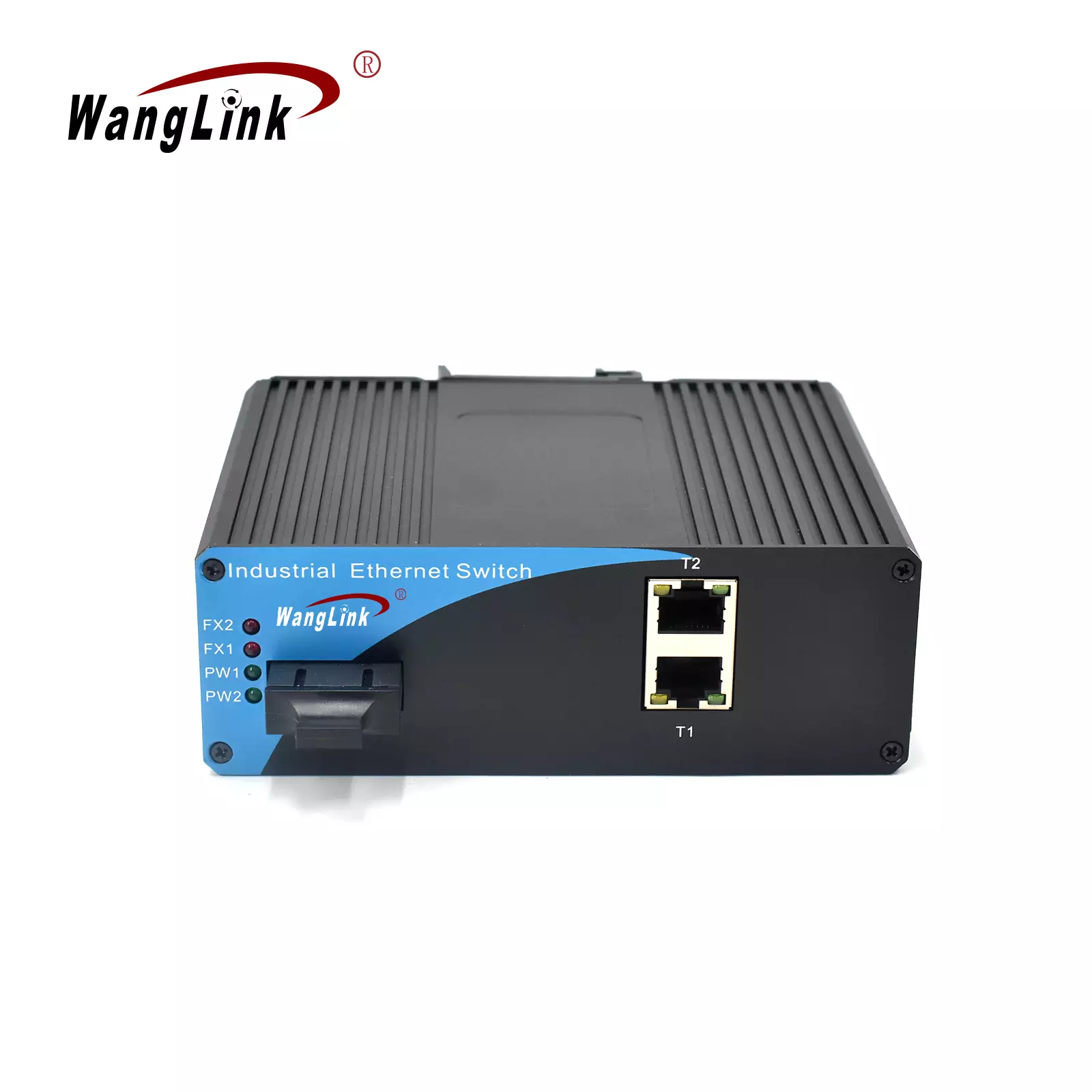

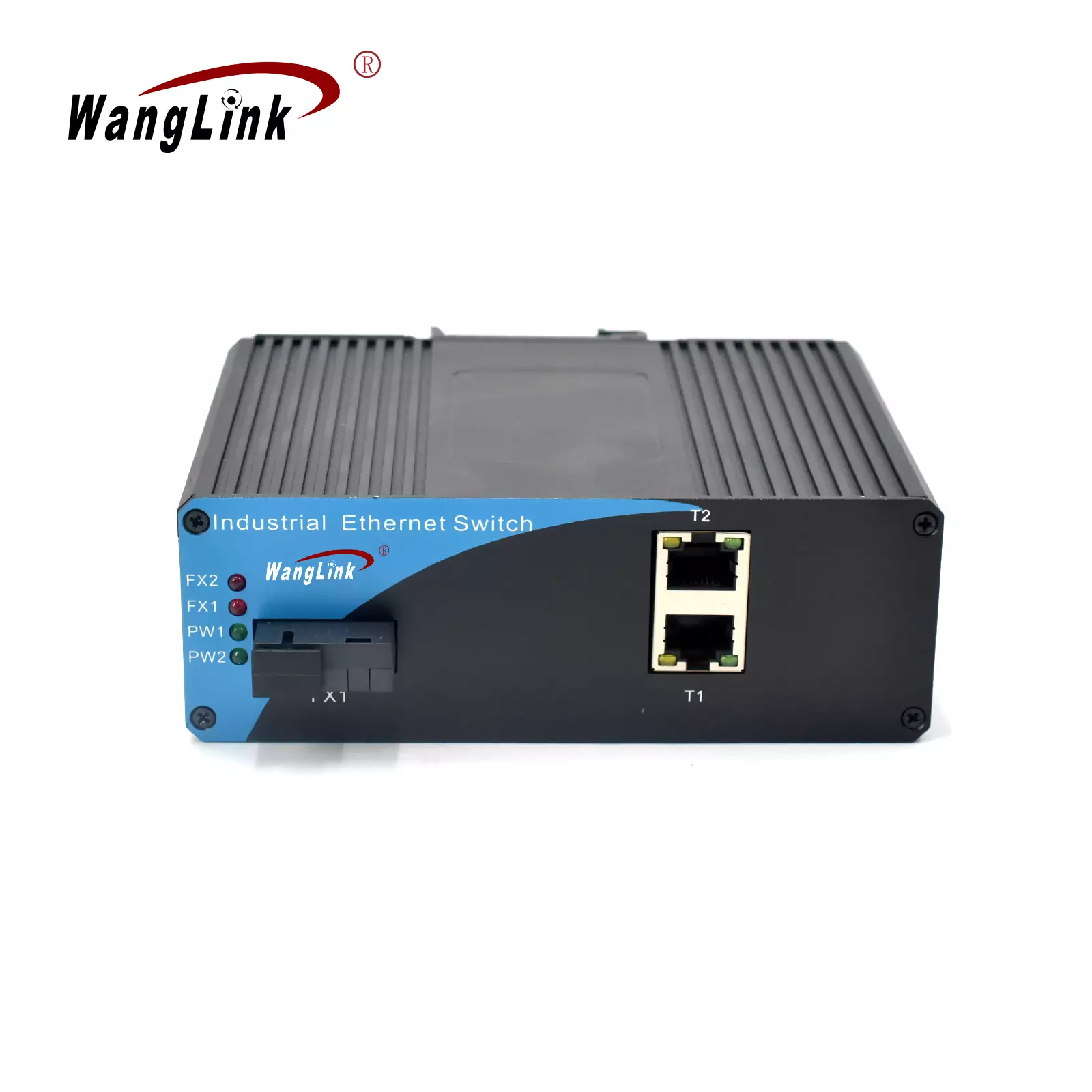

The Gigabit industrial-grade optical fiber media converter is an unmanaged Ethernet industrial switch designed for high-performance data transmission in demanding environments. Featuring 2 x 10/100/1000Base-T RJ45 ports and 1 x 1000Base-X SC optical fiber port, this switch employs advanced switching and store-and-forward technologies to facilitate seamless communication between different network media. Built to industrial standards, it supports dual redundant power supplies and is engineered to withstand dust, moisture, lightning, and extreme temperatures, making it ideal for applications in industrial control automation, traffic management, building automation systems, and computer room monitoring.

Key Features

  • Dual Ethernet Ports: Equipped with 2 x 10/100/1000Base-T Ethernet ports and 1 x 1000Base-X Fiber port for versatile connectivity options.
  • Adaptive Rate Support: All RJ45 ports support 10/100/1000Mbps rate adaptation, half/full duplex, and automatic MDI/MDI-X functions for flexible network integration.
  • Smooth Data Transmission: Line-speed forwarding on all RJ45 ports ensures efficient and uninterrupted data flow.
  • Robust Protection: Features imported lightning protection devices to safeguard against lightning strikes, high voltage, and surges.
  • Wide Operating Temperature Range: Designed to operate reliably in extreme temperatures from -45℃ to +85℃, suitable for harsh environments.
  • Redundant Power Supply: Supports dual redundant power supplies, along with overload and reverse connection protection for enhanced reliability.
  • User-Friendly Installation: Plug-and-play functionality allows for easy setup with no configuration required.
  • Durable Design: IP40 protection level with a rugged metal casing, fanless operation, and low power consumption for long-term reliability.
  • High Electromagnetic Compatibility: Complies with IEC Class A electromagnetic protection standards, ensuring superior EMC performance.

Product Parameters

Standards and protocolsIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3x flow control

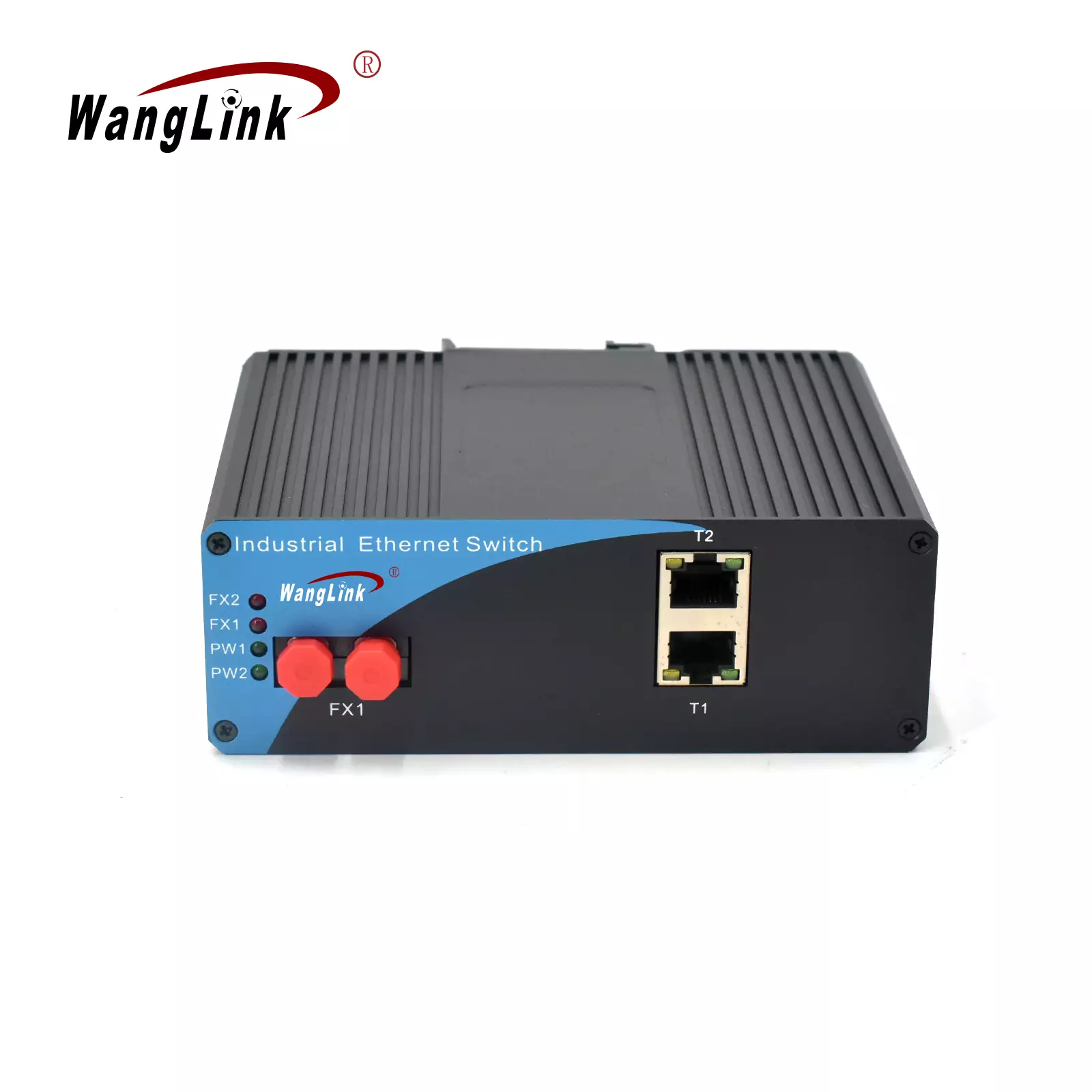

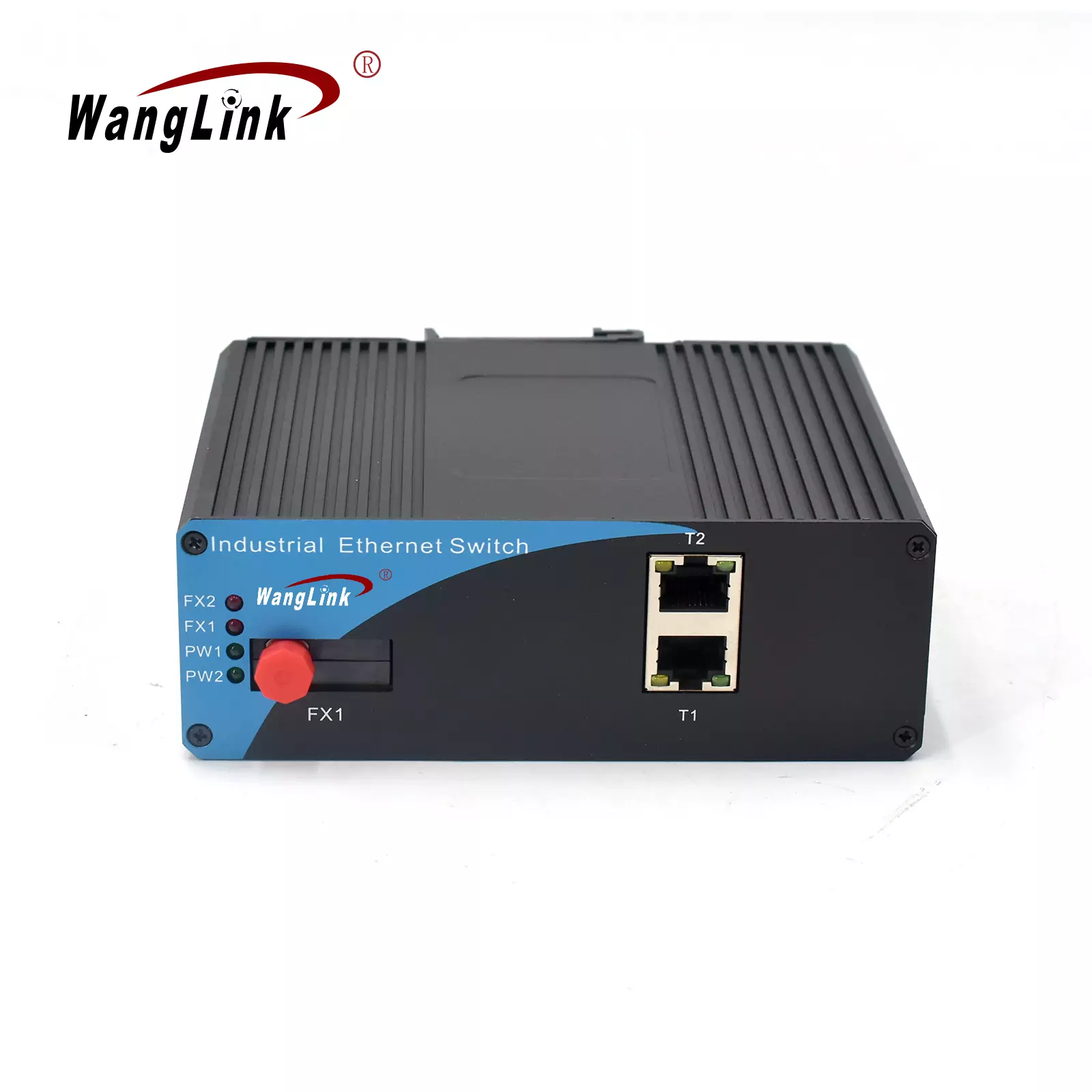

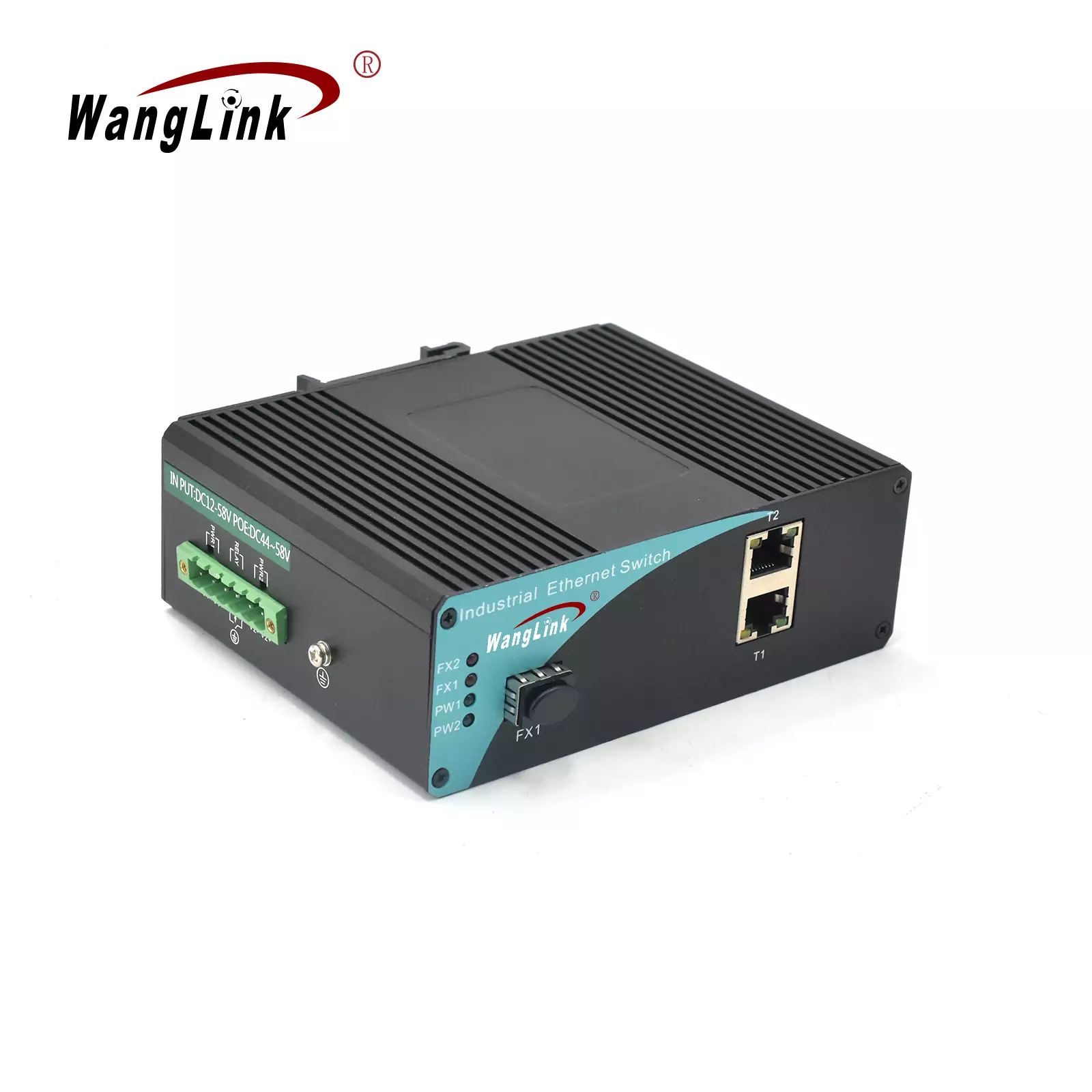

Interface informationSingle-mode SC optical fiber port: 1 1000Base-X fiber port (SC/FC/SFP optional)
Transmission rate: 1.25G
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm
RJ45 network port: 2 10/100/1000M Base-T ethernet port (standard RJ45)
10/100/1000Mbps adaptive
10Base-T: ≤100m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell

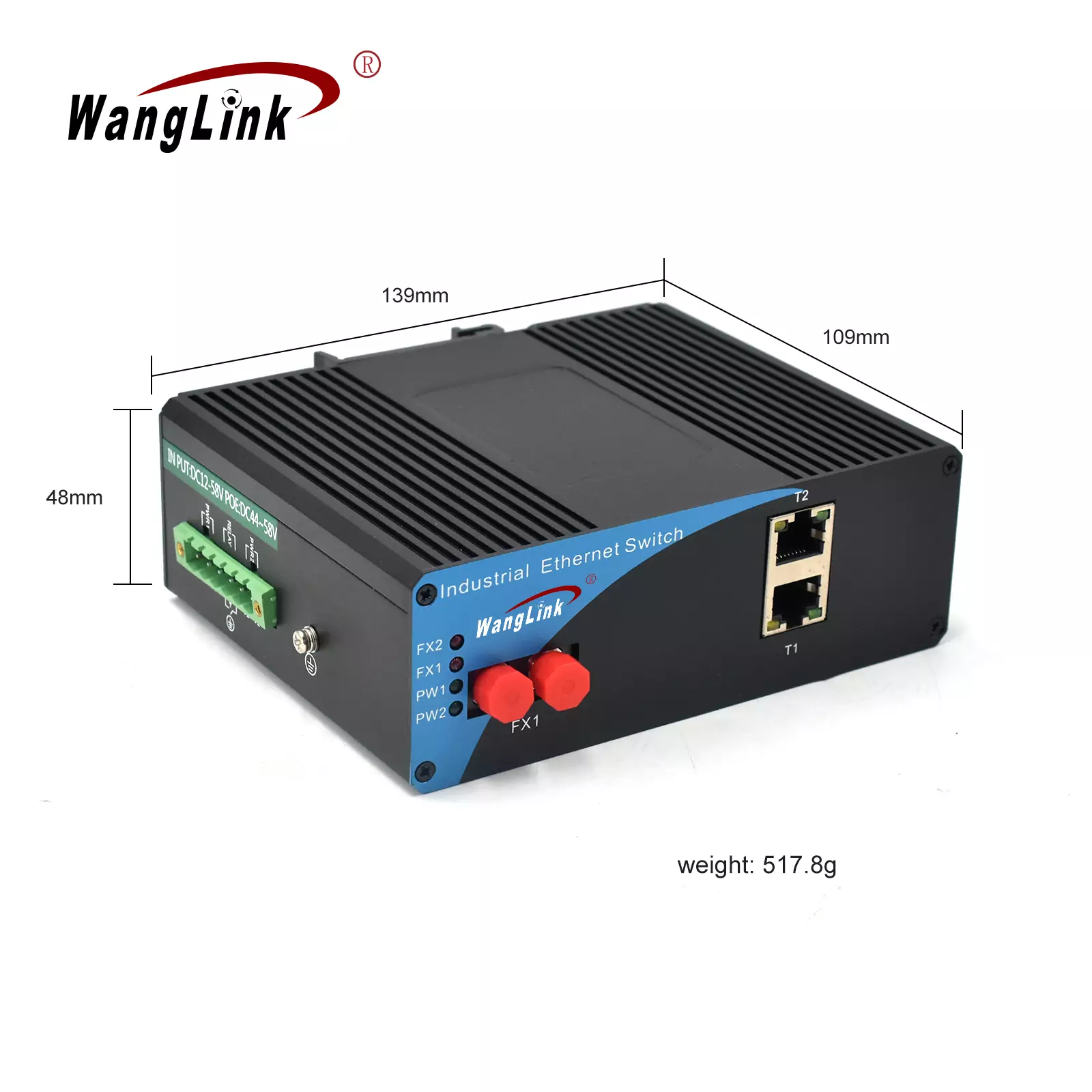

Appearance dimensions (length*depth*height): 139mm×108mm×50mm
Installation method: DIN rail type
Heat dissipation method: natural cooling, no fan
Weight: < 0.6kg
Environmental propertiesWorking temperature: -45 ℃ ~+ 85 ℃
Storage temperature: -45 ℃ ~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 10Gbps
Packet forwarding rate (whole machine) : 7.44 Mpps
Exchange method: store-and-forward
MAC table : 2K
Case space : 1M
Jumbo Frame: 10K
Power supplyInput voltage: DC 12 V-58V (dual redundant)
Power interface: 6- core Phoenix terminal
Power supply protection: positive and negative pole misconnection protection
Power consumption: < 5 W
IndicatorEthernet Port:Indicator: 1000M Link/ACT Yellow;Indicator: 100M Link/ACT Green;
Fiber port Indicator: Red
Power supply indicator: Green
Security propertiesShell protection: IP40
Surge impact IEC61000-4-5:Signal end: common mode ±4KV, differential mode ±2KV;Power supply end: common mode ±4KV, differential mode ±2KV
Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV
Pulse immunity IEC61000-4-4: signal terminal: ±2KV, power terminal: ±2KV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
MTBF: 300000 hours
warranty period3 years
SIZE: ISG201 | Gigabit ethernet industrial switch 2 port 1 SFP/LC/SC/FC/ST
APPLICATION: ISG201 | Gigabit ethernet industrial switch 2 port 1 SFP/LC/SC/FC/ST
