Product Overview

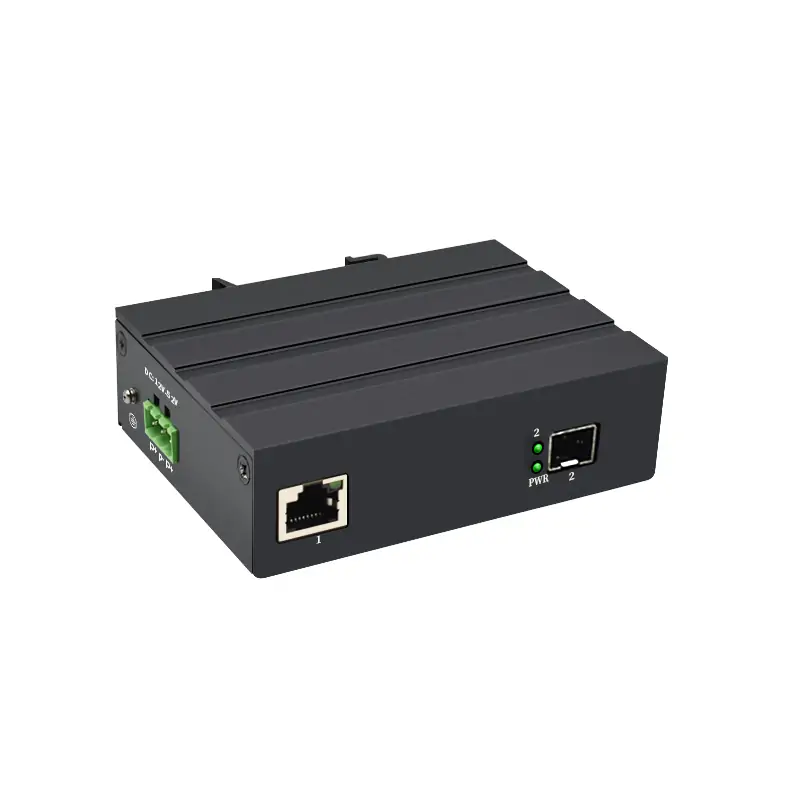

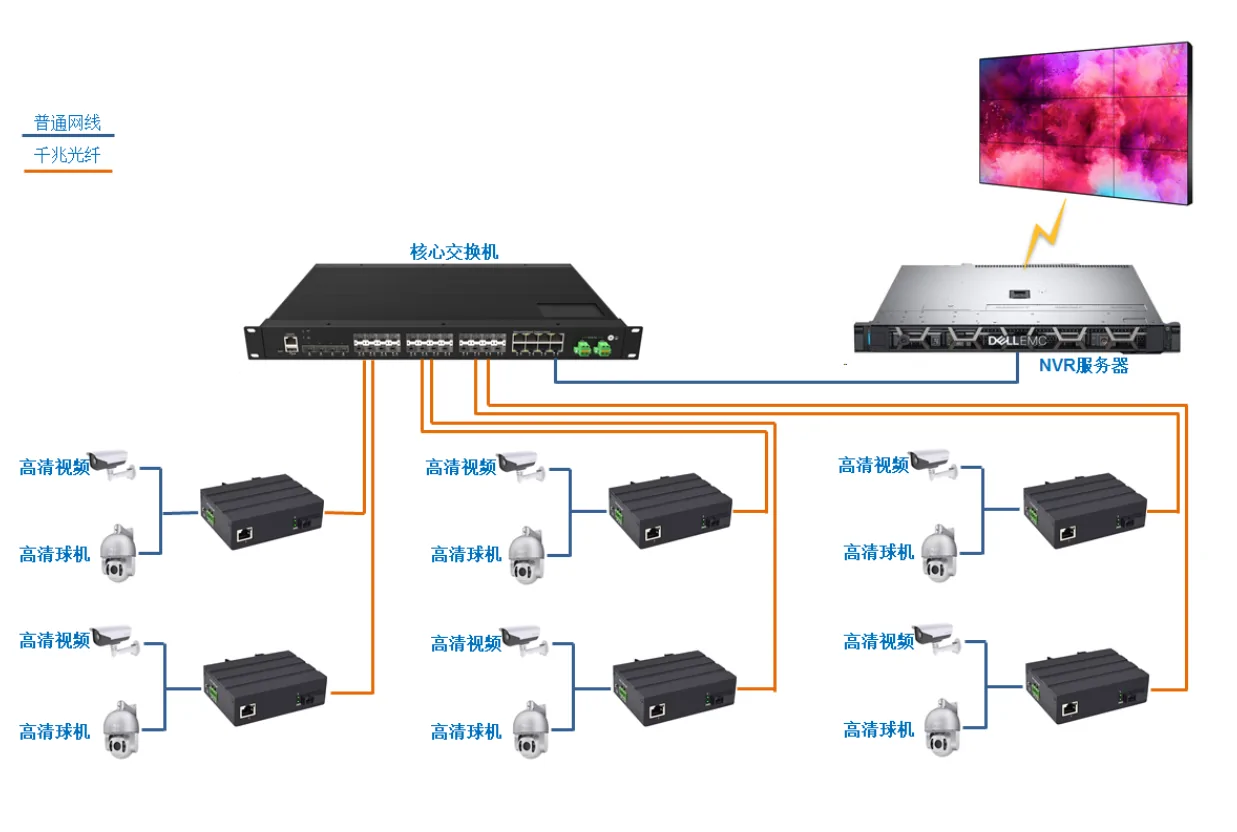

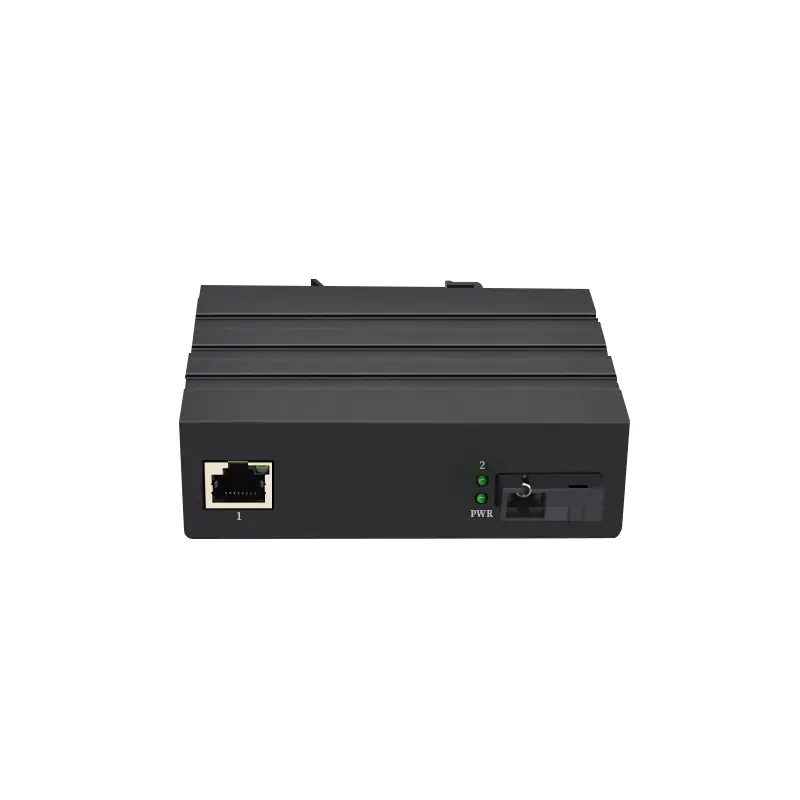

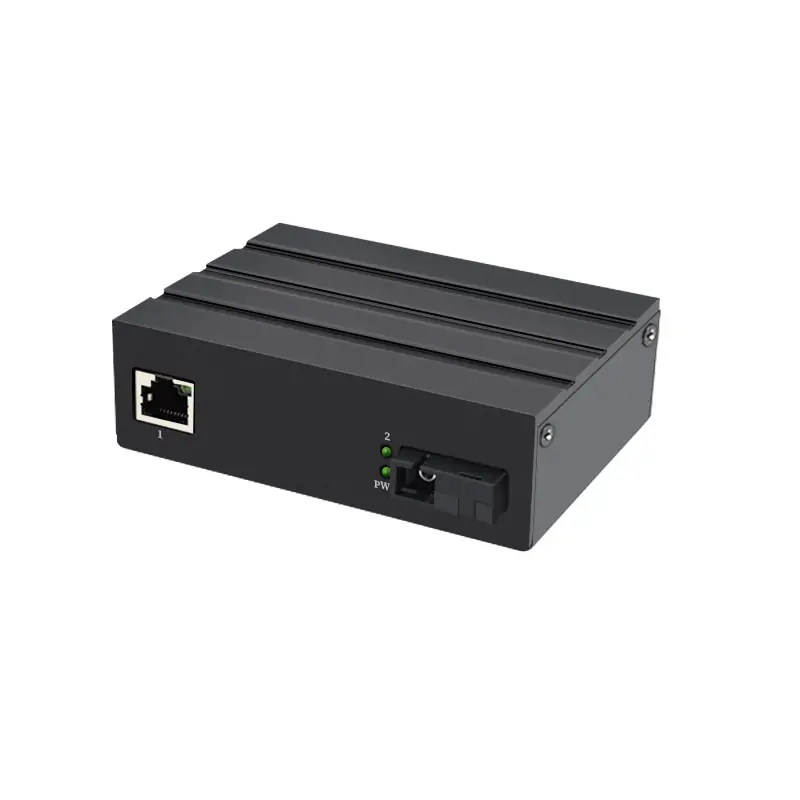

The ISG101-2005 is a 2-port unmanaged industrial gigabit switch designed to provide reliable and efficient networking in demanding environments. It features 1 x 10/100/1000Base-TX RJ45 Ethernet port and 1 x 1000Base-SX/LX SC optical port, offering flexible networking capabilities suitable for a wide range of industrial applications, including industrial control automation, road traffic management, building automation systems, and computer room monitoring. The ISG101-2005 operates stably, ensuring the establishment of a robust Industrial Internet of Things (IIoT) infrastructure.
Key Features
- 1 x 10/100/1000Base-TX RJ45 port and 1 x 1000Base-X optical port
- Supports 10/100/1000 Mbps speed adaptation
- All ports support automatic half/full duplex negotiation and MDI/MDI-X functionality
- High backplane bandwidth enables line-speed forwarding on all ports
- Broadcast storm suppression function enhances network stability
- Equipped with a redundant DC power supply for increased reliability
- IEC Class A electromagnetic protection level for superior electromagnetic compatibility (EMC)
- Wide temperature range from -40°C to +85°C, ensuring adaptability in harsh environments

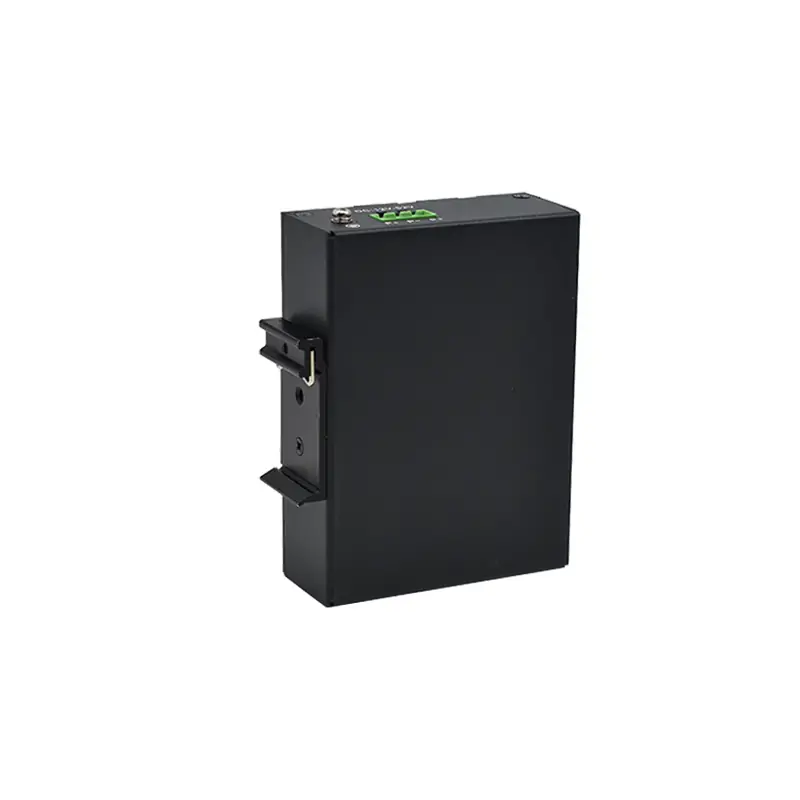

- DIN rail type installation for easy mounting
- IP40-rated protection with a rugged, high-strength metal casing; fanless design for low power consumption
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3x flow control |
| Interface information | RJ45 port: 1 10/100/1000M Base-T X port |
| Single-mode SC optical port: 1 1000Base-X optical port | |
| Mechanical properties | Shell material: metal shell |

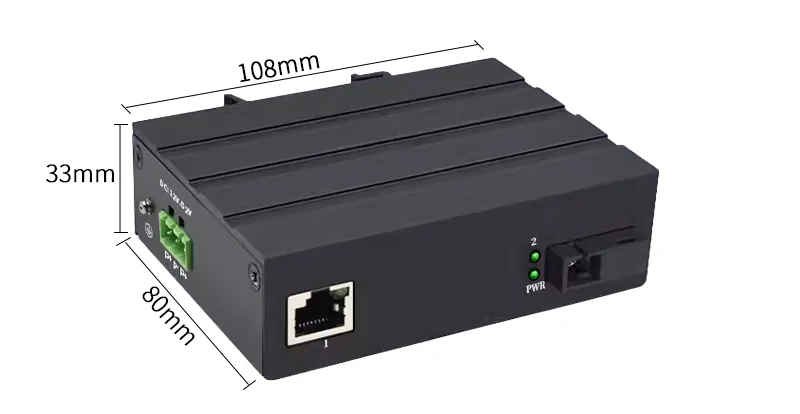

| Appearance dimensions (length*depth*height): 108 mm× 80 mm× 33 mm | |
| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: < 450 G | |
| Environmental properties | Working temperature: -40 ℃ ～+ 85 ℃ |
| Storage temperature: -40 ℃ ～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 14Gbps |
| Packet forwarding rate (whole machine) : 7.5 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Case space : 1M | |

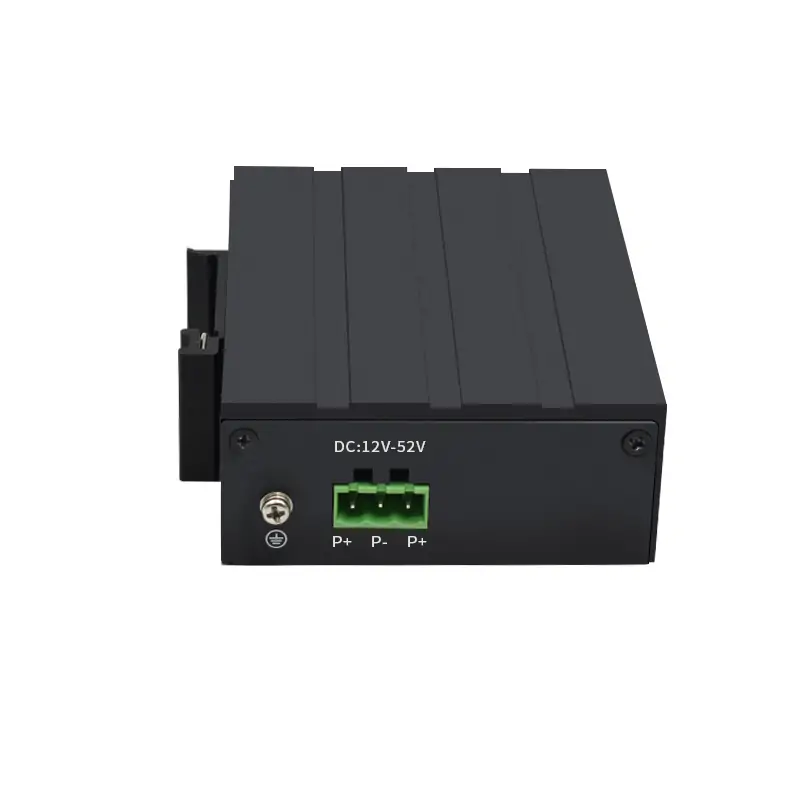

| Power supply | Input voltage: DC 12 V-57V (dual redundant) |
| Power interface: 3- core Phoenix terminal | |
| Power supply protection: positive and negative pole misconnection protection | |
| Power consumption: < 5 W | |
| indicator light | Port light (fluctuation switch control):Indicator light: 1000M Link/ACT green; |
| Power light: green | |
| Security properties | Shell protection: IP40 |
| Surge impact IEC61000-4-5 : (optional)Signal end: common mode ± 4KV, differential mode ± 2KVPower supply end: common mode ± 4KV, differential mode ± 2KV | |
| Anti-static interference IEC61000-4-2 : contact discharge ± 8KV, air discharge ± 15KV | |
| Pulse immunity IEC61000-4-4 : signal terminal: ± 2KV, power terminal: ± 2KV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| MTBF: 100000 hours | |
| warranty period | 5 years |
