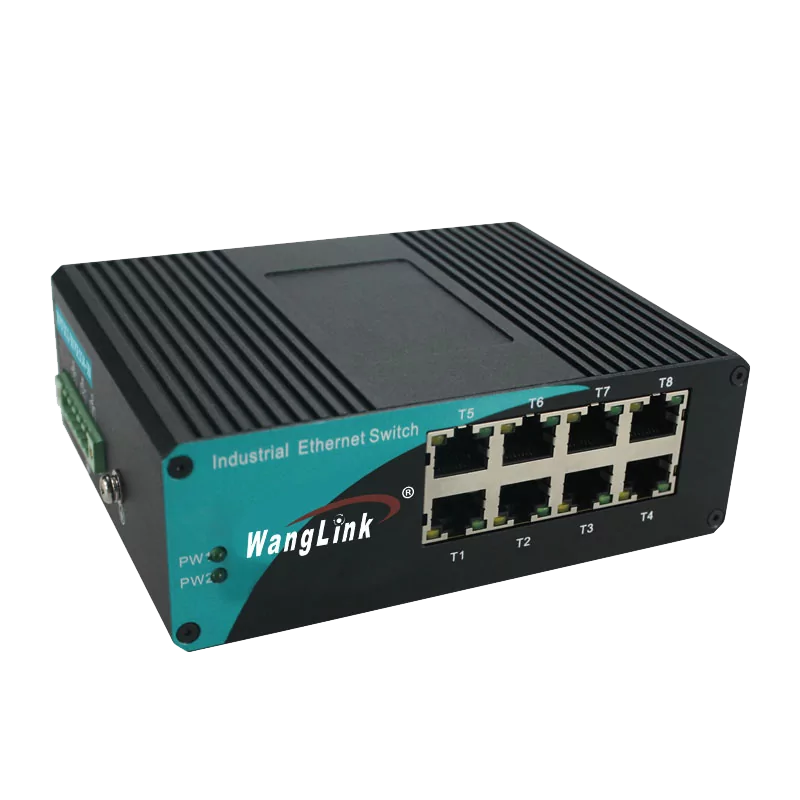

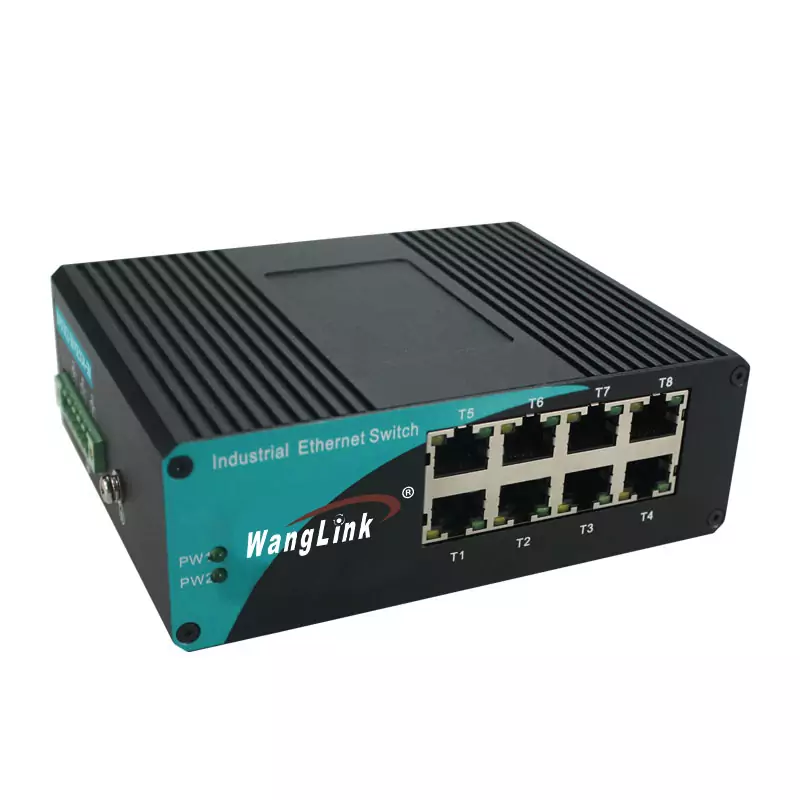

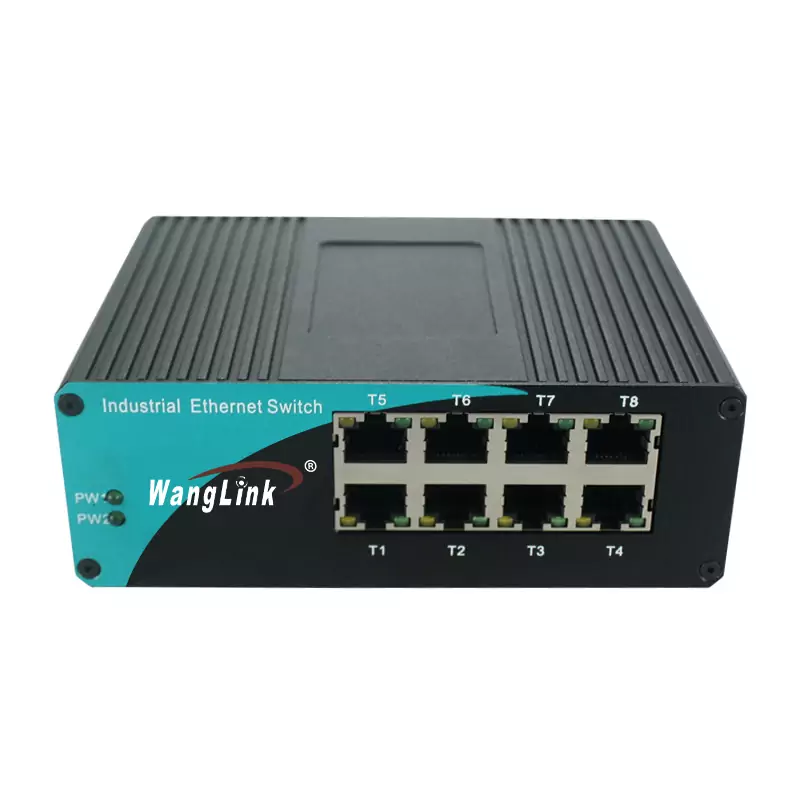

Product Overview

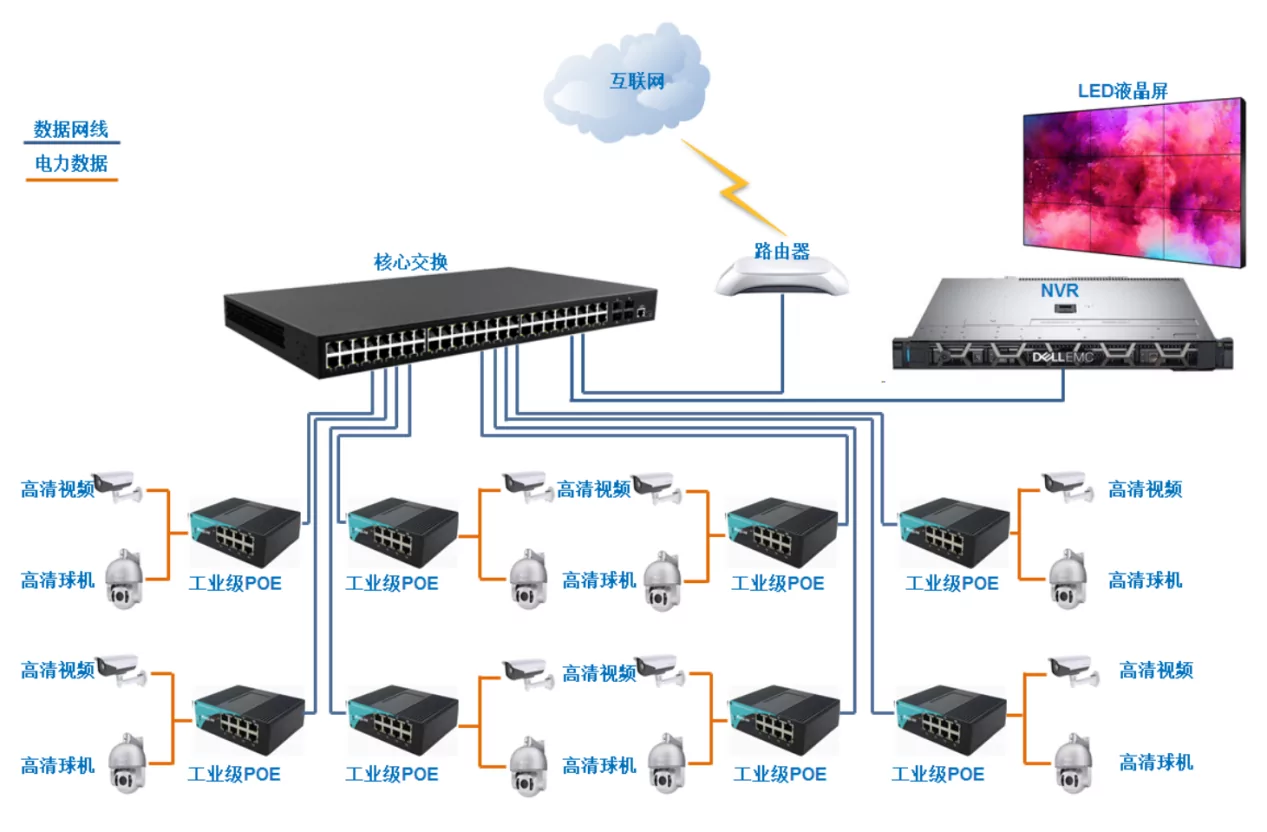

The 8 Port Industrial PoE Switch is engineered for harsh industrial environments, featuring 8 x 10/100/1000Mbps Ethernet ports. This unmanaged switch supports the IEEE802.3 af/at PoE power supply standard, delivering a maximum output of 25.4W per port. It automatically detects whether connected devices support PoE, ensuring safe power delivery and preventing damage to non-PoE devices. With its rugged design and advanced features, this switch is ideal for applications in industrial automation, road traffic control, building automation, data center monitoring systems, and more.
Key Features
- 8 x 10/100/1000Base-T Ethernet Ports: All ports support adaptive rates of 10/100/1000Mbps for versatile connectivity.
- PoE Support: Each port complies with IEEE802.3 af/at standards, providing up to 25.4W of power.
- Automatic Detection: The switch automatically identifies PoE-compatible devices, preventing damage to non-PoE equipment.
- Half/Full Duplex and MDI/MDI-X Functionality: Each port supports half/full duplex adaptive mode and automatic MDI/MDI-X for easy integration.
- Line-Speed Forwarding: Ensures smooth data transmission across all ports.
- Surge Protection: Equipped with imported surge protection devices to withstand lightning strikes and high voltage surges.
- Wide Temperature Range: Designed to operate in extreme temperatures from -45°C to +85°C.
- Dual Redundant Power Supply: Offers overload protection and reverse polarity protection for enhanced reliability.
- Easy Installation: Plug-and-play design for simple operation with no configuration required.
- Rugged Construction: IP40 protection level with a corrugated high-strength metal casing; fanless design for low power consumption.
- High EMC Compatibility: IEC Class A electromagnetic protection level ensures superior compatibility.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE802.3ab 1000Base-TIEEE802.3z 1000Base-SX/LX standardsIEEE 802.3af/at Power Over EthernetIEEE 802.3x flow control |
| Interface information | 8 10/100/1000Base-T Ethernet port (support PoE) |
| Standard RJ45 | |
| 10/100/1000 Mbps auto-negotiation | |
| 10Base-T: ≤100 m (CAT3, CAT4, CAT5 UTP) | |
| 100Base-TX: ≤100 m (CAT3, CAT4, CAT5 UTP) | |
| 1000Base-TX: ≤100 m (CAT3, CAT4, CAT5 UTP) | |
| Mechanical properties | Shell material: metal shell |

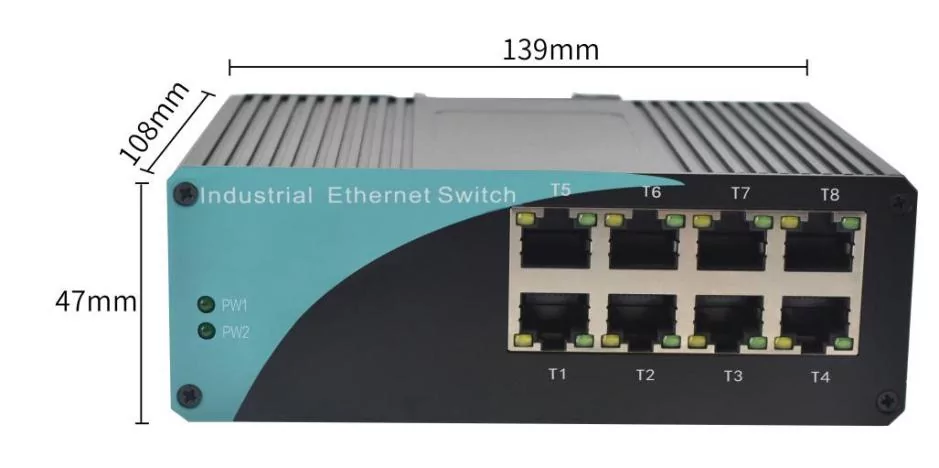

| Appearance dimensions (length*depth*height): 139mm×108mm×50mm | |

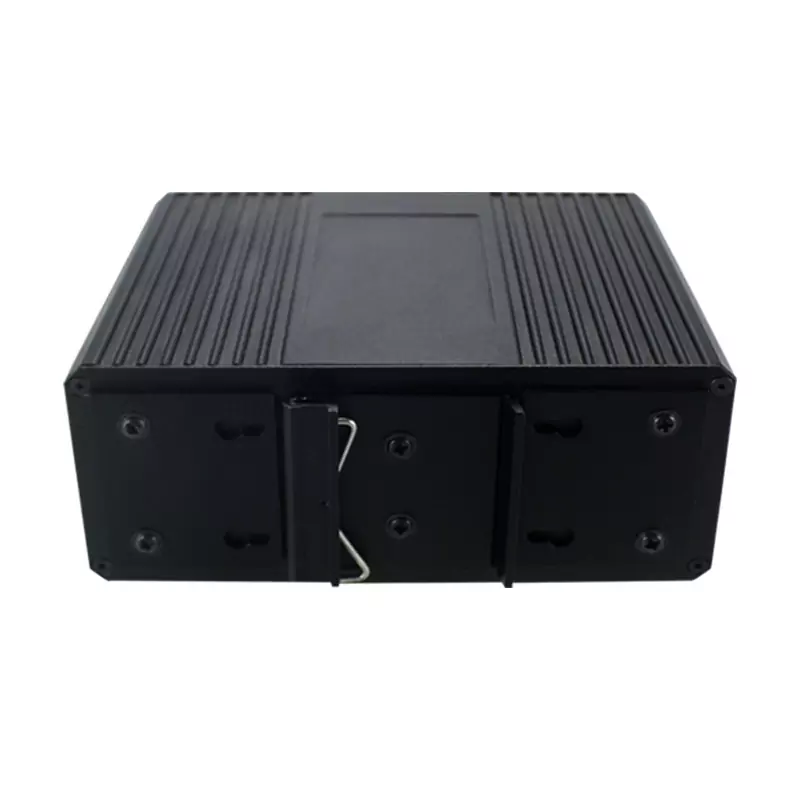

| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: < 0.6KG | |
| Environmental properties | Working temperature: -40 ℃ ～+ 85 ℃ |
| Storage temperature: -40 ℃ ～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 20Gbps |
| Packet forwarding rate (whole machine) : 14.88 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 16K | |
| Packet buffer : 2M | |
| Jumbo frame: 10K | |
| Power supply | Input voltage: DC 44V-58V (dual redundant) |
| Power interface: 6-core Phoenix terminal | |
| Power supply protection: positive and negative pole misconnection protection | |
| Minimum power consumption: < 5W, maximum power consumption: < 120W. | |
| PoE pin | 802.3AF/AT(1/2+，3/6-) |
| indicator light | Ethernet port :1000M Link/ACT yellowPoE: green |
| Fiber port: Red | |
| Power light: Green | |
| Security properties | Shell protection: IP40 |
| Surge impact IEC61000-4-5 : (optional)Signal end: common mode ± 4KV, differential mode ± 2KVPower supply end: common mode ± 4KV, differential mode ± 2KV | |
| Anti-static interference IEC61000-4-2 : contact discharge ± 8KV, air discharge ± 15KV | |
| Pulse immunity IEC61000-4-4 : signal terminal: ± 2KV, power terminal: ± 2KV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| MTBF: 100000 hours | |
| warranty period | 3 years |
