Product Overview

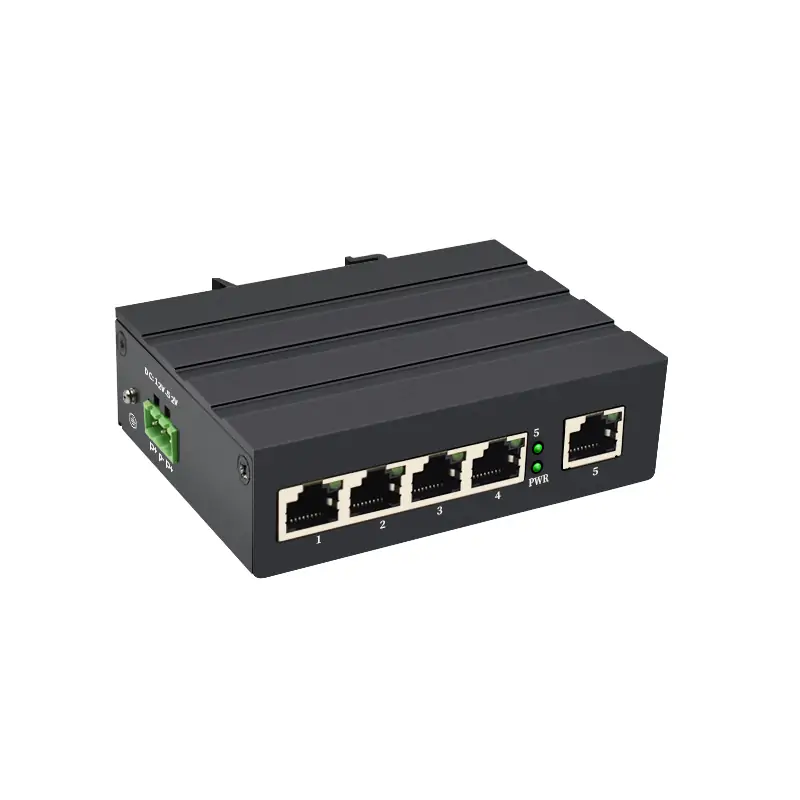

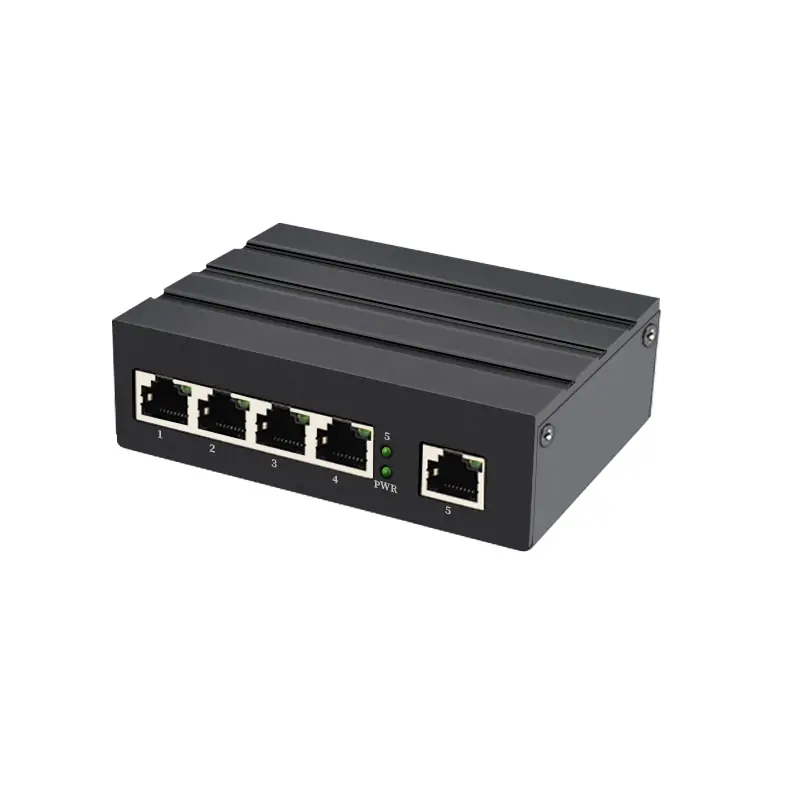

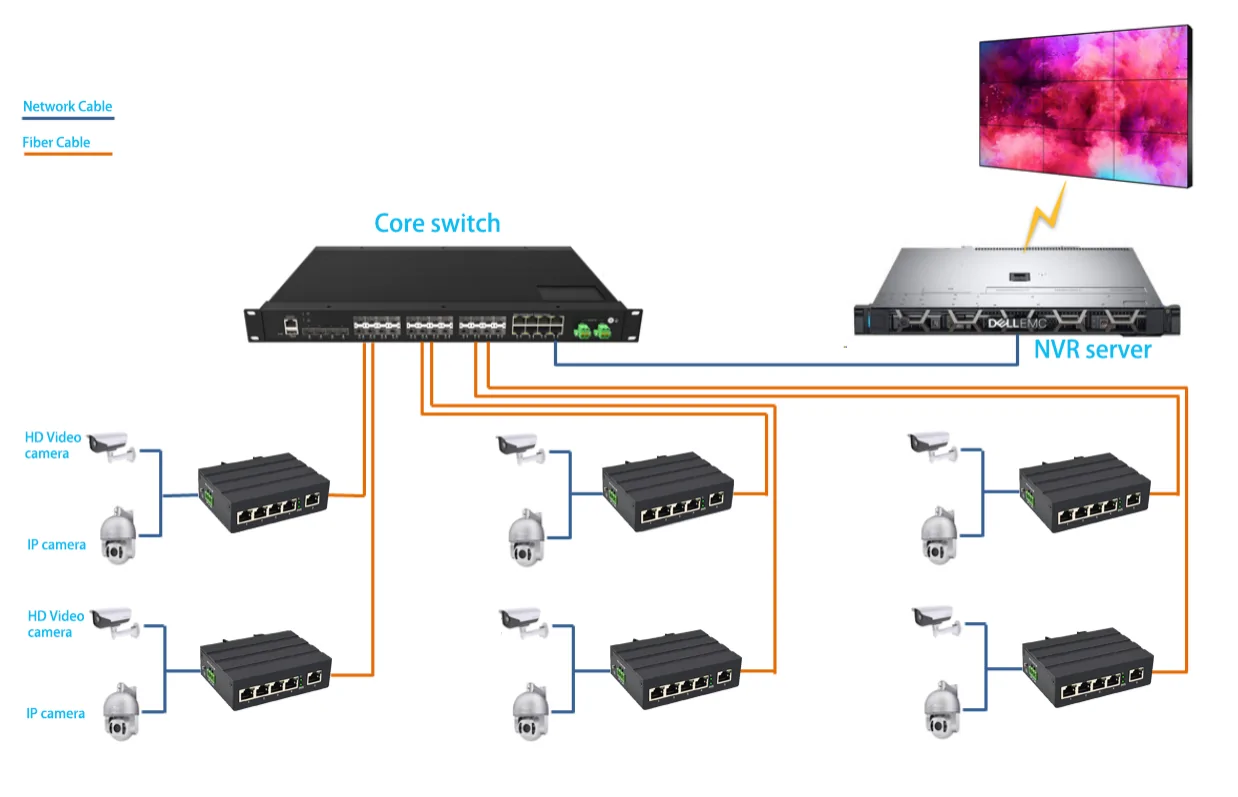

The ISF410-1005 is a 5-port unmanaged industrial Ethernet switch designed for reliable operation in harsh environments. Featuring 5 x 10/100Base-TX RJ45 Ethernet ports, this switch provides flexible networking solutions suitable for a variety of industrial applications. It is ideal for use in industrial control automation, road traffic management, building automation systems, and computer room monitoring. The ISF410-1005 operates stably and efficiently, contributing to the establishment of a robust Industrial Internet of Things (IIoT) infrastructure.
Key Features
- 5 x 10/100Base-TX RJ45 ports
- Supports 10/100 Mbps speed adaptation
- All ports support automatic half/full duplex negotiation and MDI/MDI-X functionality
- High backplane bandwidth ensures line-speed forwarding on all ports
- Broadcast storm suppression function enhances overall network stability
- Equipped with a redundant DC power supply for increased reliability
- IEC Class A electromagnetic protection level for superior electromagnetic compatibility (EMC)
- Wide temperature range from -40°C to +85°C, ensuring adaptability in harsh on-site environments
- DIN rail type installation for easy mounting
- IP40-rated protection with a rugged, high-strength metal casing; fanless design for low power consumption
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.3x flow control |
| Interface information | RJ45 port: 5 10/100M Base-T X port |
| Mechanical properties | Shell material: metal shell |

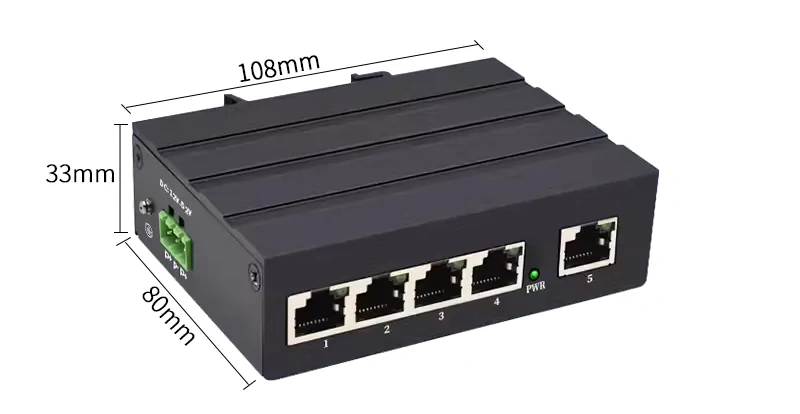

| Appearance dimensions (length*depth*height): 108 mm× 80 mm× 33 mm | |

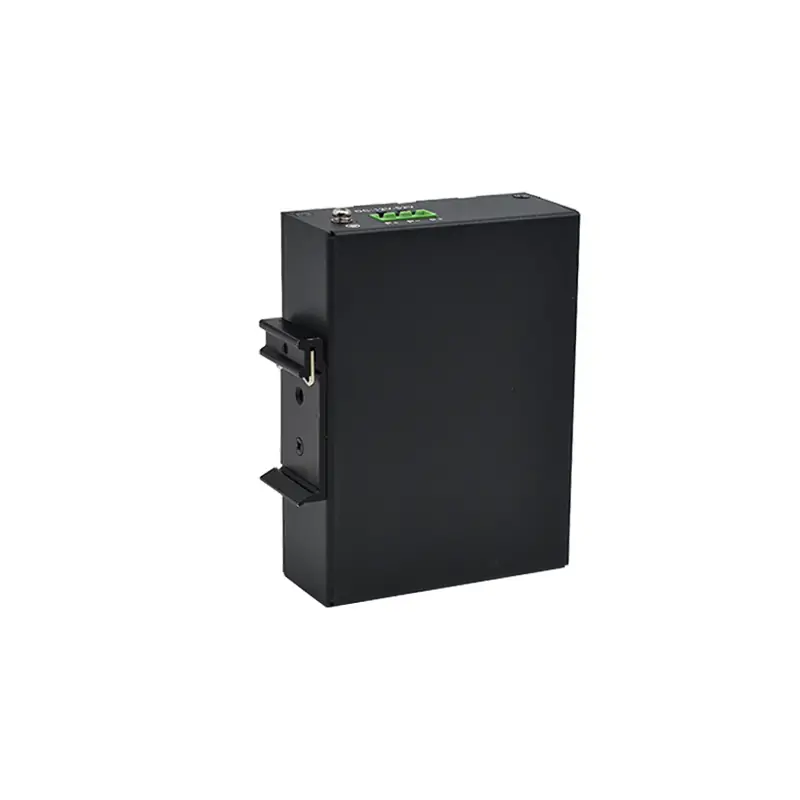

| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: < 450 G | |
| Environmental properties | Working temperature: -40 ℃ ～+ 85 ℃ |
| Storage temperature: -40 ℃ ～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 1Gbps |
| Packet forwarding rate (whole machine) : 0.75 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Case space : 512K | |
| Power supply | Input voltage: DC 12 V-57V (dual redundant) |

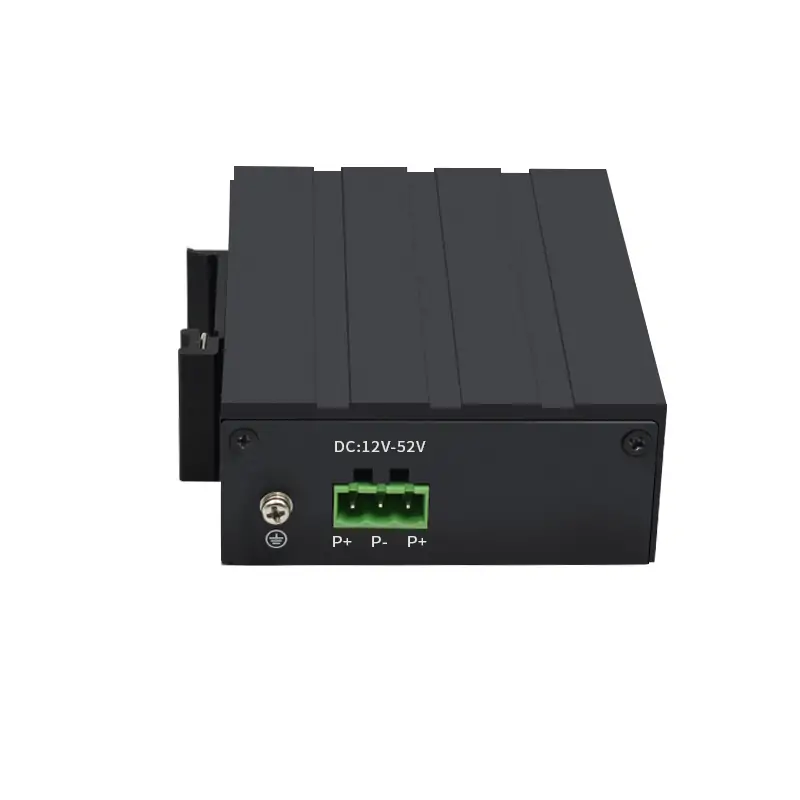

| Power interface: 3- core Phoenix terminal | |
| Power supply protection: positive and negative pole misconnection protection | |
| Power consumption: < 5 W | |
| indicator light | Port light (fluctuation switch control):Indicator light: 100M Link/ACT green; |
| Power light: green | |
| Security properties | Shell protection: IP40 |
| Surge impact IEC61000-4-5 : (optional)Signal end: common mode ± 4KV, differential mode ± 2KVPower supply end: common mode ± 4KV, differential mode ± 2KV | |
| Anti-static interference IEC61000-4-2 : contact discharge ± 8KV, air discharge ± 15KV | |
| Pulse immunity IEC61000-4-4 : signal terminal: ± 2KV, power terminal: ± 2KV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| MTBF: 100000 hours | |
| warranty period | 5 years |
