Product overview

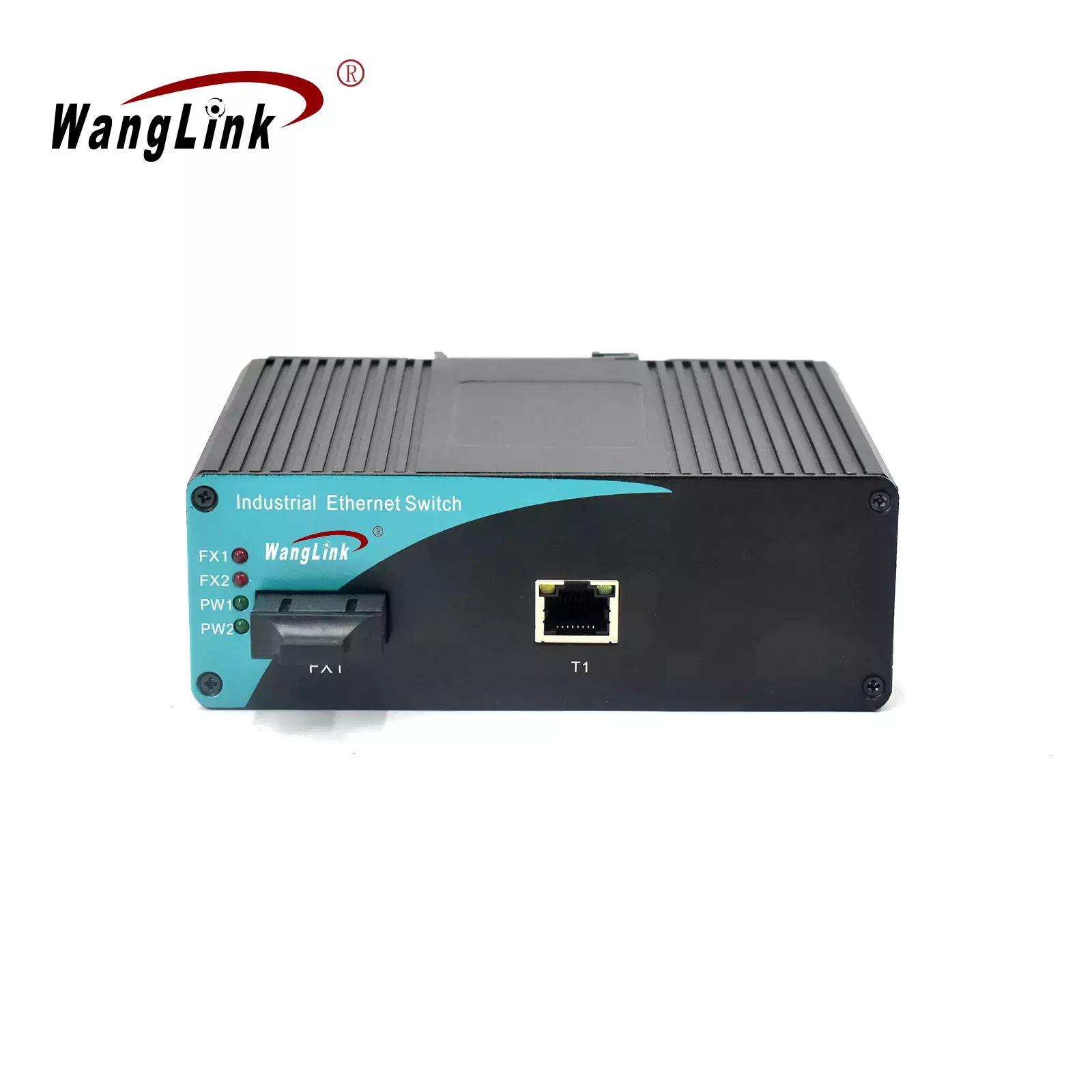

This industrial PoE switch is engineered for demanding industrial environments, featuring one 155M SC fiber port and one 10/100Mbps Ethernet port. All ports comply with the IEEE 802.3 af/at PoE power supply standard, delivering up to 25.4W of power per port. The switch automatically detects whether connected devices support PoE, ensuring safe operation by supplying power only to compatible devices, thus preventing damage to non-PoE equipment.
Key Features:
- Port Configuration: 1 x 10/100Base-TX Ethernet port and 1 x 100Base-X optical port. All Ethernet ports support 10/100Mbps adaptive rates and half/full duplex modes with automatic MDI/MDI-X functionality.
- Power Supply: Each Ethernet port supports IEEE 802.3 af/at PoE standards, with a maximum output of 25.4W, making it ideal for powering IP cameras and other devices.
- Robust Design: Built to industrial-grade standards, this switch features dual redundant power supplies, overload protection, and reverse polarity protection. It is dustproof, moisture-proof, and resistant to lightning strikes.
- Temperature Resilience: Operates effectively in extreme temperatures ranging from -45°C to +85°C, ensuring reliability in harsh conditions.
- High Reliability: With a mean time between failures (MTBF) of 300,000 hours, it is perfect for industrial automation, road traffic control, building automation, data center monitoring, and other applications.
- User-Friendly: Plug-and-play design allows for simple operation with no configuration required. The IP40 protection level ensures durability, while the fanless design promotes low power consumption.
- Electromagnetic Compatibility: Meets IEC Class A electromagnetic protection standards, ensuring high EMC compatibility.

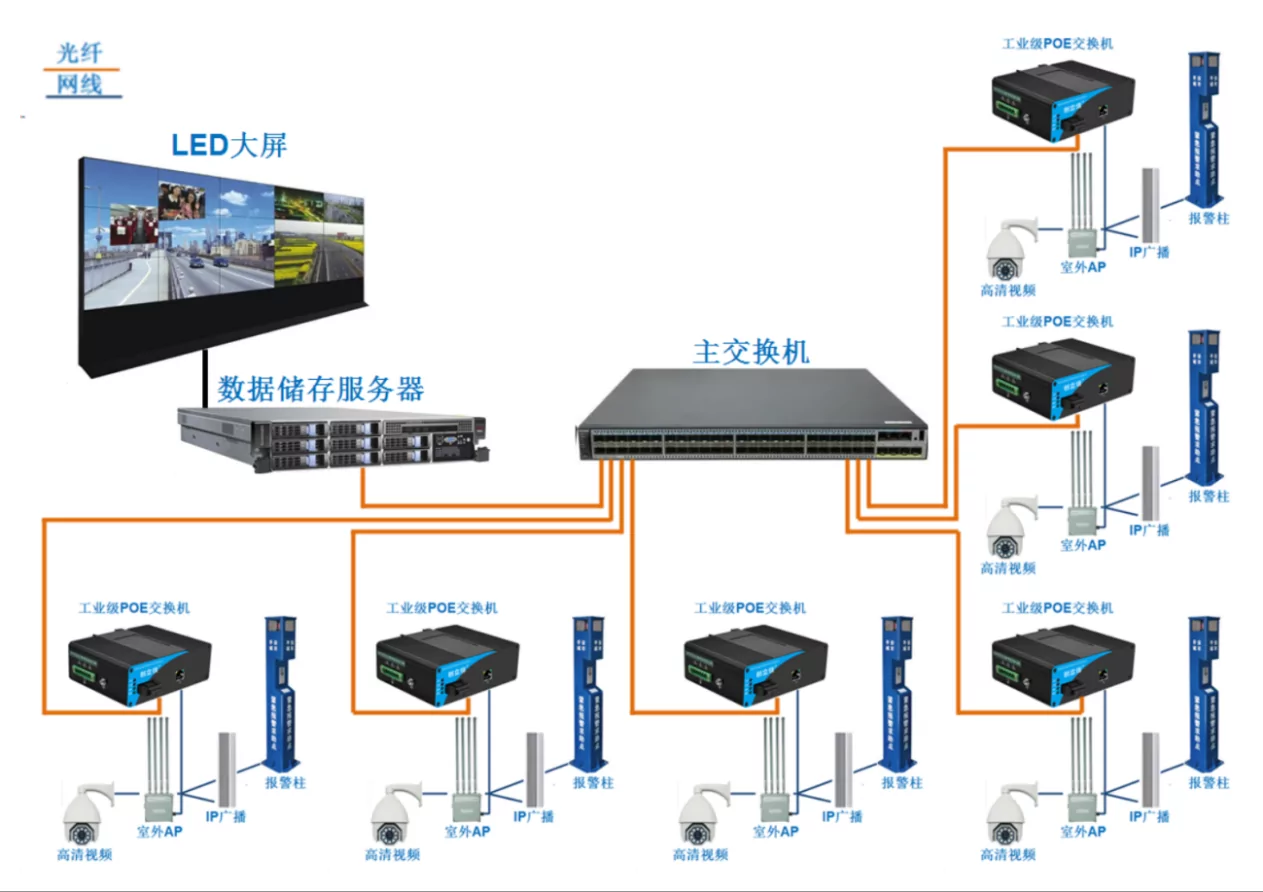

This unmanaged industrial Ethernet switch PoE is the ideal solution for building a robust industrial IoT network, ensuring stable and reliable operation even in the most challenging environments.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE802.3z 100Base-SX/LX standardsIEEE 802.3af/at Power Over EthernetIEEE 802.3x flow control |

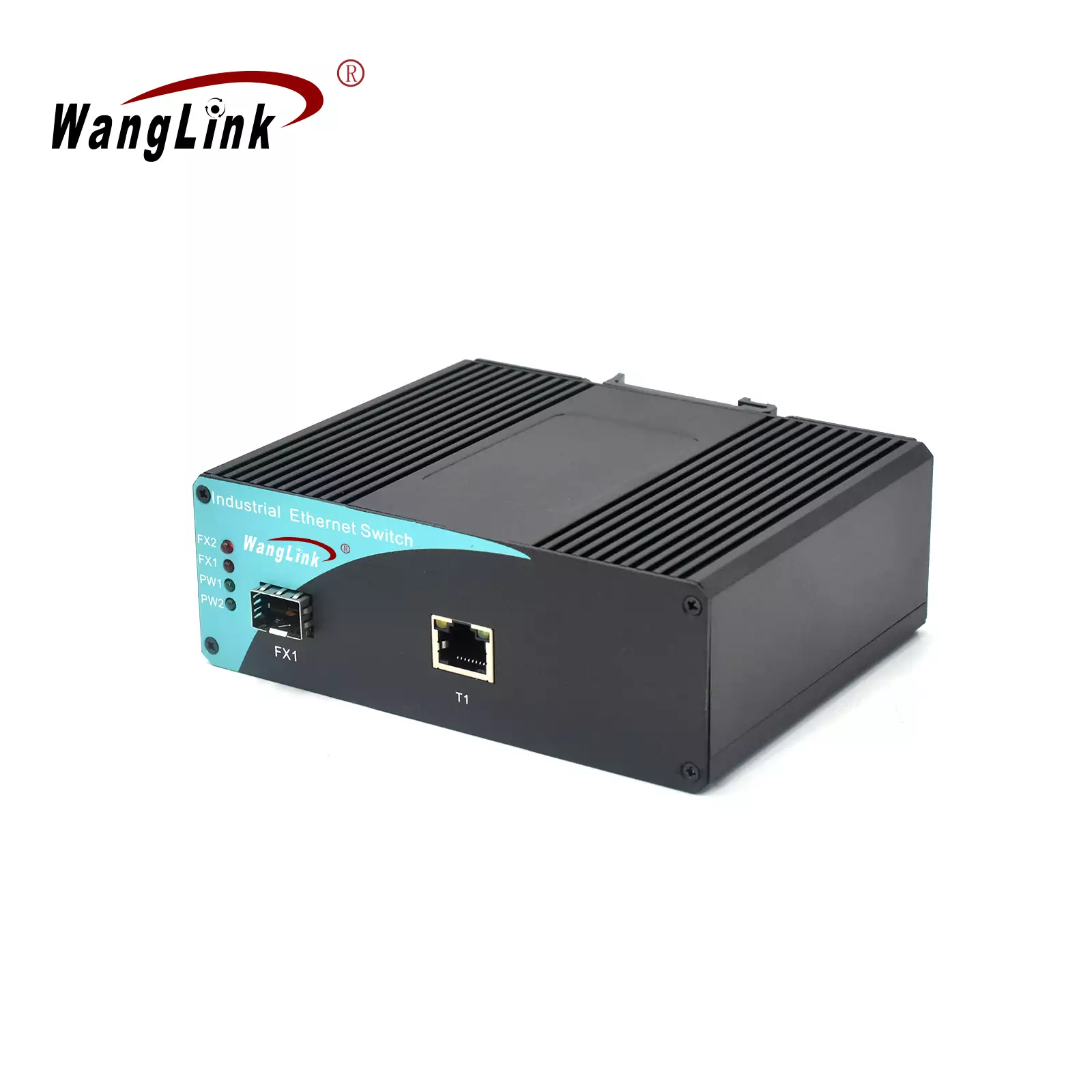

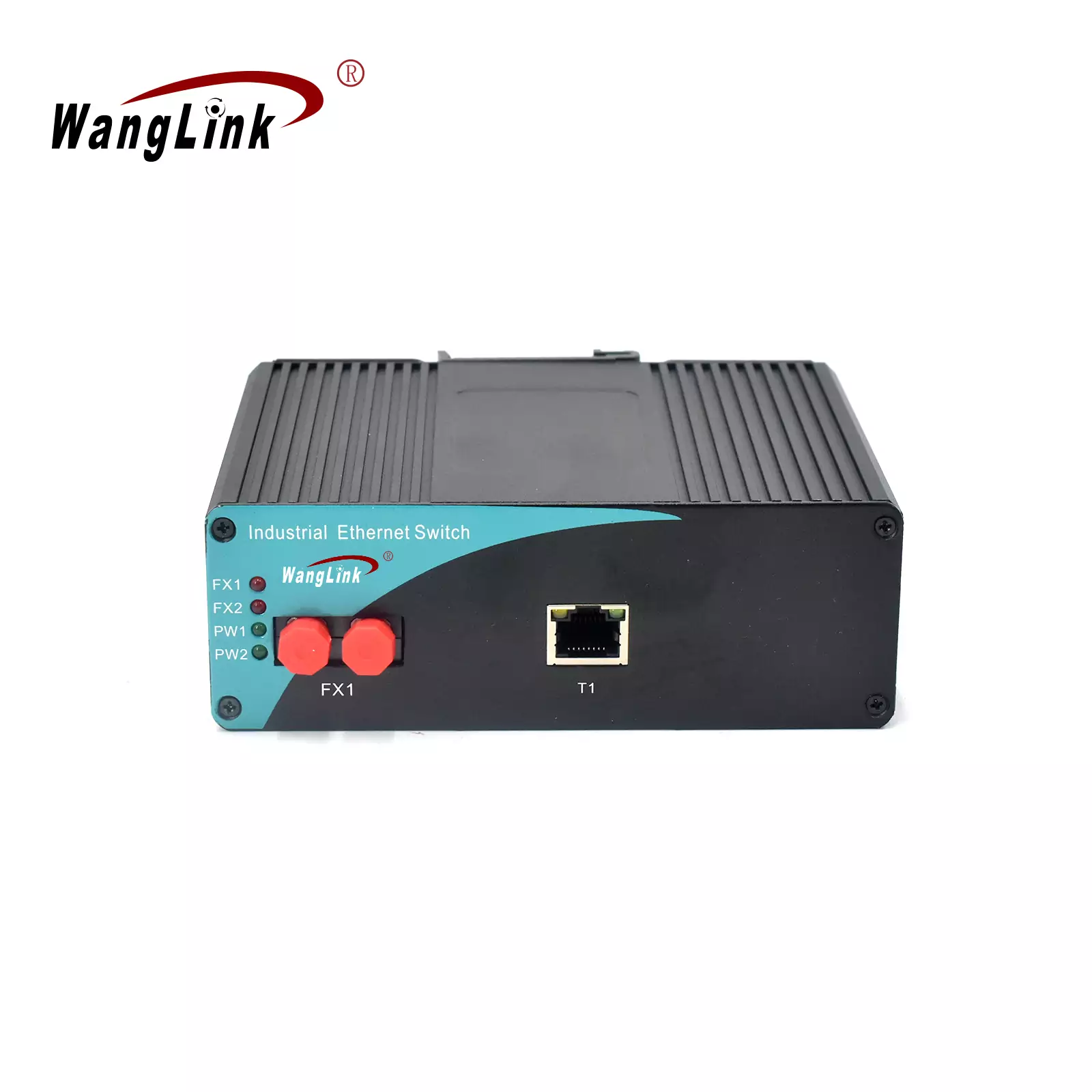

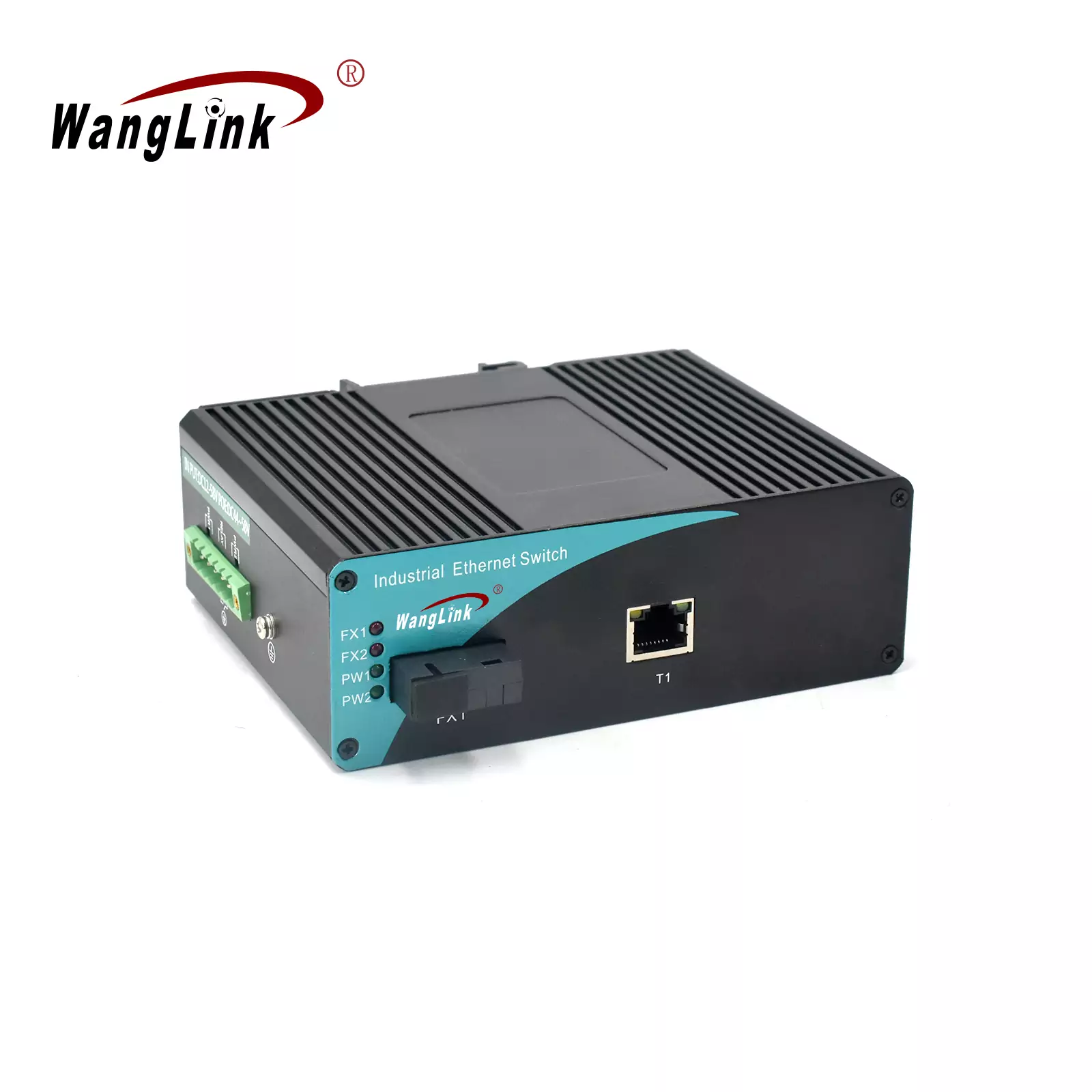

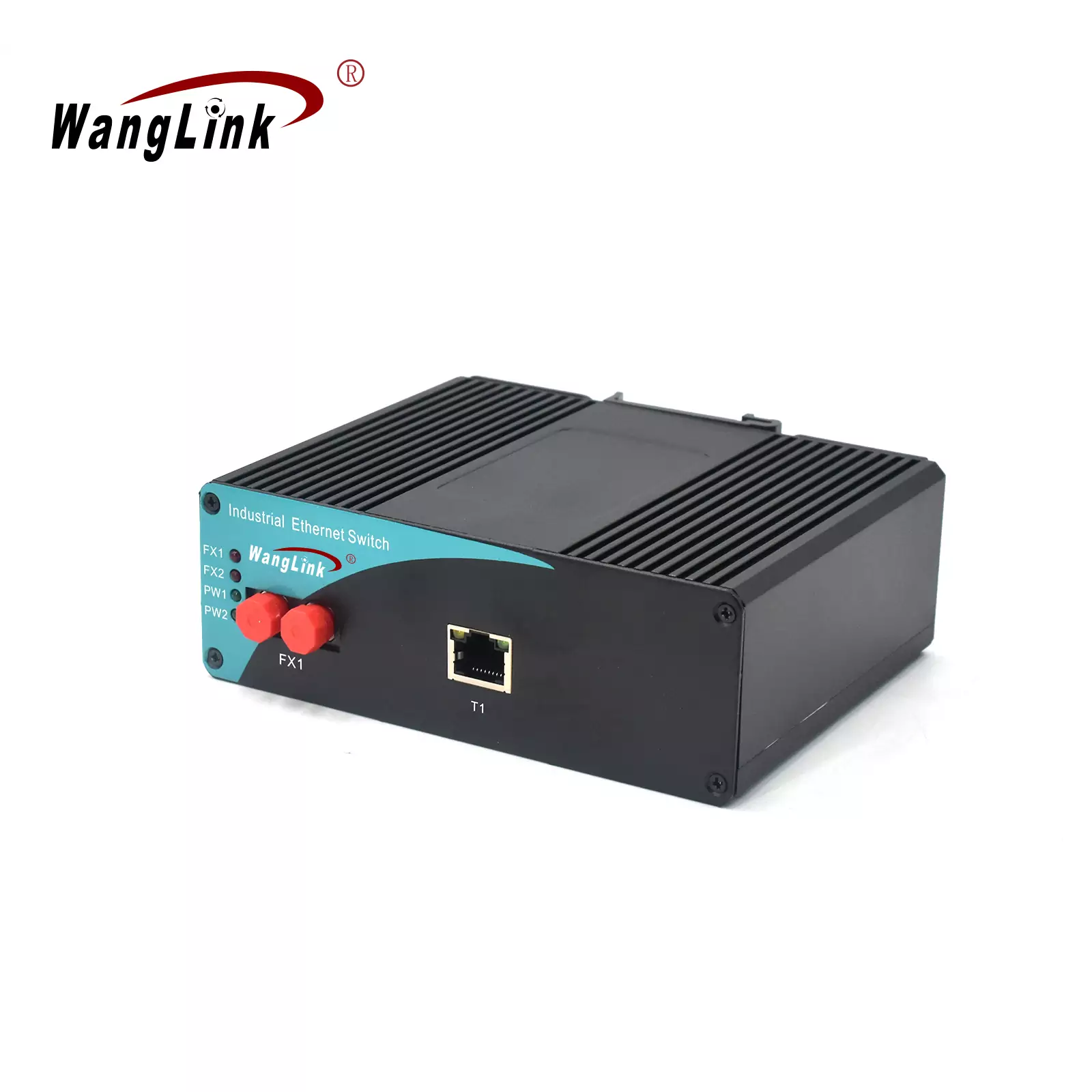

| Interface information | Single-mode SC fiber port: 1 100Base-X fiber optic port (options: SC/FC/SFP). |
| Transmission rate: 155 Mbps | |
| Multimode fiber distance: 550 m/2 km; Single-mode fiber distance: 2/20/40/60/80/100 km | |
| Multimode wavelength: 850 nm/1310 nm; Single-mode wavelength: 1310 nm/1550 nm/1490 nm | |
| RJ45 Ethernet port: 1 10/100Base-TX Ethernet port (standard RJ45) | |
| 10/100 Mbps auto-negotiation | |
| 10Base-T: ≤100 m (CAT3, CAT4, CAT5 UTP) | |
| 100Base-TX: ≤100 m (CAT3, CAT4, CAT5 UTP) | |
| Mechanical properties | Shell material: metal shell |

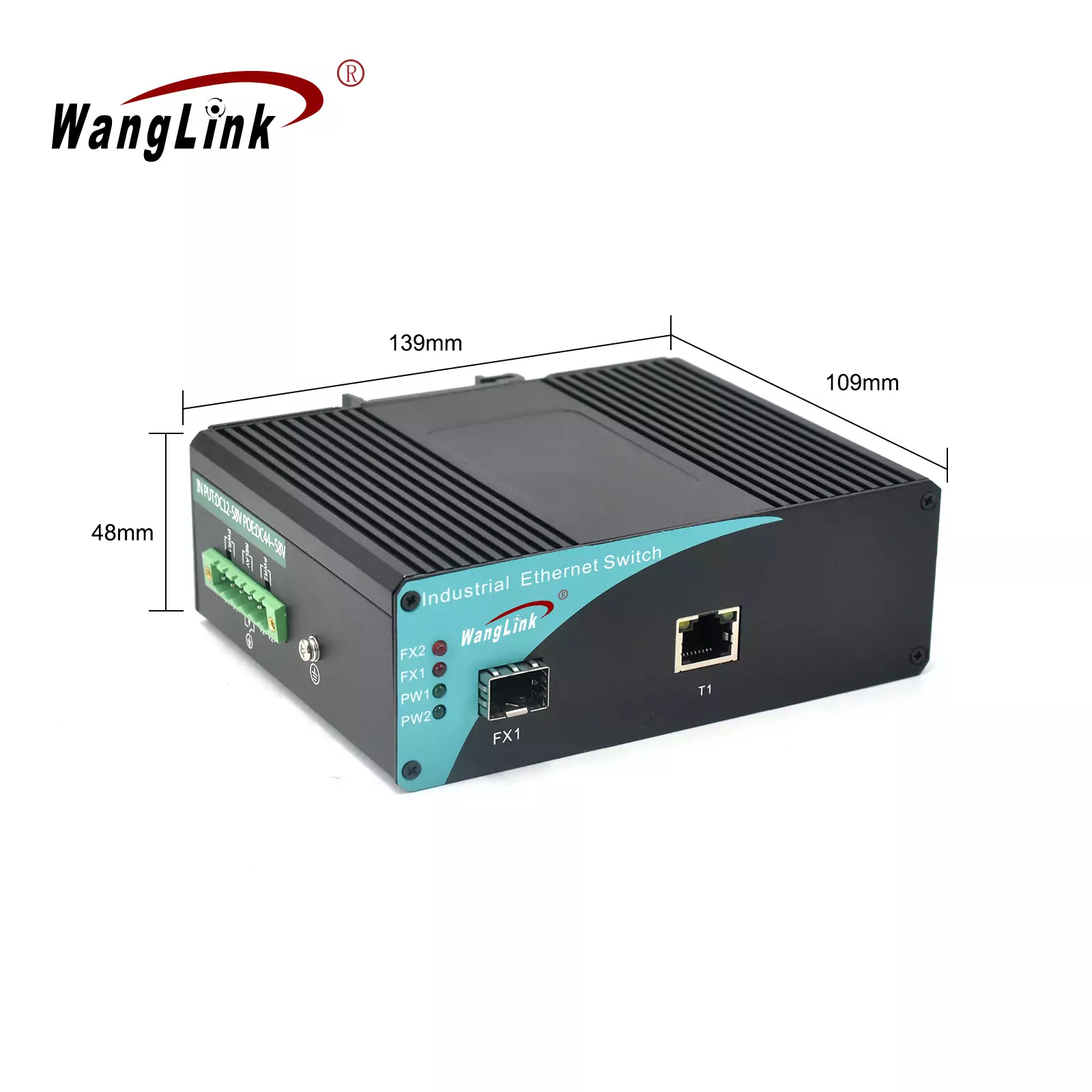

| Appearance dimensions (length*depth*height): 139mm×108mm×50mm | |
| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: < 0.6KG | |
| Environmental properties | Working temperature: -40 ℃ ～+ 85 ℃ |
| Storage temperature: -40 ℃ ～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 1.2Gbps |
| Packet forwarding rate (whole machine) : 0.8928 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 1K | |
| Packet buffer : 512K | |
| Jumbo frame: 10K | |
| Power supply | Input voltage: DC 44 V-58V (dual redundant) |
| Power supply protection: positive and negative pole misconnection protection | |
| Minimum power consumption: < 5W, maximum power consumption: < 30W. | |
| PoE pin | 802.3AF/AT(1/2+，3/6-) |
| indicator light | Ethernet port :100M Link/ACT yellow, Link/Act green;PoE: POET green |
| Fiber port: Red | |
| Power light: green(PW1-PW2) | |
| Security properties | Shell protection: IP40 |
| Surge impact IEC61000-4-5 : (optional)Signal end: common mode ± 4KV, differential mode ± 2KVPower supply end: common mode ± 4KV, differential mode ± 2KV | |
| Anti-static interference IEC61000-4-2 : contact discharge ± 8KV, air discharge ± 15KV | |
| Pulse immunity IEC61000-4-4 : signal terminal: ± 2KV, power terminal: ± 2KV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| MTBF: 100000 hours | |
| warranty period | 3 years |
