Product Overview

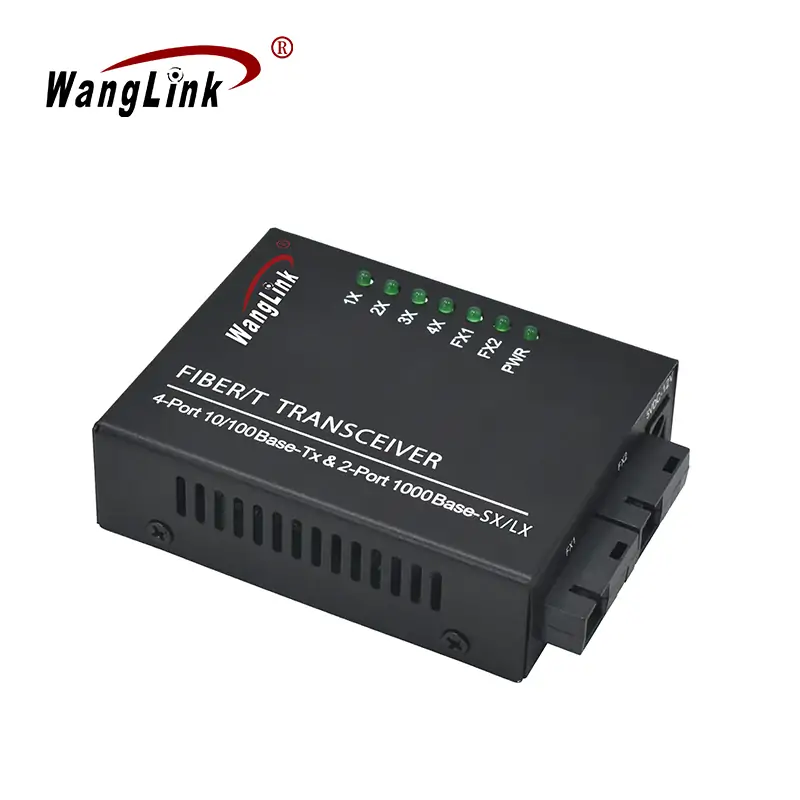

The CL402 Single Mode Media Converter is a robust fiber optic switch designed for high-speed data transmission. It features 2 SC fiber optic ports, each operating at 1.25 Gbps, alongside 4 10/100 Mbps Ethernet ports. This versatile media converter facilitates seamless data communication between 100Base-TX twisted-pair cables and 1000Base-SX/LX fiber optic cables, extending the maximum transmission distance from 100 meters on twisted-pair cables to an impressive 120 kilometers using fiber optic connections.

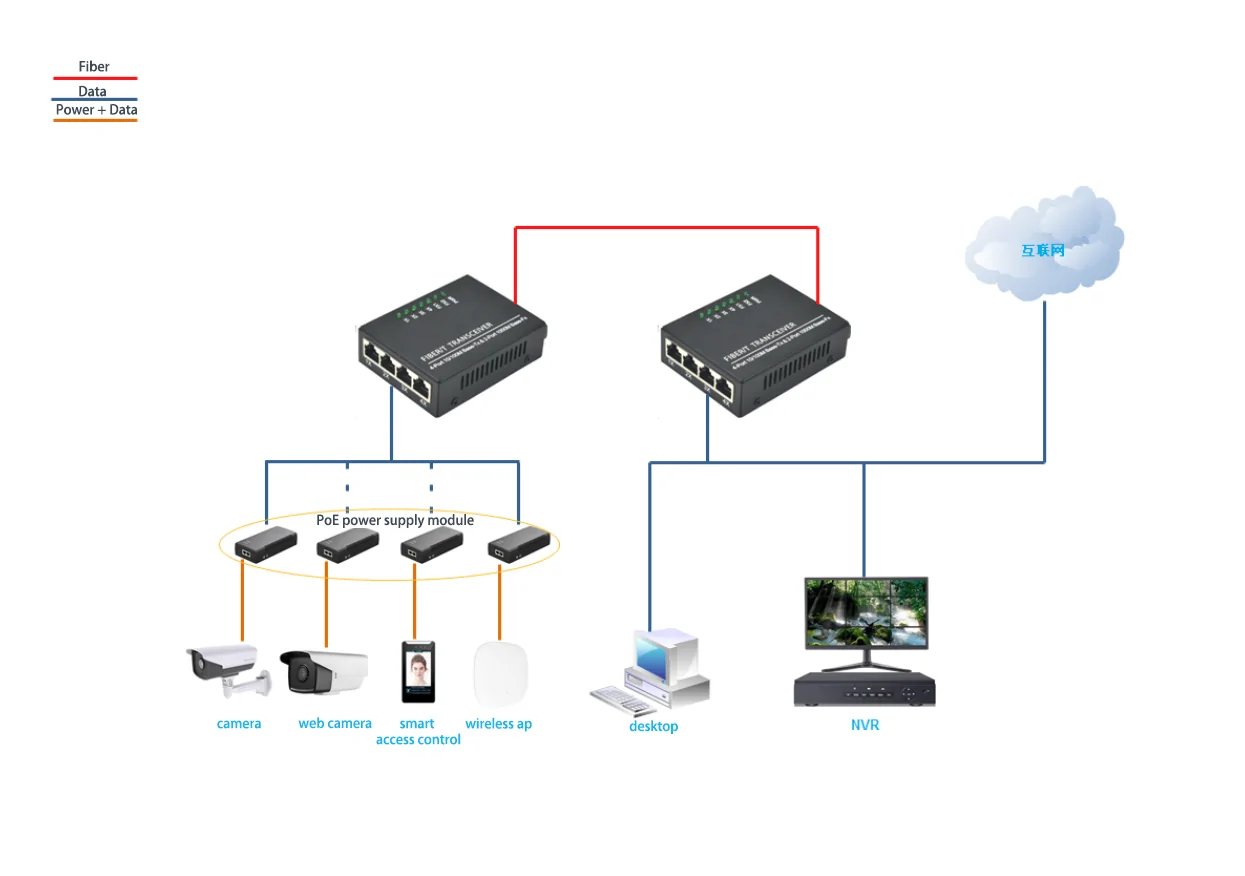

Installation of the CG402 is straightforward, leveraging a plug-and-play design that requires no configuration. All optical and electrical interfaces adhere to international standards, ensuring reliable performance across various applications. This media converter is equipped with isolation protection, which promotes data confidentiality, and provides stable operation for maintenance-free use. It is suitable for deployment in diverse commercial and industrial environments.
Key Features

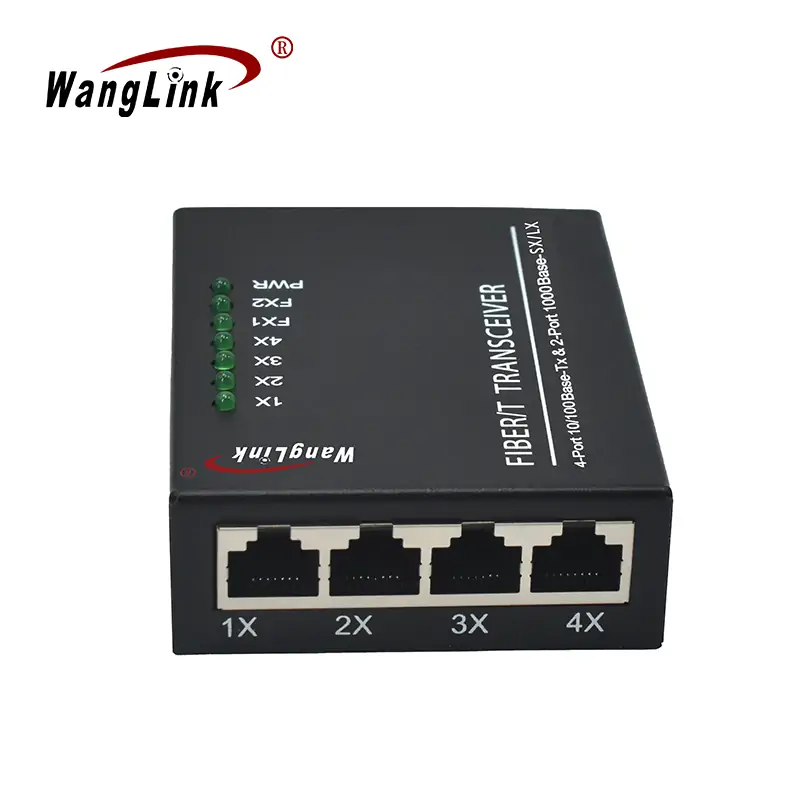

- 4 10/100Base-TX Ethernet ports and 2 1000Base-X fiber optic ports for versatile connectivity.
- Supports transmission of large data packets up to 10K.
- All ports accommodate 10/100 Mbps rate adaptation for enhanced flexibility.
- Supports half/full duplex auto-negotiation and automatic MDI/MDI-X functionality for easy networking.
- Line-speed forwarding on all ports ensures smoother data transmission.
- Plug-and-play operation, requiring no setup for immediate use.
- Constructed with a metal casing for excellent heat dissipation, promoting stable long-term operation.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3x flow control |

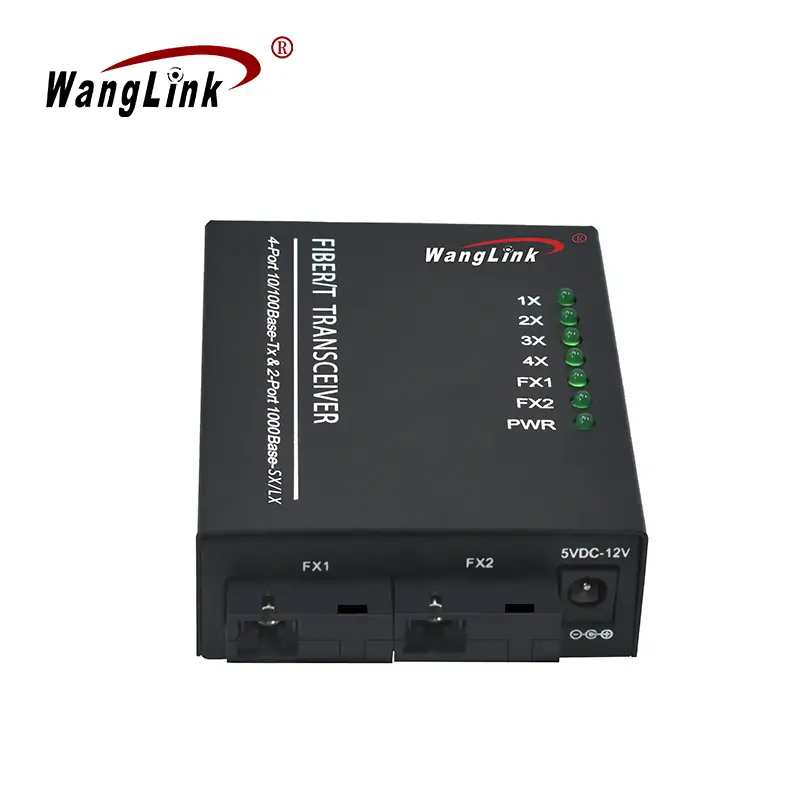

| Fiber Port Characteristic | Connector Type | SC/FC/ST/SFP |
| Transmission rate | 1.25Gbps | |
| Transmission distance | Multi-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km | |
| Wavelength | Multi-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm | |
| Ethernet port Characteristic | Connector Type | 1×1 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate； | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 512kbit | |
| Jumbo frame | 10K | |
| Packet Forwarding Rate | 3.6Mpps@64byte | |
| Bandwidth | 4.8G（non-blocking） | |

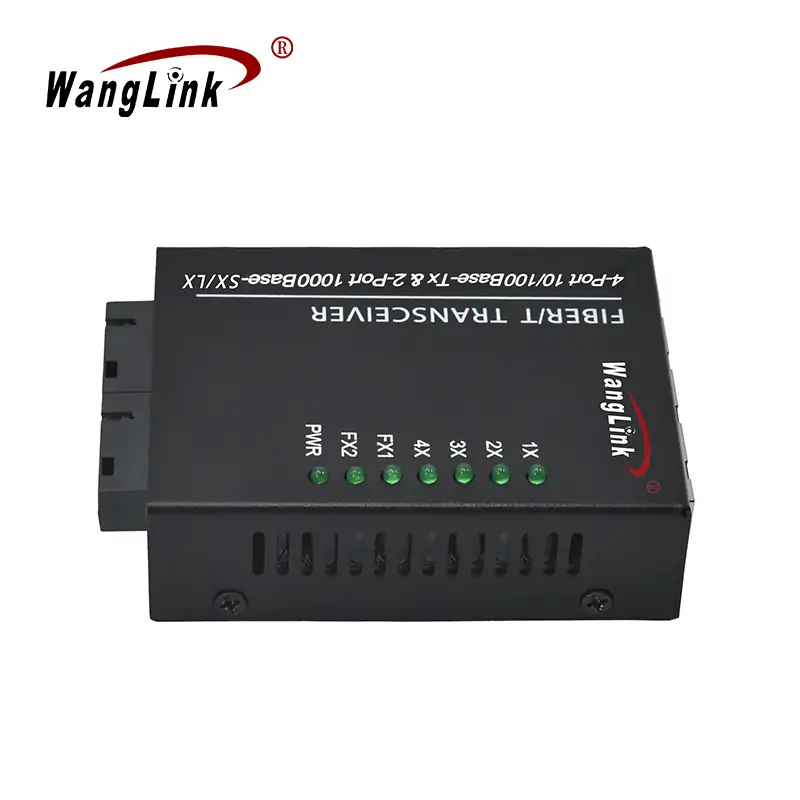

| LED indicator | Power supply indicator | PWR: Green |
| Fiber indicator | FX1/FX2, Green | |
| Link/Act indicator | 1X-4X, Green | |
| Power parameters | Input voltage | DC5~12V |
| Power consumption | ≤3W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

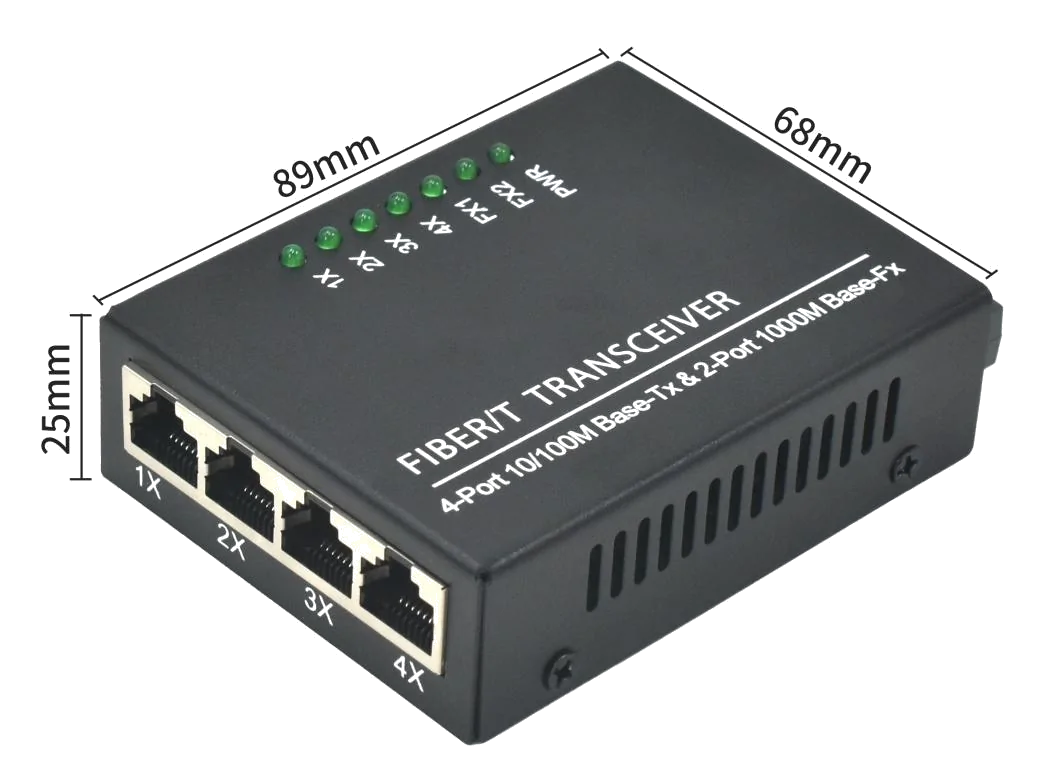

| Physical properties | Size | 89×68×25mm |
| Weight | 0.2KG |
