Product Overview

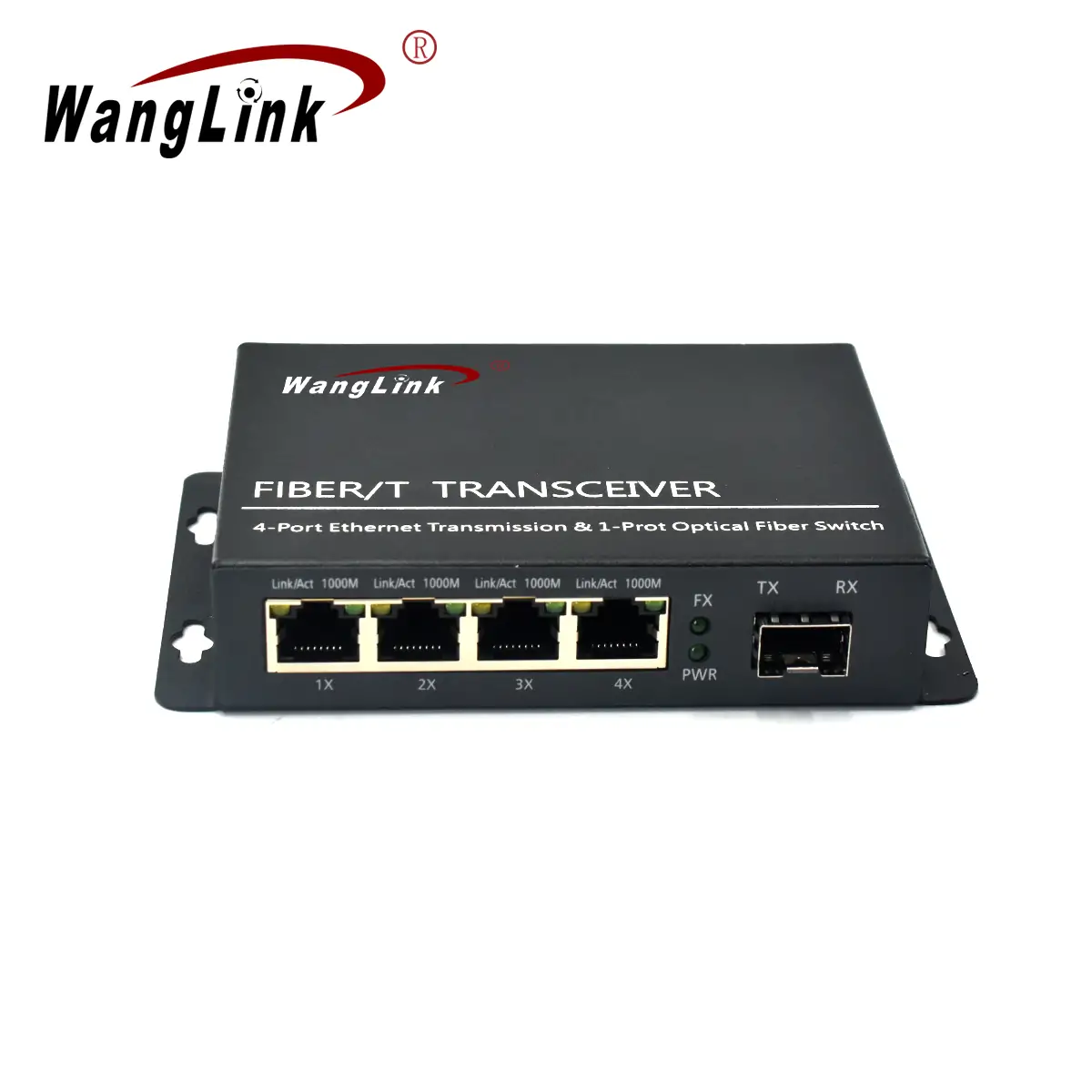

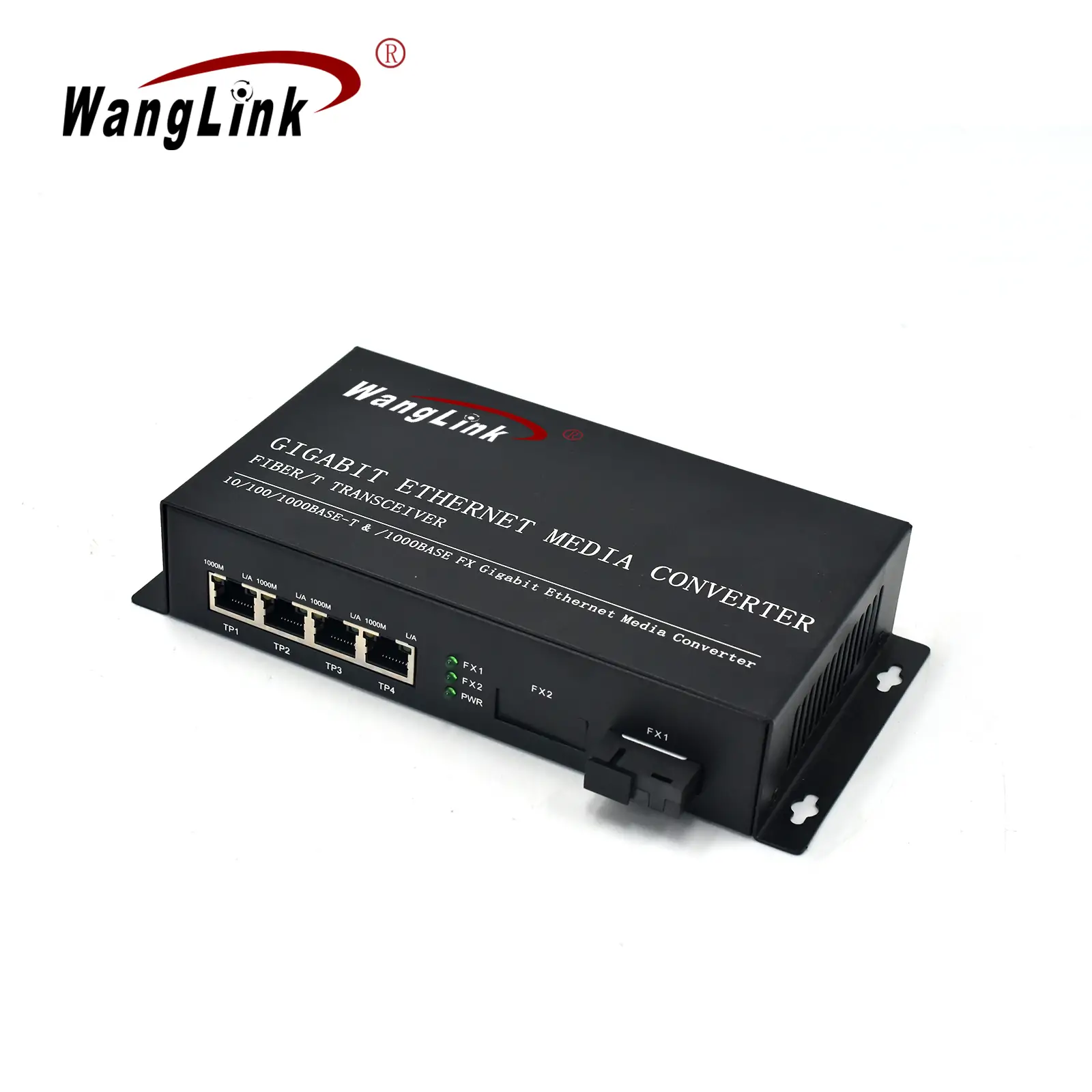

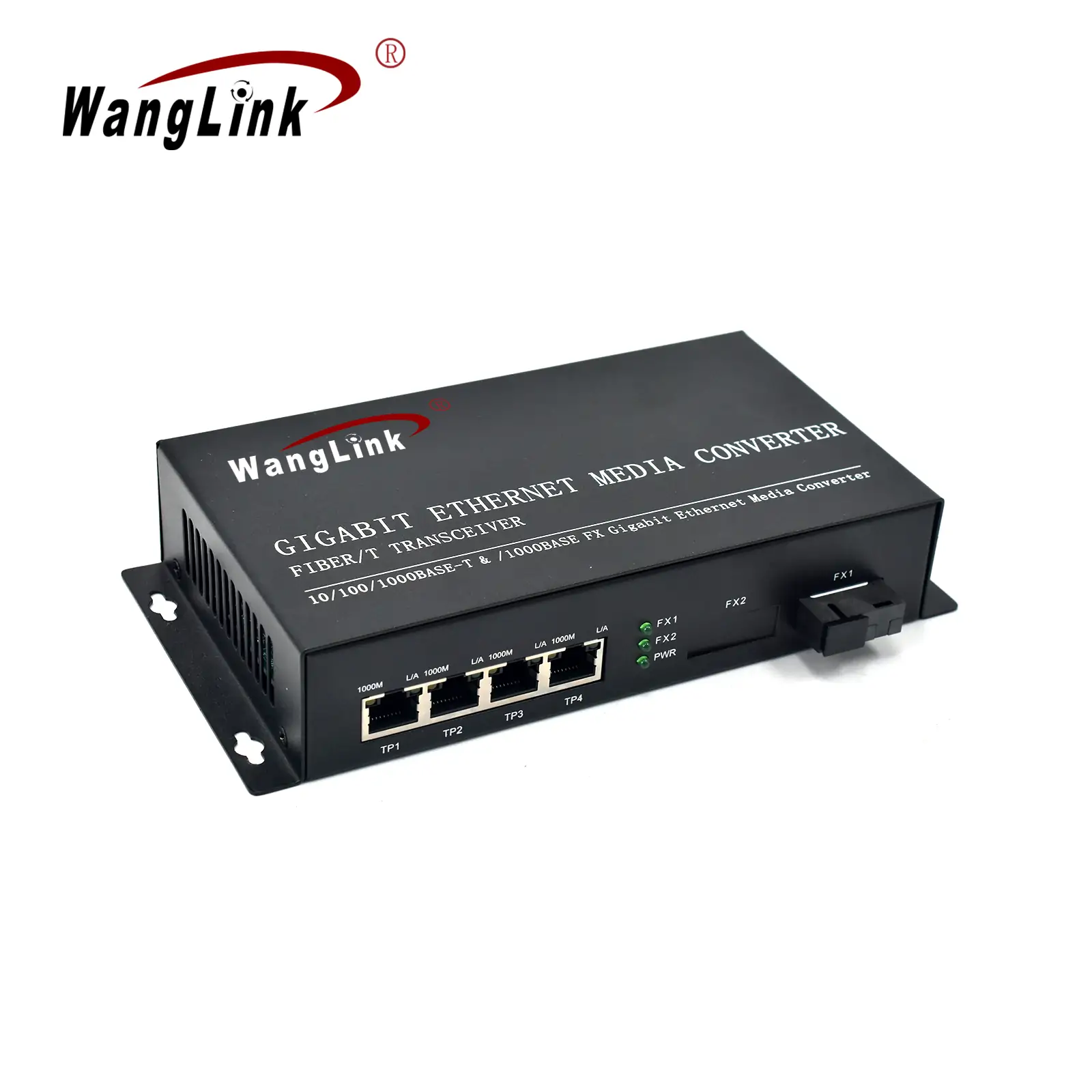

The CG401 is a high-performance Gigabit Ethernet fiber transceiver designed to enhance network connectivity. It features four 10/100/1000Mbps Ethernet ports and one 1.25Gbps fiber port, allowing for seamless data transmission. This converter extends the maximum transmission distance from 100 meters over copper cables to an impressive 120 kilometers over fiber optics. It incorporates various advantages, including isolation protection, robust data security, stable operation, and easy maintenance. The CG401 is user-friendly, featuring a plug-and-play design that requires no configuration. All optical and electrical interfaces comply with international standards, ensuring broad compatibility and reliability in diverse commercial and industrial environments.
Key Features
- Port Configuration:
- 4 x 10/100/1000Base-T Ethernet ports
- 1 x 1000Base-X fiber port
- Jumbo Frame Support: Capable of supporting 9K ultra-large data packet transmission for efficient data flow.
- Rate Adaptation: All Ethernet ports support 10/100/1000Mbps rate adaptation for flexible connectivity.
- Duplex Capability: Features half/full duplex adaptive functionality and automatic MDI/MDI-X on all ports.
- Line-Speed Forwarding: All ports support line-speed forwarding, ensuring smoother and more efficient data transmission.
- User-Friendly Operation: Designed for plug-and-play functionality, requiring no configuration for instant deployment.
- Durable Design: Constructed with a robust metal shell for excellent heat dissipation, ensuring long-term stable operation.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 1×4 RJ45 |
| Transmission rate | 10/100/1000M auto-negotiate； | |
| Transmission distance | 10Base-T: ≤100m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP | |
| Fiber Port | Connector Type | SC/FC/ST/SFP slot |
| Transmission rate | 1.25Gbps | |
| Transmission distance | 550m~100km | |
| Exchange performance | Forward method | Store-and-forward |
| MAC address table | 1K | |
| Buffer Space | 1Mb | |
| Jumbo frame | 9K | |
| Packet forwarding rate | 8.928Mpps@64byte | |
| Bandwidth | 10G (non-blocking) | |
| LED indicator | Power supply | PWR，Green |
| Fiber port | SFP1，Green | |
| Link/Act | TP1/TP2/TP3/TP4，Green | |

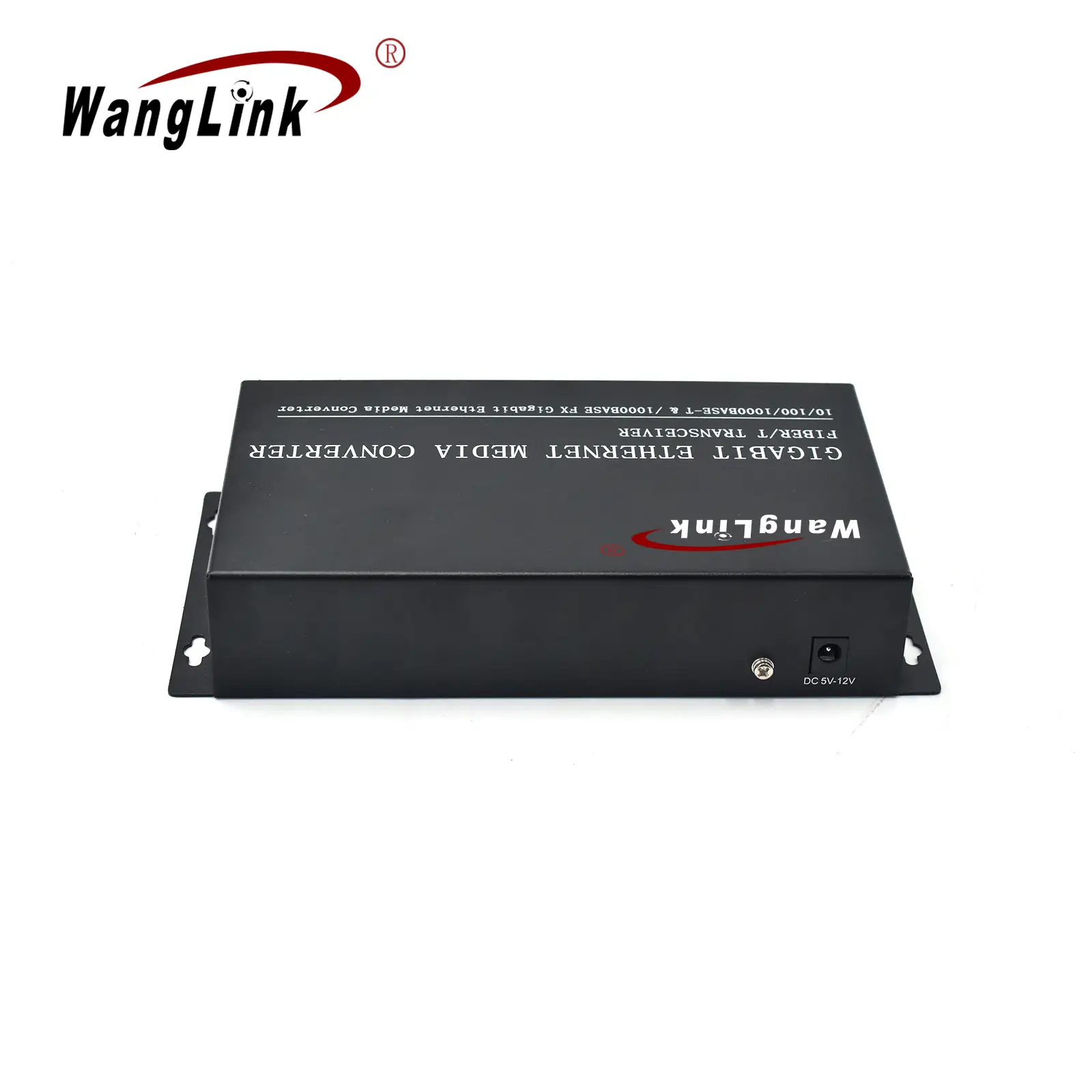

| Power parameters | Input voltage | DC5~12V |
| Power consumption | ≤6W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |
| Physical properties | Size | 113×83×26mm |
| Weight | 0.26kg |
