Product Overview

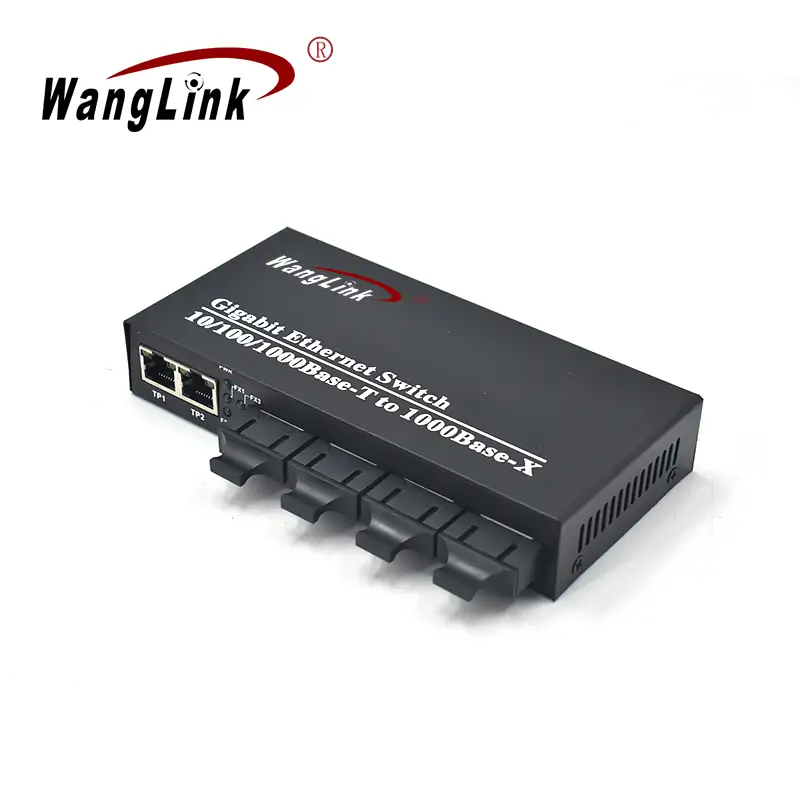

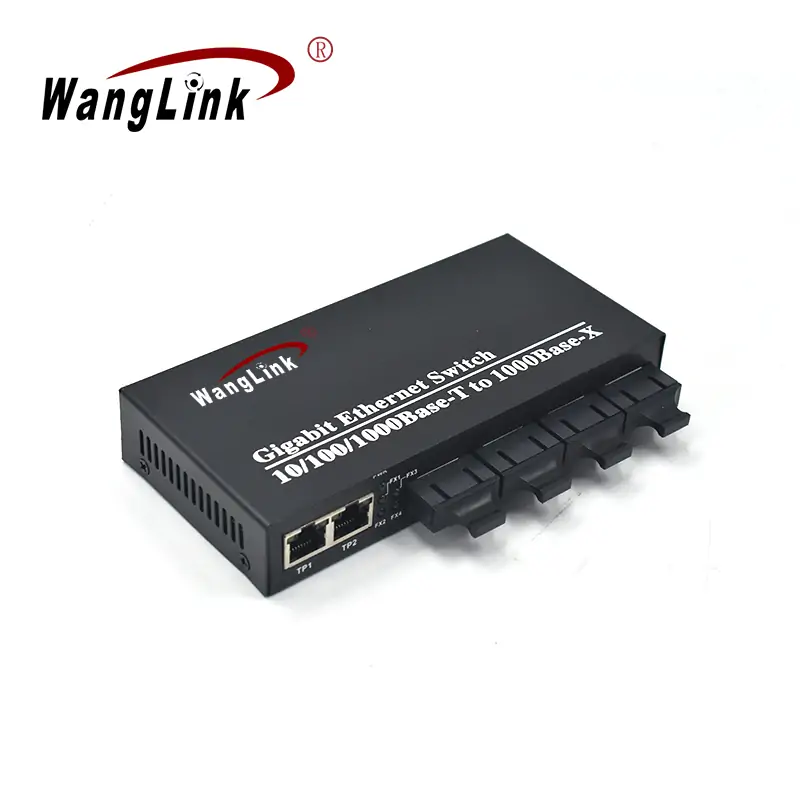

The CG204 is a reliable single mode fiber media converter designed to enhance network connectivity with its robust features. This Gigabit Ethernet Switch includes four 1.25Gbps SC fiber ports and two 10/100/1000Mbps Ethernet ports, enabling seamless data communication between 1000Base-T twisted pair cables and 1000Base-SX/LX fiber optic cables. The CG204 significantly extends the maximum transmission distance from 100 meters over twisted pair to an impressive 120 kilometers using fiber optics.
The installation of the CG204 is straightforward and convenient, offered in a plug-and-play design that requires no configuration. All optical and electrical interfaces comply with international standards, ensuring reliability and compatibility. This converter also features isolation protection, excellent data confidentiality, stable operation, and easy maintenance, making it suitable for various commercial and industrial environments.
Key Features
- Port Configuration:
- 2 x 10/100/1000Base-T Ethernet ports
- 4 x 1000Base-X fiber optic ports
- Jumbo Frame Support: Capable of supporting the transmission of jumbo frames up to 10K in size for efficient data handling.
- Adaptive Speed: All ports support auto-negotiation for 10/100/1000Mbps data rates, allowing flexible connectivity.
- Duplex Capability: Each port supports half/full duplex auto-negotiation and includes automatic MDI/MDI-X functionality for easy integration.
- Line-Speed Forwarding: All ports support line-speed forwarding, ensuring smoother and more efficient data transfer.
- User-Friendly Design: The plug-and-play design allows for easy operation without requiring any configuration.
- Durable Construction: Equipped with a metal casing that provides excellent heat dissipation, ensuring long-term stable operation.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3x flow control |
| Fiber Port Characteristic | Connector Type | SC/FC/ST/SFP |
| Transmission rate | 1.25Gbps | |
| Transmission distance | Multi-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km | |
| Wavelength | Multi-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm | |
| Ethernet port Characteristic | Connector Type | 1×2 RJ45 |
| Transmission rate | 10/100/1000Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 8K | |
| Case space | 1Mb | |
| Jumbo frames | 10K | |
| Packet Forwarding Rate | 8.928Mpps@64byte | |
| Bandwidth | 12G | |

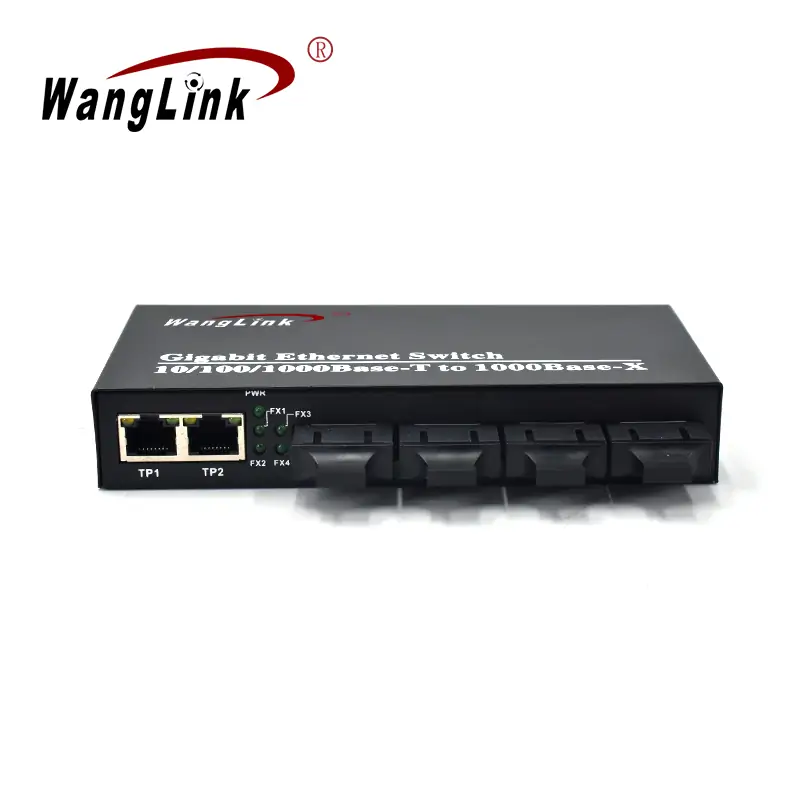

| LED indicator | Power indicator | PWR，Green |
| Fiber indicator | SC1/SC2/SC3/SC4，Green | |
| Link/Act indicator | TP1/TP2，Green | |

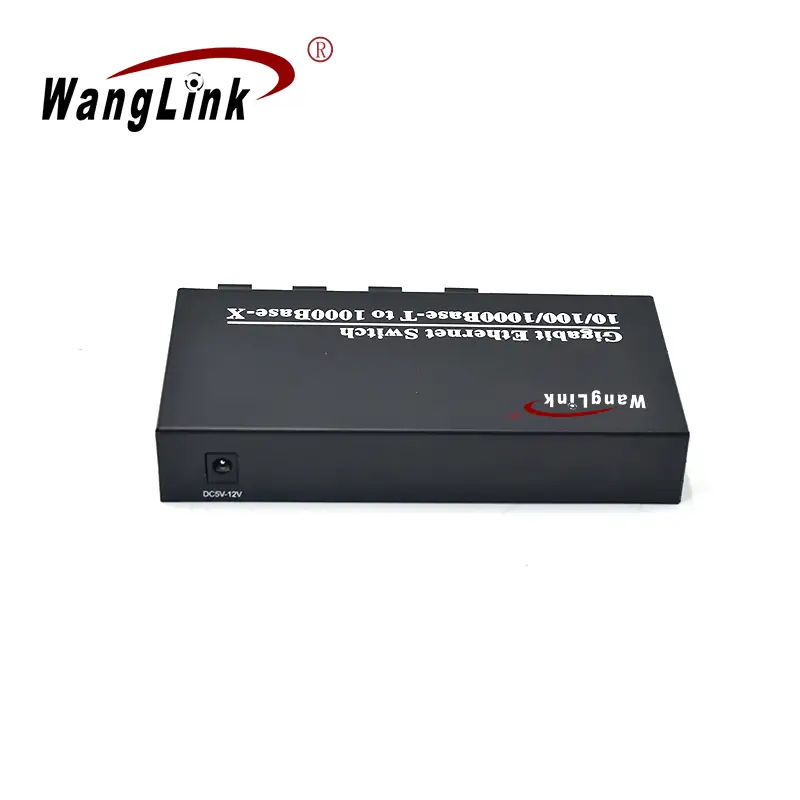

| Power parameters | Input voltage | DC5~12V |
| Power consumption | 4≤W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

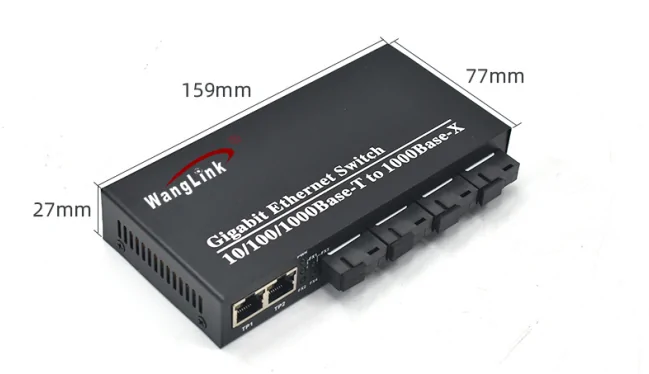

| Physical properties | Size | 159×77×27mm |
| Weight | 150g |
