Product Overview

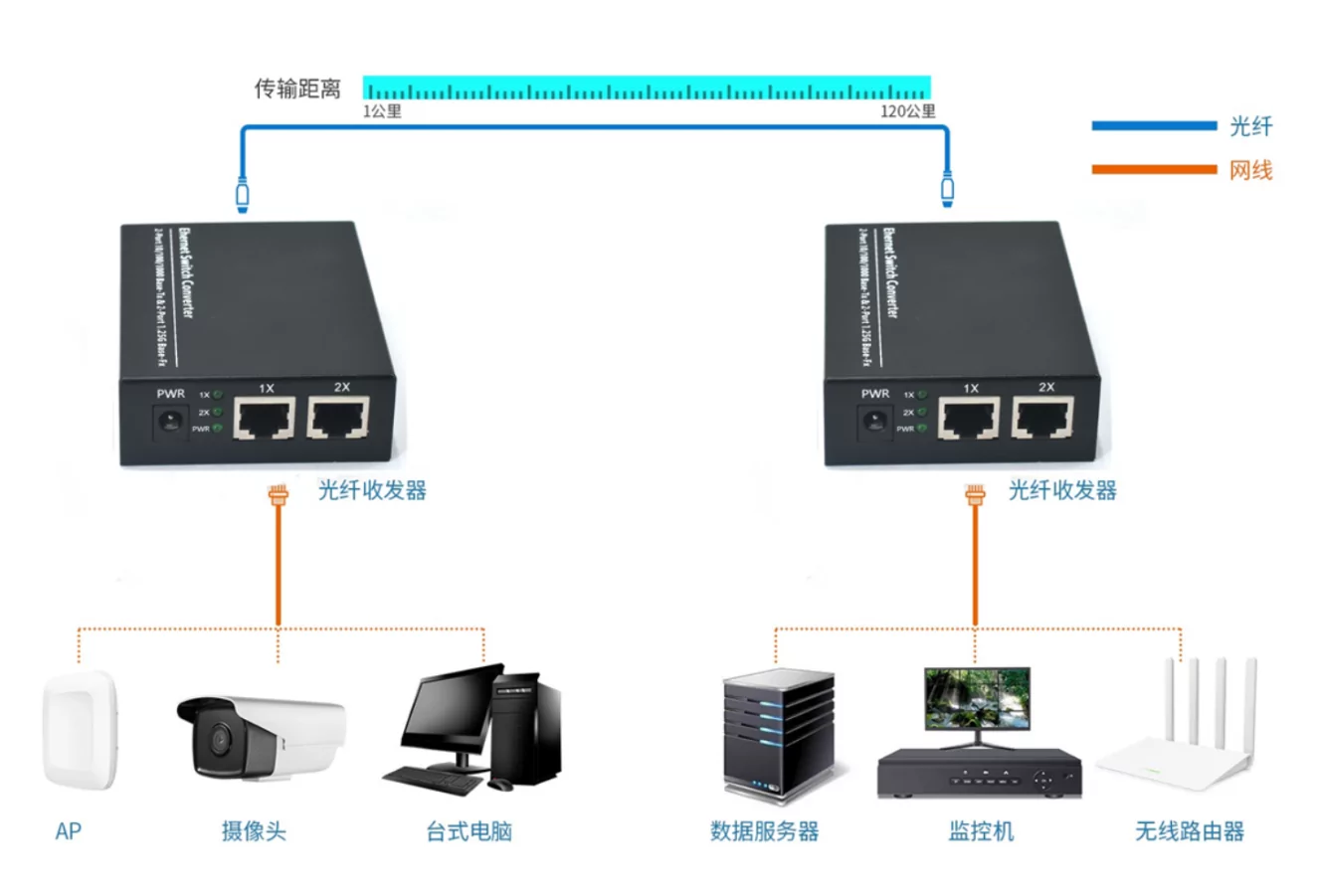

The Fiber Optic Media Converter is a robust networking device equipped with two 1.25Gbps fiber optic ports and two 10/100/1000Mbps Ethernet ports. This media converter facilitates seamless data communication between 100Base-TX twisted pairs and 1000Base-FX optical cables, significantly extending the maximum transmission distance from the standard 100 meters to an impressive 120 kilometers using fiber optic technology. Designed for user-friendliness, this plug-and-play device requires no additional configuration and complies with international standards for all fiber optic interfaces. With excellent data confidentiality, reliable performance, and minimal maintenance requirements, it is ideal for various commercial and industrial applications.
Key Features
- 2 x 10/100/1000Base-T Ethernet Ports and 2 x 1000Base-X SC Fiber Ports
- Supports transmission of jumbo frames up to 10K for enhanced data handling
- All Ethernet ports feature 10/100/1000Mbps auto-negotiation for seamless connectivity
- Supports half/full duplex auto-negotiation and automatic MDI/MDI-X functionality on all ports
- Wire-speed forwarding across all Ethernet ports ensures smoother data transmission
- Plug-and-play design for easy operation with no configuration required
- Durable metal housing provides excellent heat dissipation for long-term stable operation
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE802.3x Flow control, |
| Interface information | Single-mode SC optical port: 2 1000Base-X optical port (SC/FC/SFP optional) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 2 10/100/1000M Base-T ethernet ports (standard RJ45) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |
| Appearance dimensions (length*depth*height): 88mm×69mm×25mm | |
| Installation method: Desktop, wall-mounted | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <0.18KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 8.0Gbps |
| Packet forwarding rate (whole machine) : 5.952 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Packet buffer : 1m | |
| Jumbo frame: 10k | |
| Power supply | Input voltage: DC 5V |
| Power consumption: < 3 W | |
| Indicator | Ethernet port: 1000m: Green |
| Fiber port:FX: Green. | |
| Power supply: Green |
