Product Overview

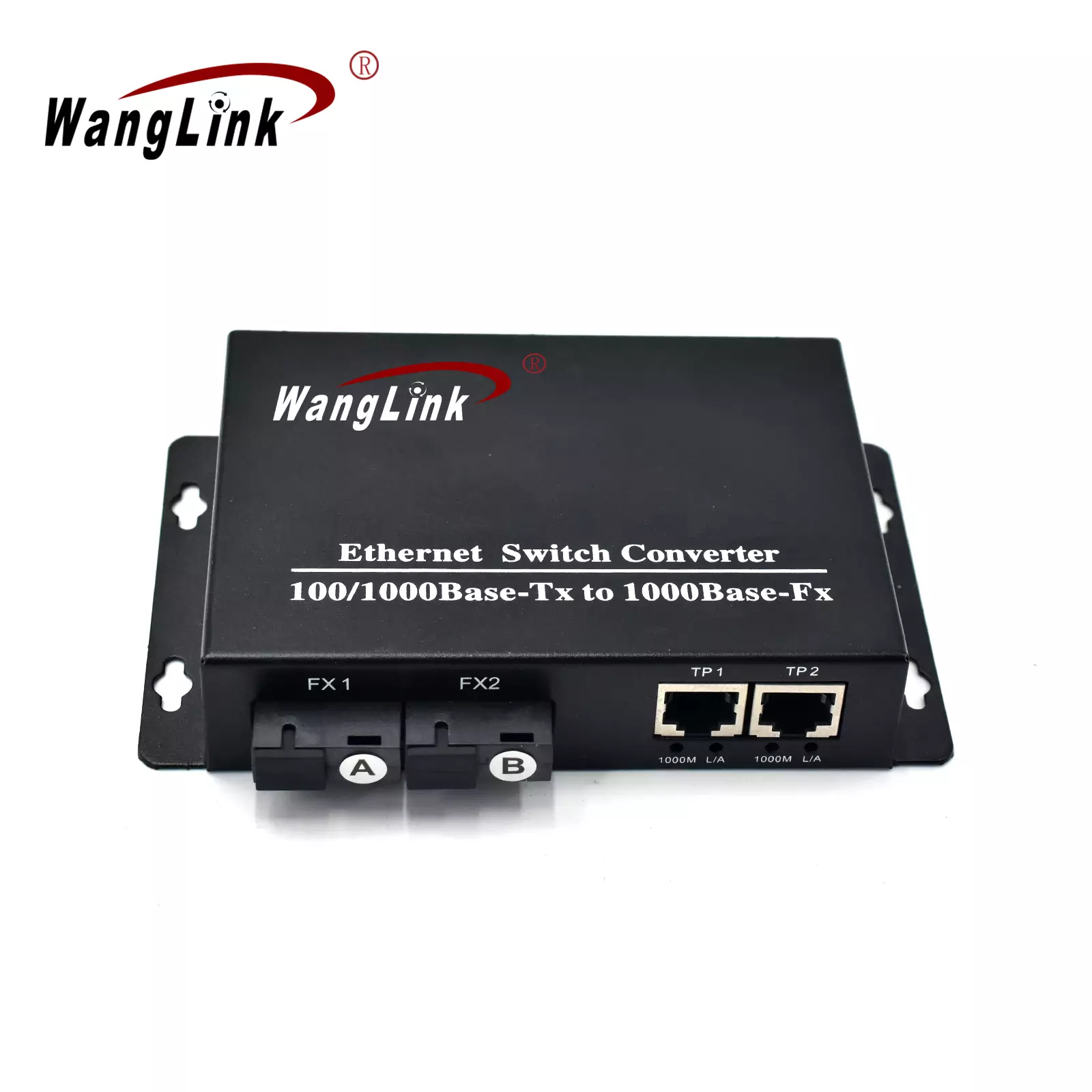

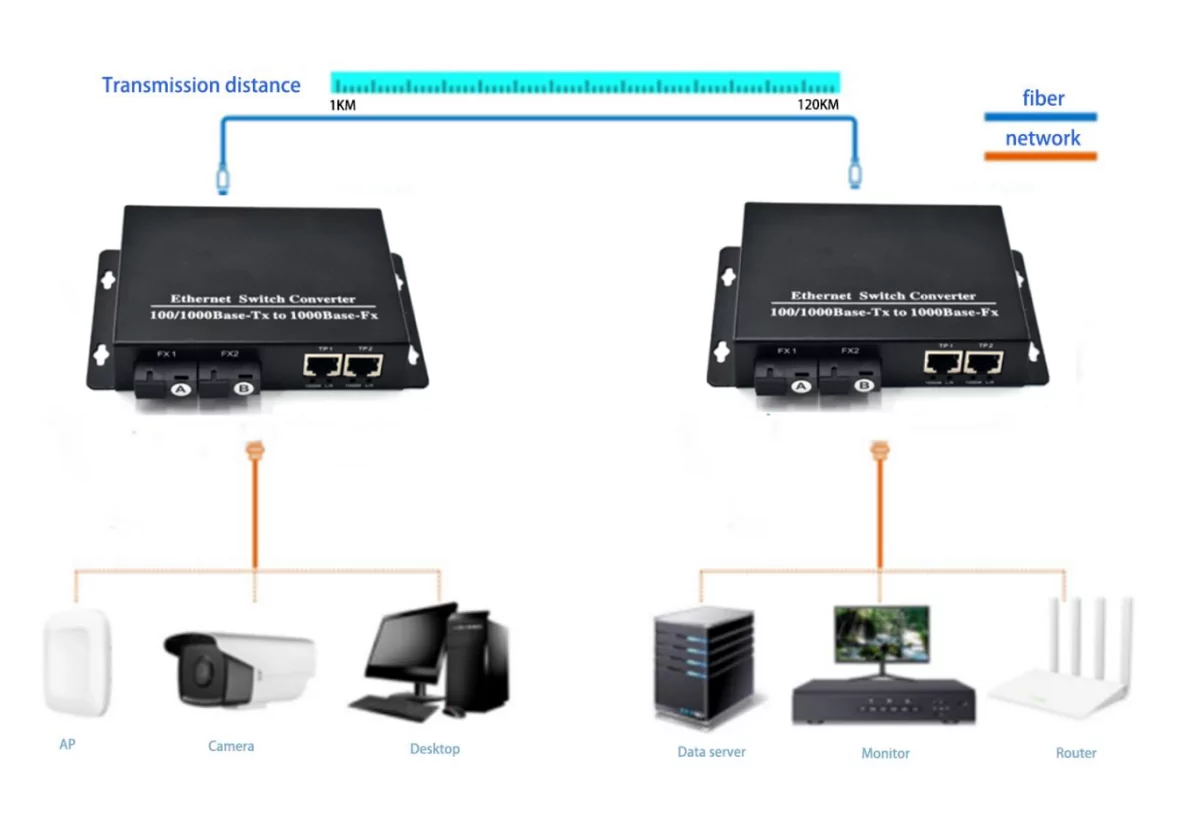

The Ethernet to Fiber Optic Media Converter is a versatile networking device featuring two 1.25Gbps fiber optic ports and two 10/100/1000Mbps Ethernet ports. It facilitates seamless data communication between 100Base-TX twisted pairs and 1000Base-FX optical cables. By utilizing fiber optic technology, this media converter significantly extends the maximum transmission distance from the standard 100 meters to an impressive 120 kilometers. Designed for ease of use, this plug-and-play device requires no additional configuration and complies with international standards for all optical and electrical interfaces. With excellent data confidentiality, reliable operation, and minimal maintenance, it is perfectly suited for a variety of commercial and industrial environments.
Key Features
- 2 x 10/100/1000Base-T Ethernet Ports and 2 x 1000Base-X Optical Ports
- Supports half/full duplex auto-negotiation and automatic MDI/MDI-X functionality
- Complete set of indicators for fiber optic and Ethernet ports for easy installation and maintenance
- Supports both desktop and wall-mounted installation options
- Utilizes a low-power chip for energy efficiency
- Plug-and-play design for simple operation with no configuration required
- Durable metal casing with external power supply ensures excellent heat dissipation for stable long-term operation
Product Parameters
| Chipset Solution | Marvell 88E6320 |
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE802.3x Flow control, |

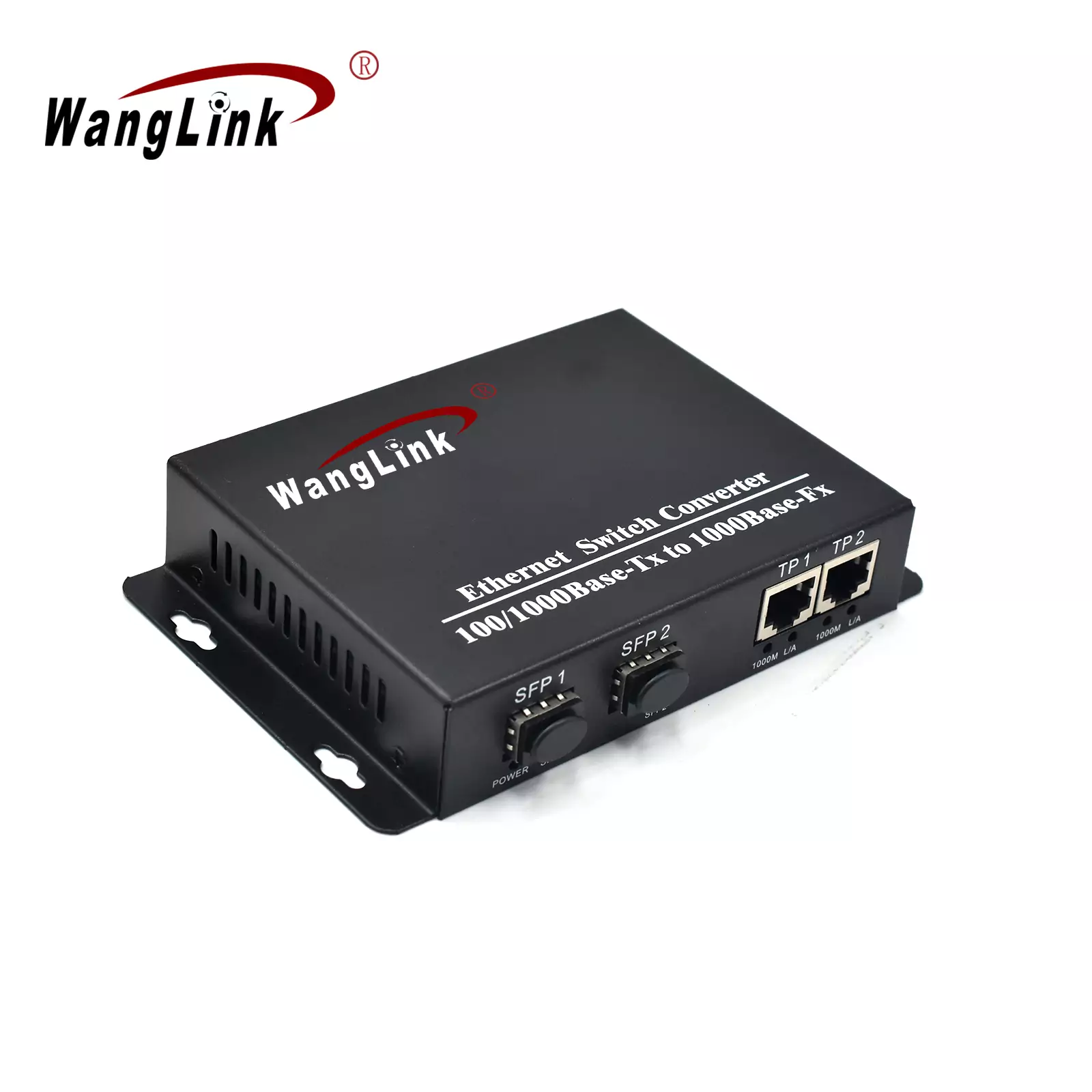

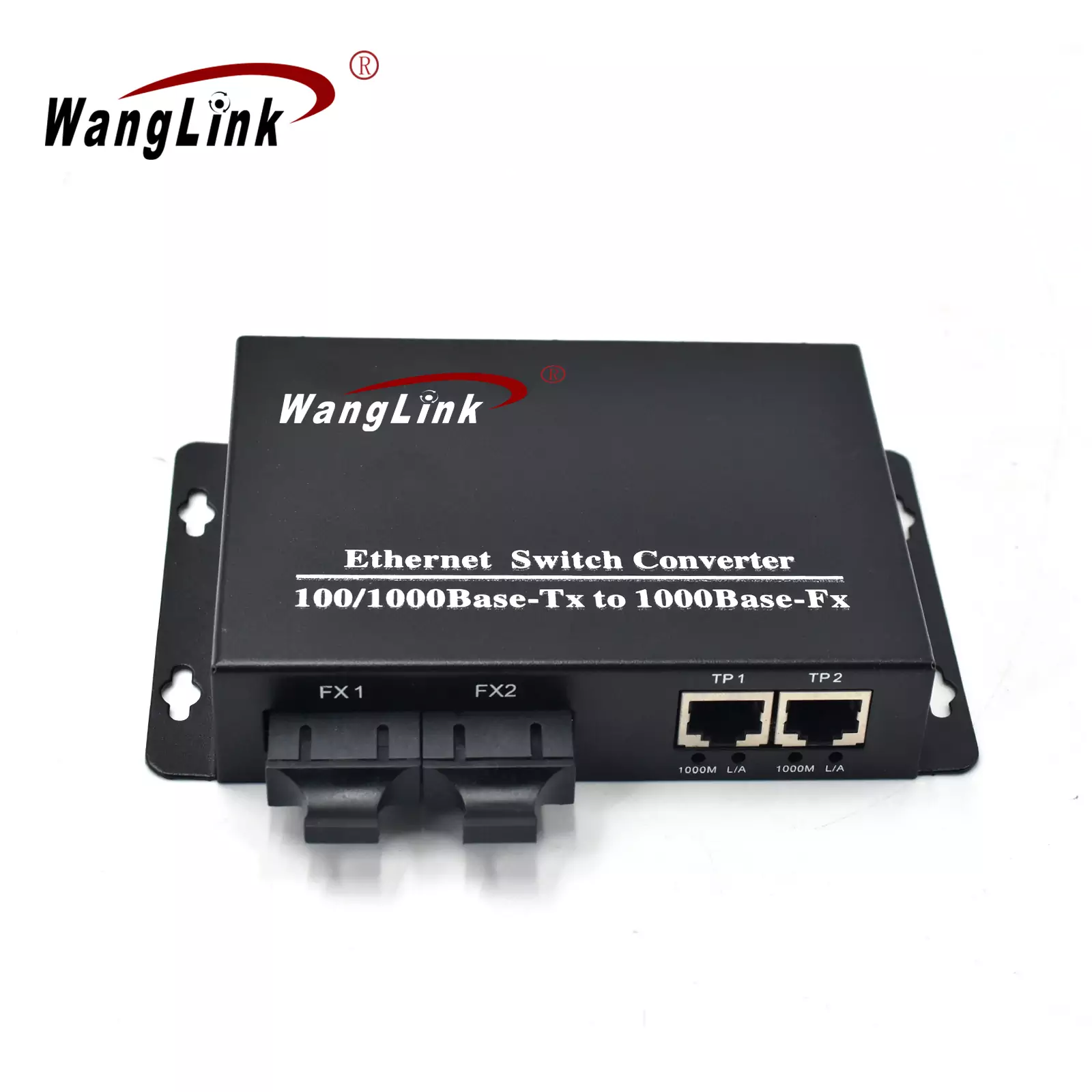

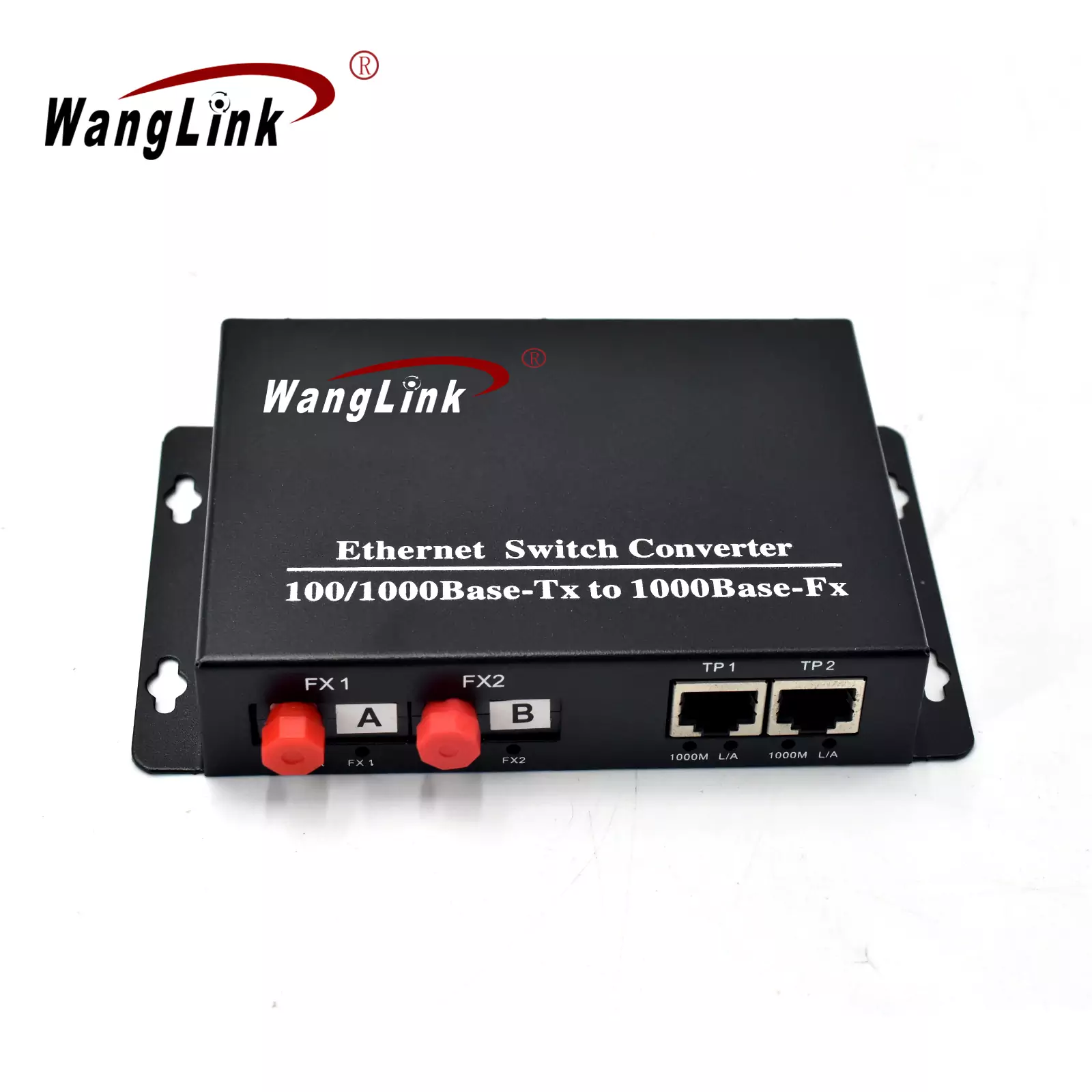

| Interface information | Single-mode SC optical port: 2 1000Base-X optical port (SC/FC/SFP optional) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 2 10/100/1000M Base-T ethernet ports (standard RJ45) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

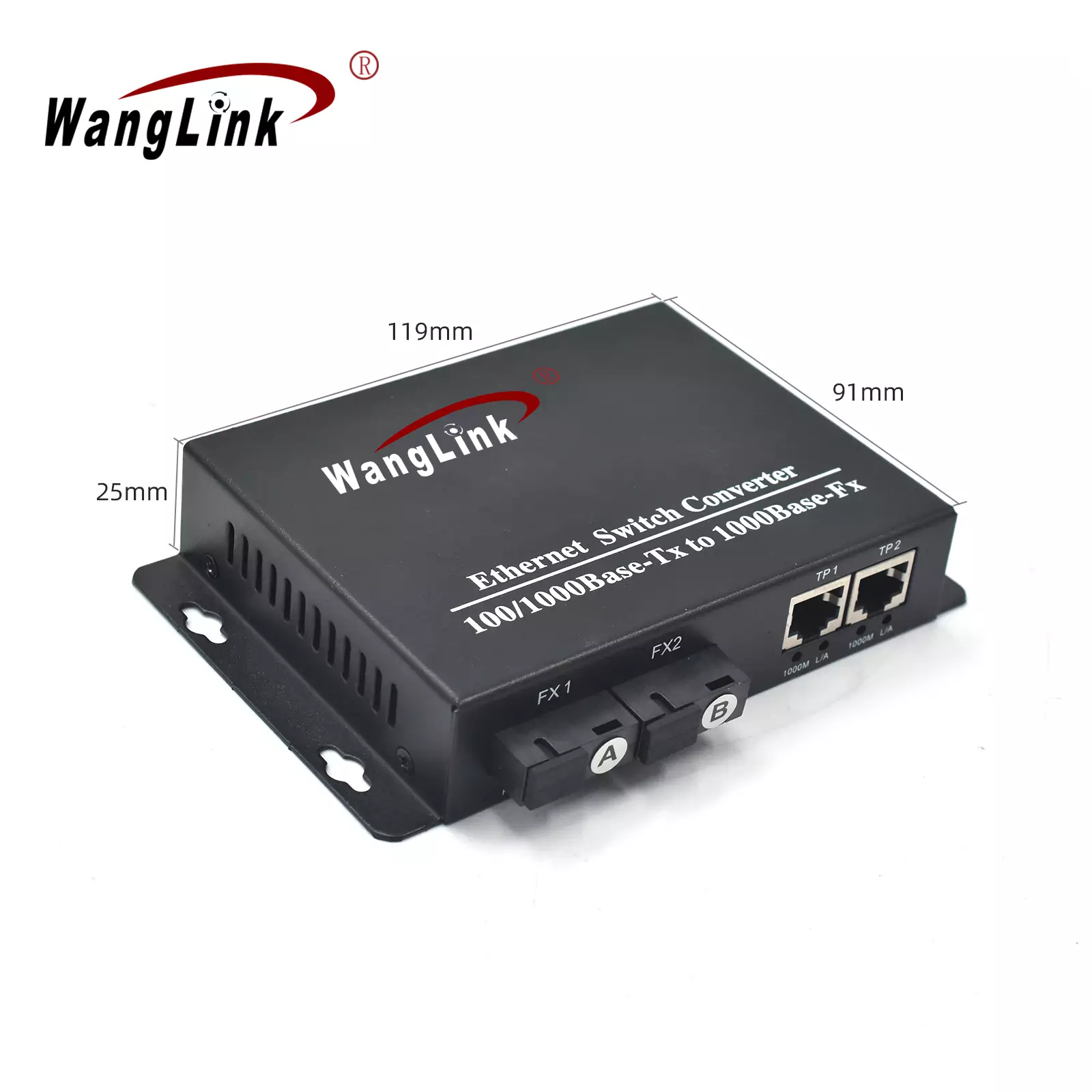

| Appearance dimensions (length*depth*height): 119mm×91mm×25mm | |
| Installation method: Desktop, wall-mounted | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <0.18KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 8.0Gbps |
| Packet forwarding rate (whole machine) : 5.952 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Packet buffer : 1m | |
| Jumbo frame: 10k | |

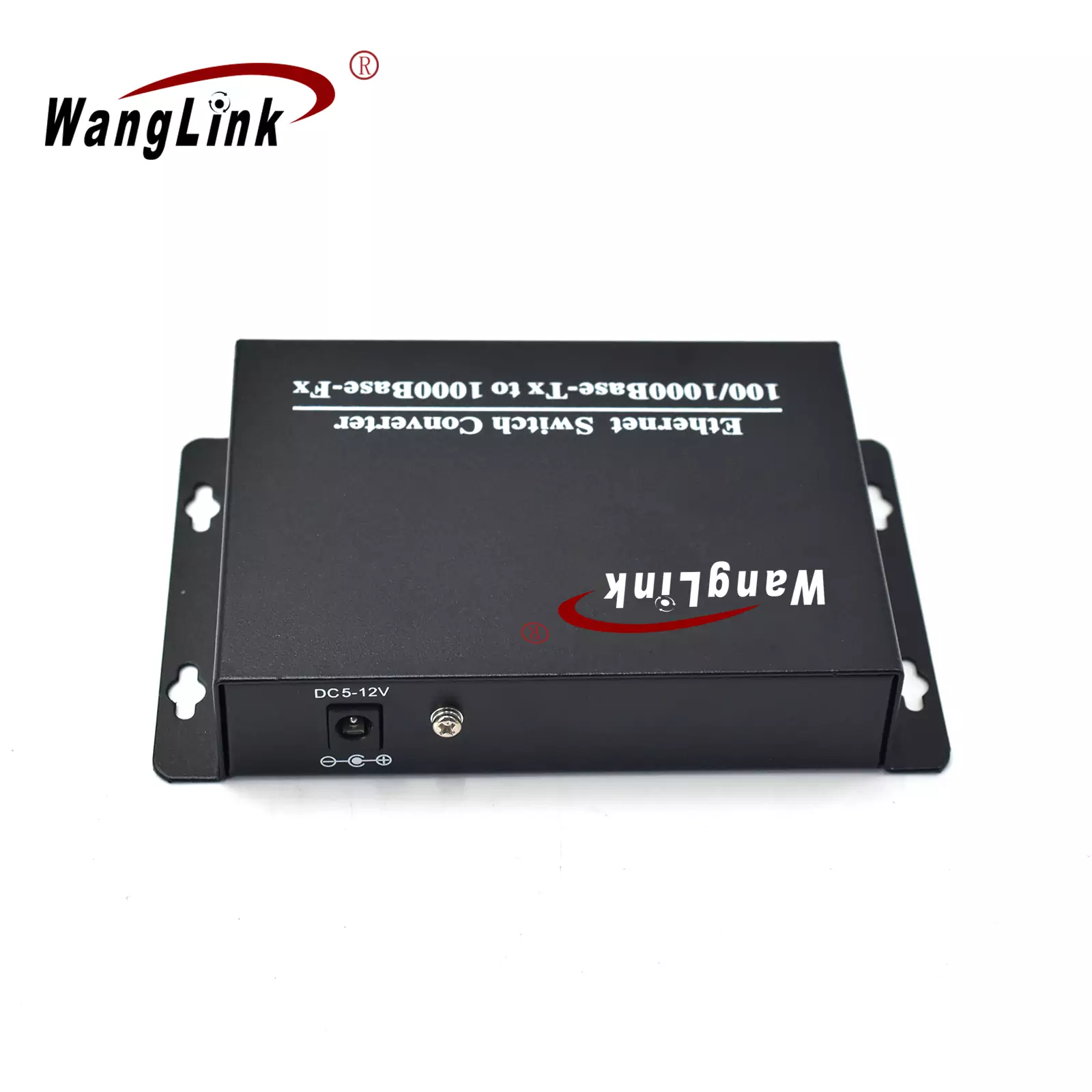

| Power supply | Input voltage: DC 5V-12V |
| Power consumption: < 3 W | |
| Indicator | Ethernet port: 1000m: GreenLink/ Act: Green |
| Fiber port:FX: Green. | |
| Power supply: Green |
